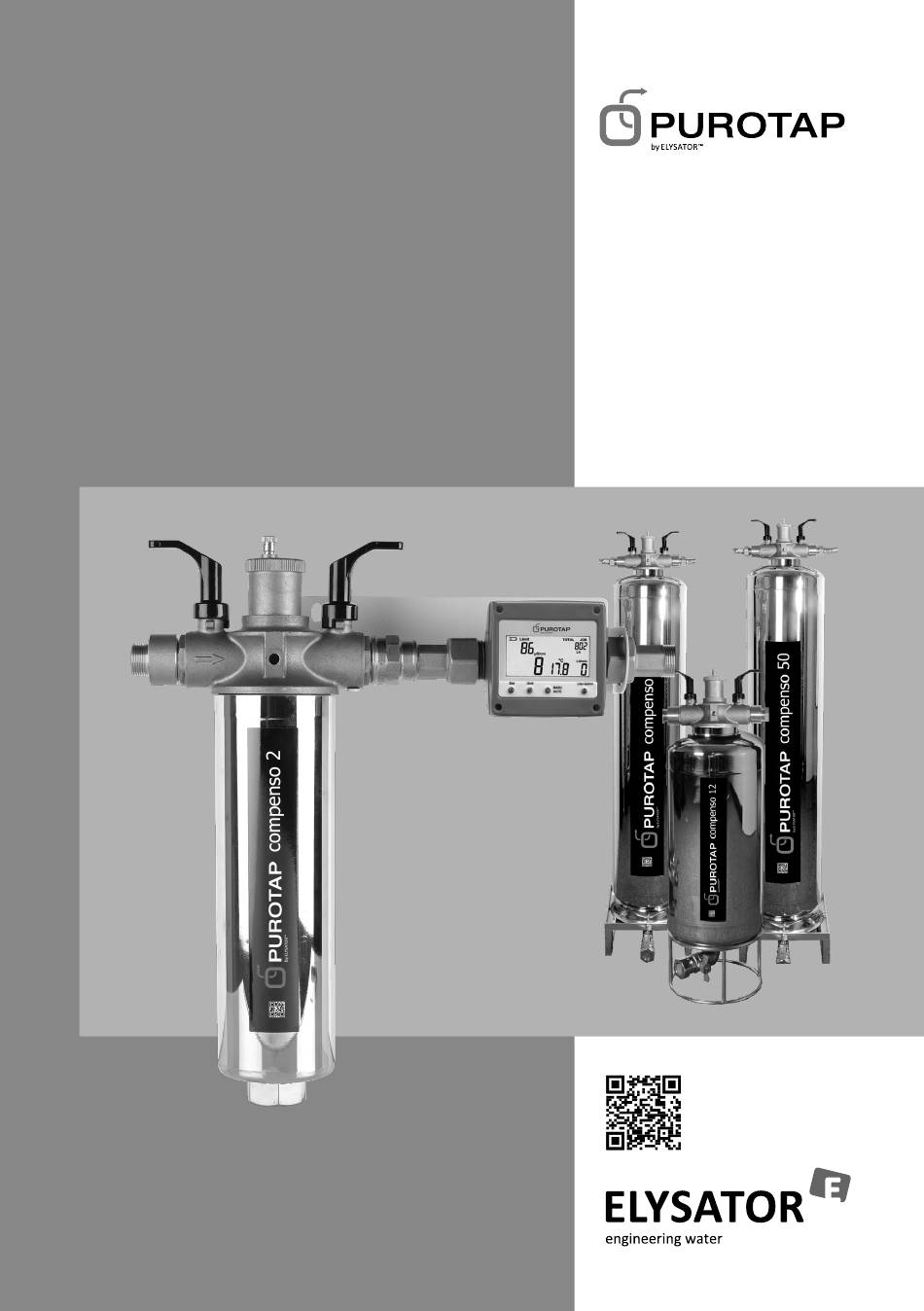

- Page 1 Operating instructions Installation PUROTAP® compenso Function Operation Service www.elysator.com...
-
Page 3: Table Of Contents
Table of contents 1. Safety instructions 2. Function 3. Standard delivery 4. Specification 4.1. Device description 4.2. Dimensions 4.3. Performance data 5. Installation 5.1. Connection 5.2. Combined meter 6. Maintenance 6.1. Replacing the resin 6.2. Changing the combined meter batteries 7. -
Page 4: Safety Instructions
1. Safety instructions Not drinking water Maximum 60 °C Maximum 4 bar pressure 4 bar... -
Page 5: Function
2. Function The PUROTAP® compenso filters lime and aggressive substances such as sulphates, nitrates and chlorides out of the fill water. The appliance uses a mixed bed ion exchanger to provide deionised, fully desalinated water (softened water) for systems of all sizes. This method does not emit any chemical additives into the water. -
Page 6: Specification
4. Specification 4.1. Device description PUROTAP® compenso 2 PUROTAP® compenso 12/25/50 ¾“ male ¾“ male ¾“ male ¾“ male 1 Shut-off valve 6 Head 2 Combined meter 7 Base 3 Reinforced hose 8 Wall mounting bracket 4 Resin canister 9 Air vent 5 Drain valve 4.2. -
Page 7: Performance Data
4.3. Performance data PUROTAP® compenso 2 compenso 12 compenso 25 compenso 50 Annual < 250 l < 2500 l < 5000 l < 10,000 l requirement Capacity 2.5 m³ 20 m³ 40 m³ 80 m³ at 1° dH Capacity 4.5 m³ 35 m³... - Page 8 • The ion exchange resin must not enter the heating system. Do not remove the fine mesh filter in the output. • Observe the maximum system fill pressure. 5.1.2. Simple permanent connection Raw water → Keep valves closed when not in use Backflow preventer Safety instructions...
-
Page 9: Combined Meter
5.2. Combined meter The combined meter measures the raw water quality and the throughput (l/ min and total throughput). Mains plug Automatic quality indicator monitoring Total treated water Battery indicator Present Limit throughput Current Water temperature conductivity value Select between Limit setting litres/gallons Select between... - Page 10 corresponds to approx. 20 µS/cm or 1 °dH corresponds to approx. 35 µS/cm. Sequence of units: µS/cm -- °C | µS/cm -- °F | TDS -- °C | TDS -- °F ON/OFF key (MANU/AUTO) Press the key once to switch on the combined meter. The water quality is measured for 10 seconds and compared to the set limit. During measuring, the background is lit in blue and the conductivity value is displayed.
-
Page 11: Maintenance
Litre-gallon key Briefly press this key once to select the throughput indication in litres per minute (l/min) or gallons per minute (GPM). Press the key for approx. 3 seconds to reset the total throughput volume ("JOB") to 0. We recommend resetting the "JOB"... -
Page 12: Changing The Combined Meter Batteries
PUROTAP® compenso 12/25/50 1. Close ball valve in the output, connect a hose to the drain valve and route into the supplied collection bag. Use water at mains pressure to rinse out the resin, let the water drip out and dispose of resin with the household waste. -
Page 13: Spare Parts
7. Spare parts PUROTAP® compenso 2 compenso 12 compenso 25 compenso 50 Combined meter 102278 Head 102145 O-ring for head 100255 Air vent 100811 Immersion pipe 100556 100967 100968 100739 Canister 100203 100201 100202 100204 8. Consumables PUROTAP® compenso 2 compenso 12 compenso 25 compenso 50 HF 1.7 l highpower 100920 —... -
Page 14: Accessories
9. Accessories PUROTAP® compenso 2 compenso 12 compenso 25 compenso 50 LFM-20, mains unit plus 102280 connector profi, funnel 100872 All rights and technical modifications reserved. The current version can be found at www.elysator.com. EN0721... -
Page 15: Service Booklet
Service booklet Installer: Project: Date of installation: Device no.: Sludge removal interval: Maintenance interval: Company/ Date Meter signature...
