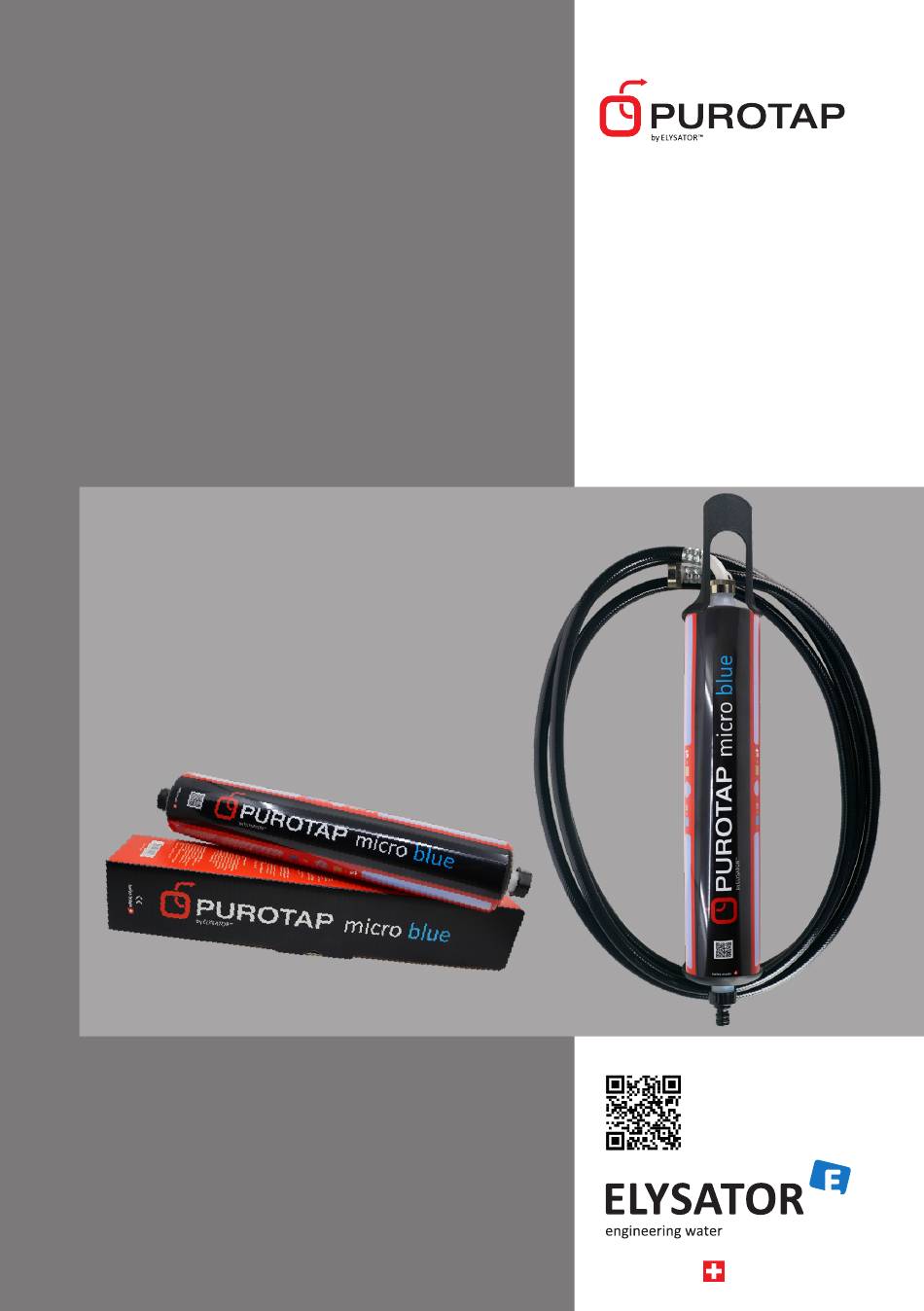

- Page 1 Installation Function Operating instructions Operation PUROTAP® micro Service PUROTAP® micro blue swiss made...
-
Page 3: Table Of Contents
Table of contents 1. Safety instructions 2. Function 3. Standard delivery 4. Specification 4.1. Dimensions 4.2. Performance data 5. Installation 5.1. Applications 5.1.1. Refilling the heating system 5.1.2. Additional applications 6. Commissioning 7. Maintenance 8. Spare parts 9. Consumables... -
Page 4: Safety Instructions
1. Safety instructions Must be supervised Throughput max. 4 - 5 l/min Not drinking water Maximum 60 °C max. 4 bar Maximum 4 bar pressure @ 20 °C @ 20 °C Protect from direct sunlight Do not open the cartridge Household waste Recycling... -
Page 5: Function
2. Function The PUROTAP® micro cartridge filters lime and aggressive substances, such as sulphates, nitrates and chlorides, out of the drinking water. PUROTAP® micro uses a mixed bed ion exchanger to provide demineralised, fully desalinated water, which is also referred to as distillate-like water. This method does not emit any chemical additives into the water and works without a power supply. -
Page 6: Specification
4. Specification 4.1. Dimensions Cartridge weight: 1.5 kg Max. pressure, supervised, temporary: 4 bar @ 20 °C Max. temp., supervised, temporary: 60 °C Material: PS, PP Diameter: 80 mm Disposal: Household waste 80 mm Recycling: 4.2. Performance data °fH °dH 45° 25° 40° 22° 35° 20°... -
Page 7: Installation
5. Installation Using the wall mounting bracket, install the cartridge in a suitable position on the wall near a tap. The tube can simply be wound round the cartridge mounting bracket. The direction of flow is not important at this stage. Once selected, however, it should not be changed until the resin is spent (beige). -
Page 8: Applications
5.1. Applications 5.1.1. Refilling the heating system According to European standards, water for filling heating systems should be demineralised. Practical experience has shown that, even at a low hardness level, limescale deposits can cause damage to modern appliances, such as wall mounted gas boilers, heat pumps and solar thermal systems. -
Page 9: Commissioning
simply attach it to any commercially available garden hose. Please note that the cartridge must be monitored at all times in this scenario and must not be constantly subjected to water pressure. 6. Commissioning - Simply connect to a drinking water line (≤ 4 bar) and you're done! - Throughput max. -
Page 10: Spare Parts
PUROTAP® micro blue, replacement cartridge 101 244 PUROTAP® micro, wall mounting bracket for wall mounted unit 9. Consumables Item no. Designation 101 197 PUROTAP® micro blue, replacement cartridge All rights reserved. Subject to technical modifications. The current version can be found at www.elysator.com. EN0923...
