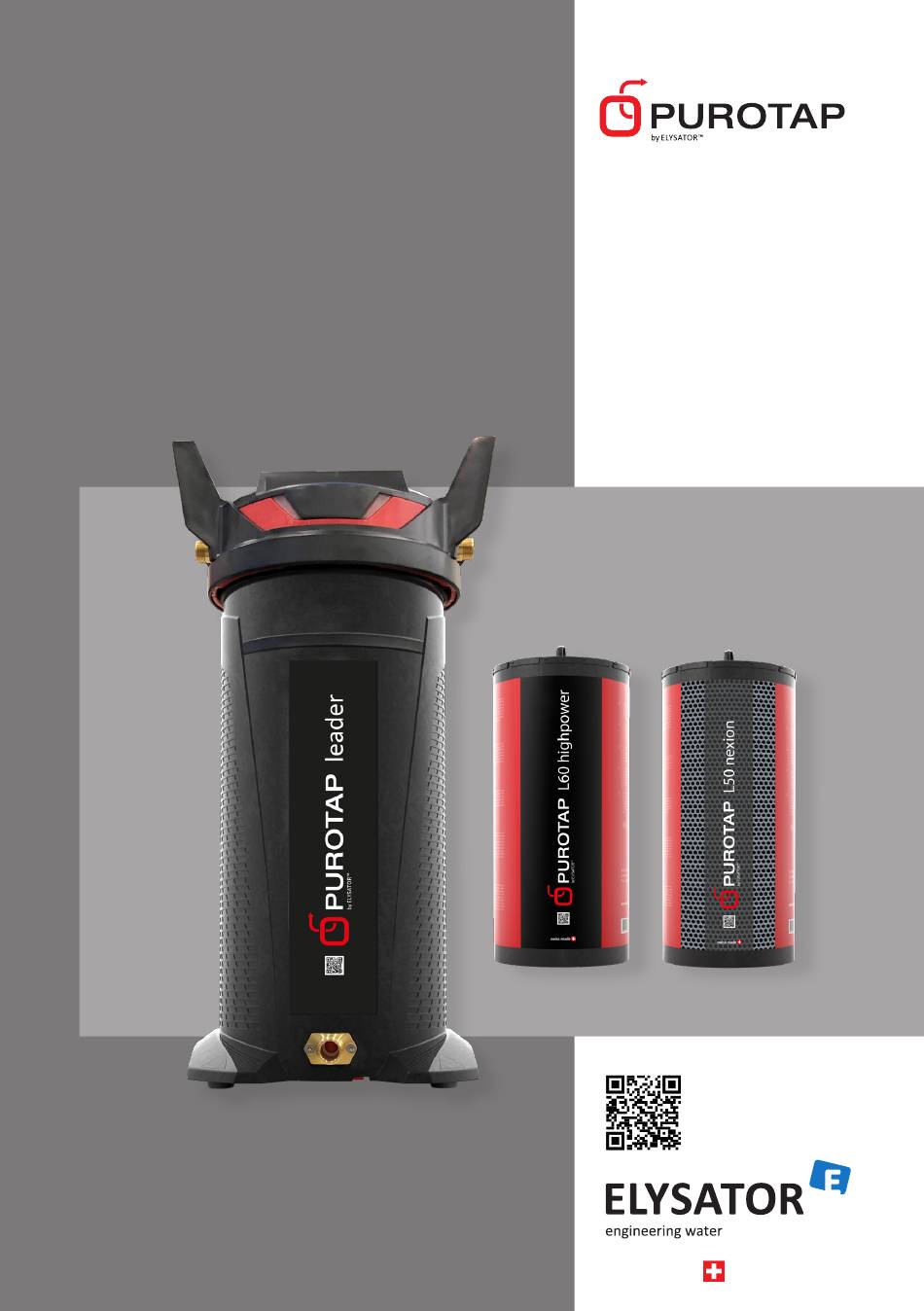

- Page 1 Operating instructions Installation PUROTAP® leader Function Operation Maintenance swiss made...
-
Page 3: Table Of Contents
Table of contents 1. Safety instructions 2. Function 3. Standard delivery 4. Specification 4.1. Device description 4.2. Dimensions 4.3. Performance data 5. Operation 5.1. Replaceable cartridges 5.2. Connection version for system filling 5.3. Connection version for system flushing 5.4. Information and control unit 6. -
Page 4: Safety Instructions
1. Safety instructions Not drinking water max. Maximum 1 bar pressure @ 60 °C 1 bar @ 60 °C max. Maximum 2,5 bar pressure @ 40 °C 2.5 bar @ 40 °C max. Maximum 4 bar pressure @ 20 °C 4 bar @ 20 °C Flow rate max. -
Page 5: Function
2. Function Heating and cooling systems use water as a heat transfer medium. The water circulates from the place where heat is generated to the consumer and back. Even if the system always reuses the same water, lime and other aggressive substances can still get into the closed water system when it is filled for the first time and may lead to corrosion, or damage modern components. -
Page 6: Standard Delivery
3. Standard delivery • PUROTAP® leader • Operating instructions (PUROTAP® replaceable cartridge must be ordered separately) Recycling & Resin quality We recycle for you! Certified quality resin... -
Page 7: Specification
4. Specification 4.1. Device description 1 Battery compartment 2 Release lever 3 Shut-off valve 4 Connections 5 Information screen 6 Pressure vessel 7 Replaceable cartridge 8 Drain valve 4.2. Dimensions Dimensions PUROTAP® leader Overall height 69 cm Diameter 30 cm Weight empty 10 kg Weight with replaceable... -
Page 8: Operation
5. Operation 5.1. Replaceable cartridges To operate the PUROTAP® leader, you will need: PUROTAP® L60 highpower, capacity 60,000 l at 1° fH / 34,000 l at 1° dH. PUROTAP® highpower resin with a high capacity for conventional heating systems..or... PUROTAP®... -
Page 9: Connection Version For System Filling
5.2. Connection version for system filling This connection version is suitable for filling heating systems with demineralised water. This connection version is not suitable in systems with surface heating systems, which can only be vented by means of flushing. The capacity of the ion exchanger is not sufficient to expel air from a horizontal line. -
Page 10: Connection Version For System Flushing
• PUROTAP® leader does not contain any mechanism for automatic shut-off when the required pressure is reached. If system filling is not continuously monitored, a pressure reducing valve must be connected upstream to prevent damage to the heating system due to overpressure at the end of filling. - Page 11 • The probes must be cleaned and newly adjusted if necessary. Please therefore send the PUROTAP® leader head to your ELYSATOR® representative for periodic inspection. • If this flushing version is carried out during heating operation, the temperature on the device may temporarily be maximum 60 °C.
-
Page 12: Information And Control Unit
5.4. Information and control unit Current Outlet limit: Current measurement measurement in Recommendation: 50 μS in the outlet the inlet Inlet limit (only (33 TDS); replace the resin relevant for circuit above these levels (system Current rate in desalination) litres filling) Wireless Total litres... -
Page 13: Using The Options
Each time this key is tapped, the limit for measurements at the PUROTAP® leader "inlet" is increased by one interval of 10 µS or 2 TDS. Hold the key for 3 seconds to reset the limit to zero. Programming the limit at the inlet ensures that feedback is provided when the target value in the system water is reached (with system flushing). -
Page 14: Purotap® Leader Trolley
1. Linking the devices Plug the wireless plug into the socket: press green key on wireless plug (LED flashes). PUROTAP® leader: information centre switched OFF. Information and control unit (OFF): press & hold key 2 and tap key 1. Release key 2 after 3 seconds. If linking is successful, the LED on the wireless plug shows a steady red light. -
Page 15: Maintenance
7. Maintenance 7.1. Changing the cartridge 1. Stop water supply. 2. Release the pressure. 3. Unlock the cover with the release lever (14), open it with a ⅟₄ turn in anti- clockwise direction and remove it. 4. Remove spent cartridge. 5. -
Page 16: Cleaning/Adjusting The Probes
101 702 PUROTAP® L60 highpower 101 727 PUROTAP® L50 nexion 10. Options Item no. Designation 101 883 PUROTAP®, wireless plug 102 268 EEAG trolley All rights reserved. Subject to technical modifications. The current version can be found at www.elysator.com. EN0124...
