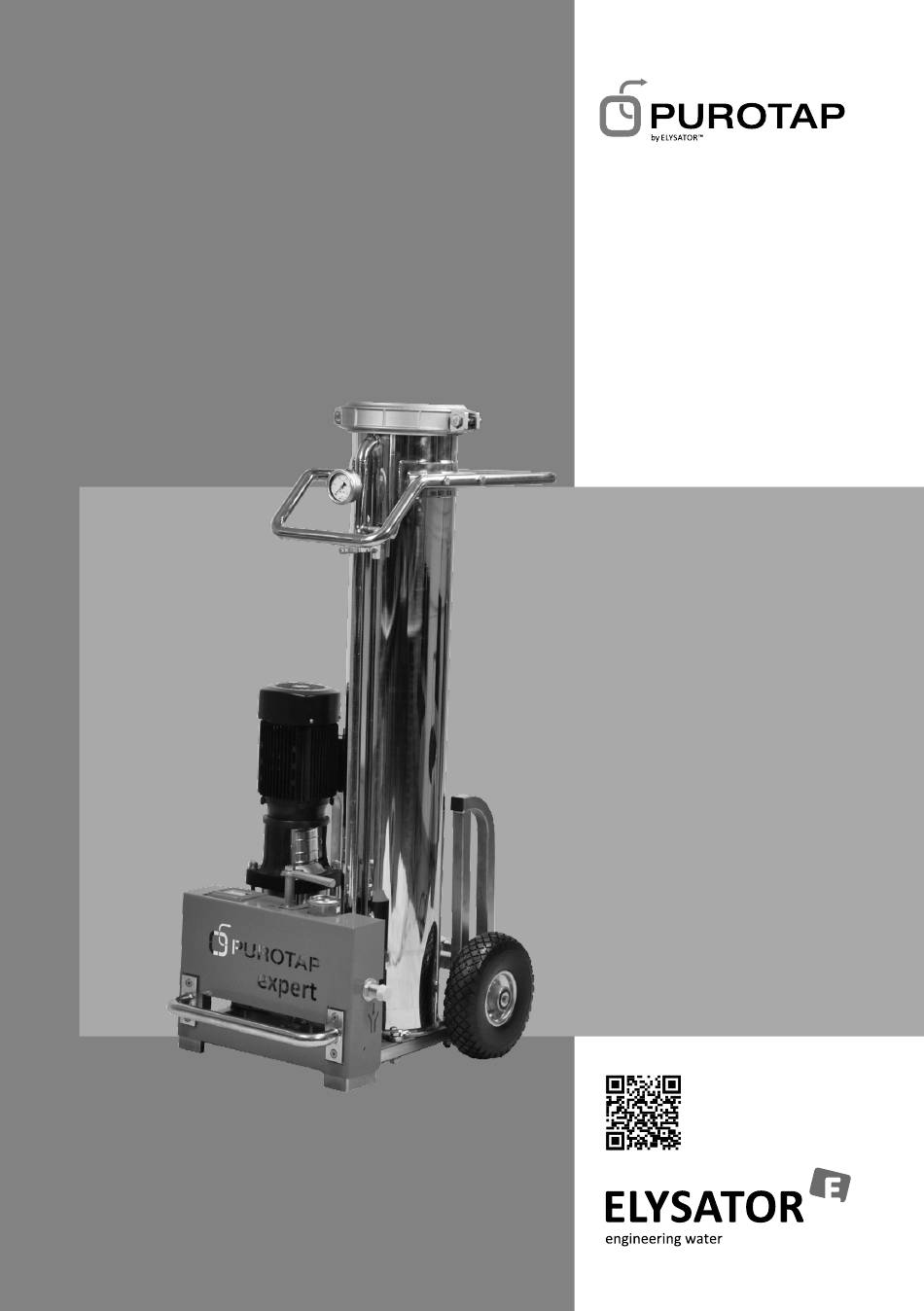

- Page 1 Operating instructions Installation PUROTAP® expert Function Operation Maintenance www.elysator.com...
-
Page 3: Table Of Contents
Table of contents 1. Safety instructions 2. Function 3. Standard delivery 4. Specification 4.1. Device description 4.2. Dimensions 4.3. Performance data 5. Operation 5.1. Installing/replacing the filter membrane 5.2. Connection 5.3. Commissioning 5.4. Combined meter 5.5. Troubleshooting 6. Maintenance 6.1. Changing the batteries 6.2. -
Page 4: Safety Instructions
1. Safety instructions Not drinking water Maximum 45 °C Maximum pressure 9 bar (not constantly) 9 bar Flow rate max. 10 l/min without pump l/min Flow rate max. 20 l/min with pump l/min... -
Page 5: Function
2. Function The PUROTAP® expert works on the basis of reverse osmosis. The flow pattern of the water inside the intricately designed tank is controlled in a way that enables the system to achieve incomparably high filtration velocities. With its integrated high pressure pump, the PUROTAP®... -
Page 6: Specification
4. Specification 4.1. Device description 1. Inlet ¾" male thread 2. Pressure gauge for dynamic pressure, filter membrane 3. Aeration tap 4. Filter casing 5. Filter casing cover 6. Pressure booster pump 7. Handle, top 8. Handle, bottom 9. Combined meter 10. -
Page 7: Operation
Desalination capacity without pump up to 10 l/min* Desalination capacity with pump up to 20 l/min* Tmax 45 °C pH range 3-10 Pump connection 230 V AC, 16 A Filter membrane service life approx. 100,000 l** * The throughput depends on the salt content of the raw water. The higher the salt content, the lower the throughput. -
Page 8: Connection
14. Insert the spacer ring (14) 15. Close the cover (5) The filter casing cover must be closed properly! 5.2 Connection Connect the device to the raw water at the inlet (1) using an adequately sized hose. Connect the outlet (12) to the system to be filled, also using a hose. Use a hose to route the waste water outlet (11) to an output line. -
Page 9: Combined Meter
The pump can be used to build up a pressure of 18 bar at the device outlet. It is therefore essential to install a pressure reducing valve! 5.4. Combined meter The combined meter measures the pure water quality and the throughput (l/ min and total throughput). - Page 10 and TDS (total dissolved solids) as well as between °C and °F. The first two are units of measurement for the amount of minerals dissolved in the water. Most European component manufacturers use the unit of measurement µS/cm (microsiemens per centimetre). Water hardness at the output of the refill device can be determined using the following rule of thumb: 1 °fH corresponds to approx.
-
Page 11: Troubleshooting
the floating contact is switched over. If the key is pressed for a third time, the meter exits auto mode. Litre-gallon key Briefly press this key once to select the throughput indication in litres per minute (l/min) or gallons per minute (GPM). Press the key for approx. 3 seconds to reset the total throughput volume ("JOB") to 0. -
Page 12: Draining
6.2. Draining To reduce the weight of the device for transportation and avoid frost damage in winter, the water must be drained after use. Draining is carried out by opening the aeration tap (3) and single lever fitting (10). To avoid frost damage, the device must be drained if temperatures are below freezing point! 6.3. -
Page 13: Consumables
8. Consumables Item no. Designation 101 221 PUROTAP® E90, membrane All rights and technical modifications reserved. The current version can be found at www.elysator.com. EN0421...
