- Page 1 Operating instructions Installation PUROTAP® easy II Function Operation Maintenance www.elysator.com...
-
Page 3: Table Of Contents
Table of contents 1. Safety instructions 2. Function 3. Standard delivery 4. Specification 4.1. Device description 4.2. Dimensions 4.3. Performance data 5. Operation 5.1.1. Draining spent resin 5.1.2. Filling the resin canister 5.2. Connection 5.3. Commissioning 5.4. Combined meter 6. Maintenance 6.1. -
Page 4: Safety Instructions
1. Safety instructions Not drinking water Maximum 60 °C Maximum pressure 6 bar (not constantly) 6 bar Flow rate max. 15 l/min l/min... -
Page 5: Function
2. Function The PUROTAP® easy II treats water for technical applications in closed systems according to the latest standards (VDI 2035, SWKI BT 102--01, Ö-Norm H5195). It demineralises water using a mixing bed ion exchange resin. The device has an integral meter that constantly measures and displays fill volume, throughput and water quality. -
Page 6: Specification

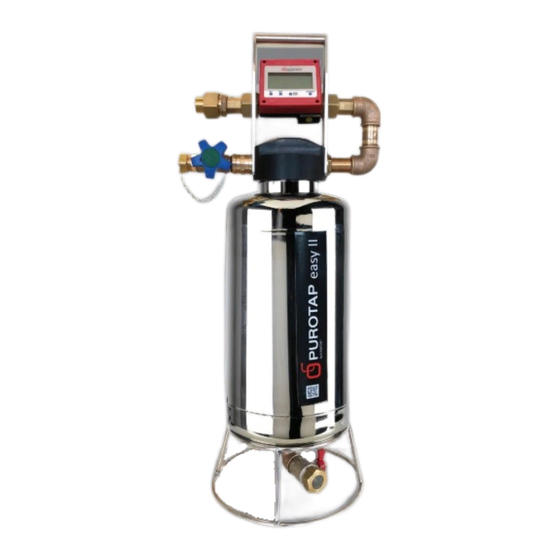

4. Specification 4.1. Device description 1. Inlet ¾" with sealing cap 2. Shut-off valve 3. Resin canister 4. Drain valve with round mesh filter 5. Head with immersion pipe 6. PUROTAP® LFM-20 combined meter 7. Handle 8. Fine mesh filter 9. -
Page 7: Operation
5. Operation 5.1.1. Draining spent resin 1. Unscrew hexagonal cap with round mesh filter on drain valve (4) 2. Fix collection bag to drain 3. Open drain valve 4. Open shut-off valve (2) 5. Flush until no more resin is left in the canister 6. -
Page 8: Connection
PUROTAP® HF 12.5l nexion resin by cutting off one corner and fill the canister (3) with resin. 3. Clean the threads with water. 4. Insert the head with the immersion pipe (5) centrally aligned into the canister, and screw it down by hand (floating resin will make centring the pipe much easier). -
Page 9: Combined Meter
5.4. Combined meter The combined meter measures the fill water quality and the throughput (l/ min and total throughput). Mains plug Automatic indication quality monitoring Total treated water Battery indication Current throughput Limit Water Current temperature conductivity value Switch between Set the limit litres/gallons Switch between... - Page 10 corresponds to approx. 20 µS/cm or 1 °dH corresponds to approx. 35 µS/cm. Sequence of units: µS/cm -- °C | µS/cm -- °F | TDS -- °C | TDS -- °F ON/OFF key (MANU/AUTO) Press the key once to switch on the combined meter. The water quality is measured for 10 seconds and compared to the set limit. During measuring, the screen backlighting is blue and the conductivity value is displayed.
-
Page 11: Maintenance
Litre-gallon key Briefly press this key once to select the throughput indication in litres per minute (l/min) or gallons per minute (GPM). Press the key for approx. 3 seconds to reset the total throughput volume ("JOB") to 0. We recommend resetting the "JOB"... -
Page 12: Spare Parts
PUROTAP® label, heating system demineralised 100 280 PUROTAP® LFM-20, device batteries (3x) 8. Consumables Item no. Designation 100 922 PUROTAP® HF 12.5 l highpower 101 651 PUROTAP® HF 12.5 l nexion All rights and technical modifications reserved. The current version can be found at www.elysator.com. EN0421...
