Demineralised heating water

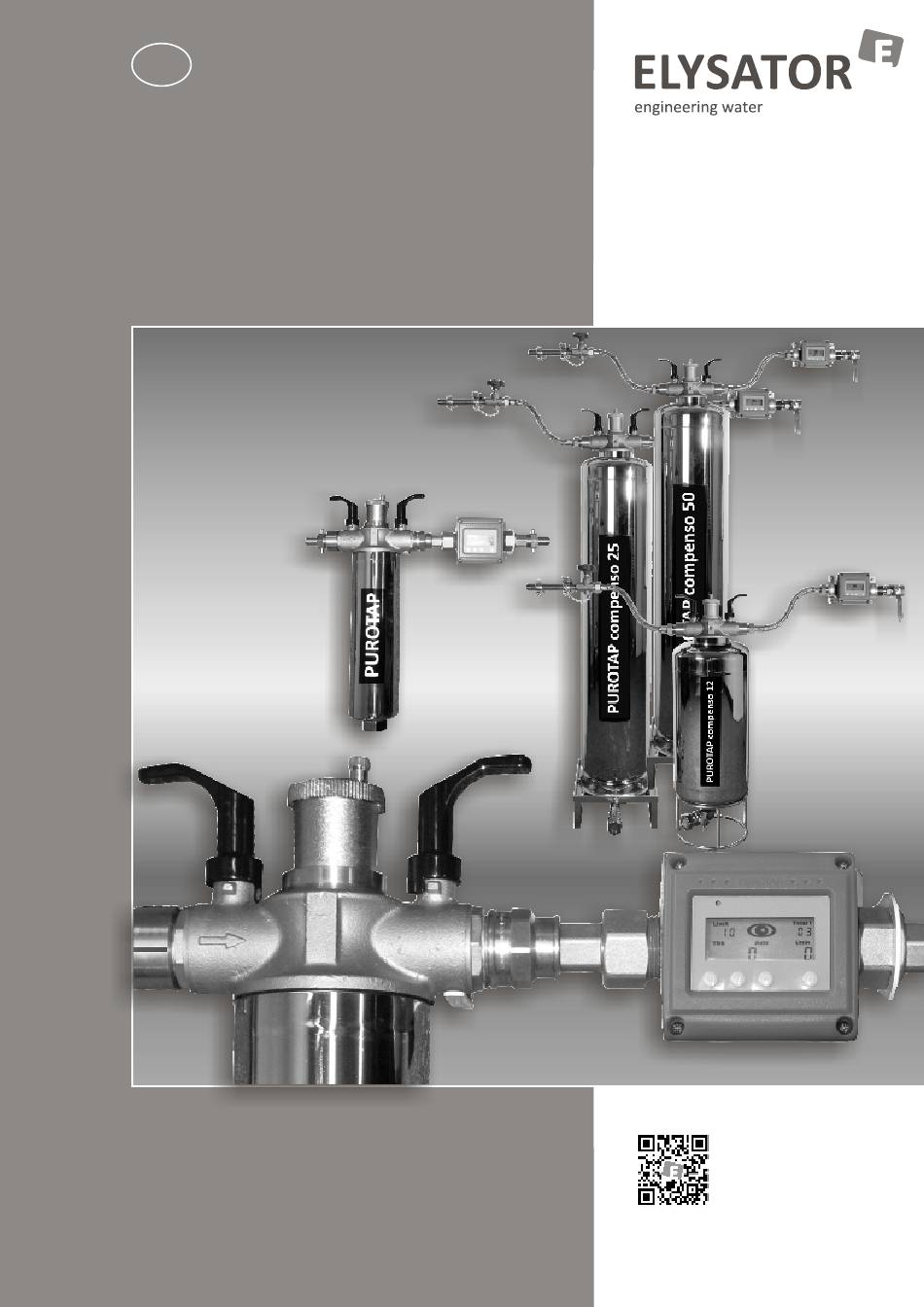

PUROTAP compenso
refill appliance
Reliability due to
desalinated water
for heating systems
to VDI 2035 and
SWKI BT 102-01
Minerals and salts in sealed water circuits cause corrosion
and deposits.
PUROTAP filters the aggressive substances out of the fill
water to enable trouble-free operation.
®
Installation
Function
Operation
Service
www.elysator.com
Advertisement
Table of Contents
Related Manuals for elysator PUROTAP Compenso Series
Summary of Contents for elysator PUROTAP Compenso Series
- Page 1 Reliability due to desalinated water for heating systems to VDI 2035 and SWKI BT 102-01 Minerals and salts in sealed water circuits cause corrosion and deposits. PUROTAP filters the aggressive substances out of the fill www.elysator.com water to enable trouble-free operation.
- Page 2 Copyright 2012: ELYSATOR Engineering AG, Switzerland...
-
Page 3: Table Of Contents
Permanent connection Operating the combined meter Compenso 2, replacing the resin, capacity Compenso 12, replacing the resin, capacity Compenso 25/50, replacing the resin, capacity Technical specification Service record Updates may be made without notice. www.elysator.com Web version supercedes print version. -
Page 4: Protection Against Limescale Deposits
EN 4 Protection against limescale deposits in the boiler and heat exchanger Fully desalinated water no longer contains any substances that can settle out or be deposited in the boiler and heat exchanger. The following table shows the amount of lime accumulating in a heating system that is filled once with untreated water. -
Page 5: Function
5 EN Function The PUROTAP compenso filters lime and aggressive substances such as sulphates, nitrates and chlorides out of the fill water. The appliance uses a mixed bed ion exchanger to provide demineralised, fully desalinated water for any system size. This method does not emit any chemical additives into the water. The appliance operates without an external power connection. -
Page 6: Permanent Connection
EN 6 Permanent connection PUROTAP compenso is pressure-tested to 6 bar and is therefore suitable for making a permanent connection between the mains supply and the heating system. Depending on national or local regulations, a direct connection may be subject to technical conditions which must be observed. -
Page 7: Operating The Combined Meter
7 EN Operating the combined meter The combined meter is battery-operated. It measures the flow rate in l/min, the total volume in litres and the concentration of dissolved minerals, either in microsiemens or TDS. In addition, a limit can be set for the maximum concentration of minerals tolerated in the demineralised water (appliance outlet). -
Page 8: Compenso 2, Replacing The Resin, Capacity
EN 8 PUROTAP compenso 2 Replacing the resin Dispose of spent resin with household waste; refill with new resin Resin Unscrew the container; reset the com- bined meter (see instruc- tions) Close the ball valves; undo the container Household waste Capacity of the ion exchanger The capacity of the ion exchange resin Capacity... -
Page 9: Compenso 12, Replacing The Resin, Capacity
9 EN PUROTAP compenso 12 Replacing the resin Resin Undo wire armoured hoses; undo head section Household waste Close ball valve in the outlet, con- nect a hose at the drain valve and route into the supplied collection Fill with new resin, mount sack;... -
Page 10: Compenso 25/50, Replacing The Resin, Capacity
EN 10 PUROTAP compenso 25/50 Replacing the resin Resin Undo wire armoured hoses; undo head section Household waste Close ball valve in the outlet, con- nect a hose at the drain valve and Fill with new resin, mount route into the supplied collection head section, connect wire sack;... -
Page 11: Technical Specification
11 EN PUROTAP compenso Technical specification compenso 12 compenso 2 Direction of flow Standard delivery as depicted compenso 25/50 Direction of flow Description: PUROTAP compenso, refill appliance for the production of fully desalinated heating water to the latest guidelines (VDI 2035 and SWKI BT 102-01), based on ion exchange. -
Page 12: Service Record
EN 12 Service record Installer: Property Product installed Mains water hardness °fH / ° dH / TDS Calculated capacity litres Date Resin changed Combined meter Company E919...
