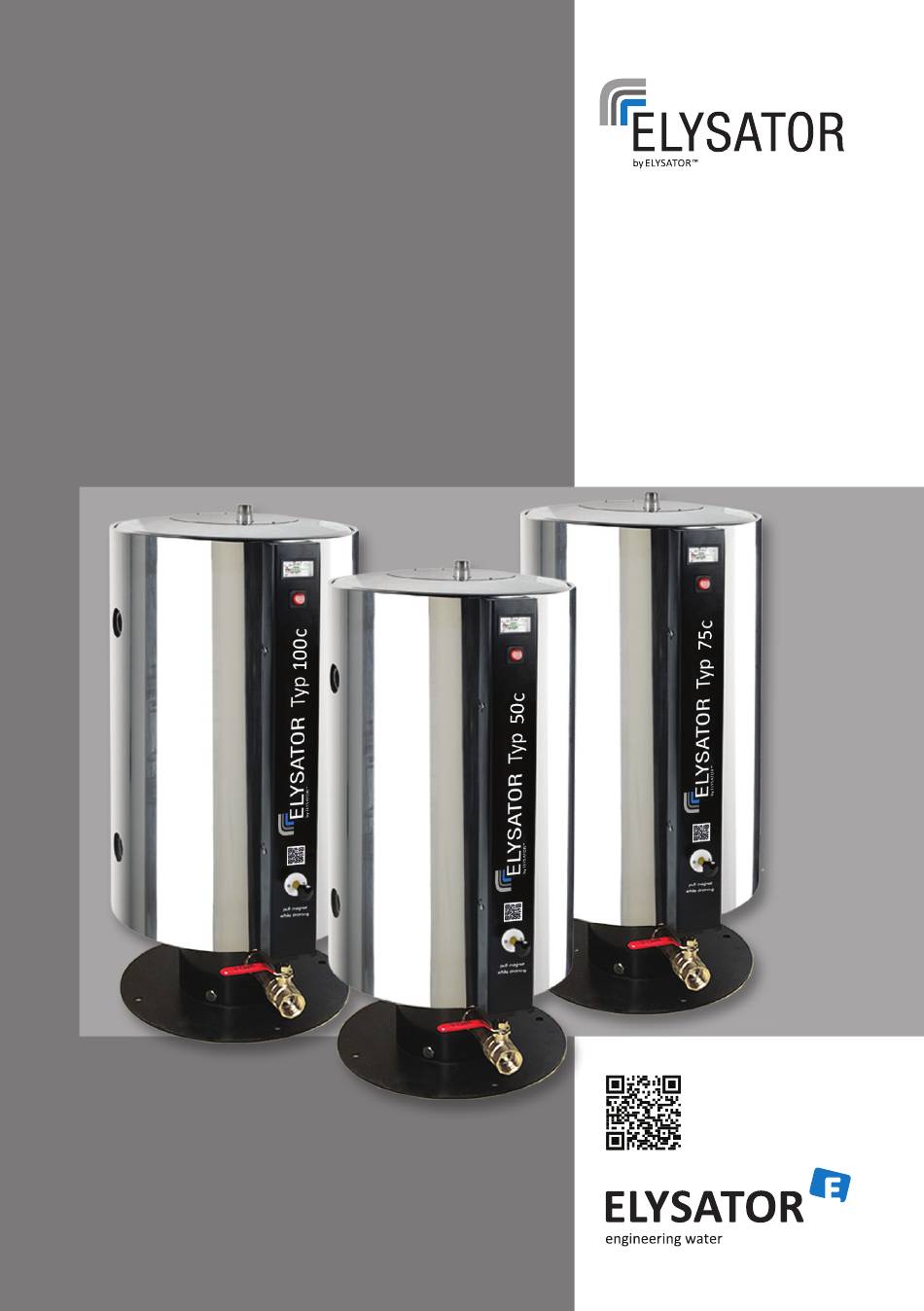

- Page 1 Operating instructions Installation ELYSATOR® Typ 50c - 100c Function Operation Service www.elysator.com...
-
Page 3: Table Of Contents
Table of contents 1. Safety instructions 2. Function 3. Standard delivery 4. Specification 4.1. Appliance description 4.2. Dimensions 4.3. Performance data 5. Installation 5.1. Determining the installation position 5.2. Connection 6. Commissioning 6.1. Filling/venting 6.2. Setting the throughput 7. Operation 7.1. -
Page 4: Safety Instructions
1. Safety instructions Not drinking water Maximum 100 °C Maximum 10 bar pressure 10 bar... -
Page 5: Function
2. Function ELYSATOR® appliances provide your heating system with sustainable protection from corrosion. The following functions are combined into one appliance: • pH regulation by means of a sacrificial anode • Micro gas bubble separator • Magnetic flow filter 3. Standard delivery •... -
Page 6: Specification
4. Specification 4.1. Appliance description Cylinder with insulation Indicator Drain valve Vent valve with gasket and coupling Elbow (2x) Line regulating valve Shut-off valve (2x) Coupling Magnet 10 Cover plate (2-part) 11 Input 1“ (2x) 12 Output 1“ (2x) 13 Switch 14 Duct... -
Page 7: Dimensions
4.2. Dimensions Cylinder material: INOX 1.4301 / AISI 304 / SS 2333 Insulation: PU foam ELYSATOR® Typ 50c - 100c Input height 290 mm Output height 680 mm Drain height 76 mm Overall height 1045 mm Cylinder diameter 420 mm... -
Page 8: Installation
Bear in mind the following points when selecting the installation position of an ELYSATOR®: • The entire system water content should flow through the ELYSATOR® at regular intervals. • To ensure that the oxygen can be separated out efficiently, an installation position close to the diffusion point (underfloor heating) should be selected. -
Page 9: Commissioning
Once water starts to come out of the top of the ELYSATOR®, the air vent can be screwed back on and the shut-off valves opened. It is also possible to fill the entire system by expelling the air. -
Page 10: Operation
7.2. Checking the condition of the anode During operation, the ELYSATOR® function must be checked every 6 months. This is shown on the wear indicator on the duct. As long as the wear indicator is in the green zone, the anode is operating normally (exemplary illustration, the scale may show different values). - Page 11 Remove sludge from the ELYSATOR® and fill it with tap water. If after one day (with the shut-off valves closed) the wear indicator reads a higher value than before, then the system is OK. The ELYSATOR® can then be re-filled with demineralised water and put back into operation. Otherwise the ELYSATOR®...
-
Page 12: Sludge Removal
11. Drain the ELYSATOR® as described in steps 1-8 12. Repeat the procedure until the water comes out clean when draining 13. Fill the ELYSATOR® with demineralised water via the drain valve, as described in steps 9-10 14. Close drain valve (3) and screw on the cap 15. -
Page 13: Replacing The Anodes
17. Check the insulation screws and retighten if necessary 18. Reconnect contact blade (3) to the blade terminal 19. Refit flange cover (10) with screws The ELYSATOR® Typ 50c and the ELYSATOR® Typ 100c are fitted with 3 anodes, the ELYSATOR® Typ 75c with 2. -
Page 14: Checking And Assessing The Condition Of The Anodes
Typ 50c Typ 75c Typ 100c Anode fittings 101043 101044 101043 Flange gasket 101240 101240 101240 Air vent 100402 100402 100402 Wear indicator 100277 100277 100277 All rights and technical modifications reserved. The current version can be found at www.elysator.com. DE1020... -
Page 16: Service Booklet
Service booklet Installer: Project: Date of installation: Device no.: Sludge removal interval: Maintenance interval: Company/ Date Meter signature...
