QTM-eLED+DALI-DT6

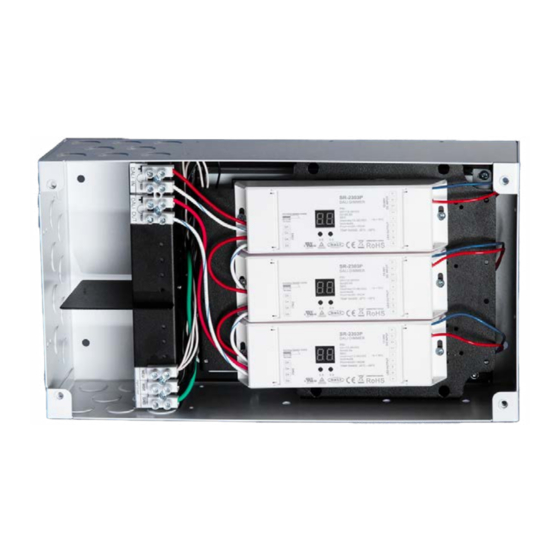

QTM-eLED+DALI-DT6 is an LED power supply for DALI 2 applications.
It utilizes a 100W constant voltage LED Driver from Thomas Research
and DALI 2 DT-6 Decoders. The unit is available in 100-300 watt
capacity. The power supplies and decoders are all prewired together
along with terminal blocks for power and control wires. The housing
can be recessed or surface mounted.
Part Number Builder
Product Size
1
QTM-eLED
100W
200W
300W
Technical Information
Size
1
Max Load
Size (Watts)
100W 1x100W
200W 2x100W
300W 3x100W
Voltage Drop Chart
Watts 10 AWG
VDC
(5.6mm2)
(W)
17
25
24
40
80
100
*Distances are based on a 5% Voltage drop max.
• This product must be installed in accordance with the applicable installation code by a person familiar with the construction and operation of the product and the hazards involved
© 2022 Q-Tran Inc. All rights reserved | 155 Hill St. Milford, CT 06460 | 203-367-8777 | sales@q-tran.com | www.q-tran.com
Output Wiring 1 Output Wiring 2
2
2-Wire
N/A
3-Wire
2-Wire 2-Wire
3-Wire 3-Wire
2-Wire 2-Wire
3-Wire 3-Wire
Secondary
Voltage Max Prim Amps
(12/24VDC) @ 120V
24VDC 0.95A
24VDC 1.90A
24VDC 2.85A
12 AWG 14 AWG
(3.3mm2) (3.0mm2)
897' 564' 355'
567' 356' 224'
309' 194' 122'
130' 82' 51'
84' 53' 33'
LED POWER SUPPLY 100W–300W
Output Wiring 3 Prim. V
2 2
UNV
N/A
N/A
NOTE:
2-Wire default is 1 address
2-Wire
3-Wire default is 2 addresses
3-Wire For customization or pre-programming contact a local sales rep.
DALI commissioning to be performed by a third party at time of installation.
Output Wiring Options
2
2-Wire Light Engines: SW, SW-HE, SW-HE+, SD-SW, SC, WD
3-Wire Light Engines: DW, DW-HE
Max Prim Amps
@ 277V
Color
3
0.40A
WH: White (Standard)
0.80A
BK: Black Powder Coat Finish
1.20A
16 AWG 18 AWG
(1.3mm2) (0.78mm2)
223' 140'
141' 88'
77' 48'
32' 20'
21' 13'
COMPLIANT
Sec. V Control
24VDC DALI-DT6
20 AWG 22 AWG 24 AWG
(0.50mm2) (0.33mm2) (0.22mm2)
88' 55' 35'
56' 35' 22'
30' 30' 12'
13' 8'
8' 5'
Specification subject to change. Rev-11-15-22
Color
3
WH (Standard)
BK
26 AWG
(0.13mm2)
22'
14'
7'
5' 3'
3'
