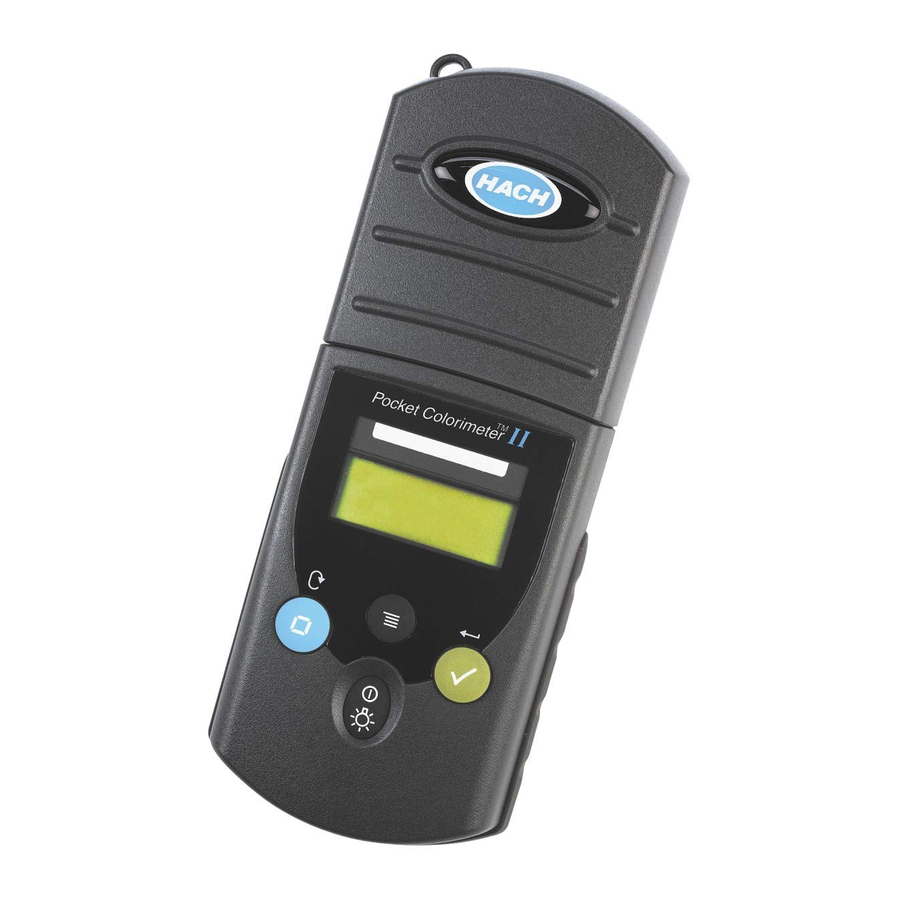

Hach POCKET COLORIMETER II Instruction Manual

Analysis systems, sulfate (so4), silica (sio2)
Hide thumbs Also See for POCKET COLORIMETER II:

Advertisement

59578-88
POCKET COLORIMETER
II
ANALYSIS SYSTEMS
INSTRUCTION MANUAL
Sulfate (SO
)
4
Silica (SiO
)
2
© Hach Company, 2006. All rights reserved. Printed in the U.S.A.
te/dk 12/06 3ed
