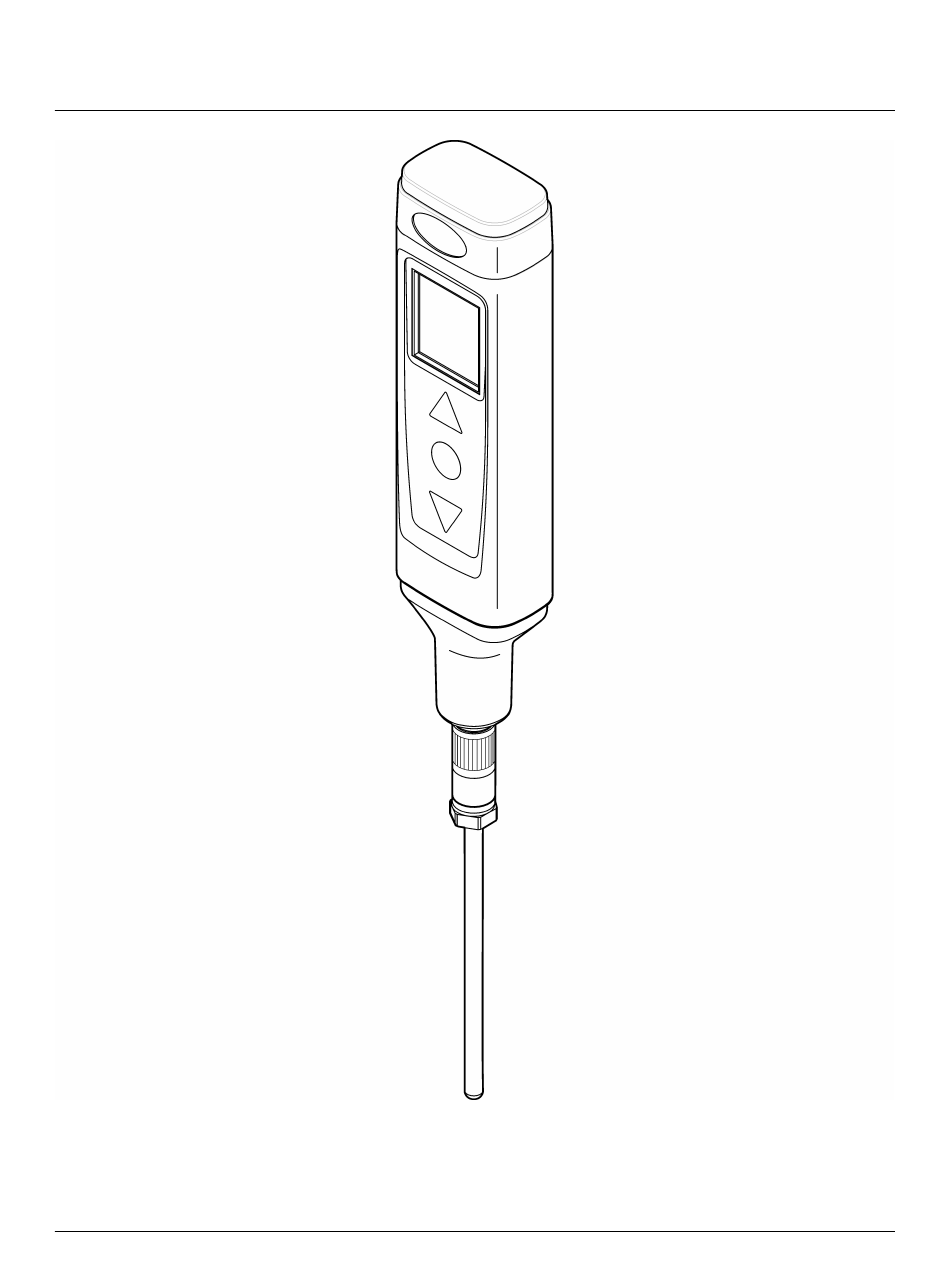

- Page 1 User Manual DOC022.53.80397 ™ Pocket Pro Temp...
-
Page 2: Specifications
Specifications Specifications are subject to change without notice. Specification Details Dimensions (W x D x H) 37 x 30 x 305 mm (1.45 x 1.18 x 12.01 in.) Enclosure rating IP67 Weight 135 g (0.297 lb) with batteries Power requirements (internal) AAA alkaline batteries (4x) Battery life 450 hours... -
Page 3: Precautionary Labels
2. Reposition the receiving antenna for the device receiving the interference. 3. Try combinations of the above. Product overview ™ This Pocket Pro temperature tester measures the temperature of liquid samples. Refer to Figure 1. This tester is waterproof and floats. -
Page 4: Product Components
Make sure that all components have been received. Refer to Figure 2. If any items are missing or damaged, contact the manufacturer or a sales representative immediately. Figure 2 Product components 1 Pocket Pro tester 3 AAA alkaline batteries (4x) 2 Temperature sensor 4 Lanyard... -
Page 5: Installation
Installation Install the batteries C A U T I O N Explosion hazard. Incorrect battery installation can cause the release of explosive gases. Be sure that the batteries are of the same approved chemical type and are inserted in the correct orientation. Do not mix new and used batteries. -
Page 6: Keypad Description
User interface and navigation Display description Figure 5 shows the measurements, calibration standard information and indicator icons shown on the display. Table 1 gives descriptions of the icons. Figure 5 Display overview 1 Calibration icon 3 Parameter 5 Temperature 2 Lock icon 4 Battery icon Table 1 Display icons Icon Description... - Page 7 Table 2 Key functions Description Push and hold to set the power to on or off. Push to start a calibration. To exit a calibration, push and hold. Push and hold until "SEt" shows on the display to go to the settings menu. To exit the settings menu, push and hold until "End"...
-
Page 8: Advanced Operation
Advanced operation Configure the settings 1. Push and hold until "SEt" shows on the display. 2. Push to scroll through the settings. The current value of the setting shows on the bottom line. Option Description Unit Select the temperature unit that shows on the display—Celsius (default) or Fahrenheit. AOFF Set the auto-off feature to on (default) or off. - Page 9 Table 3 Replacement parts Description Quantity Item no. AAA alkaline batteries 4/pkg 4674300 Lanyard 201305 Temperature sensor, replacement 9531701...
- Page 10 Tel. +49 (0) 2 11 52 88-320 SWITZERLAND Fax (970) 669-2932 Fax +49 (0) 2 11 52 88-210 Tel. +41 22 594 6400 orders@hach.com info-de@hach.com Fax +41 22 594 6499 www.hach.com www.de.hach.com © Hach Company/Hach Lange GmbH, 2014, 2022. All rights reserved. 06/2022, Edition 3 *DOC022.53.80397*...
