  • Page 1 USER’S MANUAL...

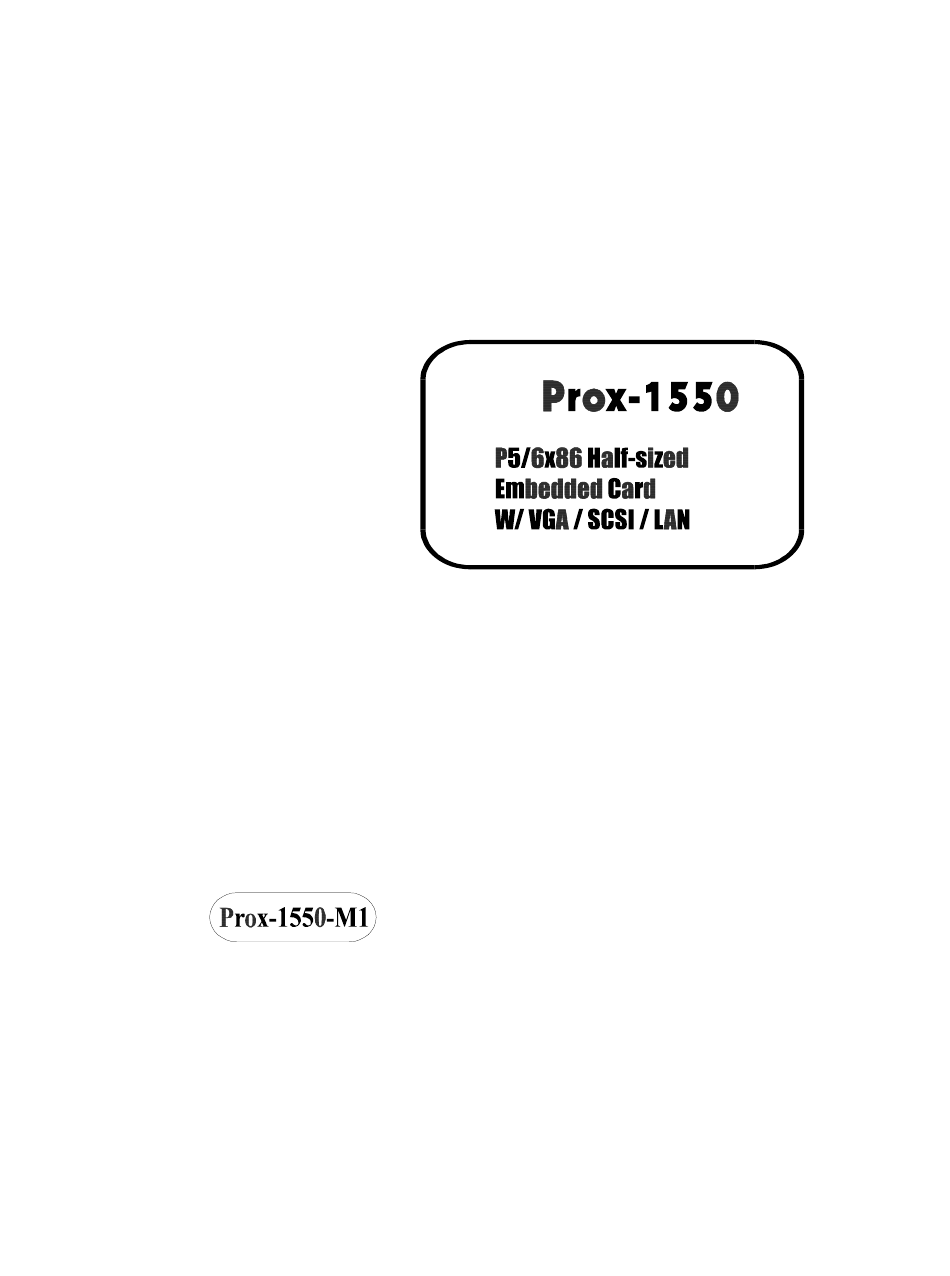

  • Page 2 Copyright Notice ProX-1550 P5/6x86 Half-sized EMBEDDED CARD With VGA/SCSI/LAN OPERATION MANUAL COPYRIGHT NOTICE This operation manual is meant to assist both Embedded Computer manu- facturers and end-users in installing and setting up the system. The infor- mation contained in this document is subject to change without any notice.

  • Page 3: Table Of Contents

    Contents TABLE OF CONTENTS CHAPTER 1 INTRODUCTION About This Manual ....……........System Specification ......……......Safety Precautions ........……....CHAPTER 2 HARDWARE CONFIGURATION Jumper & Connector Quick Reference Table ....… Component Locations ..…..........How to Set the Jumpers …..........CPU Type & Clock Selection ........…. 2-4-1 Intel 150/166 CPU Type &...
  • Page 4 Contents 2-16 Hard Disk Drive Connector ..........2-26 2-17 Hard Disk Drive LED Connector ........2-28 2-18 LAN Connector ………............. 2-28 2-19 Power Led & Keylock Connector .…........ 2-29 2-20 Panel Power Connector ....…........2-29 2-21 Panel VCC Selection ……………………………………. 2-29 2-22 LCD Panel Connector ……………………………………...
  • Page 5 Contents The Standard CMOS Setup ……........The BIOS Features Setup ………........Chipset Feature Setup ............5-11 Power Management Setup ..........5-14 PNP/PCI Configuration ............. 5-17 Load BIOS Defaults ............5-19 Load Setup Defaults ............5-19 5-10 Integrated Peripherals ............5-20 5-11 Password Setting ...............

  • Page 6: Chapter 1 Introduction

    CHAPTER INTRODUCTION This chapter gives you the information for Prox-1550. It also outlines the System specification. Section includes: ! About This Manual ! System Specifications ! Safety Precautions Experienced users can skip to chapter 2 on page 2-1 for a Quick Start.

  • Page 7: About This Manual

    1-1. ABOUT THIS MANUAL Thank you for procuring our Prox-1550 P5/6x86 Embedded Card enhanced with VGA/SCSI/LAN, which is fully PC / AT compatible. The Prox-1550 provides faster processing speed, greater expandability and can handle more tasks than before. This manual is designed to assist you how to install and set up the system.

  • Page 8: System Specification

    Support AT Keyboard or PS/2 Mouse by jumper selection. 5-pin External keyboard connector. ! ! ! ! BUS SUPPORT : External ISA/PCI BUS. Internal PCI Bus for VGA, IDE, LAN, & SCSI. PC-104 BUS. Prox-1550 USER ′ S MANUAL Page: 1-3...
  • Page 9 Universal Serial Bus Connector on-board, Supports up to two USB ports. ! ! ! ! SCSI INTERFACE : Two connectors on board, one for SCSI 50pin connector and one 68pin ULTRA (transfer rate 40MB/S) or ULTRA2 (transfer rate 80MB/S) wide SCSI connector. Prox-1550 USER ′ S MANUAL Page: 1-4...
  • Page 10 PC-104 8MHz PCI Bus 33MHz 12Mbit/sec ! ! ! ! DMA CONTROLLER : 82C37 x 2 ! ! ! ! DMA CHANNELS : ! ! ! ! INTERRUPT CONTROLLERS : 82C59 x 2 Prox-1550 USER ′ S MANUAL Page: 1-5...

  • Page 11: Safety Precautions

    3. Disconnect power when you change any hardware devices. For instance, when you connect a jumper or install any cards, a surge of power may damage the electronic components or the whole system. Prox-1550 USER ′ S MANUAL Page: 1-6...

  • Page 12: Chapter 2 Hardware Configuration

    CHAPTER HARDWARE CONFIGURATION ** QUICK START ** Helpful information details you the jumper & connector settings, and component’s location. Sections include: ! Jumper & Connector Quick Reference Table ! Component’s Location ! Configuration and Jumper settings ! Connector Pin Assignments Page 2-1...

  • Page 13: Jumper & Connector Quick Reference Table

    Printer Connector ..........External Speaker Connector ........Universal Serial Bus Connector ......SCSI Connector ............. SCSI,ULTRA Solid-State Disk Socket ......... SSD Memory Mapping Selection ......Green Function Connector ………………………. Memory Installation ..........DIMM1, DIMM2 ’ Page: 2-2 Prox-1550 USER S MANUAL...

  • Page 14: Component Locations

    Chapter 2 Hardware Configuration 2-2 COMPONENT LOCATIONS Prox-1550 Connector, Jumper, and Component locations ’ Page: 2-3 Prox-1550 USER S MANUAL...

  • Page 15: How To Set The Jumpers

    PIN2 & PIN3 to create another setting. The same jumper diagrams are applied all through this manual. The figure below shows what the manual diagram looks like and what they represent. ’ Page: 2-4 Prox-1550 USER S MANUAL...
  • Page 16 Chapter 2 Hardware Configuration JUMPER DIAGRAMS JUMPER SETTINGS ’ Page: 2-5 Prox-1550 USER S MANUAL...

  • Page 17: Cpu Type & Clock Selection

    JP8, JP9 : CPU Voltage Selection The jumper settings are as follows: 2-4-1 Intel 150/166 CPU type & clock Jumper Settings Jumper Setting (Pin closed) JUMPER TYPE CLOCK ILLUSTRATION 60Mhz Intel Pentium 150Mhz 66Mhz Intel Pentium 166Mhz ’ Page: 2-6 Prox-1550 USER S MANUAL...
  • Page 18 Chapter 2 Hardware Configuration 2-4-2 Intel 200 CPU type & clock Jumper Settings Jumper Setting (Pin closed) JUMPER TYPE CLOCK ILLUSTRATION Intel 66Mhz Pentium 200Mhz ’ Page: 2-7 Prox-1550 USER S MANUAL...

  • Page 19: Intel Mmx-166/200 Cpu Type & Clock Jumper Settings

    Chapter 2 Hardware Configuration 2-4-3 Intel MMX-166/200 CPU type & clock Jumper Settings Jumper Setting (Pin closed) JUMPER TYPE CLOCK ILLUSTRATION Intel 66Mhz Pentium 166Mhz Intel 66Mhz Pentium 200Mhz ’ Page: 2-8 Prox-1550 USER S MANUAL...

  • Page 20: Intel Mmx-233 Cpu Type & Clock Jumper Settings

    Chapter 2 Hardware Configuration 2-4-4 Intel MMX 233 CPU type & clock Jumper Settings Jumper Setting (Pin closed) JUMPER TYPE CLOCK ILLUSTRATION Open Intel 66Mhz Pentium 233Mhz ’ Page: 2-9 Prox-1550 USER S MANUAL...
  • Page 21 Chapter 2 Hardware Configuration 2-4-5 Cyrix MMX-233/266 CPU type & clock Jumper Setting Jumper Setting (Pin closed) JUMPER TYPE CLOCK ILLUSTRATION Cyrix 66Mhz 233Mhz Cyrix 83Mhz 266Mhz ’ Page: 2-10 Prox-1550 USER S MANUAL...

  • Page 22: Cyrix Mmx-300/M2-300 Cpu Type & Clock Jumper Settings

    Chapter 2 Hardware Configuration 2-4-6 Cyrix MMX-300/M2-300 CPU type & clock Jumper Settings Jumper Setting (Pin closed) JUMPER TYPE CLOCK ILLUSTRATION Open Cyrix 66Mhz 300Mhz Open Cyrix 66Mhz 300Mhz ’ Page: 2-11 Prox-1550 USER S MANUAL...

  • Page 23: Amd K6-200/233 Cpu Type & Clock Jumper Settings

    Chapter 2 Hardware Configuration 2-4-7 AMD K6-200/233 CPU type & clock Jumper Settings Jumper Setting (Pin closed) JUMPER TYPE CLOCK ILLUSTRATION 66Mhz 200Mhz Open 66Mhz 233Mhz ’ Page: 2-12 Prox-1550 USER S MANUAL...

  • Page 24: Amd K6-2-266/300 Cpu Type & Clock Jumper Settings

    Chapter 2 Hardware Configuration 2-4-8 AMD K6-2-266/300 CPU type & clock Jumper Settings Jumper Setting (Pin closed) JUMPER TYPE CLOCK ILLUSTRATION 66Mhz K6-2 266Mhz 100Mhz K6-2 300Mhz ’ Page: 2-13 Prox-1550 USER S MANUAL...

  • Page 25: Amd K6-2-333/350 Cpu Type & Clock Jumper Settings

    Chapter 2 Hardware Configuration 2-4-9 AMD K6-2-333/350 CPU type & clock Jumper Settings Jumper Setting (Pin closed) JUMPER TYPE CLOCK ILLUSTRATION Open 95Mhz K6-2 333Mhz Open 100Mhz K6-2 350Mhz ’ Page: 2-14 Prox-1550 USER S MANUAL...

  • Page 26: Amd K6-2-366/380 Cpu Type & Clock Jumper Settings

    Chapter 2 Hardware Configuration 2-4-10 AMD K6-2-366/380 CPU type & clock Jumper Settings Jumper Setting (Pin closed) JUMPER TYPE CLOCK ILLUSTRATION 66Mhz K6-2 366Mhz 95Mhz K6-2 380Mhz ’ Page: 2-15 Prox-1550 USER S MANUAL...

  • Page 27: Amd K6-2-400/450 Cpu Type & Clock Jumper Settings

    Chapter 2 Hardware Configuration 2-4-11 AMD K6-2-400/450 CPU type & clock Jumper Settings Jumper Setting (Pin closed) JUMPER TYPE CLOCK ILLUSTRATION 100Mhz K6-2 400Mhz 100Mhz K6-2 450Mhz (2.2V) ’ Page: 2-16 Prox-1550 USER S MANUAL...

  • Page 28: Amd K6-2-450/500 Cpu Type & Clock Jumper Settings

    Chapter 2 Hardware Configuration 2-4-12 AMD K6-2-450/500 CPU type & clock Jumper Settings Jumper Setting (Pin closed) JUMPER TYPE CLOCK ILLUSTRATION 100Mhz K6-2 450Mhz (2.4V) 100Mhz K6-2 500Mhz (2.4V) ’ Page: 2-17 Prox-1550 USER S MANUAL...

  • Page 29: Amd K6-3-400/450 Cpu Type & Clock Jumper Settings

    Chapter 2 Hardware Configuration 2-4-13 AMD K6-3-400/450 CPU type & clock Jumper Settings Jumper Setting (Pin closed) JUMPER TYPE CLOCK ILLUSTRATION 100Mhz K6-3 400Mhz 100Mhz K6-3 450Mhz ’ Page: 2-18 Prox-1550 USER S MANUAL...

  • Page 30: Amd K6-3-500 Cpu Type & Clock Jumper Settings

    Chapter 2 Hardware Configuration 2-4-14 AMD K6-3-500 CPU type & clock Jumper Settings Jumper Setting (Pin closed) JUMPER TYPE CLOCK ILLUSTRATION 100Mhz K6-3 500Mhz ’ Page: 2-19 Prox-1550 USER S MANUAL...

  • Page 31: Com1 Connector

    COM1 : COM1 Connector, DB9 male connector The COM1 Connector assignments are as follows : ASSIGNMENT 2-6 COM2 CONNECTOR COM2 : COM2 Connector The COM2 Connector assignments are as follows : ASSIGNMENT RS-232 RS-422 RS-485 RTS- RTS+ CTS+ CTS- ’ Page: 2-20 Prox-1550 USER S MANUAL...

  • Page 32: Rs232/422/485 (Com2) Selection

    The jumper settings are as follows : COM 2 RS-232 RS-422 RS-485 Function Open Jumper 9-10 9-10 setting 11-12 11-12 (pin closed) 13-14 13-14 15-16 15-16 17-18 17-18 19-20 19-20 Jumper illustration *** Manufactory default --- RS-232. ’ Page: 2-21 Prox-1550 USER S MANUAL...

  • Page 33: Keyboard Or Ps/2 Mouse Connector

    2-9 AT KEYBOARD / PS2 MOUSE SELECTION JP4 : AT Keyboard / PS2 Mouse Selection. The jumper settings are as follows: JUMPER SETTING DEVICE JUMPER (pin closed) TYPE ILLUSTRATION AT KEYBOARD PS/2 MOUSE ’ Page: 2-22 Prox-1550 USER S MANUAL...

  • Page 34: External Keyboard Connector

    2-11 RESET CONNECTOR JP10 : Reset Connector. The pin assignment is as follows: ASSIGNMENT RESET 2-12 CPU FAN CONNECTOR CPUFAN : CPU Fan Connector. The pin assignment is as follows: ASSIGNMENT CPUFAN +12V ’ Page: 2-23 Prox-1550 USER S MANUAL...

  • Page 35: System Fan Connector

    SYSFAN +12V 2-14 RESET/NMI/CLEAR WATCHDOG JP6 (1-2) : For Reset JP6 (3-4) : For NMI JP6 (5-6) : For Clear Watchdog The pin assignments are as follows: ASSIGNMENT WDGRST WDGRSTJ WDGNMI IOCHKJ CLRWDG ’ Page: 2-24 Prox-1550 USER S MANUAL...

  • Page 36: Floppy Disk Drive Connector

    34-pin flat cable attaches to the FDD on the board, and the other side is attaches to two FDDs. The pin assignments are as follows : ASSIGNMENT ASSIGNMENT RATE0 INDEX MTR0 DRV1 DRV0 MTR1 STEP WDATA WGATE TRK0 WRPRT RDATA DSKCHG ’ Page: 2-25 Prox-1550 USER S MANUAL...
  • Page 37 Chapter 2 Hardware Configuration 2-16 HARD DISK DRIVE CONNECTOR The Prox-1550 possesses two HDD connectors, IDE1 and IDE2. The pin assignments are as follows: IDE1: Hard Disk Drive Connector ASSIGNMENT ASSIGNMENT IDERST IDEREQ0 IDED7 IDEIOW IDED8 IDED6 IDEIOR IDED9 IDED5...
  • Page 38 IDERST IDEREQ1 IDED7 IDEIOW IDED8 IDED6 IDEIOR IDED9 IDED5 IDERDY IDED10 PULL HI IDED4 IDEACK1 IDED11 IDED3 IDESIRQ IDED12 IOCS16 IDED2 IDEA1 IDED13 IDED1 IDEA0 IDED14 IDEA2 IDED0 IDECS1S IDED15 IDECS3S IDELEDS N.C. ’ Page: 2-27 Prox-1550 USER S MANUAL...
  • Page 39 LED is used to detect the 100Mbps speed, while the yellow LED is used to detect “LINK” and “ACTIVE” signal. The pin assignments are as follows: ASSIGNMENT ISOLATED GND ISOLATED GND ISOLATED GND ISOLATED GND Pull Hi LED – Green Pull Hi LED – Yellow ’ Page: 2-28 Prox-1550 USER S MANUAL...
  • Page 40 Pin #3 can be +5V or +3.3V depending on the jumper set on JP12. 2-21 PANEL VCC SELECTION JP12 : Panel VCC Connector The pin assignments is as follows: Panel VCC Selection VCC3.3V JUMPER SETTING (pin closed) JUMPER ILLUSTRATION ’ Page: 2-29 Prox-1550 USER S MANUAL...
  • Page 41 LCD : LCD Panel Connector The connector LCD is a 51-pin, dual-in-line header used for Flat Panel displays. The pin assignments are as follows: ASSIGNMENT ASSIGNMENT LCD VDD LCDVDD VDDSAFE VDDSAFE ENABKL SHFCLK ENVEE 12VSAFE 12VSAFE ’ Page: 2-30 Prox-1550 USER S MANUAL...
  • Page 42 VGA : VGA CRT Connector The pin assignments are as follows: ASSIGNMENT ASSIGNMENT GREEN BLUE HSYNC VSYNC 2-24 POWER CONNECTOR PWR : Power Connector The pin assignments is as follows: ASSIGNMENT +12V -12V ’ Page: 2-31 Prox-1550 USER S MANUAL...
  • Page 43 As to link the Printer to the card, you need a cable to connect both DB25 connector and parallel port. The pin assignments are as follows: ASSIGNMENT ASSIGNMENT AUTFE ERROR INIT SLCTIN BUSY SLCT ’ Page: 2-32 Prox-1550 USER S MANUAL...
  • Page 44 2-27 UNIVERSAL SERIAL BUS CONNECTOR USB: Universal Serial Bus Connector The USB connector of this board can support up to two USB ports. The pin assignments are as follows: ASSIGNMENT USBP0- USBP0+ USBP1- USBP1+ ’ Page: 2-33 Prox-1550 USER S MANUAL...
  • Page 45 Chapter 2 Hardware Configuration 2-28 SCSI CONNECTOR The Prox-1550 is equipped with two SCSI Connectors on board - the SCSI and ULTRA. The SCSI is a 50 pins dual-in-line header, and ULTRA is a 68 pins dual-in-line header for Ultra2-Wide SCSI.
  • Page 46 PCI Bus Master is occupied. The SCSI Bus Master (DRQ3) is same as 4th PCI Slot on the backplane (DRQ3). When the SCSI chipset is on-board, the 4th PCI slot on backplane would fail even if SCSI function is disabled. ’ Page: 2-35 Prox-1550 USER S MANUAL...
  • Page 47 Chapter 2 Hardware Configuration 2-29. SOLID-STATE DISK SOCKET SSD: 32pin Disk-on-chip Socket The pin assignments are as follows: ASSIGNMENT ASSIGNMENT SA12 SA10 SA11 ’ Page: 2-36 Prox-1550 USER S MANUAL...
  • Page 48 The SSD Memory Mapping selection are listed as follows : Jumper Setting JUMPER SSD Memory Map (Pin closed) ILLUSTRATION CC000h-CDFFFh 11-12 D0000h-D1FFFh 9-10 D4000h-D5FFFh 11-12 D8000h-D9FFFh 9-10 DC000h-DDFFFh 11-12 E0000h-E1FFFh 9-10 ***Manufactory default --- CC000h-CDFFFh ’ Page: 2-37 Prox-1550 USER S MANUAL...
  • Page 49 GRN: Green Function Connector The pin assignments is as follows: ASSIGNMENT EXTSMI- 2-32 MEMORY INSTALLATION The Prox-1550 P5/6x86 Embedded Card can support 2 DRAM banks in two pieces 168 pin DIMM sockets on board. DRAM BANK CONFIGURATION DIMM 1 DIMM 2...
  • Page 50 CHAPTER SOFTWARE UTILITIES This chapter comprises detailed information of VGA driver, LAN driver, SCSI driver and Flash BIOS update. It also describes how to install the Watchdog timer configurations. Section includes: ! VGA Driver Utility ! Flash BIOS Update ! LAN Driver Utility ! SCSI Driver Utility ! Watchdog Timer Configuration Page: 3-1...
  • Page 51 Chapter 3 Software Configuration 3-1. INTRODUCTION Enclosed with our Prox-1550 package is our driver utility, which may comes in a form of a CD ROM disc or floppy diskettes. For CD ROM disc user, you will only need some of the files contained in the CD ROM disc, please...
  • Page 52 PROPERTIES window, then choose the SETTING tab, then DISPLAY TYPE. (3). In the CHANGE DISPLAY TYPE window, click on the CHANGE button in the ADAPTER TYPE, this will bring up the SELECT DEVICE window. Prox-1550 USER ′ S MANUAL Page:3-3...
  • Page 53 (vii) When the Display Driver Install window appears, select PRIMARY DISPLAY, and click OK. (viii) When the Primary Display Driver List window appears, select “Chips and Technologies 69000” from the list of Adapter types, then select OK to install the video driver. Prox-1550 USER ′ S MANUAL Page:3-4...
  • Page 54 Utility Disk for system BIOS and VGA BIOS update. 3-3-2. To update VGA BIOS for LCD Flat Panel Display: As Prox-1550 user, you have to update the VGA BIOS for your specific LCD flat panel you are going to use. For doing this, you need two files.
  • Page 55 File Name to Program: F60xxxxx.bin Checksum: XXXXX Reset System or Power off to accomplish update process! F1: Reset F10: Exit Please reset or power off the system, then the Flash BIOS is fully implemented. Prox-1550 USER ′ S MANUAL Page:3-6...
  • Page 56 Chapter 3 Software Configuration 3-4. SCSI DRIVER UTILITY 3-4-1. Introduction Prox-1550 is embedded with SCSI Adaptec 7890 can support SCSI II and Ultra/Ultra2-wide SCSI. Installation programs are provided as follows: Details on Installation procedure is found in the README.TXT file found on SCSI DRIVER UTILITY.
  • Page 57 Chapter 3 Software Configuration 3-5. LAN DRIVER UTILITY 3-5-1. Introduction Prox-1550 Embedded Board is enhanced with LAN function can support various network adapters. Installation programs for LAN drivers are listed as follows: 3-5-2. Installing Procedure on Microsoft Windows 95 Executing Windows 95, it will auto-detect your system configuration and find the adapter hardware.
  • Page 58 Ethernet ID. Last step to select OK and close NETWORK SETUP. Select SKIP if only one adapter is installed on this computer. For more details on Installation procedure, please refer to TXT directory found on LAN DRIVER UTILITY. Prox-1550 USER ′ S MANUAL Page:3-9...
  • Page 59 I/O port 441H, the system will run the command to stop the Watchdog function. The Prox-1550 watchdog function, You must write your program so when it writes I/O port address 443 for enable watchdog and write I/O port address 441 for disable watchdog.
  • Page 60 Chapter 3 Software Configuration Prox-1550 USER ′ S MANUAL Page:3-11...
  • Page 61 CHAPTER GREEN PC FUNCTION This chapter gives you the concise information for Green PC Function. Sections include: ! Power Saving Block Diagram ! CPU Doze Mode ! System STANDBY Mode ! System SUSPEND Mode Page: 4-1...
  • Page 62 4. Level 1 cache are disabled. 5. VGA monitor displays blank screen. 6. Fixed disk driver motor will be spin off. 7. Any activity occurs, system will exit from Standby mode to On mode. Prox-1550 USER ′ S MANUAL Page: 4-2...
  • Page 63 6. Fixed disk driver motor will be spin off. 7. Monitor activity according to the setting of Advanced Setup. 8. When system in Suspend mode, only Keyboard / Mouse / Alarm resume can wakeup system. Prox-1550 USER ′ S MANUAL Page: 4-3...
  • Page 64 Chapter 4 Green PC Function Prox-1550 USER ′ S MANUAL Page: 4-4...
  • Page 65 CHAPTER AWARD BIOS SETUP This chapter states out how to set up the Award BIOS. Section includes: ! Introduction ! Entering Setup ! The Standard CMOS Setup ! The BIOS Features Setup ! The Chipset Features Setup ! Power Management Setup ! PNP/PCI Configuration ! Load BIOS/Setup defaults ! Integrated Peripherals...
  • Page 66 5-1. INTRODUCTION This chapter will show you the function of BIOS in managing the features of your system. The Prox-1550 P5/6x86 Embedded Card is equipped with the BIOS for system chipset from Award Software Inc. This page briefly explains the function of BIOS in managing the special features of your system.
  • Page 67 As you highlight each item, a brief description of that item's function appears in the lower window. You can use the Shift F2 keys to scroll through the various color combinations available. Prox-1550 USER ′ S MANUAL Page: 5-3...

  • Page 68: The Standard Cmos Setup

    Information on each item are as follows: Date: < Month >, < Date > and <Year >. Ranges for each value are in the CMOS Setup Screen, and the week-day will skip automatically. Prox-1550 USER ′ S MANUAL Page: 5-4...
  • Page 69 This is the formatted capacity of the drive based on the following formula: (# of heads) X (# of cylinders) X (# of sets) X (512bytes/sects). CYLS.: This is the number of cylinders found in the specified drive type. Prox-1550 USER ′ S MANUAL Page: 5-5...
  • Page 70 The option are 360KB 5.25in, 1.2KB 5.25in, 720KB 3.5in, 1.44MB 3.5in, 2.88MB 3.5in and None. Not Installed could be used as an option for diskless workstations. VIDEO: Options are Monochrome, Color 40, VGA/EGA, Color 80. Prox-1550 USER ′ S MANUAL Page: 5-6...
  • Page 71 1024 65535 1023 1024 65535 1023 1024 65535 1023 1024 65535 1023 1024 65535 1023 65535 1023 65535 1024 65535 1023 1024 65535 1023 65535 65535 65335 AUTO Award Hard Disk Type Table Prox-1550 USER ′ S MANUAL Page: 5-7...

  • Page 72: The Bios Features Setup

    F1 key. A Windows will appear on your screen detailing the various options available for each item. A brief introduction of each setting in the BIOS FEATURES SETUP program is given below. Prox-1550 USER ′ S MANUAL Page: 5-8...
  • Page 73 Select High to configure your system in the turbo speed mode at boot up, select Low to configure your system in normal speed mode. Whichever setting you choose you will still be able to use the turbo switch to toggle between the tow modes during use. Prox-1550 USER ′ S MANUAL Page: 5-9...
  • Page 74 OS2 or Non-OS2, the default setting is set to Non-OS2. REPORT NO FDD FOR WIN 95: Whether report no FDD for Win 95 or not. The available options are Yes and No. Prox-1550 USER ′ S MANUAL Page: 5-10...

  • Page 75: Chipset Feature Setup

    When this option is Enabled, the BIOS automatically configures cache and clock settings based on detection of the CPU clock speed, you cannot change the other parameters. Set this option to Disabled to manually set DRAM, cache and I/O bus clock operating parameters. Prox-1550 USER ′ S MANUAL Page: 5-11...
  • Page 76 This item allows you to reserve a certain space in memory for ISA cards for better performance. This memory must be mapped into the memory space below 16MB. The choices are enabled and disabled to set the support of memory hole. Prox-1550 USER ′ S MANUAL Page: 5-12...
  • Page 77 IO CHANNEL CHECK NMI: This field enable or disable IO channel check NMI. Before selecting this function, the user should check first that NMI function is enabled as described in chapter 2 (Reset/NMI/Clear Watchdog). Prox-1550 USER ′ S MANUAL Page: 5-13...

  • Page 78: Power Management Setup

    This category allows you to select the type (or degree) of power saving and is directly related to HDD Power Down, Doze Mode, Standby Mode and Suspend Mode. There are four available choices for Power Management, namely: Disable, Min Power Saving, Max. Power Saving, and User Defined. Prox-1550 USER ′ S MANUAL Page: 5-14...
  • Page 79 Video Electronics Standards to select video power management values. HDD POWER DOWN: When enabled and after the set time of system inactivity, the hard disk drive will be powered down while all other devices remain active. Prox-1550 USER ′ S MANUAL Page: 5-15...
  • Page 80 CPU will be shut off. POWER BUTTON MODE: This item allows you to select the function of power button. DOC I/O SMI: This item allows you to enable or disable the function of DOCK I/O SMI. Prox-1550 USER ′ S MANUAL Page: 5-16...

  • Page 81: Pnp/Pci Configuration

    This section covers some very technical items and it is strongly recommended that only experienced users should make any changes to the default settings. PNP OS INSTALLED: This item allows you to determine install PnP OS or not. Prox-1550 USER ′ S MANUAL Page: 5-17...
  • Page 82 INT# for each. Again, you will note that the primary has a lower interrupt than the secondary as described in “Slot x Using INT#” above. Selecting “PCI Auto” allows the system to automatically determine how your IDE disk system is configured. Prox-1550 USER ′ S MANUAL Page: 5-18...

  • Page 83: Load Bios Defaults

    Load BIOS Defaults ( Y / N ) ? Y To use the BIOS defaults, change the prompt to "Y" and press < Enter >, the CMOS is loaded automatically when you power on the Prox-1550. 5-9 LOAD SETUP DEFAULTS Auto configuration With Setup Defaults This Main Menu item uses the default SETUP values.

  • Page 84: Integrated Peripherals

    Press <Esc> to return to the Main Menu. ON-CHIP PRIMARY IDE: The chipset contains a PCI IDE Interface with support for two IDE channels. Select Enabled to activate the primary IDE interface. Select Disabled to deactivate this interface. Prox-1550 USER ′ S MANUAL Page: 5-20...
  • Page 85 This item allows you to either enable or disable Floppy disk controller (FDC) installed on the system board and you want to use it. ON-BOARD PARALLEL PORT: This item allows you to determine access onboard parallel port controller with which I/O address. Prox-1550 USER ′ S MANUAL Page: 5-21...

  • Page 86: Password Setting

    Features Setup Menu and its Security Option. If the Security Option is set to “System”, the password will be required both at boot and at entry to Setup. If set to “Setup”, prompting only occurs when trying to enter Setup. Prox-1550 USER ′ S MANUAL Page: 5-22...
  • Page 87 Password Disabled!!! Press any key to continue... Press < Enter > and the password will be disabled. Once the password is disabled, you can enter Setup freely. Prox-1550 USER ′ S MANUAL Page: 5-23...

  • Page 88: Ide Hdd Auto Detection

    3. Enter Y or N to confirm the acceptance of the parameter reported by BIOS, then press the <ENTER> key. # The process will repeat again form Primary Slave, Secondary Master and Secondary Slave Hard Disks. Prox-1550 USER ′ S MANUAL Page: 5-24...

  • Page 89: Hdd Low Level Format

    Primary Slave AUTO Secondary Master AUTO Secondary Slave AUTO Up/Down - Select item Enter - Accept ESC - Exit / Abort Copyright (C) Award Software, Inc. 1992-94 All Rights Reserved HDD LOW LEVEL FORMAT Prox-1550 USER ′ S MANUAL Page: 5-25...

  • Page 90: Save & Exit Setup

    You may call up the setup program at any time to adjust any of the individual items by pressing the <Del> key during boot up. Prox-1550 USER ′ S MANUAL Page: 5-26...
  • Page 91 Quit Without Saving (Y/N) ? Y LOAD BIOS DE ETUP LOAD SETUP DEFAULTS EXIT WITHOUT SAVING ↑↓→← Esc : Quit :SELECT ITEM F10 : Save & Exit Setup (Shift)F2 : Change Color Abandon all Datas & Exit SETUP Prox-1550 USER ′ S MANUAL Page: 5-27...
  • Page 92 Chapter 5 Award BIOS Setup Prox-1550 USER ′ S MANUAL Page: 5-28...

  • Page 93: Appendix A Expansion Bus

    APPENDIX EXPANSION BUS This appendix indicates you the pin assignments. Section includes: ! PC-104 Connector Pin Assignment ! ISA BUS Pin Assignment ! PCI BUS Pin Assignment Page: A-1...

  • Page 94: Connector Pin Assignment

    IRQ15 LA18 IRQ14 +12V LA17 DACK0 IOCHRDY MEMR DRQ0 SMEMW MEMW DACK5 SMEMR DRQ5 DACK6 DRQ6 DACK3 DACK7 DRQ3 DRQ7 DACK1 DRQ1 MASTER REFRESH KEY PIN IRQ7 IRQ6 IRQ5 IRQ4 IRQ3 DACK2 BALE Prox-1550 USER ′ S MANUAL Page: A-2...

  • Page 95: Isa Bus Pin Assignment

    SD12 -DRQ3 SA15 SD13 -DACK1 SA14 -MASTER SD14 -DRQ1 SA13 SD15 -REFRESH SA12 BCLK SA11 IRQ7 SA10 IRQ6 SA09 IRQ5 SA08 IRQ4 SA07 IRQ3 SA06 -DACK2 SA05 SA04 BALE SA03 SA02 SA01 SA00 Prox-1550 USER ′ S MANUAL Page: A-3...

  • Page 96: Pci Bus Pin Assignment

    AD30 AD08 C/BE0# AD29 +3.3V AD07 +3.3V AD28 +3.3V AD06 AD27 AD26 AD05 AD04 AD25 AD03 +3.3V AD24 AD02 C/BE3# GNT2# AD01 AD00 AD23 +3.3V +5V(I/O) +5V(I/O) AD22 ACK64# REQ64# AD21 AD20 AD19 Prox-1550 USER ′ S MANUAL Page: A-4...
  • Page 97 APPENDIX TECHNICAL SUMMARY This section introduces you the maps concisely. Section includes: ! Block Diagram ! Interrupt Map ! RTC & CMOS RAM Map ! Timer & DMA Channels Map ! I / O & Memory Map Page: B-1...

  • Page 98: Appendix B Technical Summary

    Appendix B Technical Summary BLOCK DIAGRAM Prox-1550 USER ′ S MANUAL Page: B-2...

  • Page 99: Interrupt Map

    Keyboard output buffer full Cascade for IRQ 8-15 Serial port 2 Serial port 1 Parallel port 2 Floppy Disk adapter Parallel port 1 RTC clock Available Available Available Available Math coprocessor Hard Disk adapter Available Prox-1550 USER ′ S MANUAL Page: B-3...

  • Page 100: Rtc & Cmos Ram Map

    Extension memory low byte Extension memory high byte Reserved for extension memory low byte Reserved for extension memory high byte Date Century byte Information Flag 34-3F Reserve 40-7f Reserved for Chipset Setting Data Prox-1550 USER ′ S MANUAL Page: B-4...

  • Page 101: Timer & Dma Channels Map

    Assignment System timer interrupt DRAM Refresh request Speaker tone generator DMA Channel Map : DMA Channel Assignment Available IBM SDLC Floppy Disk adapter Channel-3 Available Cascade for DMA controller 1 Available Available Available Prox-1550 USER ′ S MANUAL Page: B-5...

  • Page 102: I/O & Memory Map

    Parallel port-2 2B0-2DF Graphics adapter controller 2F8-2FF Serial port-2 360-36F Net work ports 378-37F Parallel port-1 3B0-3BF Monochrome & Printer adapter 3C0-3CF EGA adapter 3D0-3DF CGA adapter 3F0-3F7 Floppy disk controller 3F8-3FF Serial port-1 Prox-1550 USER ′ S MANUAL Page: B-6...

  • Page 103: Appendix C Trouble Shooting

    APPENDIX TROUBLE SHOOTING This section outlines the error message may occur when you operate the system, also gives you the suggestions on solving the problems. Section includes: ! Trouble Shooting for Error Messages ! Trouble Shooting for POST Code Page: C-1...
  • Page 104 Appendix C Trouble Shooting TROUBLE SHOOTING FOR ERROR MESSAGE The following information gives you the error messages and the trouble shooting. Please adjust your systems according to the messages below. And make sure all the components and connectors are in proper position and firmly attached.
  • Page 105 Appendix C Trouble Shooting DISKETTE DRIVES OR TYPES MISMATCH ERROR : When the diskette drive type is different from CMOS, please run setup or configure the drive again. ERROR ENCOUNTERED INITIALIZING HARD DRIVE : When you can‘t initialize the hard drive. Assure the adapter is installed correctly and all cables are correctly and firmly attached.
  • Page 106 Appendix C Trouble Shooting MEMORY VERIFYING ERROR : It indicates an error verifying a value already written to memory. Use the location along with your system's memory map to locate the bad chip. OFFENDING ADDRESS MISSING : This message is used in connection with the I/O CHANNEL CHECK and RAM PARITY ERROR messages when the segment that has caused the problem cannot be isolated.
  • Page 107 Appendix C Trouble Shooting 07 : Verifies CMOS‘s basic R/W functionality. BE : Program defaults values into chipset according to the MODBINable Chipset Default Table. C1 : Auto-detection of onboard DRAM & Cache. C5 : Copy the BIOS from ROM into E0000-FFFFF shadow RAM so that POST will go faster.
  • Page 108 Appendix C Trouble Shooting 0E : 1. Initialize the APIC (Multi-Processor BIOS only). 2. Test video RAM (If Monochrome display device found). 3. Show messages including : -Award Logo, Copyright string, BIOS Date code & Part No. -OEM specific sign on messages. -Energy Star Loge (Green BIOS only).
  • Page 109 Appendix C Trouble Shooting 3E : Try to turn on Level 2 cache. Note : Some chipset may need to turn on the L2 cache in this stage. But usually, the cache is turn on later in POST 61h. BF : 1. Program the rest of the Chipset‘s value according to Setup. (Later Setup Value Program).
  • Page 110 Appendix C Trouble Shooting 53 : 1.If it is NOT a PnP BIOS, initialize serial & parallel ports. 2. Initialize time value in BIOS data area by translate the RTC time value into a timer tick value. 60 : Setup Virus Protection (Boot Sector Protection) functionality according to Setup setting.
