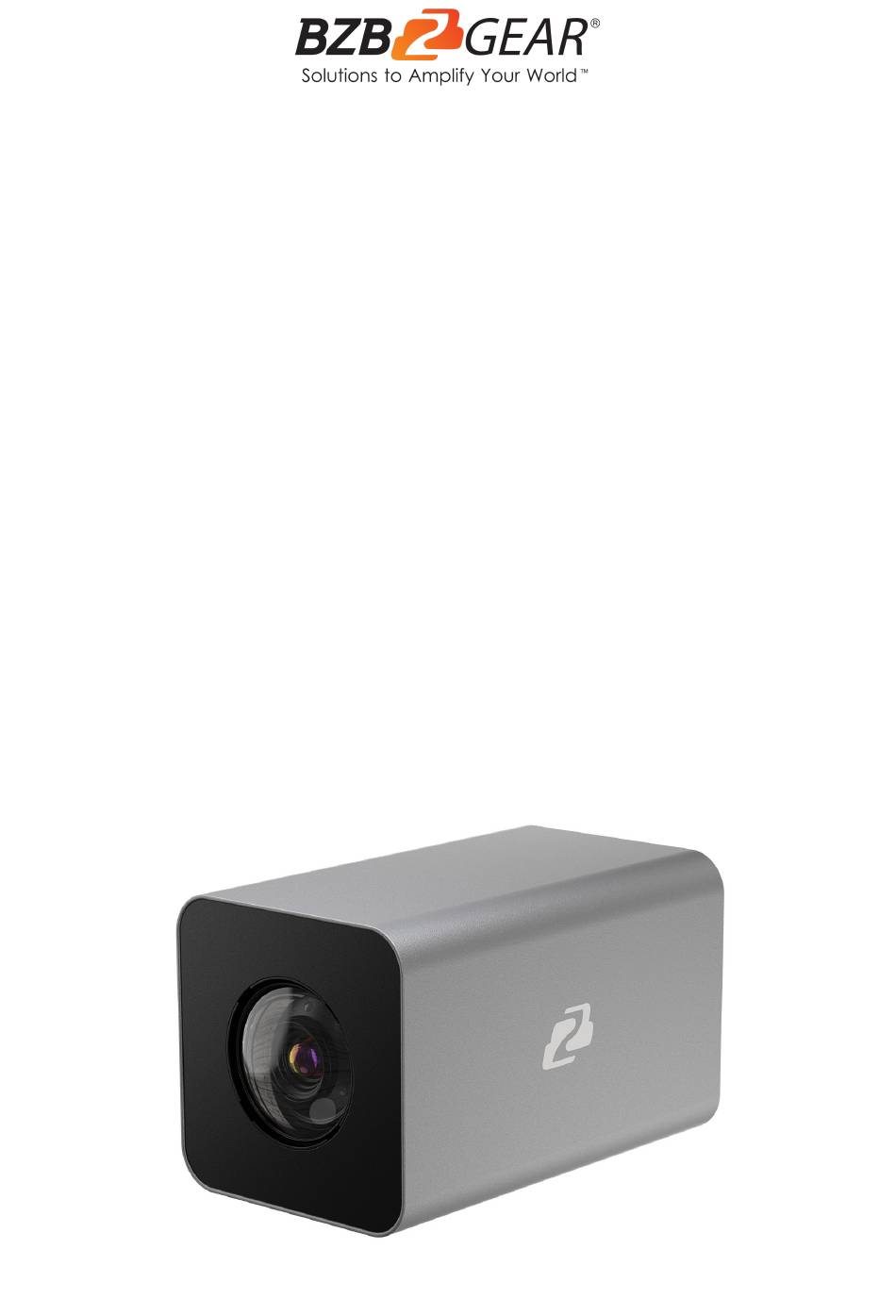

- Page 1 BG-BSHA Full HD Integrated HDMI/SDI/IP 20X/30X Zoom Camera with Audio Input User Manual...
- Page 2 BZBGEAR BG-BSHA PRODUCT MANUAL · · Address: 830 National Drive #140, Sacramento, CA 95834, USA Tel: +1(888)499-9906 Email: support@bzbgear.com...
-
Page 3: Table Of Contents
BZBGEAR BG-BSHA PRODUCT MANUAL TABLE OF CONTENTS Statement Safety Precaution Introduction Features Packing List Specifications Operation Controls and Functions Camera Menu Settings Network Connection Camera Web Interface Tech Support Warranty Mission Statement Copyright · · Address: 830 National Drive #140, Sacramento, CA 95834, USA Tel: +1(888)499-9906 Email: support@bzbgear.com... -
Page 4: Statement
BZBGEAR BG-BSHA PRODUCT MANUAL Statement Please read these instructions carefully before connecting, operating, or configuring this product. Please save this manual for future reference. Safety Precaution ● To prevent damaging this product, avoid heavy pressure, strong vibration, or immersion during transportation, storage, and installation. -
Page 5: Introduction
● Built-in Audio Input, Audio encode standard support G.711,G.722,G.722.1, G.728,G.722.1C, ACC ● SDI/HDMI/IP stream simultaneously Power over Ethernet (PoE) functionality ● Packing List ● 1x BG-BSHA Camera ● 1x 12V/ 2.0 A DC Power Adapter ● 1x Power Cable ● 1x User Manual · ·... -
Page 6: Specifications
BZBGEAR BG-BSHA PRODUCT MANUAL Specifications Camera Specs Sensor 1/2.8″ Exmor CMOS Sensor, 2.38MP Frame Rate 1080p@60Hz/50/30/25, 1080i@60Hz/50/30/25, 720p@60Hz/50 Zoom 20X/30X Optical, 12X Digital Zoom Focus f=4.7mm-94.0mm Aperture F=1.6(W)-3.5(T) Horizontal Field of View 2.9°(T)-65°(W) Zoom Control VISCA, PELCO D/P Input/Output Interface... -
Page 7: Camera Menu Settings
BZBGEAR BG-BSHA PRODUCT MANUAL Dimensions Camera Menu Settings Menu Settings 1. Press and hold the center button for 3 seconds to enter the MAIN MENU Main Menu EXPOSURE 2. Use the directional keys to navigate the menu and settings. COLOR... - Page 8 BZBGEAR BG-BSHA PRODUCT MANUAL Exposure Enter the main menu and navigate to【EXPOSURE】. Press right MAIN MENU to enter the sub-menu. EXPOSURE ● 【AE MODE】 COLOR PICTURE Options: AUTO/SHUTTER/IRIS/BRIGHT ADVANCED ● 【SHUTTER/IRIS/BRIGHT】 PRIVACY SYSTEM Different auto exposure parameters can be modified depending EXIT on the selected mode.
- Page 9 BZBGEAR BG-BSHA PRODUCT MANUAL Picture Enter Main Menu, navigate to【PICTURE】, press the Right Button PICTURE to enter the sub-menu. FREEZE： ● 【FREEZE】 Setting: ON/OFF APERTURE： 2D NR： ● 【APERTURE】 Setting Value range：0-15 FLIP： ● 【2D NR】 Setting Value range：0-5 ICR: AUTO ●...
- Page 10 BZBGEAR BG-BSHA PRODUCT MANUAL Video Format Press the 【MENU】 button to display the OSD menu, press the VIDEO OUT arrow keys to highlight 【VIDEO OUT】, then press right to enter VIDEO OUT: 720P50 the sub-menu. 720P60 1080I25 ● 【VIDEO OUT】: 1080I30 1080P60/59.9 4/50/30/29.97/25...
-
Page 11: Network Connection
(This is the address you will set the camera to). The third piece is the default IP address of your camera. Finally, you will need the IP address of your Default Gateway/Router. All versions of the BZBGEAR BG-BSHA series cameras have the following default IP address: 192.168.1.162 The computer must be on the same subnet as the camera to connect successfully, therefore the computer must be connected to the 192.168.1.x subnet. - Page 12 BZBGEAR BG-BSHA PRODUCT MANUAL • Right-click on your connection (Wi-Fi or Ethernet) and select “Properties." • Select “Internet protocol version 4 (TCP/IPv4)" as shown below and click “Properties." • For the following steps refer to the diagram below. Select “Use the following IP address."...
- Page 13 BZBGEAR BG-BSHA PRODUCT MANUAL NOTE: When you are finished configuring the camera you will need to return to this screen and select “Obtain an IP address automatically" and “Obtain DNS server automatically" to restore internet connectivity to your computer. Also make sure to reconnect any ethernet cables you may have unplugged.
- Page 14 BZBGEAR BG-BSHA PRODUCT MANUAL • Unless you are given different information by your network administrator you should enter 8.8.8.8 for DNS1 and 8.8.4.4 for DNS2. Click Save. • Once you complete the camera setup, repeat the steps on your computer to adjust "Internet Protocol Version 4 (TCP/IPV4) Properties"...
-
Page 15: Camera Web Interface
BZBGEAR BG-BSHA PRODUCT MANUAL Camera Web Interface From the Web Interface you can control the camera, view the video feed, and adjust various camera settings and functions. Preview Screen From the preview screen you can view the live video feed, preview the embedded audio, and adjust PTZ, Focus, and Iris controls. - Page 16 BZBGEAR BG-BSHA PRODUCT MANUAL Network Page The network page includes network settings, port settings, and streaming settings. ETH Tab: Select static (Config IP Address) or DHCP (Auto IP Address), select Auto or Manual DNS settings. Service Tab MSG Port: default 8080...
- Page 17 BZBGEAR BG-BSHA PRODUCT MANUAL Frame Rate: Specify frame rate (1-30). Frame Rate Priority prioritizes frame rate over image quality when VBR mode is enabled. GOP: Frame interval (1-60). Default is 30. Bitrate: Video Bit Rate (1-10240). Default is 4096 Resolution: Set streaming video resolution Stream Mix Type: Select Complex or Video Stream.
- Page 18 BZBGEAR BG-BSHA PRODUCT MANUAL Camera Tab- Focus Mode: Change camera focusing mode Near Limit: Set the distance from the lens for auto focusing. The camera will not focus on anything closer than the set value. Sensitivity: Auto focus sensitivity level...
-
Page 19: Tech Support
BZBGEAR BG-BSHA PRODUCT MANUAL Tech Support Have technical questions? We may have answered them already! Please visit BZBGEAR’s support page (bzbgear.com/support) for helpful information and tips regarding our products. Here you will find our Knowledge Base (bzbgear.com/knowledge-base) with detailed tutorials, quick start guides, and step-by-step troubleshooting instructions. -
Page 20: Copyright
BZBGEAR BG-BSHA PRODUCT MANUAL Copyright All the contents in this manual and its copyright are owned by BZBGEAR. No one is allowed to imitate, copy, or translate this manual without BZBGEAR’s permission. This manual contains no guarantee, standpoint expression or other implies in any form. Product specification and information in this manual is for reference only and subject to change...
