BZB Gear BG-B20SA User Manual

Hd color video camera
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
BG-B20SA
HD Color Video Camera
User Manual

Advertisement

Table of Contents
loading

Related Manuals for BZB Gear BG-B20SA

Summary of Contents for BZB Gear BG-B20SA

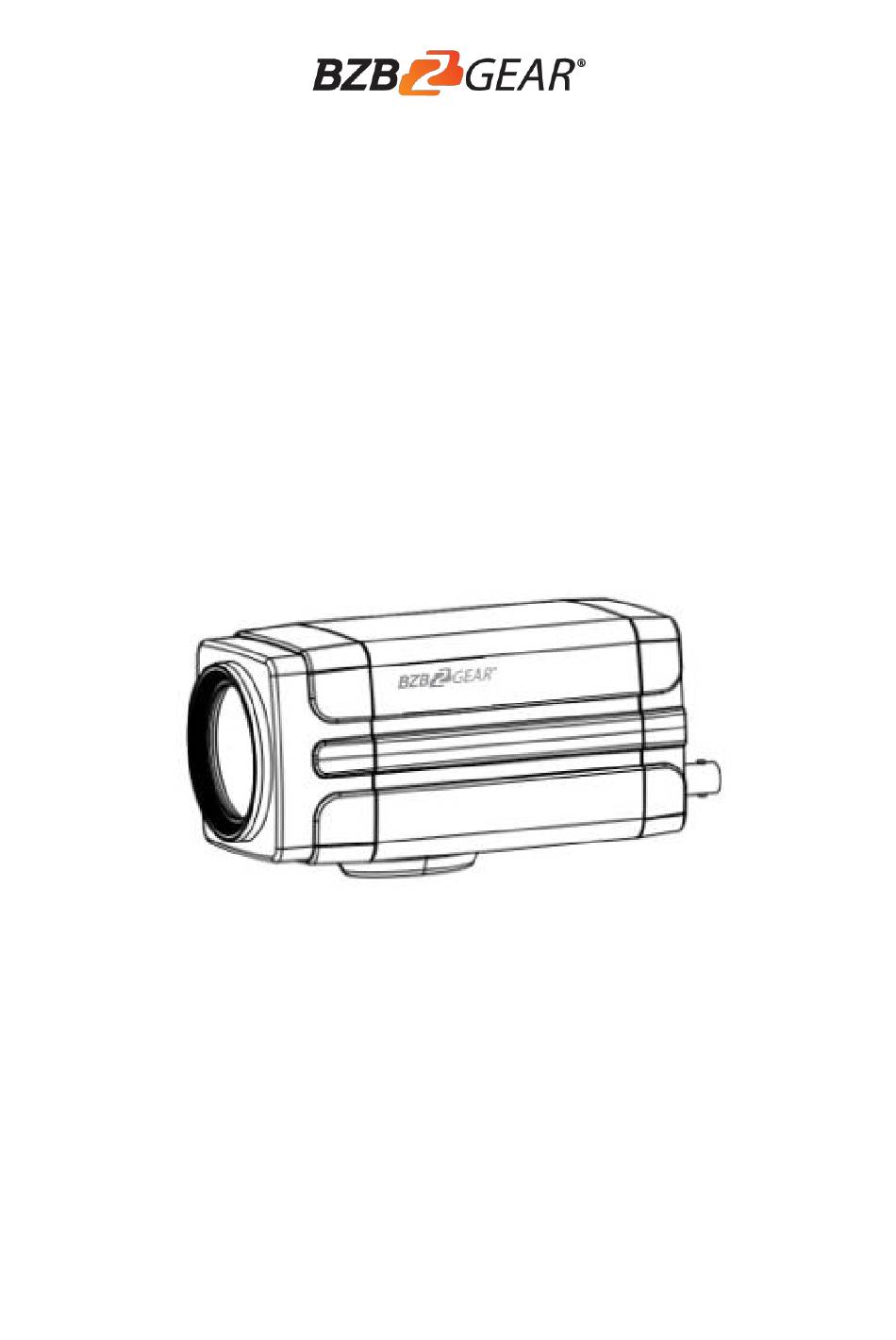

  • Page 1 BG-B20SA HD Color Video Camera User Manual...
  • Page 2 Preface: Thanks for using our HD color video conference camera. This manual introduces the functions, installation, and operation of the HD camera. Prior to installation and usage please read the manual thoroughly. Warning ●Do not expose the camera to rain or moisture ●To reduce the list of electric shock do not remove the cover.

  • Page 3: Table Of Contents

    Content Quick Start Guide ......................4 1.1 C ......................... 4 AMERA NTERFACE XPLANATION 1.2 P ........................... 5 OWER ON SELF TEST 1.3 V .............................. 5 IDEO OUTPUT BRACKET MOUNTING ......................... 6 2. Product overview ........................7 ......................... 7 RODUCT INTRODUCTION 2.1.1 Dimension ............................
  • Page 4 6 Camera Maintenance and Troubleshooting ..............33 6.1 C ..........................33 AMERA AINTENANCE 6. Maintenance and Troubleshooting ..................33 6.1 M ............................33 AINTENANCE 6.2 T ............................. 34 ROUBLESHOOTING 7 Warranty ..........................34 8 Mission Statement ......................35...

  • Page 5: Quick Start Guide

    1. Quick Start Guide Camera Interface Explanation Pic 1.1 Back plate 1. HD-SDI interface 2. Audio-IN interface(3.5mm) 3. LAN interface 4. RS485 interface，support VISCA, PELCO-D, PELCO-P protocol 4.1 RS485 D- 4.2 RS485 D+ 4.3 RS485 GND 5. Power interface，DC+12V，notes for polarity 5.1 DC+12V negative 5.2 DC+12V positive 6.

  • Page 6: Power On Self-Test

    Power on self-test 1) Power on: connect DC12V power supply adapter, and the indicator light will be on. 2) Self-testing: Power on with power indicator light on, camera module will stretch. When the module finishes stretching, the self-testing is finished. Note: If you set parking position, when Power on self-test is completed, the camera automatically goes to the parking position.

  • Page 7: Bracket Mounting

    BRACKET MOUNTING Note: Ceiling or wall mounting brackets should only be installed on sturdy walls rated to support mounted objects. For safety reason, plasterboard is not recommended. Bracket installation steps 2）Accessories introduction Note：Mounting brackets should be only installed and maintained by a qualified technician.

  • Page 8: Product Overview

    2. Product overview Product introduction 2.1.1 Dimension 2.1.1 Camera dimension 2.1.2 Accessories Power adapter User manual Accessories Warranty card...

  • Page 9: Main Features

    Main Features 2.2.1 Camera performance This series camera features advanced ISP processing algorithms to provide vivid images with a strong sense of depth, high resolution and fantastic color rendition. It supports H.264/H.264+ encoding which makes motion video fluent and clear even with less than ideal bandwidth conditions.
  • Page 10 View Angle 3.3°（tele）～54.7°（wide） F1.6 ～ F3.5 Aperture Digital Zoom Minimum 0.5Lux (F1.8, AGC ON) Illumination 2D﹠3D DNR White Balance Auto / Manual/ One Push/ 3000K/ 4000K/5000K/6500K Focus Auto/Manual Iris Auto/Manual Electronic Shutter Auto/Manual ON/OFF OFF/ Dynamic level adjustment Video Adjustment Brightness,Color,Saturation,Contrast,Sharpness,B/W mode,Gamma curve >55dB Input/Output Interface...

  • Page 11: Keyboard Introduction

    2.2.4 Keyboard Introduction Menu Menu and Confirm share the same key - “menu/ok” In the menu screen, when the cursor is on a particular sub-menu, the cursor will move up to the selected menu when we press the "up” key. When it is not on menu screen, it is used as Focus+ Down In the menu screen, when the cursor is on a particular sub-menu, the cursor will move...

  • Page 12: Video Output

    3.1.2 Video output Network output: connect this product and your computer via network cable, then open the browser and enter the camera IP address (factory default 192.168.5.163) in the address bar. From the login page enter user name and password (factory default is “admin” for both). After login you will be taken to the preview page where you will see the camera image.

  • Page 13: System Setting

    [MENU] OK: Press [MENU] to confirm 3.2.2 System setting Move the pointer to the (Setup) in the Main Menu, click the【MENU】key and enter into the (System Setting) as shown below, SETUP ＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝ Protocol Auto Visca Address Visca Address Fix PELCO-P Address PELCO-D Address Baudrate 9600...
  • Page 14 CAMERA ＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝ （Exposure） （Color） （Image） （Focus） （Noise Reduction） Return [↑↓]Select [← →]Change Value [Menu]OK EXPOSURE: Adjust Exposure setting COLOR: Adjust color setting Image: Adjust image setting Focus: Adjust focus setting Noise Reduction: Enter into noise reduction RETURN: Exit menu [↑↓] Select: for selecting menu [←...
  • Page 15 Shutter priority:1/25,1/30,1/50,1/60,1/90,1/100,1/120,1/180,1/250,1/350,1/500,1/1000,1/2000,1/3000,1/4000,1/6000, 1/10000(only available in Manual and Shutter priority mode) IRIS priority: OFF,F11.0,F9.6,F8.0,F6.8,F5.6,F4.8,F4.0,F3.4,F2.8,F2.4,F2.0,F1.8(only available in Manual and Iris priority mode) BRIGHTNESS: 0~23 (only available in Brightness priority mode) RETURN: Return to the former menu [↑↓] Select: for selecting menu [← →] Change value: for modify parameters [MENU] OK: Press [MENU] to confirm 2) COLOR SETTING Highlight (COLOR) in the Main Menu and click【MENU】to enter Color Settings.
  • Page 16 3) IMAGE Highlight (IMAGE) in the Menu and click【HOME】to enter Image Settings. IMAGE ＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝ Brightness Contrast Sharpness Flip-H Flip-V B&W-Mode Color Gamma Default DZoom Close Return [↑↓]Select [← →]Change Value [Menu]OK Brightness: 0~14 Contrast: 0~14 Sharpness:0~15 Flip-H: On/Off Flip-V: On/Off B&W mode: color, black/white Gamma:default,0.47,0.50,0.52,0.55 DZoom: digital zoom options: On/Off...

  • Page 17: Zoom

    [← →] Change value: for modify parameters [MENU] OK: Press [MENU] to confirm 5) NOISE REDUCTION Move the pointer to the (NOISE REDUCTION) in the Menu,click the 【MENU】 and enter the (NOISE REDUCTION) as follow, NOISE REDUCTION ＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝ NR-2D Auto NR-3D Dynamic Hot Pixel Return...

  • Page 18: Version

    VIDEO FORMAT ＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝ 1080P60 1080P50 1080I60 1080I50 1080P30 1080P25 720P60 720P50 720P30 720P25 1080P59.94 1080I59.94 1080P29.97 720P59.94 720P29.97 Return [↑↓]Select [Menu] OK 3.2.5 VERSION Highlight (VERSION) in the Main Menu and click【MENU】to view Version Information. VERSION ＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝ MCU Version 2.0.0.0 2015-12-18 Camera Version 2.0.0.15 2015-12-18 AF Version 2.0.0.6...

  • Page 19: Network Connection

    RESTORE DEFAULT ＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝ Restore Default? Return [↑↓]Select [← →]Change Value [Menu]OK Restore default: options: yes/no RETURN: Return to the former menu (if it is main menu, means close menu) [↑↓] Select: for selecting menu [← →] Change value: for modify parameters [MENU] OK: Press [MENU] to confirm 4.
  • Page 20 For the following steps refer to the diagram below. Click on the bubble for “Use the following IP address” In the IP address field enter a non-conflicting IP address on the same subnet as the camera. If there is another device with the same IP address you will not be able to connect.

  • Page 21: Web Client

    4.2.1 Web client 1) Web client Input the IP address 192.168.5.163 of the device in the address filed of browser and click Enter button to access Web Client login page as pic 4.2.2. If logging in as administrator (Default: Username – admin / Password – admin), users can preview and set configuration in the Web Client.

  • Page 22: Preview

    Pic 4.2.2 Network log in NOTE: Supported Browsers for WebGUI access include Chrome, Firefox, and Safari. 4.2.2 Preview After login you will be taken to the default video preview interface. User can control the zoom, focus, snapshot, enlarge, full screen and position 0 preset set operations etc. 4.2.4 Configuration Click Configuration to access the device parameters setting page.

  • Page 23: Video Configuration

    value: real time normal (2), real time best (1), fluency normal (3), fluency good (4) and fluency best (5)) b) Recording video packing time(minute): Set recording video packing time (default is 10, range from 1~120 minutes) c) Recording/Snapshot file storage route: Set local recording video/snapshot file storage route.(Default D:\MyIPCam\) d) Click the Save button to make settings effective.
  • Page 24 Focus Sensitivity: Set the focus sensitivity (default is low, high, medium optional) a) Exposure: Exposure Mode: Set the exposure mode (the default automatic, manual, shutter priority, aperture priority, Brightness priority optional) Exposure compensation: Exposure compensation setting is active when it is auto status (default is off). Exposure compensation value: Set the exposure compensation value, valid when it is set for auto (default 0, -7 to 7 optional).

  • Page 25: Network Configuration

    1080P60,1080P50,1080P30,1080P25,1080I60,1080I50,720P60,720P50,720P30,720P25,1080P59.94,1080I59.94,1080P 29.97,720P59.94,720P29.97 optional). b) Click on the "Save" button to display the "Save successful" message, then valid. Note: Model S-S20/T20 support up to P30 video formats. 4.2.6 Network configuration 1）Network port a) Data port: set the data port, the device will restart automatically after changed (default 3000,0-65535 optional). b) Web Port: Set Web port, the device will restart automatically after changed (default is 80,0-65535 is optional).

  • Page 26: Logout

    b) Date separator: set the date separator (default '/','.','-' Optional). c) Time Zone: Set the time zone (default East eight districts, other time zones optional). d) Time Type: Set the time types (default 24 hours, optional 12 hours). e) Time setting: Set time mode (to choose the computer time synchronization, NTP server time synchronization, or set manually).

  • Page 27: Visca Protocol List

    VISCA protocol list 5.1.1 Camera return command (Correct) Ack/Completion Message Command packet Note z0 41 FF Returned when the command is accepted. Completion z0 51 FF Returned when the command has been executed. z = camera address + 8 5.1.2 Camera return command (Wrong) Error Messages Command packet Note...
  • Page 28 Auto 8x 01 04 35 00 FF 3000K 8x 01 04 35 01 FF 4000k 8x 01 04 35 02 FF CAM_WB One Push mode 8x 01 04 35 03 FF 5000k 8x 01 04 35 04 FF Manual 8x 01 04 35 05 FF 6500k 8x 01 04 35 06 FF Reset...
  • Page 29 8x 01 04 33 02 FF Back Light CAM_Back Light 8x 01 04 33 03 FF Compensation CAM_NR（2D） 8x 01 04 53 0p FF P=0-7 0:OFF CAM_NR（3D） 8x 01 04 54 0p FF P=0-8 0:OFF p = 0 – 4 0：Default 1：0.47 CAM_Gamma...
  • Page 30 CAM_Contrast Direct 8x 01 04 A2 00 00 0p 0q FF pq: Contrast Position 8x 01 04 A4 00 FF Flip-H 8x 01 04 A4 01 FF CAM_Flip Single Command For Video Flip Flip-V 8x 01 04 A4 02 FF Flip-HV 8x 01 04 A4 03 FF P: 0~E Video format...

  • Page 31: Inquiry Command

    5.1.3 Inquiry command Command Function Command packet Note y0 50 02 FF CAM_PowerInq 8x 09 04 00 FF y0 50 03 FF Off(Standby) CAM_ZoomPosInq 8x 09 04 47 FF y0 50 0p 0q 0r 0s FF pqrs: Zoom Position y0 50 02 FF Auto Focus CAM_FocusAFModeInq 8x 09 04 38 FF...
  • Page 32 y0 50 02 FF Flip-V y0 50 03 FF Flip-HV CAM_GammaInq 8x 09 04 5B FF y0 50 0p FF p: Gamma setting ab cd : vender ID ( 0220 ) mn pq : model ID ST ( 0950 ) y0 50 ab cd CAM_VersionInq 8x 09 00 02 FF...

  • Page 33: Pelco -Dprotocol Command List

    Position Query Pan Value High Value Low Position 0xFF Address 0x00 0x59 Byte Byte Response Query Tilt Position 0xFF Address 0x00 0x53 0x00 0x00 Query Tilt Position Value High Value Low 0xFF Address 0x00 0x5B Response Byte Byte Query Zoom 0xFF Address 0x00...

  • Page 34: Camera Maintenance And Troubleshooting

    Position Query Zoom Value High Value Low Position 0xA0 Address 0x00 0x5D 0xAF Byte Byte Response 6 Camera Maintenance and Troubleshooting 6.1 Camera Maintenance 1)If camera is not used for long time, please turn off power adapter switch and AC plug. 2)Use soft cloth or tissue to clean the camera cover.

  • Page 35: Troubleshooting

    6.2 Troubleshooting 1) No video output- Check whether the camera power supply is connected, the voltage is normal, and the power indicator is lit. Check whether the camera performed a self-test after restart. Check whether the bottom of the DIP switch is the normal operating mode Verify that output cable and display monitor are working properly.

  • Page 36: Mission Statement

    8 Mission Statement BZBGEAR manifests from the competitive nature of the audiovisual industry to innovate while keeping the customer in mind. AV solutions can cost a pretty penny, and new technology only adds to it. We believe everyone deserves to see, hear, and feel the advancements made in today’s AV world without having to break the bank.
