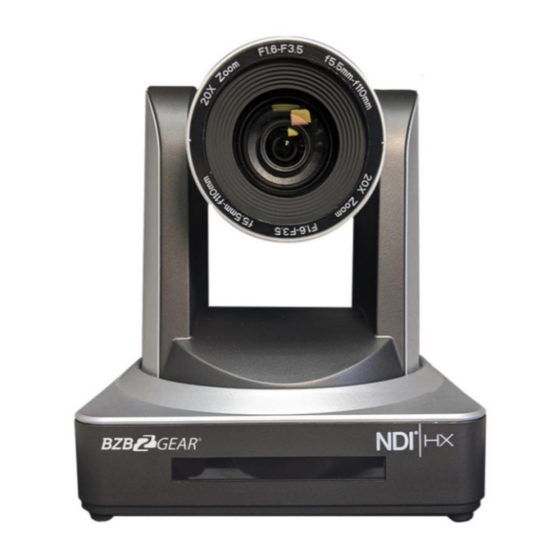

- Page 1 BG-ND-20XHSRP / BG-ND-30XHSRP HD Color Video Camera User Manual...
- Page 2 To prevent the risk of electric shock, do not open the case. Installation and maintenance should only be carried out by qualified technicians. There are no serviceable parts inside the camera. BZB Gear is not responsible for any damage due to unauthorized disassembly.
-
Page 3: Table Of Contents
Content 1. Quick Installation ............................... 4 1.1 Camera Overview ............................. 4 1.2 Power on initial configuration ........................0 1.3 Video Output ............................0 2. Product overview ............................... 2 2.1 Product Introduction ..........................2 Dimensions ..........................3 2.1.1 2.1.2 Accessories ............................ 3 2.2 Main Features ............................ - Page 4 4.2.9 Logout ............................22 4.2.10 Wireless network ........................22 5. Serial Communication Control .......................... 22 5.1 VISCA protocol list ..........................23 5.1.1 Camera return command ......................23 5.1.2 Camera control command ......................23 5.1.3,Inquiry command ......................... 26 5.2,Pelco-D protocol command list ....................... 27 5.3 Pelco-P protocol command list........................
-
Page 5: Quick Installation
1. Quick Installation 1.1 Camera Overview Figure 1.1 Interface Camera Lens Camera Base Remote Controller Receiver Light Bottom Dial Switch Tripod Screw Hole RS232 Control Interface (input) RS232 Control Interface (output) RS485 Input (left +, right-) Audio Input Interface 3G-SDI interface HDMI Interface 10/100M NDI/LAN Network Interface DC12V Input Power Supply Socket... -
Page 6: Power On Initial Configuration
1.2 Power on initial configuration 1) Power on: Connect DC12V power supply adapter with power supply socket. 2) Initial configuration: Power on with power indicator light on and remote control receiver light blinking, camera head moves from bottom left to the bottom, and then goes to the HOME position (intermediate position of both horizontal and vertical), while the camera module stretches. - Page 7 2. Ceiling mount guide...
-
Page 8: Product Overview
2. Product overview 2.1 Product Introduction... -
Page 9: Dimensions
Accessories Power adapter 1piece RS232 cable 1 piece User manual 1 Standard Double-side glue shim 4pcs Warranty card 1 piece BG-ND-20XHSRP BG-ND-30XHSRP IR Remote controller 1 piece Wireless controller 1 piece Optional Wall mounting bracket Upside-down mounting bracket(optional) Cascade cable USB2.0 Video cable: If need USB2.0 cable to provide power but not a power adapter, USB2.0 Video cable with two ports is needed,... -
Page 10: Main Features
2.2 Main Features 2.2.1 Camera Performance This camera offers superior performance and rich interfaces. Featuring NDI technology for Local Area Network broadcasting along with advanced ISP processing algorithms to provide vivid images with a strong sense of depth, high resolution and accurate color rendition. -
Page 11: Connections Overview
ON/OFF OFF/ Dynamic level adjustment Video adjustment Brightness, Color, Saturation, Contrast, Sharpness, B/W mode, Gamma curve >55dB Input/Output Interface Video Interfaces BG-ND-20XHSRP / BG-ND-30XHSRP: HDMI, 3G-SDI, NDI-LAN. Image code stream Double streams outputs simultaneously Video Compression H.264, H.265 format Control Signal Interface... -
Page 12: Bottom Dial Switch
Figure 2.3 external interface diagram 2.4.2 Bottom Dial Switch Bottom Dial Switch diagram shown in Figure 2.6 and 2.7: Figure 2.6 Bottom Dial Switch Diagram Figure 2.7 Bottom Dial Switch diagram Two DIP switches are set to ON or OFF to select different modes of operation as shown in Table 2.2 Table 2.2 Dial Switch setting Explanation Working mode... - Page 13 Computer or keyboard and camera connection method Camera WindowsDB-9 1.DTR 1.DCD 2.DSR 2.RXD 3.TXD 3.TXD 4.GND 4.DTR 5.RXD 5.GND 6.GND 6.DSR 7.IR OUT 7.RTS 8.NC 8.CTS 9.RI 2) RS-232 Mini-DIN 8-pin Port Definition Port Definition Data Terminal Ready Data Set Ready Transmit Data System Ground Receive Data...
-
Page 14: Operating Instructions
VISCA networking as shown below: Camera cascade connection method Camera 1 Camera 2 1.DTR 1.DTR 2.DSR 2.DSR 3.TXD 3.TXD 4.GND 4.GND 5.RXD 5.RXD 6.GND 6.GND 7.IR OUT 7.OPEN 8. NC 8.OPEN Note: Has RS232 input and output interface allowing for cascading inputs. 3. -
Page 15: Remote Control
3.2 Remote Control 3.2.1 Key Description 1. Power/Standby Key Press and hold for 3 seconds to place the camera into standby mode. Press and hold for 3 seconds a second time and the camera will self-test again and return to the HOME position. Note: Camera will default to preset 0 if no command is sent within 12 seconds of power on. - Page 16 than one second is required. 2. When a key-combination is required, do it in sequence. For example, “【 *】+【#】+【F1】” means press “【*】” first, then press “【#】” and last press “【F1】”. 1) Camera Selection Select the camera address to control. 2) Pan/Tilt Control press Down: press Left: press...
-
Page 17: Menu Settings
1. Preset setting: to set a preset position, the users should press the “【SET PRESET】” key first and then press the number key 0- 9 to record a preset. Note: 10 preset positions in total are available by remote controller. 2. -
Page 18: System Setting
[← →] Change Value: for modify parameters [MENU] Back: Press [MENU] to return [Home] OK: Press [Home] to confirm 3.3.2 System Setting Move the pointer to the (Setup) in the Main Menu, click the【HOME】key and enter the (System Setting) as shown below. SETUP ＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝... - Page 19 EXPOSURE ＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝ Mode Auto Anti-Flicker 50Hz Gain Limit [↑↓]Select [← →]Change Value Mode: Auto, Manual, Shutter priority, Iris priority and Brightness priority. EV: On/Off (only available in auto mode) Compensation Level: -7~7 (only available in auto mode when EV is ON) BLC: ON/OFF for options (only available in auto mode) Anti-Flicker: OFF/50Hz/60Hz for options (only available in Auto/Iris priority/Brightness priority modes) Gain Limit: 0~15 (only available in Auto/ Iris priority /Brightness priority mode)
- Page 20 Hue: 0~14 AWB Sensitivity: high/middle/low Color Style: Default, style1~4. Color Temp: high/middle/low 3) IMAGE Highlight (IMAGE) in the Menu and click the【HOME】key to enter Image Settings. IMAGE ＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝ Brightness Contrast Sharpness Flip-H Flip-V B&W-Mode Color Gamma Default DZoom Close [↑↓]Select [←...
-
Page 21: P/T/Z
NOISE REDUCTION ＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝ NR-2D Auto NR-3D Dynamic Hot Pixel 2D Noise Reduction: Auto, close, 1~7 [↑↓]Select [← →]Change 3D Noise Reduction: Close, 1~8 Value Dynamic Hot Pixel: Close, 1~5 [Menu]Back 3.3.4 P/T/Z Highlight (P/T/Z) in the Main Menu and click the【HOME】key to enter P/T/Z Settings. P/T/Z ＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝... -
Page 22: Version
VIDEO FORMAT ＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝ 1080P60 1080P50 1080I60 1080I50 1080P30 1080P25 720P60 720P50 720P30 720P25 1080P59.94 1080I59.94 1080P29.97 720P59.94 720P29.97 [↑↓]Select [Menu]Back [Home]OK Note: 1. S: 1080P60 Downward Compatibility; M: 1080P30 Downward Compatibility 2. Exit menu after modifying parameter to save it after powered off 3.3.6 Version Highlight (VERSION) in the Main Menu and click the【HOME】key to enter Version Information. -
Page 23: Network Connection
4. Network Connection 4.1 Connection Mode Direct connection: Connect the camera directly to the computer by using an ethernet cable. Internet connection mode: Connect the camera and computer to a router or switch and access via the local area network (LAN). Note: Ensure power and network connections are secured to prevent video issues caused by poor connection quality. -
Page 24: Web Browser Login
For the following steps refer to the diagram below. Click on the bubble for “Use the following IP address” In the IP address field enter a non-conflicting IP address on the same subnet as the camera. If there is another device with the same IP address you will not be able to connect. -
Page 25: Preview
4.2.2 Preview After successful login into the web UI you will see the video preview interface. From the preview screen users can control PTZ, zoom, focus, sound and screen size. Additionally, run and delete preset positions and perform other operations. 4.2.4 Configuration Click Configuration access the following settings. -
Page 26: Network Configuration
Multicast Port: Server port number 4) Video Parameters Focus: Focus mode, focus range, focus sensitivity can be set. Focus Mode: set the focus mode Focus Range: set the focus range Focus Sensitivity: Set the focus sensitivity Exposure: Mode, compensation, back light compensation, anti-flicker, gain limit, and dynamic range compression can be set. Exposure Mode: Set the exposure mode Exposure compensation: Enable exposure compensation BLC: Enable back light compensation... -
Page 27: System Configuration
1) Network port Port Data: Set the data port Port Web: Set the web port Port Onvif: Set Onvif port Port Soap: Set Soap port Port RTMP: Set RTMP port Port Rtsp: Set RTSP port Port Visca: Set Visca Click “Save" to apply changes. RTMP access: RTMP: / / equipment IP address: 1935 / live/av0 (av0 main stream;... -
Page 28: Logout
Username: Set the username Password: Set a password Password confirmation: Confirm the password Click “Save" to apply changes. 4) Update MCU version: Displays current firmware version Camera version: Displays current firmware version Focus version: Displays current firmware Update file: Click choose file to browse for firmware update file. Click Upgrade when file is selected. * Make sure power and network remain connected during process or the upgrade will fail! 5) Default Click on "Restore Factory Defaults"... -
Page 29: Visca Protocol List
5.1 VISCA protocol list 5.1.1 Camera return command Ack/Completion Message Command packet Note z0 41 FF Returned when the command is accepted. Completion z0 51 FF Returned when the command has been executed. z = camera address + 8 Error Messages Command packet Note Returned when the command format is different or when a... - Page 30 Command Function Command packet Note Reset 8x 01 04 03 00 FF 8x 01 04 03 02 FF Manual Control of R Gain CAM _RGain Down 8x 01 04 03 03 FF Direct 8x 01 04 43 00 00 0p 0q FF pq: R Gain Reset 8x 01 04 04 00 FF...
- Page 31 Command Function Command packet Note Reset 8x 01 04 02 00 FF 8x 01 04 02 02 FF Aperture Control CAM_Aperture Down 8x 01 04 02 03 FF Direct 8x 01 04 42 00 00 0p 0q FF pq: Aperture Gain Reset 8x 01 04 3F 00 pq FF pq: Memory Number (=0 to 254)
-
Page 32: 3,Inquiry Command
5.1.3,Inquiry command Command Function Command packet Note y0 50 02 FF CAM_PowerInq 8x 09 04 00 FF y0 50 03 FF Off(Standby) CAM_ZoomPosInq 8x 09 04 47 FF y0 50 0p 0q 0r 0s FF pqrs: Zoom Position y0 50 02 FF Auto Focus CAM_FocusAFModeInq 8x 09 04 38 FF... -
Page 33: Pelco-D Protocol Command List
y0 07 7D 01 04 33 FF Camera _Backlight y0 07 7D 01 04 3F FF Camera _Memery y0 07 7D 01 06 01 FF Pan_titleDriver CAM_BrightnessInq 8x 09 04 A1 FF y0 50 00 00 0p 0q FF pq: Brightness Position CAM_ContrastInq 8x 09 04 A2 FF y0 50 00 00 0p 0q FF... -
Page 34: Pelco-P Protocol Command List
Query Zoom Position Value High Value Low 0xFF Address 0x00 0x5D Response Byte Byte 5.3 Pelco-P protocol command list Function Byte1 Byte2 Byte3 Byte4 Byte5 Byte6 Byte7 Byte8 0xA0 Address 0x00 0x08 Pan Speed Tilt Speed 0xAF Down 0xA0 Address 0x00 0x10 Pan Speed... -
Page 35: Warranty
Verify that output cable and display monitor are working properly. 2) Image cuts out- Verify that output cable and video display are working properly. 3) Image distorts when camera is moving- Check whether the camera installation position is solid. Check whether there is machinery or objects nearby that could be transmitting vibration to the camera. 4) Remote control does not work- Verify remote control address is set to 1. -
Page 36: Copyright Notice
9. Copyright Notice All the contents in this manual and its copyright are owned by BZBGEAR. No one is permitted to imitate, copy, or translate this manual without BZBGEAR’s permission. This manual contains no guarantee, standpoint expression or other implies in any form. Product specification and information in this manual is for reference only and subject to change without notice.
