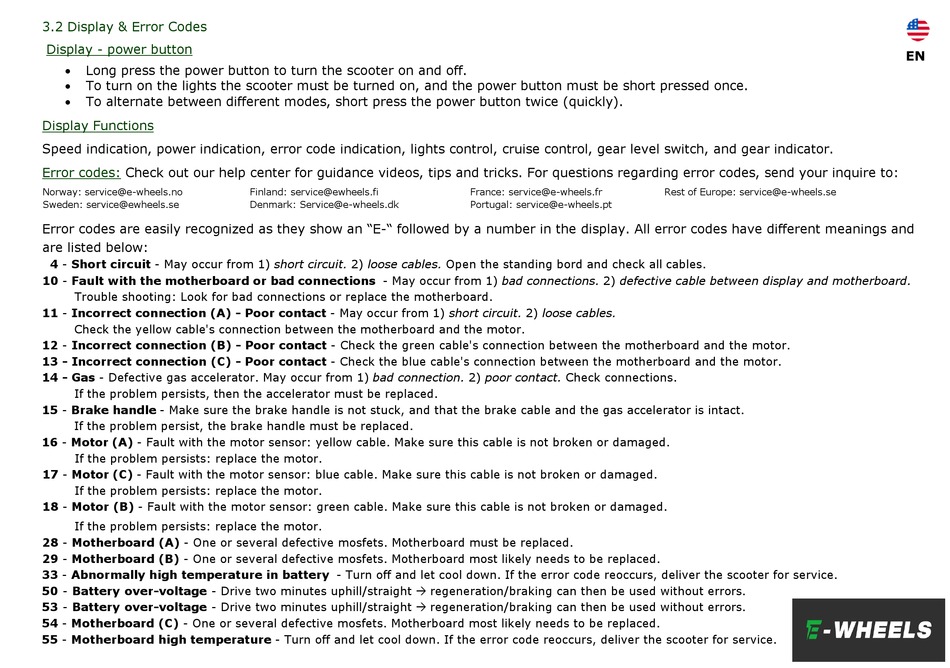

3.2 Display & Error Codes
Display - power button
Long press the power button to turn the scooter on and off.
•
To turn on the lights the scooter must be turned on, and the power button must be short pressed once.
•
To alternate between different modes, short press the power button twice (quickly).
•
Display Functions
Speed indication, power indication, error code indication, lights control, cruise control, gear level switch, and gear indicator.
Error codes: Check out our help center for guidance videos, tips and tricks. For questions regarding error codes, send your inquire to:
Norway: service@e-wheels.no
Sweden: service@ewheels.se
Error codes are easily recognized as they show an "E-" followed by a number in the display. All error codes have different meanings and
are listed below:
4 - Short circuit - May occur from 1) short circuit. 2) loose cables. Open the standing bord and check all cables.
10 - Fault with the motherboard or bad connections - May occur from 1) bad connections. 2) defective cable between display and motherboard.
Trouble shooting: Look for bad connections or replace the motherboard.
11 - Incorrect connection (A) - Poor contact - May occur from 1) short circuit. 2) loose cables.
Check the yellow cable's connection between the motherboard and the motor.
12 - Incorrect connection (B) - Poor contact - Check the green cable's connection between the motherboard and the motor.
13 - Incorrect connection (C) - Poor contact - Check the blue cable's connection between the motherboard and the motor.
14 - Gas - Defective gas accelerator. May occur from 1) bad connection. 2) poor contact. Check connections.
If the problem persists, then the accelerator must be replaced.
15 - Brake handle - Make sure the brake handle is not stuck, and that the brake cable and the gas accelerator is intact.
If the problem persist, the brake handle must be replaced.
16 - Motor (A) - Fault with the motor sensor: yellow cable. Make sure this cable is not broken or damaged.
If the problem persists: replace the motor.
17 - Motor (C) - Fault with the motor sensor: blue cable. Make sure this cable is not broken or damaged.
If the problem persists: replace the motor.
18 - Motor (B) - Fault with the motor sensor: green cable. Make sure this cable is not broken or damaged.
If the problem persists: replace the motor.
28 - Motherboard (A) - One or several defective mosfets. Motherboard must be replaced.
29 - Motherboard (B) - One or several defective mosfets. Motherboard most likely needs to be replaced.
33 - Abnormally high temperature in battery - Turn off and let cool down. If the error code reoccurs, deliver the scooter for service.
50 - Battery over-voltage - Drive two minutes uphill/straight  regeneration/braking can then be used without errors.
53 - Battery over-voltage - Drive two minutes uphill/straight  regeneration/braking can then be used without errors.
54 - Motherboard (C) - One or several defective mosfets. Motherboard most likely needs to be replaced.
55 - Motherboard high temperature - Turn off and let cool down. If the error code reoccurs, deliver the scooter for service.
Finland: service@ewheels.fi
Denmark: Service@e-wheels.dk
France: service@e-wheels.fr
Portugal: service@e-wheels.pt
Rest of Europe: service@e-wheels.se
