E-Wheels EW-04 Owner's Manual

Hide thumbs

Advertisement

Quick Links

EW-04
Owner's Manual
eWheels Service (888) 571-2845
0

Advertisement

loading
Need help?

Need help?

Do you have a question about the EW-04 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for E-Wheels EW-04

Summary of Contents for E-Wheels EW-04

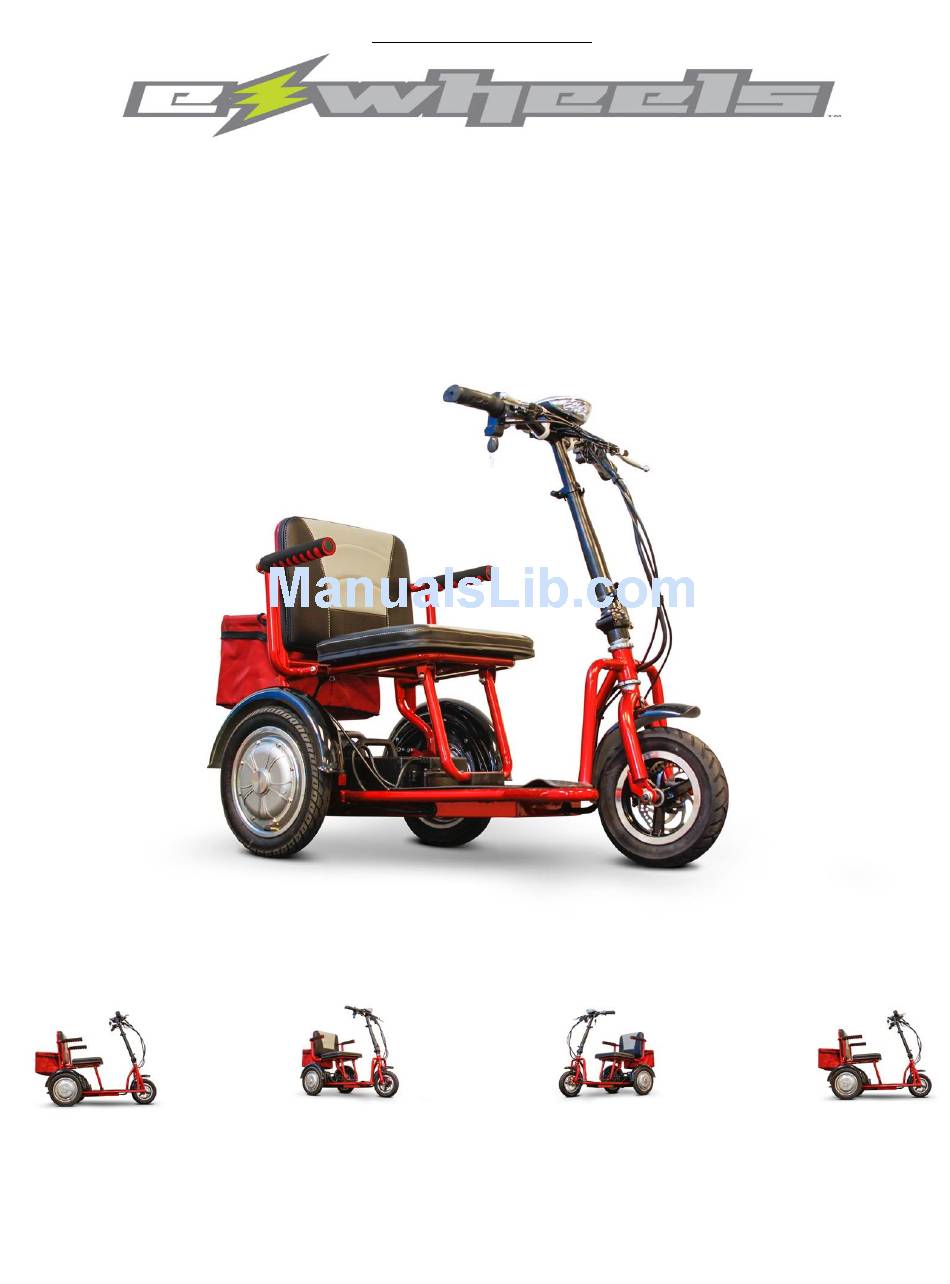

  • Page 1 EW-04 Owner’s Manual eWheels Service (888) 571-2845...

  • Page 2: Table Of Contents

    Table of Contents Page 2 - Feature Guide Page 3 - Technical Specifications Page 4 - Operation of Scooter Page 8 - Folding Instructions Page 9 - Charging and Battery Information Page 11 - Ramps and Curbs Page 11 - General Page 12 - Use While Under Influence Page 12 - Safety Requirements Page 15 –...
  • Page 3 Foldable Seat Headset Rear Storage Bag Throttle Front Folding Tiller Hinged Seat Frame Removable Battery Box Front Disc Brake...

  • Page 4: Technical Specifications

    Technical Specifications Model EW-04 Mini Weight Capacity 300LBS Speed: Up to 9mph Distance: 30 miles per charge (distance varies on terrain, riders weight, road surface, etc.) Front Seat: Type Folding with Arm Rest Front seat: Size Front Seat: 17” from ground...

  • Page 5: Operation Of Scooter

    Operation of Scooter: 1. Turning on the power Insert key into ignition and turn clockwise to turn the scooter on. The battery indicators will display the current charge level when on. Turn the key counter-clockwise to power off when stopped. 2.
  • Page 6 3. Battery Power Indicator The battery power indicator will show when the scooter is on. The battery indicator needle will display as empty when the scooter power is off. When turned on, the battery indicator needle will display the batteries current charge. 4.
  • Page 7 5. Turn Signals The turn signal button is located on the left handlebar assembly. Push in either direction to activate, and return the switch to the middle position to turn the signal off. 6. Headlight The ignition had three positions. All the way left powers off the machine.
  • Page 8 There is a throttle position indicator located on the throttle handle. The indicator is labeled 1-5. If the machine is accelerating too quickly, lower the number of the position of the throttle position indicator to control the acceleration. 8. Parking / Emergency Brake The parking / emergency brake is located on the right-hand brake.
  • Page 9 How to Fold: Folding the Seat When transporting or folding, first start by folding down the seat. Pull the release bar upwards, and let it slide against the floorboard until completely folded flat. Folding the Handlebars To fold the handlebars, start by twisting the handlebar securing ring away from the folding handle.
  • Page 10 Charging Instructions: The smart charger included with your scooter will shut off its high current mode when the scooter is fully charged. When the light on the charger is red, the scooter is still charging. When the light turns green, this means the scooter is fully charged.
  • Page 11 Specification of the battery that we recommend: Type: (1) 48 volt, 12 AH Lithium Ion Battery. Note: - Do not use automotive batteries. They are not designed to handle and long deep discharge and are unsafe for use in your scooter. - The useful life of a battery is quite often a reflection of the care it receives.

  • Page 12: Ramps And Curbs

    Ramps and Curbs: 1. Check that the ramp surface is roughened to prevent slipping. Never drive across a slope or turn sharply on a slope. 2. When driving up curbs, always check the height of the curb to ensure that it does not exceed 4”...

  • Page 13: Safety Requirements

    Safety Requirements: Driving Surface The EW-04 has the best stability and performs the best under the normal driving conditions (dry, level ground with concrete or asphalt). Extra care must be taken when riding on other surfaces (grass, gravel, etc.).
  • Page 14  Avoid driving in loose gravel, covered soil and sandstone.  Do not drive the scooter in unknown road conditions.  The scooter can ride over small obstacles within a certain height, but you must minimize the speed and slowly drive over the obstacle. ...
  • Page 15  Never let the batteries freeze; do not charge when frozen.  Do not let the batteries every go completely dead. When low, do not let sit for an extended period or damage may occur.  Always use required safety equipment while operating. ...

  • Page 16: Warranty

    Warranty: For valid warranty claims E-Wheels will, at their discretion, replace/repair/refund items mutually agreed to be defective. E-Wheels warranty as following: 1. Frame: (3) year limited warranty. 2. Electronic components: (1) year limited warranty. 3. Controllers: (1) year limited warranty.
