EW-01
Owner's Manual
www.ewheelsdealers.com
(888) 305-0881 Customer Service
(888) 571-2845 Service
0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EW-01 and is the answer not in the manual?

Questions and answers

Related Manuals for E-Wheels EW-01

Summary of Contents for E-Wheels EW-01

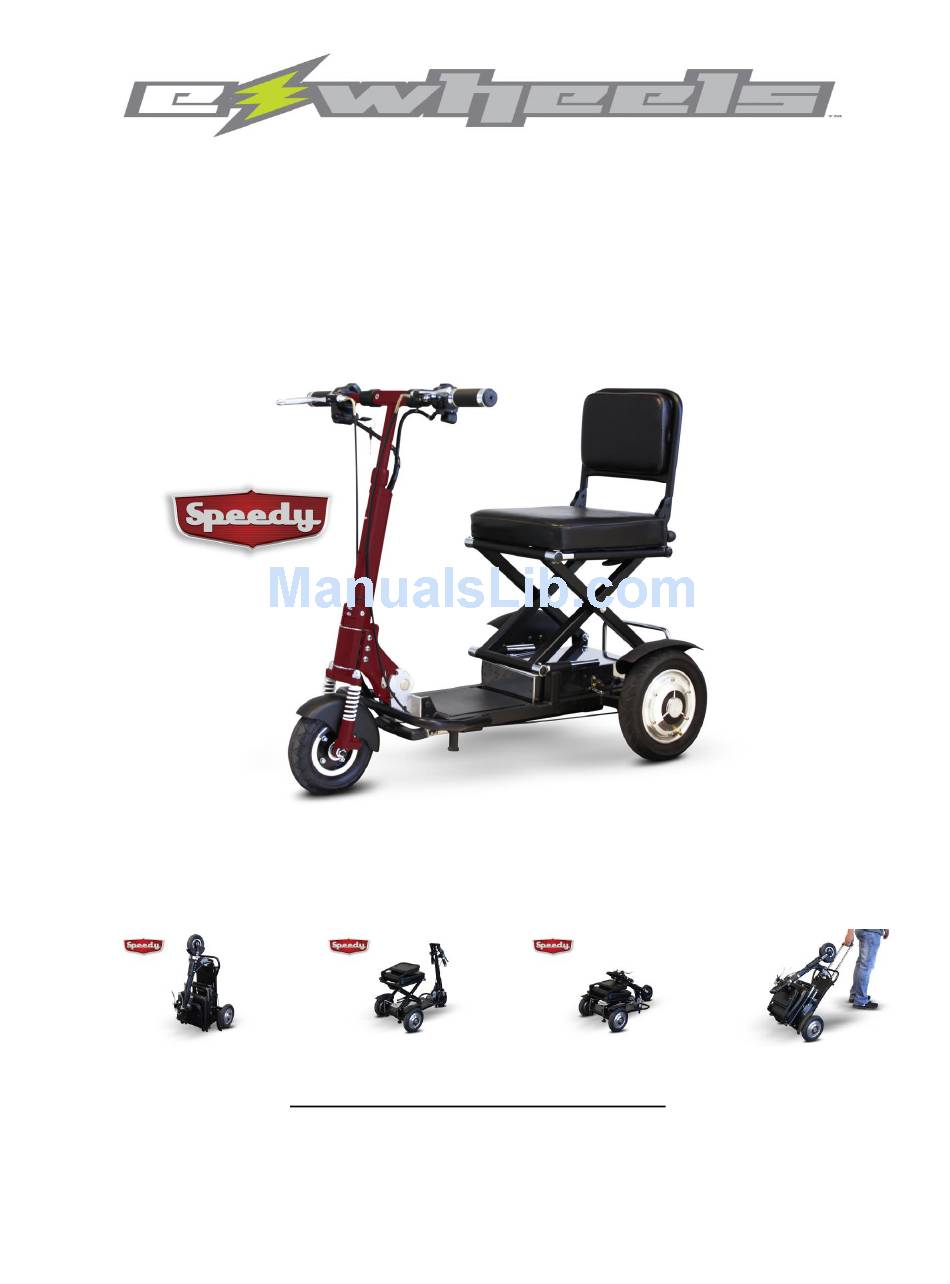

  • Page 1 EW-01 Owner’s Manual www.ewheelsdealers.com (888) 305-0881 Customer Service (888) 571-2845 Service...
  • Page 2 Table of Contents 1. Feature Guide 2. Product Specifications 3. Handle Bar controls 4. Operating Instructions 5. Folding and Unfolding 6. Safety Requirements 7. Battery and Battery Charging 8. Care & Maintenance 9. Basic Trouble Shooting...
  • Page 3 Battery Voltage Parking Brake Seat Back Cushion Throttle Key Ignition Reverse Switch Tube Adjustor Seat Frame Silver Button Storage Luggage Height Adjustment Rack Shock Absorbers Rear Tires Front Tire Foot Board Battery Telescopic Pull Handle...

  • Page 4: Technical Specifications

    Technical Specifications Model EW-01 Speedy Scooter Weight Capacity 300Lbs Speed: Up to 11mph Distance: 30 miles per charge (distance varies on terrain, riders weight, road surface, etc.) Front Seat: Type Folding/Collapsible Chair with Backrest Front seat: Size 13 ½ “x 12 ½ “x 14”...
  • Page 5 Operation of Scooter: 1. Turning on the power Put key in ignition and turn clockwise to turn key on. Turn-key counter- clockwise to power off when you stop. (Fig a) 2. Speed Control Speed is controlled by the black twist grip throttle. Twisting the throttle grip towards you will increase the speed.
  • Page 6 4. Forward / Reverse The forward/reverse switch is located on the left side of the handle grip. Press switch R for Reverse and F for Forward. (Fig b) Forward / Reverse (Fig B) 5. Carrier Rack Unscrew the (2) black turn knobs located directly beneath the rear of the scooter underneath the carrier rack.
  • Page 7 (Fig C) Folding Scooter 1. Fold the seat back cushion down until it rests on top of the seat cushion. (fig d) (Fig D)
  • Page 8 2. Stand behind speedy and pull the black hand grip located under the seat to the rear of the scooter towards you until the seat folds. CAUTION: Keep all fingers away from seat bracket to avoid harm. (fig e) Hand grip (Fig e) 3.
  • Page 9 Locking handle bar Silver lever release (Fig f) 6. Stand scooter upright vertical position and press the black button on top of the black telescopic handle release to extend the telescopic pull handle. Unfolding Scooter (Please refer to the diagram on page 2) 1.
  • Page 10 iii. Stand in front of the scooter and raise each hand grip until each handlebar grip locks in place. iv. Adjust the handlebar tube to desired height by simply turning the tube adjust counter clockwise. Press the silver button located on the front of the handlebar tube to raise or lower handlebar to desired position.
  • Page 11  Do not carry additional rider on the scooter, chassis or lap.  Do not operate under the influence of alcohol or drugs.  Ensure that the seat is fixed and fastened.  Slow down when operating on uneven or soft ground. ...
  • Page 12 Battery Maintenance & Charging Speedy is designed to use one maintenance free 48v/12AH lithium Ion Battery. It comes with an easy to use 48V/12AH Charger.  Charge the battery completely before the first operation. Not charging the battery completely prior to operating you Speedy for the first time can cause damage to the battery.
  • Page 13 How does the indicator light (LED) on the charger block display? There are (2) LED indicator lights on the charger block. The red light indicates that the scooter is charging. The green light indicates the battery is fully charged. Can other chargers be used? To charge safely and efficiently, use the charger supplied by the original manufacturer only.
  • Page 14 Please follow the steps below to improve the battery performance:  A new battery must be fully charged before using.  Low speeds are recommended for the first time. Do not travel too far until you are familiar with the operation of the scooter and the battery. ...
  • Page 15 Battery  Make sure battery is fully charged.  Store the battery in a dry environment. Seat  Clean seat cover with clean, damp cloth. Cleaning  A clean, damp, non-abrasive cloth works best to wash and clean the Speedy. ...
  • Page 16  Make sure battery is properly charged.  Slow speeds while driving  Make sure battery is fully charged. If you continue to have trouble with your Speedy, contact E-Wheels Service Department at: (888) 571-2845 To see Product video please visit:...
