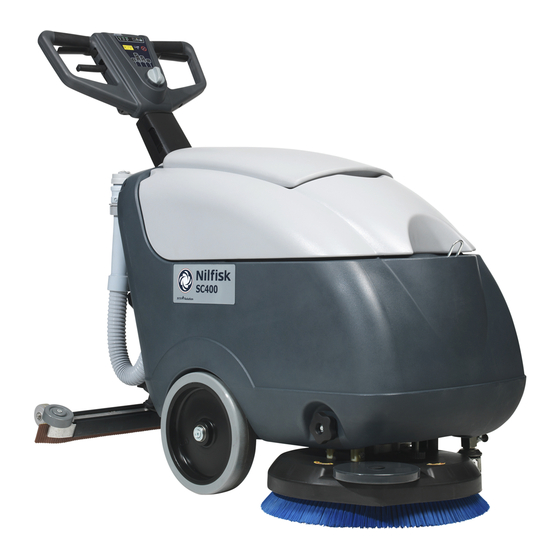

Nilfisk-Advance Advance SC400 Operating Manuallines

ATTENTION!
Do not use the machine before you have read and understood the User Manual
1 Disconnect the battery charger cable 2. Fill the tank with a solution suitable
from the electrical main. for the work to be performed.
Always follow the dilution instructions
on the label of the chemical product
used to prepare the solution. Its tem-
perature must not exceed 40°C.
6. Press the handle switch to engage 7. Press the solution flow control
the brush and run the machine switch as necessary, depending on the
type of cleaning to be performed
10. At the end of the work. Empty 11. Wash with clean water the recovery
the recovery tank with the hose. Then tank and the vacuum grid
empty the solution tank with the
trasparent hose
15. Check and clean the squeegee 16. Clean the machine using a damp
blades cloth and where needed use a
neutral cleaning product
If the machine has been used until the Red light illuminates on the battery level indicator on the machine, a full recharge of the batteries (10-12 hours) will be required. Failure to
carry out this this procedure may cause damage to the batteries. Charging the batteries after every use is recommended.
PLEASE ENSURE RED SOCKET IS LEFT DISCONNECTED AFTER RECHARGE IF THE MACHINE IS NOT TO BE USED ON A DAILY BASIS
Nilfisk-Advance A/S Tel.: +45 43 23 40 50
Sognevej 25 Fax: +45 43 43 77 00
DK-2605 Brøndby mail.com@nilfisk-advance.com
Denmark www.nilfisk.com
All manuals and user guides at all-guides.com
OPERATING GUIDELINES
SC400
3. Install the squeegee and fasten it
with the handwheels, then connect
the vacuum hose to the squeegee.
8. Lower the squeegee with the lever.
12. Clean the filter by: Remove the
transparent cover and the gasket
17. Charge the batteries: Connect the
battery charger cable to the
electrical main
4. Place the brush or the pad-holder 5. Switch on the brush and vac motors
under the deck. Use the appropriate to activate the machine
brush to clean the floor.
9. Press the enabling push-button together
with the brush levers for starting floor
cleaning. If solution applied flows outside
the brush housing during use, reduce the
flow of solution.
13. Remove the brush/pad and clean 14. Take the squeegee off and remove
them debris.
18. Park the machine with the recovery
tank cover open
