Unpacking and Inspection
IMPORTANT NOTE: DO NOT perform next
step until generator has been transported
to installation site.
4.
See 2-3. Remove bolts and pallet
Figure
brackets (A). Exercise caution when
removing generator. Dragging it off pallet
will damage base. The unit must be lifted
from wooden pallet to remove.
NOTE: Bolts and pallet brackets are provided
only for shipping purposes and can be dis-
carded after removal.

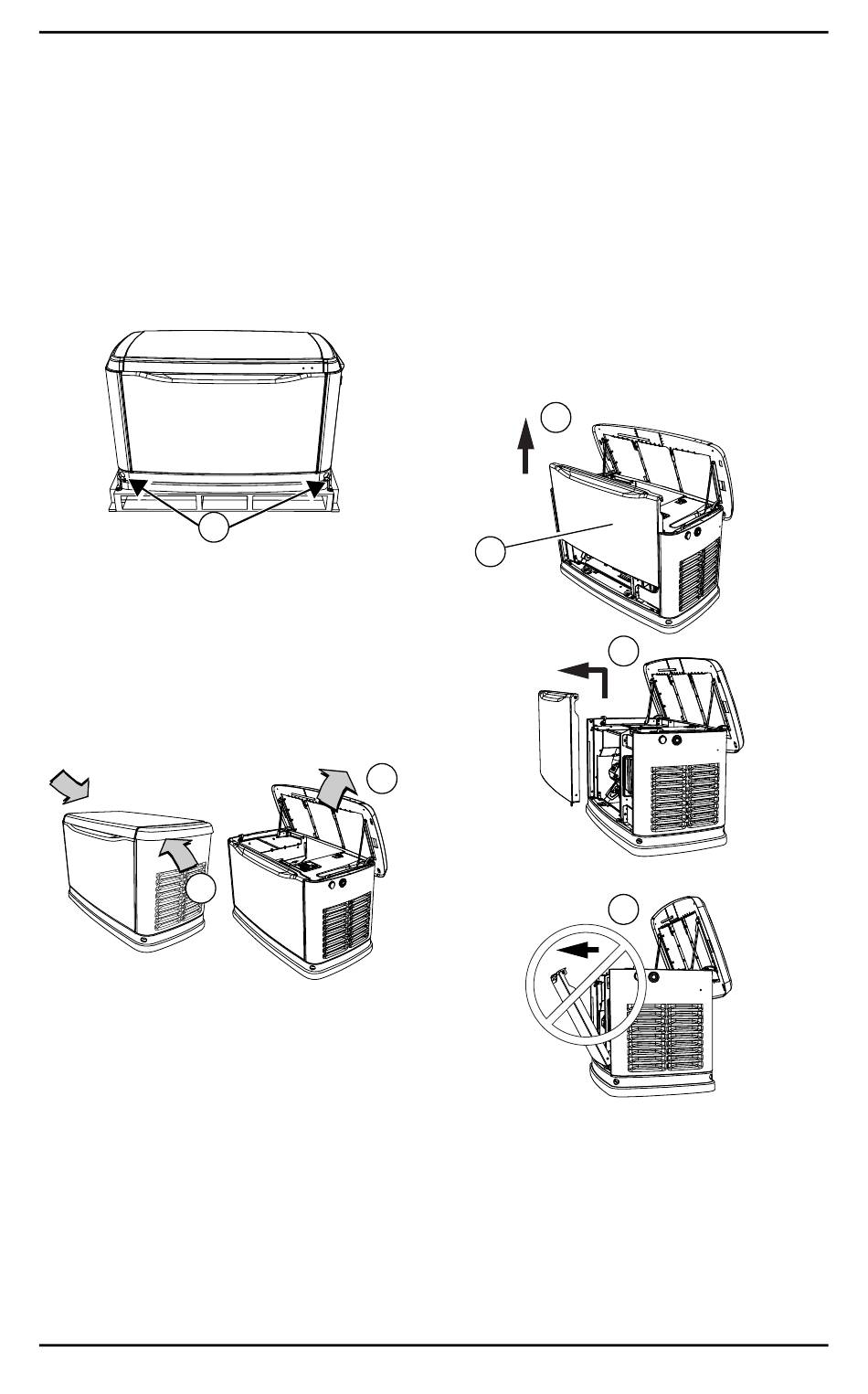

Figure 2-3. Pallet Bracket Locations

Opening the Lid

Proceed as follows to open the generator lid:
1.
Use keys to open generator lid.
2.
See Figure 2-4. Two locks (A) secure lid;
one on each side. Press down on lid
above side lock, and unlock latch to
correctly open lid.
A
Figure 2-4. Opening the Lid
3.
Repeat for other side. Lid may appear
stuck if pressure is not applied from the
top.
NOTE: Always verify side locks are unlocked
before attempting to lift lid.
8
A
009209

Enclosure Panel Removal

Generator installation requires removal of
front panel and intake side panel. Remove
these panels when necessary. Proceed as fol-
lows to remove the panels.

Front Access Panel Removal

See
Figure
(A) by lifting straight up and out once lid is
open.
NOTE: Always lift front access panel straight
up before pulling away from enclosure (B and
C). Do not pull panel away from the enclosure
before lifting up (D).
000426
A
A
Figure 2-5. Remove Front Access Panel
Installation Guidelines for 60 Hz Air-Cooled Generators
