- Page 1 User Manual For Thruster Models AC Electric DOCUMENT ID: SLEIPNER GROUP 6054 REVISION: P.O. Box 519 DATE: N-1612 Fredrikstad 2022 Norway LANGUAGE: www.sleipnergroup.com To download your language go to www.sleipnergroup.com...
-
Page 2: Table Of Contents

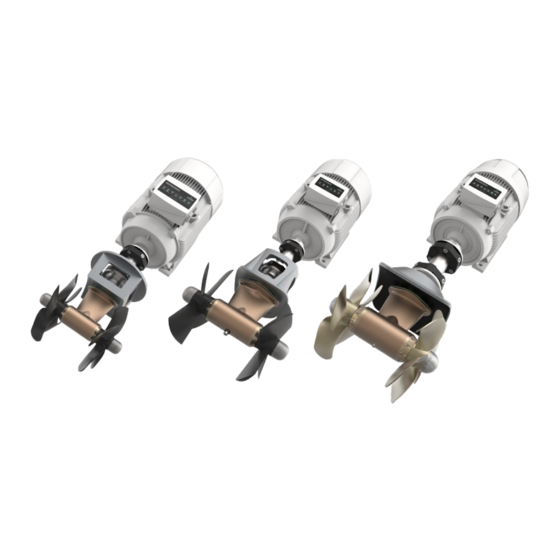

Product Spare Parts and Additional Resources ..........................12 Warranty Statement .................................... 12 Products SAC320/300-I-2-H - AC Thruster ø300mm 230V SAC240/250-C-4-VX01 - AC Thruster ø250mm 400V SAC240/250-C-4-V - AC Thruster ø250mm 400V SAC520/386-I-4-V - AC Thruster ø386mm 400V SAC400/300-C-4-V - AC Thruster ø300mm 400V SAC900/513-I-X-X01 - AC Thruster ø513mm 400V... -
Page 3: General Operation Considerations And Precautions Guidelines
Failure to follow the considerations and precautions can cause serious injury, damage and will render all warranties given by Sleipner Motor as VOID. MC_0411 General Operation Considerations and Precautions Guidelines MC_0444 For the operation of thrusters MC_0418 Never use thrusters when close to objects, persons or animals in the water. The thruster will draw objects into the tunnel and the rotating propellers. -
Page 4: User Operation
! Please refer to the graphic for special considerations relating to your model ! The following is an operation guide to ALL Sleipner control products. Ensure to familiarise yourself with the functionality and operation of your specifi c control device. -
Page 5: Proportional Control Panel
Proportional Control Panel Activating the stern thruster Activating the bow thruster Using your control device/ panel Press the button or move the Using your control device/ panel Press the button or move the joystick in the direction you intend to turn the boat. Ensure to use joystick in the direction you intend to turn the boat. -
Page 6: Maintenance
Maintenance MC_0047 ! Please refer to the graphic for special considerations relating to your model ! As a part of the seasonal service of your Thruster before every season, always check that: In Water • The area around the thruster inside the boat is clean and dry. Ensure there are no signs of water/oil leaks. •... - Page 7 *240 *320 *360 *450 *520 *400 *700 *750 *900 *1100 *1300 *1400 KEY: 1. Motor 2. Mounting feet 3. Cardan shaft with flexible coupling 4. Bracket for gear leg support 5. Gear Leg 6. Propeller 7. Anode 8. Drive pin 9.
-
Page 8: Pdc-301 Load Sharing
PDC-301 Load Sharing MC_0347 PDC-301 Load Sharing The Load Sharing limitation allows the system to limit the combined load on the generator from a bow and stern thruster when both thrusters are used at the same time. The load sharing will dynamically limit the thrust request for each thruster depending on the joystick position and limit settings. Load Sharing is confi gured by adjusting the PDC-301 parameter “Load share limit”... -
Page 9: Basic Troubleshooting
Basic Troubleshooting MC_0013 Before seeking assistance from the website help desk from your Sleipner dealer/ distributor, please perform these tests. (NB: If you are unable to understand or perform these checks, you must consult a Sleipner distributor.) CHECK SOLUTION The motor runs, but there is no thrust Check propellers are fi... -
Page 10: Seasonal Checklist
Seasonal Checklist MC_0161 AC user manual 6054 2022... -
Page 11: Product Specifications
Product Specifi cations MC_0153 AC user manual 6054 2022... -
Page 12: Service And Support
11. This warranty gives you specific legal rights, and you may also have other rights which vary from country to country. Patents MC_0024 At Sleipner we continually reinvest to develop and offer the latest technology in marine advancements. To see the many unique designs we have patented visit our website www.sleipnergroup.com/patents AC user manual... - Page 13 Notes MC_0037 ..............................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................AC user manual 6054 2022...
