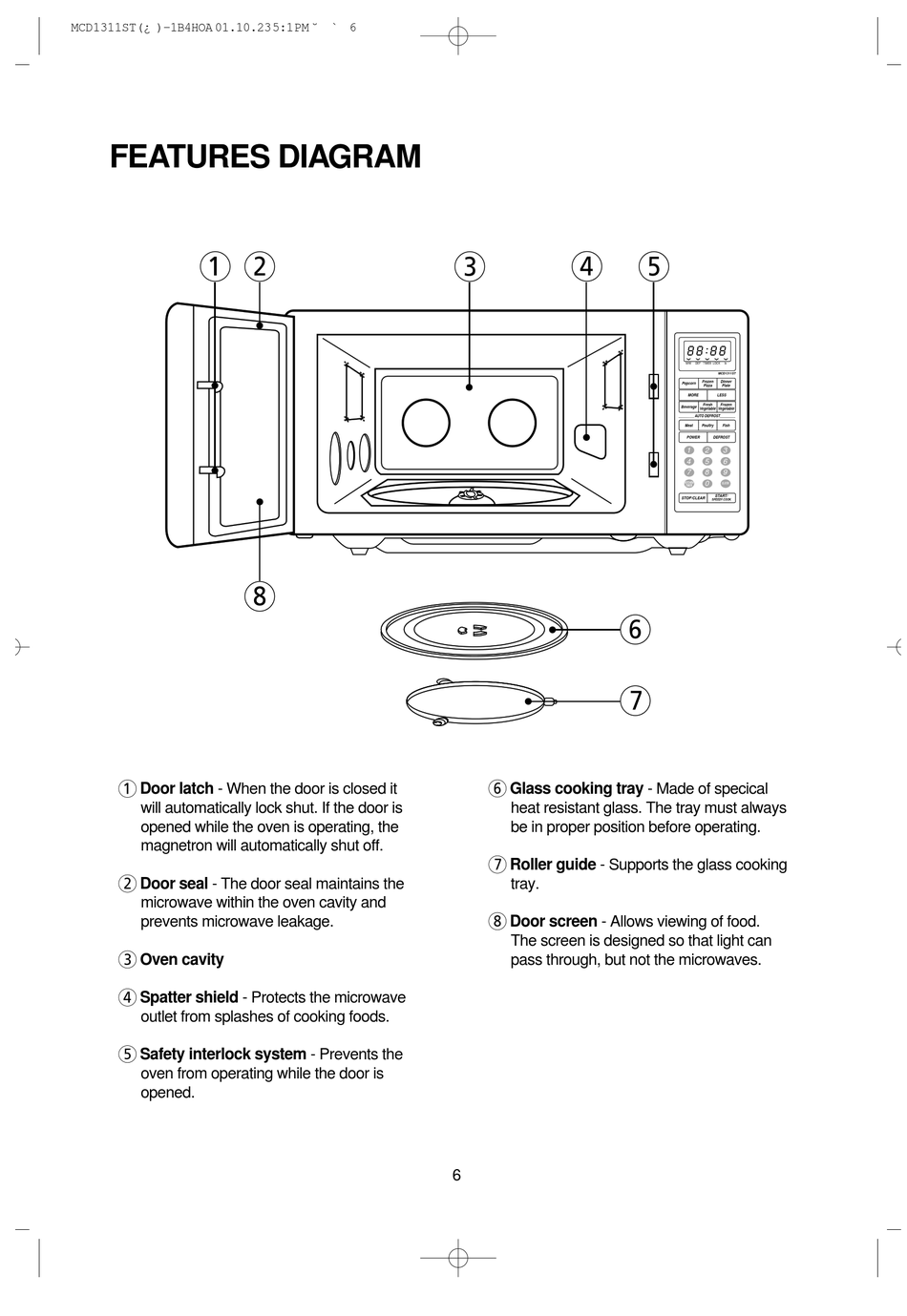

FEATURES DIAGRAM

1
1 Door latch - When the door is closed it
will automatically lock shut. If the door is
opened while the oven is operating, the
magnetron will automatically shut off.
2 Door seal - The door seal maintains the
microwave within the oven cavity and
prevents microwave leakage.
3 Oven cavity
4 Spatter shield - Protects the microwave
outlet from splashes of cooking foods.
5 Safety interlock system - Prevents the
oven from operating while the door is
opened.
2
8
3 4
6
7
6 Glass cooking tray - Made of specical
heat resistant glass. The tray must always
be in proper position before operating.
7 Roller guide - Supports the glass cooking
tray.
8 Door screen - Allows viewing of food.
The screen is designed so that light can
pass through, but not the microwaves.
6
5
