Related Manuals for Magic Chef MCD18G1W
Summary of Contents for Magic Chef MCD18G1W

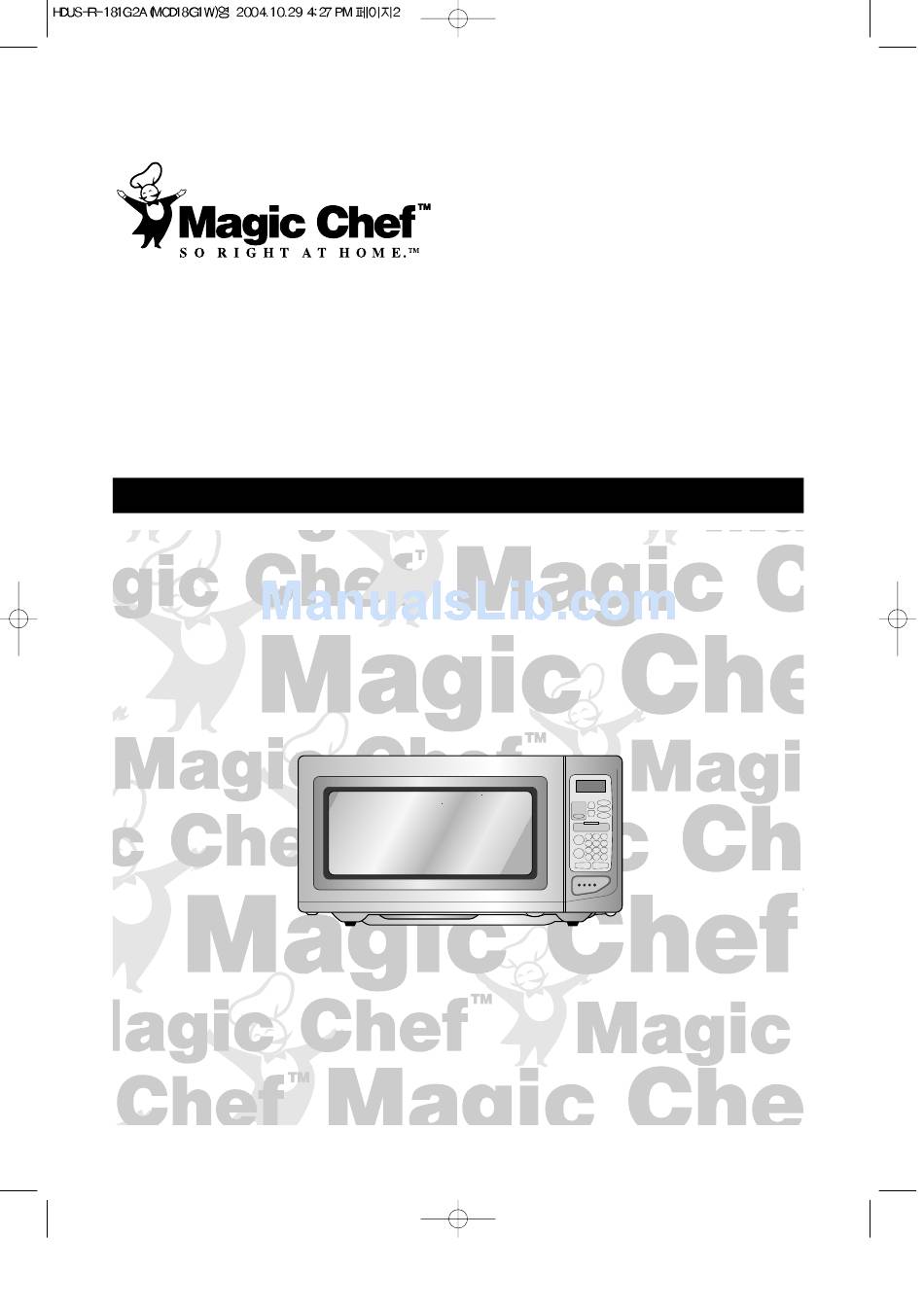

- Page 1 1.8 cu. ft. Microwave Oven MCD18G1W Instruction Manual and Cooking Guide Before operating this oven, please read these instructions completely.
-
Page 2: Table Of Contents
COOKING CHART ... 19 REHEATING CHART ... 20 WEIGHT & MEASURE CONVERSION CHART ... 22 CARE OF YOUR MICROWAVE OVEN ... 23 USE YOUR MICROWAVE OVEN SAFELY ... 24 BEFORE YOU CALL FOR SERVICE ... 25 QUESTIONS AND ANSWERS ... 25... -
Page 3: Important Safety Instructions
Do not use the cavity for storage purposes. Do not leave paper products, cooking utensils, or food in the cavity when not in use. 17. Do not use this microwave oven to heat corrosive chemicals (for example, sulfides and chlorides). Vapours from such corrosive... -
Page 4: Federal Communications Commission Radio Frequency
• Relocate the Microwave oven with respect to the receiver. • Move the microwave oven away from the receiver. • Plug the microwave oven into a different outlet so that microwave oven and receiver are on different branch circuits. THE MANUFACTURER is not responsible for any radio or TV interference caused by UNAUTHORIZED MODIFICATION to this microwave oven. -
Page 5: Installation
6. Power supply. This microwave oven requires a power supply of approximately 12 Amperes, 120 Volts, 60Hz and a grounded outlet. A short power cord is provided to reduce the risk of the user becoming entangled in or tripping over a longer cord. Longer cord sets or extension cords are available and may be used if care is exercised. -
Page 6: Specifications
SPECIFICATIONS POWER SUPPLY POWER CONSUMPTION MICROWAVE OUTPUT POWER FREQUENCY OUTSIDE DIMENSIONS (W x D x H) CAVITY DIMENSIONS (W x D x H) NET WEIGHT TIMER POWER LEVELS * Specifications are subject to change without notice. 120V AC 60 Hz SINGLE PHASE WITH GROUNDING 1600 W 1200 W 2450 MHz... -
Page 7: Features Diagram
FEATURES DIAGRAM 1. Door latch-When the door is closed it will automatically shut off. If the door is opened while the oven is operating, the magnetron will automatically shut off. 2. Door seal-The door seal maintains the microwave within the oven cavity and prevents microwave leakage. - Page 8 FEATURES DIAGRAM (continued) 10. Time set pad-Used to set the cooking time and the present time. 11. Display-Cooking time, power level, indicators and present time are displayed. 12. One touch-Used to cook or reheat specific quantities of food. 13. Auto Cook-Used to cook or reheat. 14.
-
Page 9: Operation Procedure
OPERATION PROCEDURE This section includes useful information about oven operation. 1. Plug power supply cord into a standard 3-pronged 12 Amp, 120V AC 60Hz power outlet. 2. After placing the food in a suitable container, open the oven door and put it on the glass tray. The glass tray and roller guide must always be in place during cooking. -
Page 10: Controls
CONTROLS SETTING THE CLOCK When the oven is first plugged in, the display will flash “:0” and a tone will sound. If the AC power ever goes off, the display shows “ : 0” when the power comes back on. 1. -
Page 11: Weight Defrosting
WEIGHT DEFROSTING AUTO DEFROST lets you easily defrost food by eliminating guesswork in determining defrosting time. Follow the steps below for easy defrosting. 1. Touch MEAT pad. MEAT 2. Select the desired defrosting weight. (Refer to the weight defrost chart below.) 3. -
Page 12: Cooking In One Stage
COOKING IN ONE STAGE 1. Touch POWER pad. (Select the desired power POWER level.) 2. Touch number pads for the cooking time. 3. Touch START pad. When you touch START pad, the M/W indicator starts blinking to show the oven is cooking. The display counts down the time to show how much cooking time is left. -
Page 13: Kitchen Timer Mode
KITCHEN TIMER MODE Timer operates as a minute timer, can be set to delay cooking and used to set a holding time after cooking. However delay cooking can not be programmed for defrost. Timer operates without microwave energy. HOW TO USE AS A MINUTE TIMER 1. -
Page 14: Speedy Cook
SPEEDY COOK SPEEDY COOK allows you to reheat for 30 seconds at 100% (full power) by simply touching the SPEEDY COOK pad. By repeatedly touching the SPEEDY COOK pad, you can also extend reheating time to 5 minutes by 30 second increments. -
Page 15: Auto Cook
ONE TOUCH COOKING (continued) 1. Put foods in the microwave plate. DINNER Cover with vented plastic wrap. PLATE * DINNER PLATE * • 12 oz : Touch DINNER PLATE once. • 15 oz : Touch DINNER PLATE twice within 1.5 seconds. AUTO COOK AUTO COOK allows you to cook or reheat many of your favorite foods by repeatedly touching auto cook pad. -
Page 16: Less, More
LESS, MORE To alter one touch cooking or cooking time whilst oven is in operation, use LESS or MORE.(except for defrosting) Press LESS/MORE to decrease/increase the one touch cooking time in multiples of 10 seconds. The overall one touch cooking time can be increased to a maximum of 99 minutes 50 seconds. Press LESS/MORE to decrease/increase the cooking time in multiples of 1 minute. -
Page 17: Cooking Guide
COOKING GUIDE COOKING UTENSILS RECOMMENDED USE Glass and glass-ceramic bowls and dishes - Use for heating or cooking. Microwave browning dish - Use to brown the exterior of small items such as steaks, chops, or pancakes. Follow the directions provided with you browning dish. Microwaveable plastic wrap - Use to retain steam. -
Page 18: Defrosting
Microwave energy will not penetrate the foil. Some rules apply to the use of foil: Do not let the foil pieces touch each other or the sides of the microwave oven. Be sure that all ends are touched under and lie flat to the food. -
Page 19: Defrosting Chart
DEFROSTING CHART FISH AND SEAFOOD ITEM Fish Fillets Place fillets on a microwave rack; cover paper towel. Frozen in block At beeps, turn over block of fish. Separate fillets, if possible. Press START to continue defrosting. Let stand 10 minutes then finish with cold running water (about 5 minutes). -
Page 20: Cooking Chart
COOKING CHART MEAT ITEM Beef Standing/rolled Rib - Rare - Medium - well done Ground Beef(to brown for casserole) Hamburgers, Fresh or defrosted (4 oz. Each) 2 patties 4 patties Pork Loin, Leg Bacon 4 slices 6 slices NOTE: The above times should be regarded only as a guide. Allow for difference in individual tastes and preferences. -
Page 21: Reheating Chart
VEGETABLE ITEM PREPARATION asparagus, fresh 11/2-in.pieces asparagus, frozen Whole spears broccoli, fresh Spears broccoli, frozen Whole or cut brussels sprouts, fresh Whole brussels sprouts, frozen Whole carrots, fresh 1/2-in.slices carrots, frozen Sliced cauliflower, frozen florets celery, fresh 1/2-in.slices corn, freshon cob, husked 4 ears on cob, husked corn, frozen... - Page 22 P-HI 6-8 min. tower. P-HI 2-3 min. P-HI 3-4 min. P-HI 1-3 min. Arrange on microwave oven P-HI 2-4 min. roasting rack. P-HI 5-6 min. Pierce pouch. Set on plate. Turn P-HI 4-5 min. over halfway through cooking.
-
Page 23: Weight & Measure Conversion Chart
WEIGHT & MEASURE CONVERSION CHART WEIGHT & MEASURE CONVERSION CHART POUNDS & OUNCES TO GRAMS POUNDS(lb.) GRAMS(g) OUNCES(oz.) 1361 1814 2268 2722 3175 1 Cup 3629 1 Pint 4082 1 Quart 4526 1 Gallon 4990 WEIGHT DEFROST AND COOK CONVERSION CHART Ounces Hundredths of a Pound .06-.15... -
Page 24: Care Of Your Microwave Oven
CARE OF YOUR MICROWAVE OVEN Turn the oven off before cleaning. Keep the inside of the oven clean. When food spatters or spilled liquids adhere to oven walls, wipe with a damp cloth. Mild detergent may be used if the oven gets very dirty. The use of harsh detergent or abrasives is not recommended. -
Page 25: Use Your Microwave Oven Safely
Do not hit or strike the control panel with hard objects. This can damage the oven. Food Never use your microwave oven for home canning. The oven is not designed for proper home canning. Improperly canned food may spoil and be dangerous to consume. -
Page 26: Before You Call For Service
* Q : Why do I have moisture in my microwave oven after cooking? A : The moisture on the side of your microwave oven is normal. It is caused by steam from cooking food hitting the cool oven surface. -
Page 27: Microwave Oven Warranty
Microwave Oven Warranty Daewoo Electronics America, Inc. warrants each new Microwave Oven to be free from defects in material and workmanship and agrees to remedy any such defect or to furnish a new part(s) (at the company’s option) for any part(s) of the unit that has failed during the warranty period.
