Magic Chef D1311 Operating Instructions And Cooking Manual

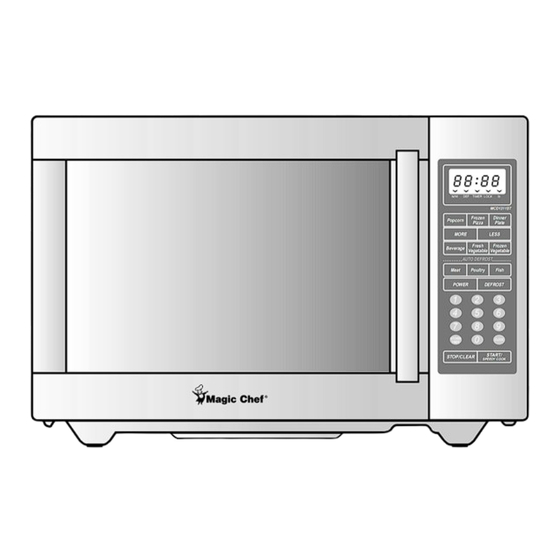

1.3 cu.ft. full stainless steel microwave oven
Hide thumbs Also See for D1311:
Table of Contents

Advertisement

Quick Links

See also: Instruction Manual & Cooking Guide
MCD1311ST(¿ )-1B4HOA 01.10.23 5:1 PM ˘ ` 2
1.3 cu.ft. Full Stainless Steel
Operation Instructions
and Cooking Guide
Before operating this oven, please read these instructions completely.

Microwave Oven

MCD1311ST
So Right at Home.
M/W
DEF TIMER LOCK
lb
MCD1311ST
Frozen
Dinner
Popcorn
Pizza
Plate
MORE
LESS
Fresh
Frozen
Beverage
Vegetable
Vegetable
AUTO DEFROST
Meat
Poultry
Fish
POWER
DEFROST
1
2
3
4
5
6
7
8
9
0
KITCHEN
CLOCK
TIMER
START/
STOP/CLEAR
SPEEDY COOK

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the D1311 and is the answer not in the manual?

Questions and answers

Related Manuals for Magic Chef D1311

Summary of Contents for Magic Chef D1311

  • Page 1: Microwave Oven

    MCD1311ST(¿ )-1B4HOA 01.10.23 5:1 PM ˘ ` 2 1.3 cu.ft. Full Stainless Steel Microwave Oven Operation Instructions and Cooking Guide Before operating this oven, please read these instructions completely. MCD1311ST DEF TIMER LOCK Frozen Popcorn MORE Fresh Beverage Vegetable AUTO DEFROST...

  • Page 2: Table Of Contents

    TO EXCESSIVE MICROWAVE ENERGY (a) Do not attempt to operate this oven with the door open since open-door operation can result in harmful exposure to microwave energy. It is important not to defeat or tamper with the safety interlocks. (b) Do not place any object between the oven front face and the door or allow soil or cleaner residue to accumulate on sealing surfaces.

  • Page 3: Important Safety Instructions

    Do not use the cavity for storage purposes. Do not leave paper products, cooking utensils, or food in the cavity when not in use. 17. Do not use this microwave oven to heat corrosive chemicals (for example, sulfides and chlorides). Vapours from such corrosive...

  • Page 4: Federal Communications Commission Radio Frequency Interference Statement (U.s.a Only)

    • Relocate the microwave oven with respect to the receiver. • Move the microwave oven away from the receiver. • Plug the microwave oven into a different outlet so that microwave oven and receiver are on different branch circuits. THE MANUFACTURER is not responsible for any radio or TV interference caused by UNAUTHORIZED MODIFICATION to this microwave oven.

  • Page 5: Installation

    Power supply This microwave oven requires a power supply of approximately 15 Amperes, 120 Volts, 60 Hz and a grounded outlet. A short power cord is provided to reduce the risk of the user becoming entangled in or tripping over a longer cord.

  • Page 6: Specifications

    MCD1311ST(¿ )-1B4HOA 01.10.23 5:1 PM ˘ ` 5 SPECIFICATIONS POWER SUPPLY POWER CONSUMPTION MICROWAVE OUTPUT POWER FREQUENCY OUTSIDE DIMENSIONS (W X H X D) CAVITY DIMENSIONS (W X H X D) NET WEIGHT TIMER POWER LEVELS * Specifications are subject to change without notice.

  • Page 7: Features Diagram

    2 Door seal - The door seal maintains the microwave within the oven cavity and prevents microwave leakage. 3 Oven cavity 4 Spatter shield - Protects the microwave outlet from splashes of cooking foods. 5 Safety interlock system - Prevents the oven from operating while the door is opened.
  • Page 8 MCD1311ST(¿ )-1B4HOA 01.10.23 5:2 PM ˘ ` 7 FEATURES DIAGRAM 9 TIME SET PAD - Used to set the cooking time and the present time. 0 DISPLAY - Cooking time, power level, indicators and present time are displayed. q ONE TOUCH - Used to cook or reheat specific quantities of food.

  • Page 9: Operation Procedure

    The glass tray and roller guide must always be in place during cooking. 3. Shut the door. Make sure that it is firmly closed. The oven light is on when the microwave oven is operating or the door is opened.

  • Page 10: Controls

    MCD1311ST(¿ )-1B4HOA 01.10.23 5:2 PM ˘ ` 9 CONTROLS SETTING THE CLOCK When the oven is first plugged in, the display will flash ":0" and a tone will sound. If the AC power ever goes off, the display shows ":0" when the power comes back on. 1.

  • Page 11: Weight Defrosting

    MCD1311ST(¿ )-1B4HOA 01.10.23 5:2 PM ˘ ` 10 WEIGHT DEFROSTING WEIGHT DEFROSTING lets you easily defrost food by eliminating guesswork in determining defrosting time. Follow the steps below for easy defrosting. 1. Touch MEAT pad. MEAT 2. Select desired defrosting weight. 3.

  • Page 12: Cooking In One Stage

    MCD1311ST(¿ )-1B4HOA 01.10.23 5:2 PM ˘ ` 11 COOKING IN ONE STAGE 1. Touch POWER pad. POWER (Select desired power level.) 2. Touch the number pads for the cooking time. 3. Touch START pad. When you touch START pad, the M/W indicator starts blinking to show the oven is cooking. The display counts down the time to show how much cooking time is left.

  • Page 13: Kitchen Timer Mode

    Timer operates as a minute timer, can be set to delay cooking and used as a hold setting after cooking.However delay cooking can not be programmed for defrost. Timer operates without microwave energy. HOW TO USE AS A MINUTE TIMER 1.

  • Page 14: Speedy Cook

    • 14 oz : Touch FROZEN PIZZA twice within 1.5 seconds. NOTE: 1.Use only frozen pizza at a time. 2.Use only frozen pizza made for microwave ovens. 3.If the cheese of frozen pizza does not melt sufficiently, cook a few seconds longer.
  • Page 15 • 1 cup(mug) : Touch BEVERAGE once. • 2 cups(mugs) : Touch BEVERAGE twice within 1.5 seconds. • 3 cups(mugs) : Touch BEVERAGE three times within 1.5 seconds. 1. Put foods in the microwave plate. DINNER Cover with vented plastic wrap.

  • Page 16: Less, More

    MCD1311ST(¿ )-1B4HOA 01.10.23 5:2 PM ˘ ` 15 LESS, MORE To alter one touch cooking or cooking time whilst oven is in operation, use LESS or MORE.(except for defrosting) Press LESS/MORE to decrease/increase the one touch cooking time in multiples of 10 seconds.

  • Page 17: Utensil Test

    Not Recommended • Glass jars and bottles - Regular glass is too thin to be used in a microwave, and can shatter. • Paper bags - These are a fire hazard, except for popcorn bags that are designed for microwave use.

  • Page 18: Cooking Techniques

    Standing Standing Foods cooked in the microwave build up internal heat and cotinue to cook for a few minutes after the oven stops. Let foods stand to complete cooking, especially foods such as roasts and whole vegetables. Roasts need this time to complete cooking in the center without overcooking the outer areas. All liquids, such as soup or hot chocolate, should be shaken or stirred when cooking is complete.

  • Page 19: Defrosting Guide

    Shielding means to use a 2-inch strip of aluminum foil to protect thinner or unevenly shaped part from beginning to cook. Microwave energy will not penetrate the foil. Some rules apply to the use of foil: Do not let the foil pieces touch each other or the sides of the microwave oven.

  • Page 20: Defrosting Chart

    MCD1311ST(¿ )-1B4HOA 01.10.23 5:2 PM ˘ ` 19 DEFROSTING CHART Item and Weight Defrosting Time BEEF Mineed beef 7-9 min. 454g (1 lb.) Stew Meat 8-10 min. 681 (1 1 /2 lbs.) Loin Roast 12-15 min. 907g (2 lbs.) Patties 5-6 min.

  • Page 21: Cooking Chart

    MCD1311ST(¿ )-1B4HOA 01.10.23 5:2 PM ˘ ` 20 COOKING CHART MEAT ITEM Beef Standing/rolled Rib - Rare - Medium - well done Ground Beef(to brown for casserole) Hamburgers, Fresh or defrosted (4 oz. Each) 2 patties 4 patties Pork Loin, Leg Bacon 4 slices 6 slices...

  • Page 22: Reheating Chart

    4 cups POWER LEVEL COOKING TIME Heat 12 at time on paper towel lined P-HI 2-4 min. paper plate or microwave oven roasting rack P-HI 2-4 min. If containers is 3/4-inch deep, remove P-HI 8-10 min. foil cover and replace foil tray in original box.
  • Page 23 P-HI 4-6 min. plate, covered with paper tower. P-HI 2-3 min. P-HI 3-5 min. P-HI 2-4 min. Arrange on microwave oven roasting P-HI 3-5 min. rack. P-HI 5-7 min. Pierce pouch. Set on plate. Turn P-HI 4-5 min. over halfway through cooking.

  • Page 24: Care Of Your Microwave Oven

    Control Panel. 5. If steam accumulates inside or around the outside of the oven door, wipe with a soft cloth. This may occur when the microwave oven is operated under high humidity conditions and in no way indicates malfunction of the unit.

  • Page 25: Use Your Microwave Oven Safely

    Do not hit or strike the control panel with hard objects. This can damage the oven. Food Never use your microwave oven for home canning. The oven is not designed for proper home canning. Improperly canned food may spoil and be dangerous to consume.

  • Page 26: Questions And Answers

    START is touched. Q : Why do I have moisture in my microwave oven after cooking? A : The moisture on the side of your microwave oven is normal. It is caused by steam form cooking food heating the cool oven surface.

  • Page 27: Weight & Measure Conversion Chart

    MCD1311ST(¿ )-1B4HOA 01.10.23 5:2 PM ˘ ` 26 WEIGHT & MEASURE CONVERSION CHART POUNDS & OUNCES TO GRAMS POUNDS(lb.) GRAMS(g) 1361 1814 2268 2722 3175 3629 4082 4526 4990 WEIGHT DEFROST AND COOK CONVERSION CHART Ounces Hundredths of a Pound 10-11 12-13 15-16...
  • Page 28 MCD1311ST(¿ )-1B4HOA 01.10.23 5:2 PM ˘ ` 28 Please send products and other correspondence to: Magic Chef 455 E. State Pkwy., Suite 104 Schaumburg, IL 60173 E H G 0 1 - 0 1 P P R R O O D D U U C C T T...
  • Page 29 At Magic Chef we are committed to qqality. Please take a moment now th register your purchase. Your valuable input regarding this purchase helps us create the products you’ll want in the future. We’ll also enter you in the “$100,000 Give Away lll” for a chance to win $5,000, $25,000 or even $50,000! Thank you for your time, and thanks for choosing Magic Chef.
  • Page 30 MCD1311ST(¿ )-1B4HOA 01.10.23 5:2 PM ˘ ` 30 DAEWOO ELECTRONICS CORPORATION OF AMERICA warrants each new electronic product manufactured by it to be free from defective material and workmanship and agrees to remedy any such defect or to furnish a new part (at the Company’s option) in exchange for any part of any unit of its manufacture which under normal installation, use, and service disclosed such defect, provided the unit is delivered by the owner to us or to our authorized distributor from whom purchased or authorized service station, intact, for our...
