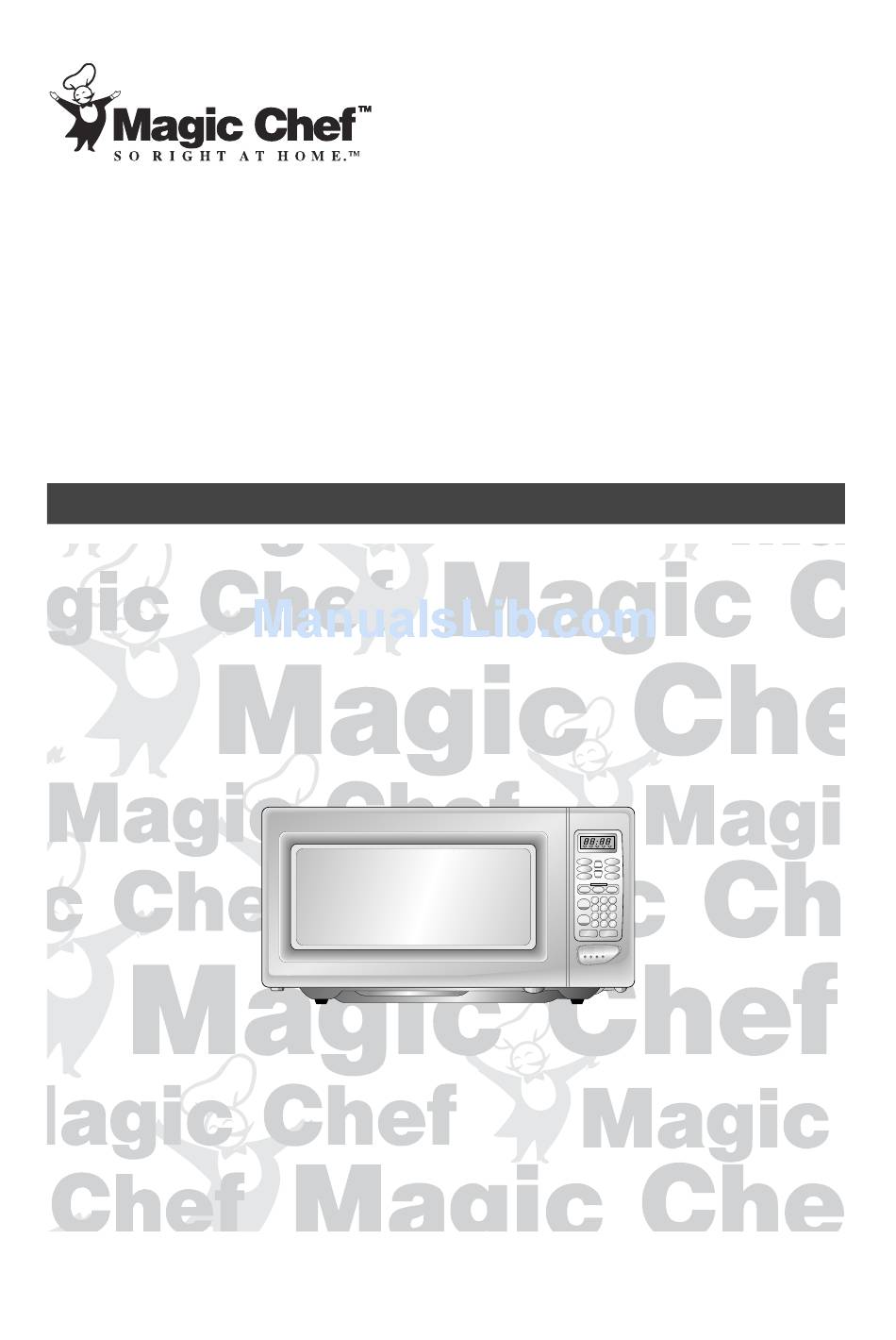

- Page 1 1.6 cu. ft. Microwave Oven MCD1611W / MCD1611B...
-
Page 2: Table Of Contents
1. PRECAUTIONS 2. IMPORTANT SAFETY INSTRUCTIONS 3. FEDERAL COMMUNICATIONS COMMISSION RADIO FREQUENCY 4. GROUNDING INSTRUCTIONS 5. INSTALLATION 6. USE YOUR MICROWAVE OVEN SAFELY 7. SPECIFICATIONS 8. FEATURES DIAGRAM 9. KEYPAD DIAGRAM 10. TO STOP THE OVEN WHILE THE OVEN IS OPERATING 11. -
Page 3: Precautions
PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY (a) Do not attempt to operate this oven with the door open since open-door operation can result in harmful exposure to microwave energy. It is important not to defeat or tamper with the safety interlocks. -
Page 4: Important Safety Instructions
Do not use the cavity for storage purposes. Do not leave paper products, cooking utensils, or food in the cavity when not in use. 17. Do not use this microwave oven to heat corrosive chemicals (for example, sulfides and chlorides). Vapours from such corrosive chemicals may... -
Page 5: Federal Communications Commission Radio Frequency
• Relocate the microwave oven with respect to the receiver. Move the microwave oven away from the receiver. • Plug the microwave oven into a different outlet so that the microwave oven and receiver are on different branch circuits. THE MANUFACTURER is not responsible for any radio or TV interference caused by UNAUTHORIZED MODIFICATION to this microwave oven. -
Page 6: Installation
Power supply This microwave oven requires a power supply of approximately 15 Amperes, 120 Volts, 60Hz and a grounded outlet. A short power cord is provided to reduce the risk of the user becoming entangled in or tripping over a longer cord. Longer cord sets or extension cords are available and may be used if care is exercised. -
Page 7: Use Your Microwave Oven Safely
Do not hit or strike the control panel with hard objects. This can damage the oven. FOOD Never use your microwave oven for home canning. The oven is not designed for proper home canning. Improperly canned food may spoil and be dangerous to consume. -
Page 8: Specifications
SPECIFICATIONS POWER SUPPLY POWER CONSUMPTION MICROWAVE OUTPUT POWER FREQUENCY OUTSIDE DIMENSIONS (W X H X D) CAVITY DIMENSIONS (W X H X D) NET WEIGHT TIMER POWER LEVELS * Specifications are subject to change without notice. 120V AC 60 Hz SINGLE PHASE WITH GROUNDING 1500 W 1100 W 2450 MHz... -
Page 9: Features Diagram
FEATURES DIAGRAM 1. Door latch - When the door is closed it will automatically lock shut. If the door is opened while the oven is operating, the magnetron will automatically shut off. 2. Door seal - The door seal maintains the microwaves within the oven cavity and prevents microwave leakage. -
Page 10: Keypad Diagram
KEYPAD DIAGRAM 10.Time set pad - Used to set the cooking time and the present time. 11.Display - Cooking time, power level, indicators and present time are displayed here. 12.One touch - Used to cook or reheat specific quantities of these foods.See pages 14~15. -
Page 11: To Stop The Oven While The Oven Is Operating
TO STOP THE OVEN WHILE THE OVEN IS OPERATING 1. Press STOP/CLEAR pad • You can restart the oven by touching START pad. • Touch STOP/CLEAR once more to erase all instructions. • You must enter in new instructions. 2. Open the door. •... -
Page 12: Microwave Utensils
If you are not sure, try this utensil test to check • Put the empty utensil in the microwave oven. • Put one cup of water in a glass measure next to the empty utensil. -
Page 13: Operation
OPERATION This section includes useful information about oven operation. 1. Plug power supply cord into a standard 3 pronged 15 Amp, 120V AC 60Hz power outlet. 2. Place the food in a suitable container. 3. Open the oven door and put the food on the glass tray. (The glass tray and roller guide must always be in place during cooking.) 4. -
Page 14: Controls
CONTROLS SETTING THE CLOCK When the oven is first plugged in, the display will flash and a tone will sound. If the AC power ever goes off the display shows “:0” when the power comes back on. 1. Touch CLOCK pad. ONCE for a standard time (12 hour display) CLOCK TWICE for military time (24 hour display) -
Page 15: One Touch Cooking
ONE TOUCH COOKING One touch cook allows you to cook or reheat many of your favorite foods by touching just one pad. To increase quantity, touch chosen pad until number in display is same as desired quantity to cook. (except for POPCORN) POPCORN 1. -
Page 16: Dinner Plate
ONE TOUCH COOKING (CONTINUED) DINNER PLATE 1. Touch DINNER PLATE once for a 12 oz dinner plate, twice for a 15 oz dinner plate. * DINNER PLATE FRESH VEGETABLE 1. Touch FRESH VEGETABLE once for a 7 oz of fresh vegetable, twice for 14 oz of fresh vegetable. -
Page 17: Speedy Cook
SPEEDY COOK SPEEDY COOK allows you to reheat for 30 seconds at 100% (full power) by simply touching the SPEEDY COOK pad. By repeatedly touching the SPEEDY COOK pad, you can also extend re-heating time to 5 minutes by 30 second increments. START/ 1. -
Page 18: Cooking In Two Stages
COOKING IN TWO STAGES All recipes require frozen foods to be defrosted fully before cooking. This oven can be programmed to automatically defrost foods before cooking. DEFROST 1. Touch pad. 2. Touch for the defrosting time you want. 3. Touch POWER to select desired power level. -
Page 19: Less, More
LESS, MORE • To alter one-touch cooking or cooking time whilst oven is in operation, use LESS or MORE.(except for defrosting). • Press LESS/MORE to decrease/increase the one-touch cooking time in multiples of MORE 10 seconds. • The overall one-touch cooking time can be increased to a maximum of 99 minutes 50 second. -
Page 20: Weight Defrosting
WEIGHT DEFROSTING WEIGHT DEFROSTING lets you easily defrost food by eliminating guesswork in determining defrosting time. Follow the steps below for easy defrosting. MEAT 1. Touch MEAT repeatedly to select desired defrosting weight. START/ 2. Touch pad. SPEEDY COOK POULTRY 1. -
Page 21: Kitchen Timer Mode
KITCHEN TIMER MODE Timer operates as a minute timer which can be set to delay cooking and used as a hold setting after cooking. However delayed cooking can not be programmed for defrost. Timer operates without microwave energy. HOW TO USE AS A MINUTE TIMER 1. - Page 22 HOW TO USE THE KITCHEN TIMER FUNCTION, TO DELAY THE START OF COOKING KITCHEN 1. Touch pad. TIMER 2. Press for the amount of time you want to delay. 3. Touch repeatedly to select the desired power level. POWER 4. Touch for the desired cooking time.
-
Page 23: Standing Time
HOW TO USE KITCHEN TIMER MODE, TO SET A STANDING TIME 1. Touch pad. DEFROST 2. Touch to program desired defrosting time KITCHEN 3. Touch pad. TIMER 5. Press the for the amount of time you want the food to stand after cooking. START/ 5. -
Page 24: Care Of Your Microwave Oven
Control Panel. 5 If steam accumulates inside or around the outside of the oven door, wipe with a soft cloth. This mayoccur when the microwave oven is operated under high humidity conditions and in no way indicates malfunction of the unit. -
Page 25: Microwave Oven Warranty
Microwave Oven Warranty MC Appliance corp. warrants each new Microwave Oven to be free from defects in material and workmanship and agrees to remedy any such defect or to furnish a new part(s) (at the company’s option) for any part(s) of the unit that has failed during the warranty period. Parts and labor expenses are covered on this unit for a period of one year after the date of purchase.
