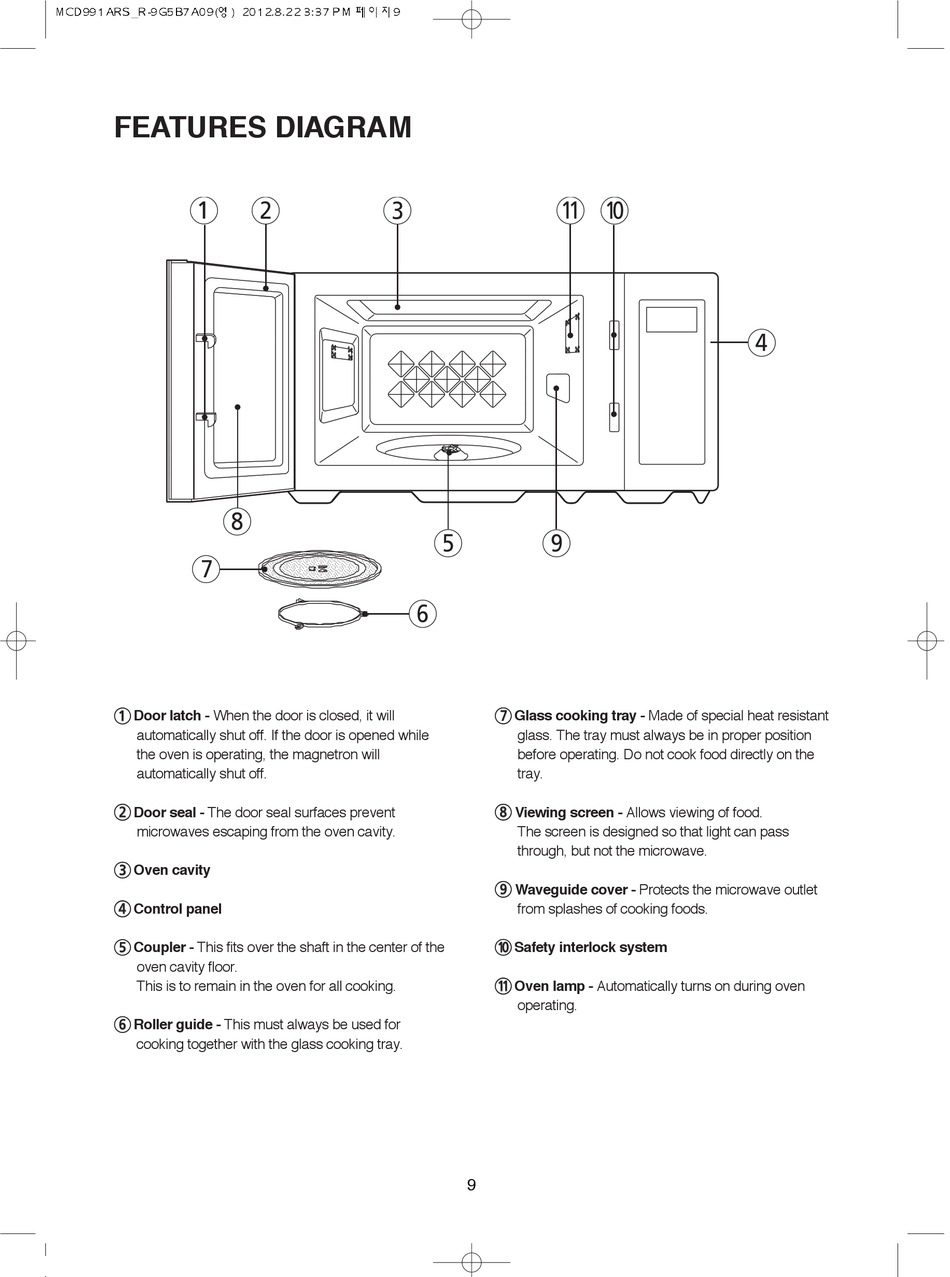

FEATURES DIAGRAM
1
2
8
7
1 Door latch - When the door is closed, it will
1
automatically shut off. If the door is opened while
the oven is operating, the magnetron will
automatically shut off.
2
2 Door seal - The door seal surfaces prevent
microwaves escaping from the oven cavity.
3
3 Oven cavity
4
4 Control panel
5
5 Coupler - This fits over the shaft in the center of the
oven cavity floor.
This is to remain in the oven for all cooking.
6 Roller guide - This must always be used for
6
cooking together with the glass cooking tray.
3
q 0
5
9
6
7 Glass cooking tray - Made of special heat resistant
7
glass. The tray must always be in proper position
before operating. Do not cook food directly on the
tray.
8 Viewing screen - Allows viewing of food.
8
The screen is designed so that light can pass
through, but not the microwave.
9 Waveguide cover - Protects the microwave outlet
9
from splashes of cooking foods.
0
0 Safety interlock system
q
q Oven lamp - Automatically turns on during oven
operating.
9
4
