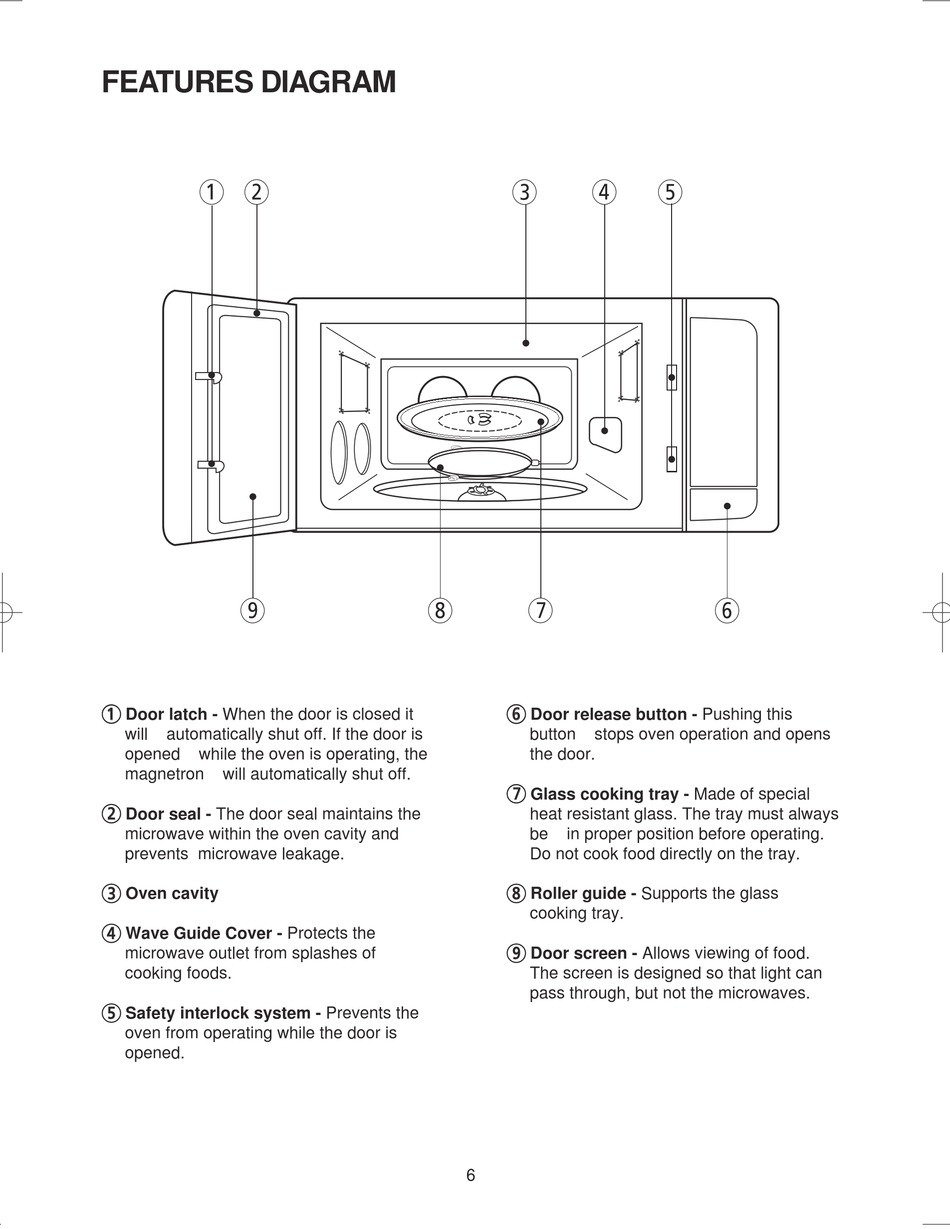

FEATURES DIAGRAM

1 2
9
1 1 Door latch - When the door is closed it
will automatically shut off. If the door is
opened while the oven is operating, the
magnetron will automatically shut off.
2 2 Door seal - The door seal maintains the
microwave within the oven cavity and
prevents microwave leakage.
3 3 Oven cavity
4 4 Wave Guide Cover - Protects the
microwave outlet from splashes of
cooking foods.
5 5 Safety interlock system - Prevents the
oven from operating while the door is
opened.
3
8 7
6 6 Door release button - Pushing this
button
the door.
7 7 Glass cooking tray - Made of special
heat resistant glass. The tray must always
be in proper position before operating.
Do not cook food directly on the tray.
8 8 Roller guide - Supports the glass
cooking tray.
9 Door screen - Allows viewing of food. 9
The screen is designed so that light can
pass through, but not the microwaves.
6
4 5
6
stops oven operation and opens
