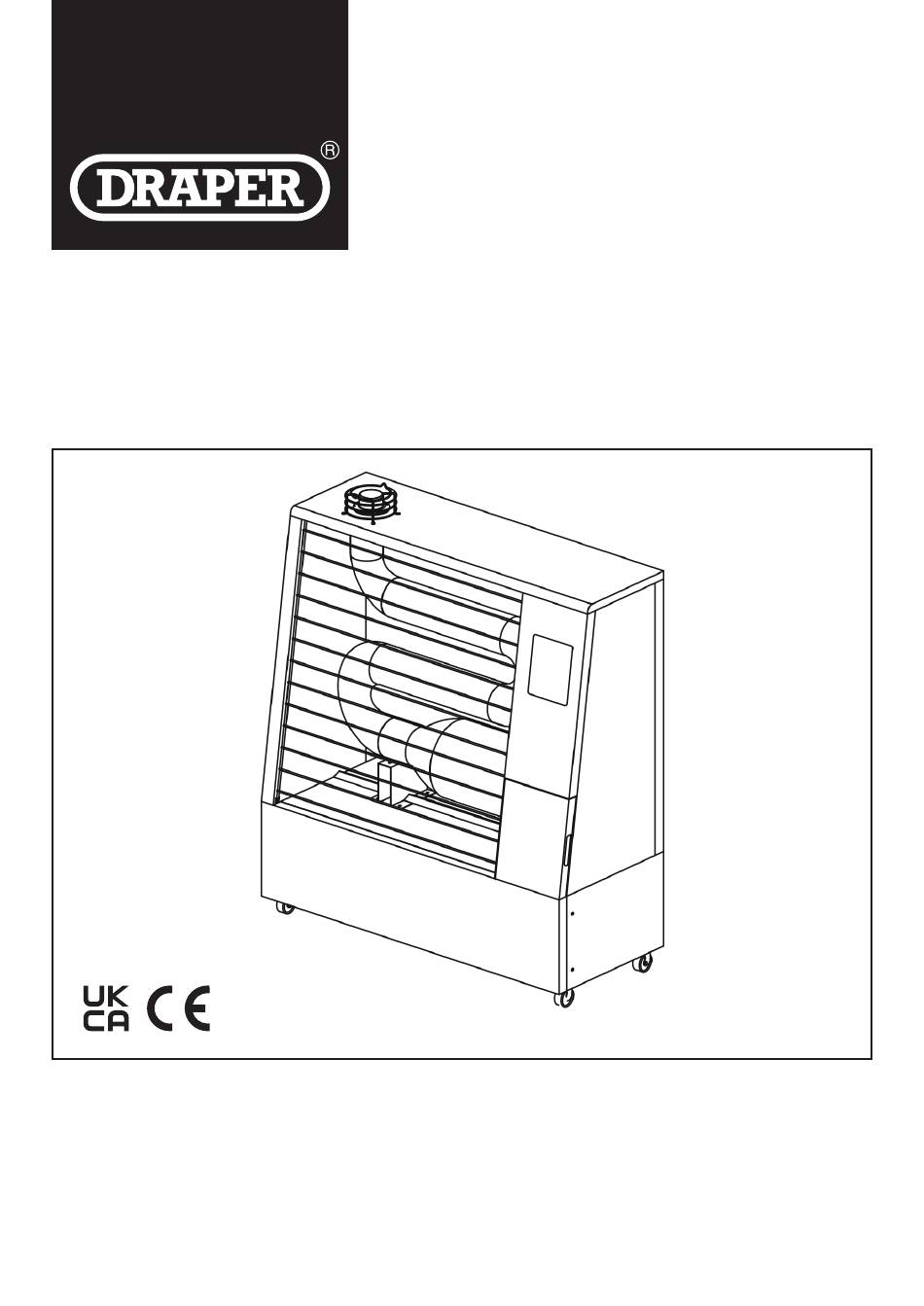

FAR INFRA-RED
DIESEL HEATER
06732, 06733 & 07108
Please note that model number 06732 is illustrated throughout this instruction booklet.
These instructions accompanying the product are the original instructions. This document is part of the product, keep it
for the life of the product passing it on to any subsequent holder of the product. Read all these instructions before
assembling, operating or maintaining this product.
This manual has been compiled by Draper Tools describing the purpose for which the product has been designed, and
contains all the necessary information to ensure its correct and safe use. By following all the general safety instructions
contained in this manual, it will ensure both product and operator safety, together with longer life of the product itself.
AlI photographs and drawings in this manual are supplied by Draper Tools to help illustrate the operation of the product.
Whilst every effort has been made to ensure the accuracy of information contained in this manual, the Draper Tools
policy of continuous improvement determines the right to make modifications without prior warning.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Draper 06732
Summary of Contents for Draper 06732
- Page 1 AlI photographs and drawings in this manual are supplied by Draper Tools to help illustrate the operation of the product.
-
Page 2: Title Page
Commercial copying, redistribution, hiring or lending is prohibited. No part of this publication may be stored in a retrieval system or transmitted in any other form or means without written permission from Draper Tools Limited. In all cases this copyright notice must remain intact. -
Page 3: Table Of Contents
CONTENTS 2.1 CONTENTS TITLE PAGE 1.1 INTRODUCTION ........................2 1.2 REVISION HISTORY ......................2 1.3 UNDERSTANDING THIS MANUAL’S SAFETY CONTENT ..........2 1.4 COPYRIGHT © NOTICE ......................2 CONTENTS 2.1 CONTENTS ..........................3 WARRANTY 3.1 WARRANTY .........................4 INTRODUCTION 4.1 SCOPE ..........................5 4.2 SPECIFICATION ........................5 4.3 HANDLING AND STORAGE ....................5 HEALTH AND SAFETY INFORMATION 5.1 GENERAL HEATER SAFETY WARNINGS ................6 5.2 CONNECTION TO THE POWER SUPPLY ................9... -
Page 4: Warranty
This warranty applies in lieu of any other warranty expressed or implied and variations of its terms are not authorised. Your Draper warranty is not effective unless you can produce upon request a dated receipt or invoice to verify your proof of purchase within the warranty period. -
Page 5: Introduction
This heater is designed to heat large, semi-open areas by means of combustion of Diesel or Kerosene fuel, and is electrically operated. Any other application is considered mis-use. 4.2 SPECIFICATION STOCK NOS....................06732 / 06733 / 07108 PART NOS..............DSH-FIR400 / DSH-FIR515 / DSH-FIR675 MOTOR: RATED VOLTAGE ....................... -
Page 6: Health And Safety Information
HEALTH AND SAFETY INFORMATION 5.1 GENERAL HEATER SAFETY WARNINGS Warning! Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury. Save all warnings and instructions for future reference. 1) Work area safety a) Keep work area clean and well lit. - Page 7 4) Heater use and care DO NOT move the heater when it is in operation or when plugged into the mains supply. Only move heater once it has cooled and it has been unplugged. a) Use the correct heater for your application. The correct heater will do the job better and safer at the rate for which it was designed.
- Page 8 HEALTH AND SAFETY INFORMATION Warning! Never leave the heater unattended while burning! Warning! Risk of Indoor Air Pollution! – Use this heater only in well ventilated areas! – Provide at least a three square foot (2,800 sq cm) opening of outside air for every 25,000Kcal/hr of heater rating.
-
Page 9: Connection To The Power Supply
5.2 CONNECTION TO THE POWER SUPPLY Caution: Risk of electric shock. Do not open. This appliance is supplied with an approved plug and cable for your safety. The value of the fuse fitted is marked on the pin face of the plug. Should the fuse need replacing, ensure the substitute is of the correct rating, approved to BS1362 and ASTA or BS Kite marked. -
Page 10: Technical Description
TECHNICAL DESCRIPTION 6.1 IDENTIFICATION (14) (13) (12) (11) (10) (1) Exhaust (6) Caster (11) Far infra-red heater tube (2) Heater control plate (7) Nozzle (12) Silencer (3) Air outlet (8) Combustion chamber (13) Silencer (4) Fan (9) Caster (14) Exhaust – connection for optional (5) Motor (10) Front safety guard... -
Page 11: Unpacking And Checking
Lay the contents out and check them against the parts shown below. If any part is damaged or missing, please contact the Draper Help Line (the telephone number appears on the Title page) and do not attempt to use the product. -
Page 12: Fuelling
FUELLING 8.1 FUELLING STEP – FIG. 1 Open the fuel inlet cap for the fuel tank. Carefully put in the fuel, trying not to spill the fuel. - At this time, fill until the fuel gauge reaches ‘F’. Tightly close the fuel cap. Check if fuel has leaked around fuel tank or each part of the heater. -
Page 13: Operating The Heater
OPERATING THE HEATER 9.1 SET-UP Put the plug into the outlet. The current temp. and setting temp. both are displayed during operaton. In order to be operated, the setting temperature should be higher than current temperature. Power On Important! For first use you may need to bleed the fuel pump lines –... -
Page 14: How To Bleed Fuel Lines
OPERATING THE HEATER To select whether off timer mode is operated or not. At that time, off timer lamp displays) Set Temp. / Time indicates the reserved time. By pushing ‘+/_’ button, time is changed every an hour. It can be set in 24 hours totally. Set Temp. -
Page 15: Maintenance
10. MAINTENANCE 10.1 DAILY CHECK-UP Warning! Check-up and cleaning must be done after stopping ‘combustion’ of the heater. Check if fuel leaks from any place near the fuel tank. Check if combustion chamber or heating tube is corroded and damaged. If heat-reflecting board is dusty, clean it. -
Page 16: Tips Before Installation
10cm from the back wall. If you are using the heater indoors, we would strongly recommend the Draper 07399 flue kit to ensure the exhaust fumes are routed out of the building safely. -
Page 17: Wiring
12. WIRING 1 + 3 Thermostat 5 + 11 Pump 17 + 18 N F.G. 5 + 13 Ignitor 19 + 20 Oil gauge 2 + 6 Power plug 9 + 10 Sol. valve 21 + 22 Photo cell 12 + 14 Blower fan 23 + 24 Thermistor 5 + 7 Motor... -
Page 18: Troubleshooting
13. TROUBLESHOOTING 13.1 TROUBLESHOOTING GUIDE Problem Possible Cause Remedy E1: Ignition failure Heater does not ignite Out of fuel, refill with correct fuel Fuel pipe is air-locked, bleed fuel pipe as per manual Photocell is dirty, clean photocell as per manual E3: Temperature sensor Temperature sensor is not Check temperature sensor... -
Page 19: Explanation Of Symbols
14. EXPLANATION OF SYMBOLS 14.1 EXPLANATION OF SYMBOLS WEEE – Waste Electrical & Electronic Equipment. Do not dispose of Waste Electrical & Electronic Equipment in with domestic rubbish. 15. DISPOSAL 15.1 DISPOSAL – At the end of the machine’s working life, or when it can no longer be repaired, ensure that it is disposed of according to national regulations. - Page 20 ©Published by Draper Tools Limited. No part of this publication may be reproduced, stored in a retrieval system or transmitted in any form or by any means, electronic, mechanical photocopying, recording or otherwise without prior permission in writing from Draper Tools Ltd.
