Summary of Contents for Draper ESH2000PTC/A

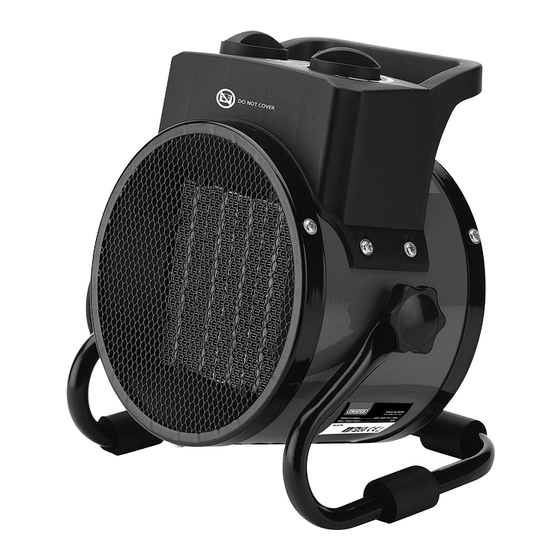

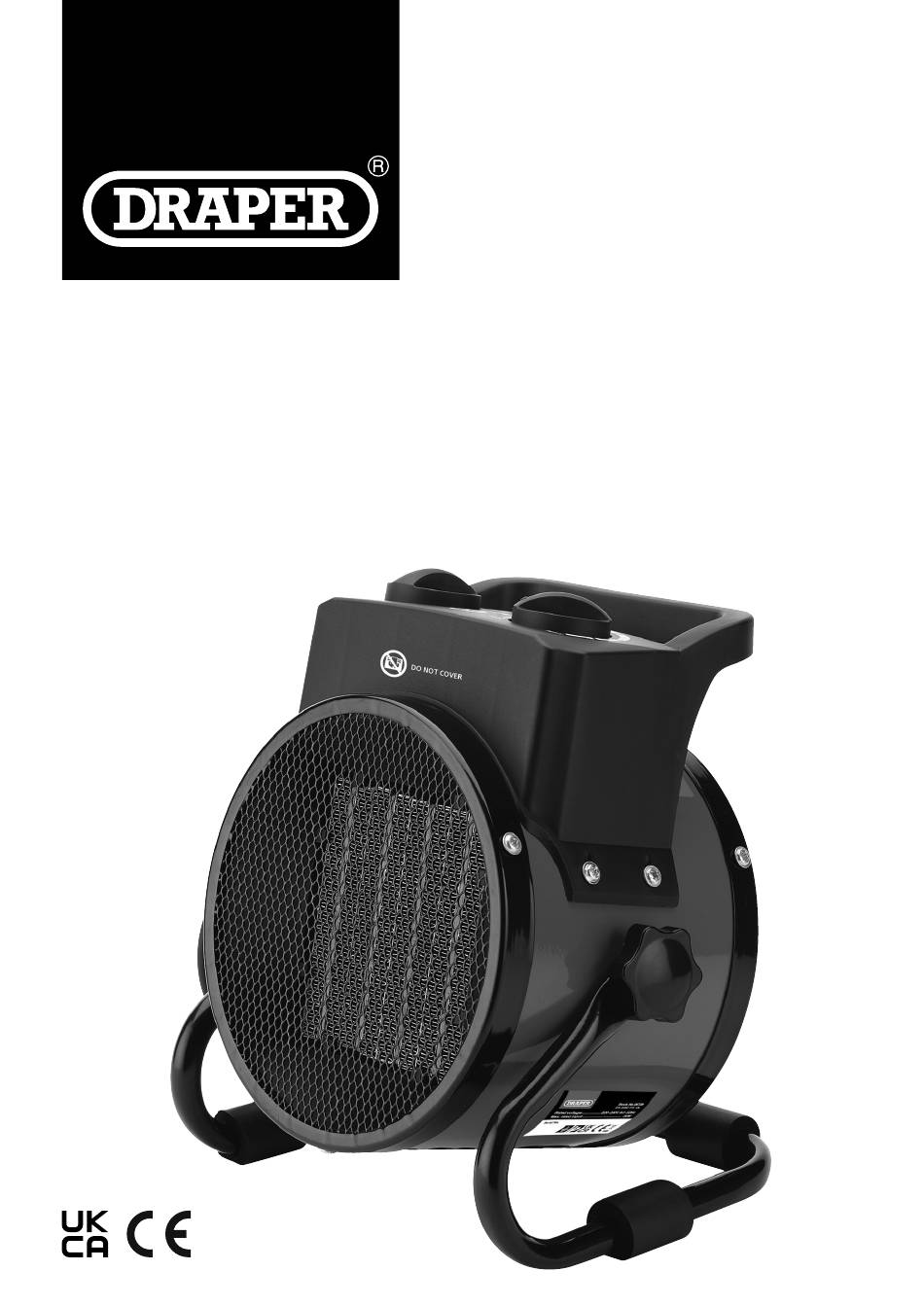

- Page 1 Original Instructions Version 2 May 2024 2kW PTC ELECTRIC SPACE HEATER 06729...
-
Page 2: Copyright © Notice
All photographs and drawings within this manual are document is part of the product; retain it for the life supplied by Draper Tools to help illustrate correct of the product, passing it on to subsequent holders. operation of the product. -
Page 3: Table Of Contents
2. Contents 1. Preface 1.1 Product Reference 1.2 Revisions 1.3 Understanding the Safety Content of This Manual 1.4 Copyright © Notice 2. Contents 3. Product Introduction 3.1 Intended Use 3.2 Specification 4. Health and Safety Information 4.1 General Health and Safety Precautions for Heater 4.2 Connection to the Power Supply 5. -
Page 4: Product Introduction
Read this manual in full before attempting to assemble, Any other application beyond the conditions established operate or maintain the product and retain it for later use. for use will be considered misuse. Draper Tools accepts no responsibility for improper use of this product. 3.2 Specification Stock No. -
Page 5: Health And Safety Information
• Important: DO NOT use this product if it is damaged suitable for use on building sites. in any way. Contact Draper Tools to discuss repair and replacement options. • NEVER leave the heater unattended while it is on. • Use the product only in the manner instructed in this • Avoid body contact with earthed or grounded... -
Page 6: Connection To The Power Supply
If the power supply cord is damaged, it must be replaced − Particular attention MUST be given when children by Draper Tools, an authorised service agent or similarly and vulnerable people are present. qualified personnel in order to avoid a hazard. -
Page 7: Identification And Unpacking
5. Identification and Unpacking 5.1 Product Overview Carefully remove the product from the packaging and examine it for any signs of damage that may have occurred during shipment. (10) Heater element Inlet grille Operation control dial Outlet grille Thermostat control dial Power LED light Transport handle Position adjustment screw... -
Page 8: Operating Instructions
DO NOT use the heater if the safety tab has been compromised in any way and contact 6.1 Positioning the Heater Draper Tools for support. 1. Position the fan so that it stands upright unaided on a 6.2 The Operation Control Dial firm, level and fire-resistant surface. -
Page 9: The Thermostat Control Dial
6. Operating Instructions 6.3 The Thermostat Control Dial 6.4 Thermal Cut-Out The heater is equipped with a safety device that cuts the power if the heater overheats. When this occurs, the heater must be switched off, disconnected from the power supply and left to cool for at least ten minutes. Important: If overheating causes the heater to switch off automatically, the cause of overheating MUST be rectified before the heater is used again. -
Page 10: Maintenance And Troubleshooting
The thermostat is Check that the power LED illuminates when the thermostat control damaged. dial is turned to its maximum position. Contact Draper Tools to discuss repair and replacement options. The thermal cut-out has Switch off the heater, disconnect it from the power supply and been activated. -
Page 11: Spares, Returns And Disposal
Any servicing or repairs authorised. carried out by unauthorised personnel will invalidate Your Draper Tools guarantee is not effective until you can your warranty. produce, upon request, a dated receipt or invoice to At the end of its working life, dispose of the product verify your purchase within the guarantee period. - Page 12 Product Helpline: +44 (0) 23 8049 4344 Telephone Sales Desk: +44 (0) 23 8049 4333 General Enquiries: +44 (0) 23 8026 6355 Please contact the Draper Tools Product Helpline for repair and servicing enquiries. © Published by Draper Tools Limited © Published by Draper Tools Limited...
