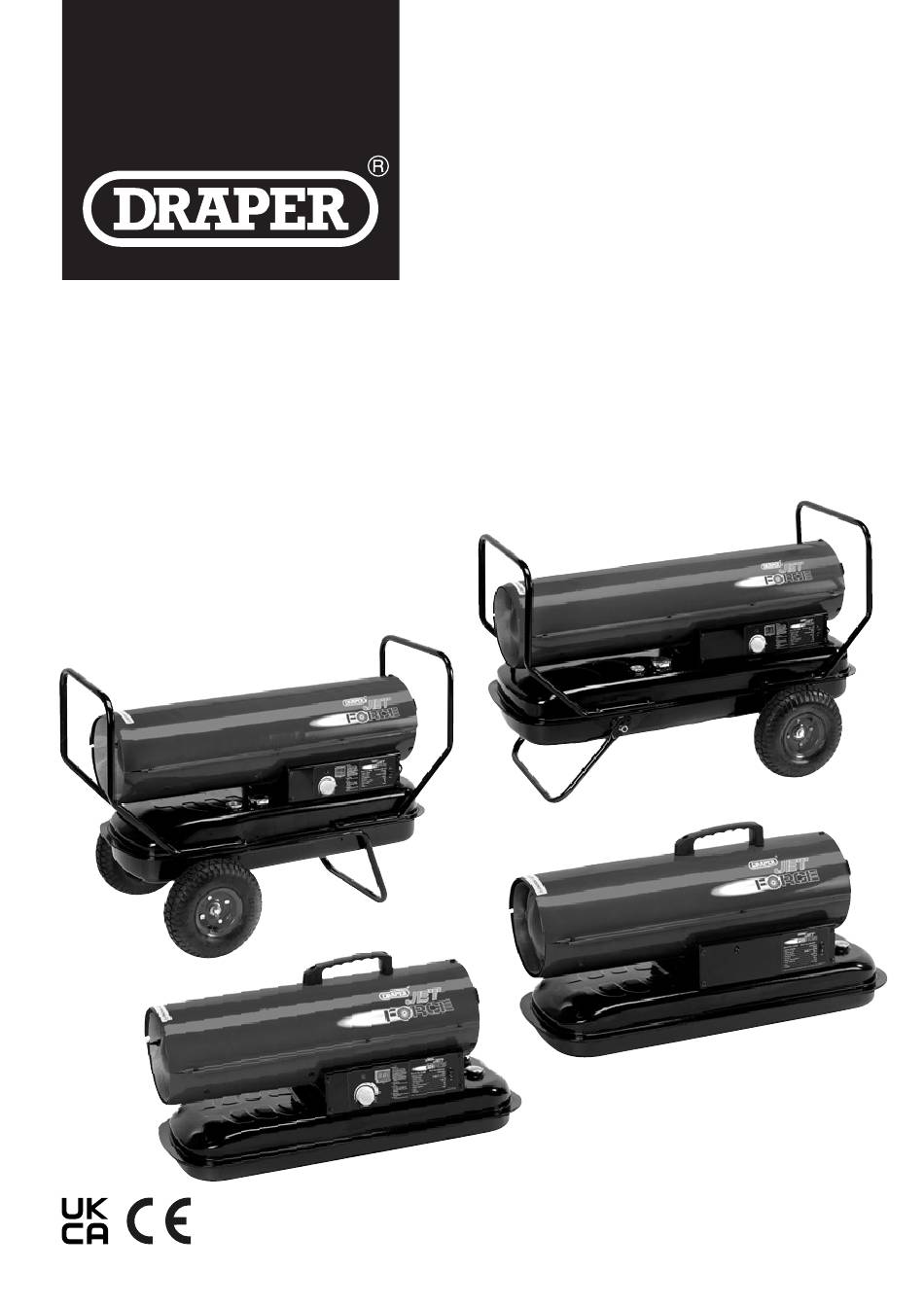

- Page 1 Original Instructions Version 5 - March 2024 JET FORCE DIESEL SPACE HEATERS 32284, 32285, 32286, 32287, 53925, 53926...
-
Page 2: Preface
All photographs and drawings within this manual are document is part of the product; retain it for the life supplied by Draper Tools to help illustrate correct of the product, passing it on to subsequent holders. operation of the product. -
Page 3: Table Of Contents
5.2 What’s in the Box? 5.3 Packaging 6. Preparing the Heater 10-12 6.1 Handle Fitment (32286, 32297 & 53926) 6.2 Handle & Wheel Fitment (32285 & 53926) 6.3 Wheels (32284 & 53925) 6.4 Fuels 6.5 Fuelling Your Heater 6.6 Ventilation 7. Operating Instructions 7.1 To Start Heater 7.2 To Shut Down Heater... -
Page 4: Product Introduction
3. Product Introduction 3.1 Intended Use This heater is fitted with electronic controls and designed for use will be considered misuse. Draper Tools accepts to heat open and semi-open spaces through the no responsibility for improper use of this product. combustion of Diesel and Kerosene fuels. -
Page 5: Health And Safety Information
• ALWAYS observe the correct clearances between the heater and surrounding objects: WARNING! DO NOT use this product if it is damaged or leaking in any way. Contact Draper − Outlet: 2.5m (8ft) Tools for repair and replacement options. -
Page 6: Electrical Safety
4. Health and Safety Information • NEVER place objects on the engine while it is in use WARNING! DO NOT use fuels such as petrol, and keep all air vents clear of dust, dirt and other benzene, paint thinners or other oil compounds in this heater under any circumstances. -
Page 7: Connection To The Power Supply
If the power supply cord is damaged, it must be replaced by Draper Tools, an authorised service agent or similarly qualified personnel in order to avoid a hazard. The damaged or incomplete plug, when cut from the cord, shall be disabled to prevent connection to a live electrical outlet. -
Page 8: Identification And Unpacking
(11) Indicator lamp Handle (rear) (12) Fuel cap Fan guard (13) Fuel gauge Fuel tank (14) Leg frame Drain plug (14a) 32284, 53925 Power cord (14b) 32285, 53926 Please visit drapertools.com for our full range of accessories and consumables. – 8 –... -
Page 9: What's In The Box
5.2 What’s in the Box? Carefully remove the product from the packaging and damaged or missing; please contact the Draper Helpline examine it for any sign of damage that may have (the telephone number appears on the Title page) and do happened during shipping. -
Page 10: Preparing The Heater
Fig.2 6.3 Wheels & Leg Frame (32284 & 53925) 1. Centralise the axle (17) before clamping it to the underside of the fuel tank with brackets (19). -
Page 11: Fuels
6. Preparing the Heater 6.4 Fuels • Use only standard clean Diesel or Kerosene heater oil according to EN 267. • IMPORTANT: Ensure the fuel tank is clean. Foreign matter such as rust, dirt, or water will cause the ignition control assembly to shut down the heater. -
Page 12: Operating Instructions
7. Operating Instructions 7.1 To Start Heater 7.5 The Safety System Temperature Limit Control: Designed to turn the heater 1. Fill fuel tank with appropriate fuel. off should the internal temperature rise to an unsafe 2. Fit the fuel cap. level. -
Page 13: Maintenance And Troubleshooting
Draper Tools Helpline for assistance – contact details Important: it is recommended that your heater is can be found on the back of this manual. -
Page 14: Spares, Returns And Disposal
Helpline for details of your nearest authorised agent. where possible. Draper Tools will endeavour to hold any spare parts, if • DO NOT dispose of this product with domestic waste; applicable, for seven years from the date that it sells the most local authorities provide appropriate recycling final matching stock item. -
Page 15: Explanation Of Symbols
11. Explanation of Symbols Class I appliance Read the instruction manual WEEE – Warning! Waste Electrical & Electronic Equipment Do not dispose of this product with domestic waste Danger of electric shock UK Conformity Assessed Rated voltage European Conformity Rated input Do not cover Do not incinerate or throw onto fire Do not abandon in the environment... - Page 16 Telephone Sales Desk: +44 (0) 23 8049 4333 General Enquiries: +44 (0) 23 8026 6355 General Fax: +44 (0) 23 8026 0784 Please contact the Draper Tools Product Helpline for repair and servicing enquiries. © Published by Draper Tools Limited...
