Summary of Contents for Draper 04568

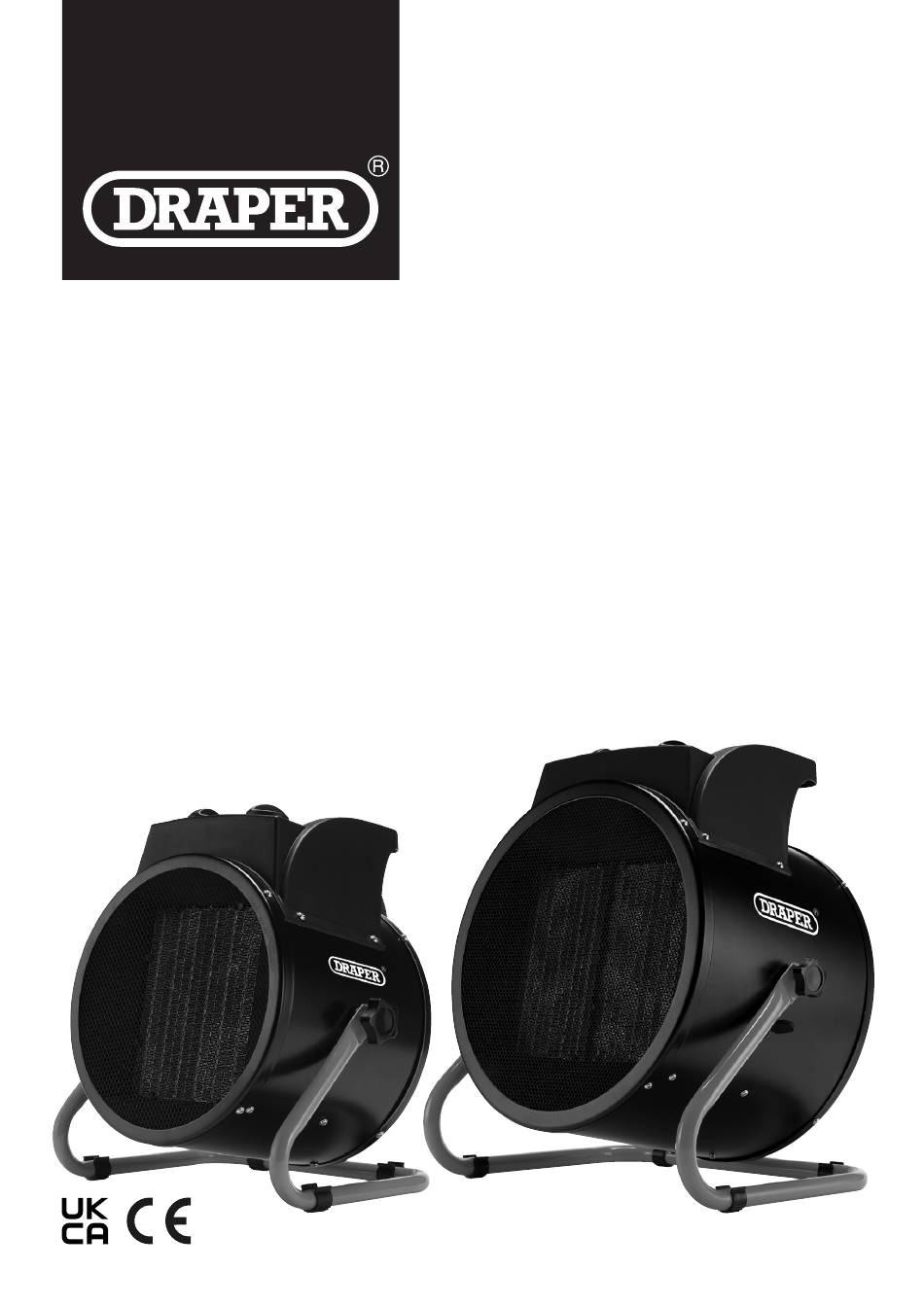

- Page 1 Original Instructions Version 1 5kW & 9kW PTC ELECTRIC SPACE HEATER 04568, 04570...
-
Page 2: Preface
All photographs and drawings within this manual are document is part of the product; retain it for the life supplied by Draper Tools to help illustrate correct of the product, passing it on to subsequent holders. operation of the product. -
Page 3: Table Of Contents
2. Contents 1. Preface 1.1 Product Reference 1.2 Revisions 1.3 Understanding the Safety Content 1.4 Copyright © Notice 2. Contents 3. Warranty 4. Product Introduction 4.1 Scope 4.2 Specification 5. Health and Safety Information 5.1 General Health and Safety Precautions for this Heater 5.2 Connection to the Power Supply 6. -
Page 4: Warranty
This warranty period covers parts and labour for 12 months from the date of purchase. Your Draper Tools guarantee is not effective until you can Where tools have been hired out, the warranty period produce, upon request, a dated receipt or invoice to covers 90 days from the date of purchase. -
Page 5: Product Introduction
Draper Tools accepts no responsibility for improper use of this product. Part of our core range, this product is suitable for enthusiasts and tradespersons alike. -
Page 6: Health And Safety Information
− NEVER remove the plug from the power supply by Important: DO NOT use this product if it is damaged pulling on the cord. in any way. Contact Draper Tools to discuss repair and − DO NOT carry the product by the cable or plug. replacement options. -
Page 7: Connection To The Power Supply
This appliance is supplied with an approved five-pin plug and cable for your safety. If the power supply cord is damaged, it must be replaced by Draper Tools, an authorised service agent or similarly qualified personnel in order to avoid a hazard. -
Page 8: Identification And Unpacking
6. Identification and Unpacking 6.1 Product Overview Carefully remove the product from the packaging and examine it for any signs of damage that may have occurred during shipment. (10) Inlet grille PTC heater element Operation control dial Safety tab Outlet grille Stand Position adjustment screws Thermostat control dial... -
Page 9: Operating Instructions
7. Operating Instructions 7.2 The Operation Control Dial Important: Before use, read and understand all the safety instructions listed in this manual. The heater may emit an odour during first use. This is normal and will pass shortly after switching on. WARNING! DO NOT leave the heater unattended while it is connected to the power supply or switched on. -
Page 10: The Safety Tab
DO NOT use the heater if the safety tab has been compromised in any way and contact Draper Tools for support. 7.5 Switching Off the Heater After Use Before switching off the heater, turn the operation... -
Page 11: Maintenance And Troubleshooting
The thermostat is damaged. Check that the power LED illuminates when the thermostat control dial is turned to its maximum position. Contact Draper Tools to discuss repair and replacement options. The thermal cut-out has been Switch off the heater, disconnect it from the activated. -
Page 12: Disposal
9. Disposal At the end of its working life, or when it can no longer be repaired, dispose of the heater according to local regulations. Contact your local authority for details of collection schemes in your area. In all circumstances: • DO NOT dispose of this product with domestic waste. -
Page 13: Explanation Of Symbols
10. Explanation of Symbols WEEE – Read the instruction manual Waste Electrical & Electronic Equipment Do not dispose of Waste Electrical & Electronic Equipment in with domestic waste Warning! UK Conformity Assessed Danger of electric shock European conformity Hot during use; do not touc. Indoor use only;... - Page 14 General Enquiries: +44 (0) 23 8026 6355 General Fax: +44 (0) 23 8026 0784 Service / Warranty Repair Agents For aftersales servicing or warranty repairs, please contact the Draper Tools Product Helpline for details of an agent in your area. © Published by Draper Tools Limited...
