Summary of Contents for Mosa CPiL Series

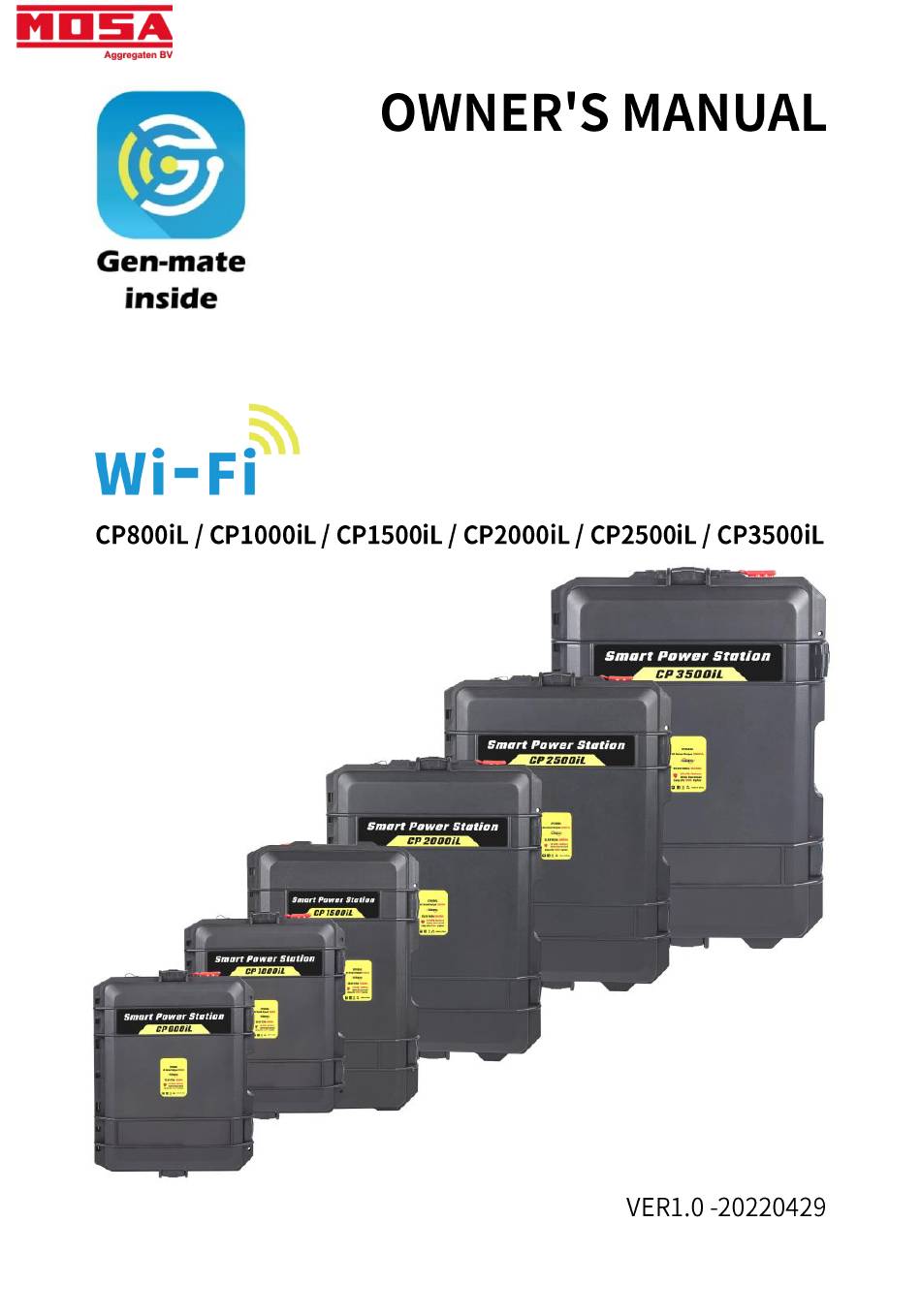

  • Page 1 PORTABLE POWER STATION CPiL Series...

  • Page 2: Table Of Contents

    CONTENT 1. UNIT DESCRIPTION ................- 3 -   1.1 COMPONENTS IDENTIFICATION ..........- 3 -   1.2 OUTPUT PANEL ................- 5 -   1.3 CHARGING INPUT PANEL............. - 9 -   1.4 BATTERY CONNECTOR .............. - 12 -   2.
  • Page 3 INTRODUCTION Congratulations on your selection of a marvelous power station.  This manual will provide you with a good basic understanding of the safe operation and maintenance of this machine, please read it carefully.    Read this manual carefully before operating this power station. This manual should stay with this power station if it is sold.

  • Page 4: Unit Description

     If you have any questions, please consult an authorized dealer.  Please DO NOT modify the unit in any way, otherwise factory may reserve the right not to provide the complete warranty. 1. UNIT DESCRIPTION  1.1 COMPONENTS IDENTIFICATION  CP800iL / CP1000iL CP1500iL ‐ 3 ‐ ...
  • Page 5 CP2000iL / CP2500iL CP3500iL (1). Output Panel: Location of power station controls and output receptacles. (2). Charging Input Panel: Location of power station charging input receptacles. (3). Upper Cover: Open the cover to connect, install or replace the battery of the power station. (4).

  • Page 6: Output Panel

    (5). Draw Bar Handle: Pull the handle to wheel this power station around. (6). Casing: It is matched with the upper cover to form a closed casing of the power station.  1.2 OUTPUT PANEL  CP800iL / CP1000iL ‐ 5 ‐ ...
  • Page 7 CP1500iL 16 15 ‐ 6 ‐ ...
  • Page 8 CP2000iL / CP2500iL 13 14 10 11 12 CP3500iL 10 11 13 14 ‐ 7 ‐ ...
  • Page 9 (1). AC Switch: This switch turns ON or OFF AC output of the power station. (2). AC Receptacle: AC output receptacles for connecting AC devices. (3). Main Switch: This switch turns ON or OFF DC output of the power station, and AC Switch is available only after the main switch is turned (4).

  • Page 10: Charging Input Panel

     AC output is overloaded.  AC output is short-circuited.  AC output is under voltage.  AC output is over voltage.  Over temperature in the inverter. Battery is under voltage.  Battery is over voltage.  (15). Lighting: The LED light bar can be used for lighting.  (16). Light Switch: Press this switch to turn on the light.
  • Page 11 CP1500iL               CP2000iL / CP2500iL                 ‐ 10 ‐ ...
  • Page 12   CP3500iL   (1). PV Charging Input: Charge the power station from solar panels (optional equipment). (2). DC Charging Input: Charge the power station from cars. (3). AC Charging Input: Charge the power station from wall outlets or other AC power source. (4).

  • Page 13: Battery Connector

    1.4 BATTERY CONNECTOR  Two screws       You need to connect the battery connector 2 before charging or using the power station: (1). Unscrew the two screws between the upper cover 1 and casing 4, loosen all buckle 5, and then open the upper cover 1. (2).

  • Page 14: Charging The Power Station

      There is high-voltage power inside the power station. Do not start the power station when the upper cover is opened, to prevent accidental electrical shock!     2. CHARGING THE POWER STATION  NOTE  Before using for the first time, or after long-term storage, please charge the power station fully from AC charging for at least 10 hours to ...

  • Page 15: Pv Charging Input

    2.1 PV CHARGING INPUT  Loosen ‐ 14 ‐ ...
  • Page 16 You can charge the power station from solar panels as follows: (1). Remove the cover 1 from PV charging port 2. (2). Connect PV charging port 2 to MC4 port 5 of solar panels 4 (optional equipment) by PV charging cable 3, which can be found in the packing box.

  • Page 17: Ac Charging Input

    2.2 AC CHARGING INPUT  You can charge the power station from wall outlets or other AC source as follows: Connect AC charging port 1 to wall outlets or other AC source by the AC charging cable 2, which can be found in the packing box. NOTE ...

  • Page 18: Dc Charging Input

    2.3 DC CHARGING INPUT  You can charge the power station from cars as follows: Connect DC charging port 1 to cigarette lighter receptacle of 12V or 24V cars by DC charging cable 2, which can be found in the packing box. NOTE The car engine must run when charging the power station from the car.

  • Page 19: Wind Charging Input (Optional)

    2.4 WIND CHARGING INPUT (optional)  Loosen You can charge the power station from wind turbines as follows: (1). Remove the cover 1 from wind charging port 2. (2). Connect wind charging port 2 to wind charging cable 4 of wind turbines (optional equipment) by wind charging plug 3, which can be found in the packing box.

  • Page 20: Dc Quick Charging Input (Optional)

    2.5 DC QUICK CHARGING INPUT (optional)   You can charge the power station from DC 24V power unit as follows: (1). Open the connector cap 1 on DC quick charging port 2. (2). Connect DC quick charging port 2 to the DC plug 3 on the DC output cable 4 of DC 24V power unit (optional) to charge the power station.

  • Page 21: Operating The Power Station

     DO NOT short circuit the DC quick charging port 2! 3. OPERATING THE POWER STATION  CP800iL / CP1000iL ‐ 20 ‐ ...
  • Page 22 CP1500iL 16 15 CP2000iL / CP2500iL 13 14 10 11 12 ‐ 21 ‐ ...

  • Page 23: Dc Operation

    CP3500iL 10 11 13 14 3.1 DC OPERATION  You can use the DC output from the power station as follows: (1). Push the main switch 3 to "ON" position. (2). Receptacle 4 and 8 all are 12V DC output port, according to the plug type of 12V DC electric devices to choose suitable one to connect.

  • Page 24: Ac Operation

    NOTE  Be sure the receptacle load current is within receptacle rated current. If the DC output is overloaded (in excess of rated current), or if  there is a short circuit in a connected appliance, the icon icon in LCD Display 10 will show（as shown in the figure below）, and the DC output to the connected appliance(s) will shut off.
  • Page 25  AC output voltage is very high, operators must be protected from electric shock at all times.  Do not operate with wet hand. Do not operate by children without supervision.   Do not expose the power station to rain, moisture or snow. ...

  • Page 26: Lcd Display

    output power of the power station is 2000VA, the rated power of this load cannot exceed: 0.6 * 2 = 1.2kW, otherwise the power station may have overload protection or damage. If the AC output is overloaded (in excess of rated power), or if ...
  • Page 27 recharging. INPUT shows the amount of power (watts) going into the battery while charging. If charging from solar, you will see the watts change as you reposition the panels into/out of the sunlight.    OUTPUT shows the amount of power (watts) that your appliances are using while plugged into the power station.
  • Page 28 POWER icon will show when the Gen-mate unit (optional equipment) inside the power station is operating normally.   Wi-Fi icon will flash slowly when the power station equipped with Gen-mate unit (optional equipment) is connected to the Gen-mate APP in Smartphone by Wi-Fi。 Fault code 032 means that DC output is overloaded or short-circuited.

  • Page 29: Replace The Battery

    5. REPLACE THE BATTERY  Read the instructions before you begin, and make sure you  have the tools and skills required.  Shut off the power station before starting to replace the battery.  If you are not familiar with maintenance work, have an authorized dealer do it for you.
  • Page 30 Unscrew                                                       ‐ 29 ‐ ...

  • Page 31: Install The Battery

    (1). Remove the two screws, and then loosen the buckle 2.  (2). Open the upper cover 1 and unplug the battery connector 3. (3). Remove all screws 5 on battery baffle 7 with the spanner 4, and then remove gasket 6 and remove battery baffle 7. Two kinds of the spanner 4 can be found in the packing box.

  • Page 32: Reinstall The Battery Into The Power Station

    (3). Bind the bandages 1 around the battery 2. (4). Make sure the bandage 1 through the metal buckle 3 and pressed tightly by the metal buckle 3 as shown in the figure above. (5). The metal buckle 3 should be located on the side without waterproof joints as shown in the figure above.

  • Page 33: Connect The Battery

    station. (2). Put the baffle 2 on the top of the battery 1 to cover the battery. Install the gasket 3. Note that the feet on the gasket 3 should be placed in the positioning slot, as shown in the figure above. (3).

  • Page 34: Transportation And Storage

    (1). Open the connector cap 6 on the battery connector 4, and connect the battery connector 4 securely together with the power station connector 5. (2) As shown in the figure above, put the battery connector 4 and power station connector 5 into the right position in the casing 7, and arrange all exposed connectors, wiring harness and other parts into the casing 7 to ensure that it will not affect closing the upper cover 1.

  • Page 35: Protection

    to the power station.  During storage, please make sure to charge the power station at least every six (6) months. Keep all cooling holes open and clear of debris, mud, water, etc.  Cooling holes are located on the front panel and back panel of the power station.

  • Page 36: Output Protection

    7.2 OUTPUT PROTECTION  When AC output is overloaded (in excess of rated power) or short-  circuited, the AC output will automatically shut down. The buzzer alarm will sound 3 times uninterruptedly and the warning light flashes 3 times at the same time. Reset the AC switch can recover the AC output after reducing loads or eliminating short-circuited problems.

  • Page 37: Trouble Shooting

    8. TROUBLE SHOOTING  No DC Output Is the main switch OFF?  Push the main switch to the ON position. Is the battery power too low?  Charge the battery. Does the over temperature Turn electrical indicator on the screen/panel or appliance connected to the APP go on? power station, and put the power station in a cool place...
  • Page 38 Is there any fault on the DC Adjust replace electrical appliance? appliance. Contact with an authorized dealer. No AC Output Is the main switch OFF?  Push the main switch to the ON position. Push the AC switch to the ON Is the AC switch OFF? ...
  • Page 39 Reduce loads and push the Is the AC output overloaded? AC switch to reset module. (The warning light on the panel flashes) Check and correct condition Is the AC electrical device short of any extension cords and circuit?  (The warning light on all items being powered, the panel flashes) then push the AC switch to...

  • Page 40: Specifications

    9. SPECIFICATIONS  CPiL SERIES SPECIFICATIONS Model CP800iL CP1000iL CP1500iL CP2000iL CP2500iL CP3500iL Rated 800VA 1000VA 1500VA 2000VA 2500VA 3000VA Power Peak 1600VA 2000VA 3000VA 4000VA 5000VA 6000VA Power 457×416× 457×416× 560×350× 575×421× 575×421× 575×421× Dimensions 203mm 203mm 227mm 287mm 287mm 387mm Weight 17kg 16kg...
  • Page 41 CHARGING INPUT ‐ 40 ‐ ...
  • Page 42 NOTE (1). The wind charger and the DC quick charger are optional equipment, which can charge the power station at the same time. (2). The rated and maximum output power of the power station is based on resistive load, and is not applicable to inductive load and capacitive load.
  • Page 43 EASY POWER WITH YOU...

This manual is also suitable for:

Cp800ilCp1000ilCp2000ilCp1500ilCp2500ilCp3500il
