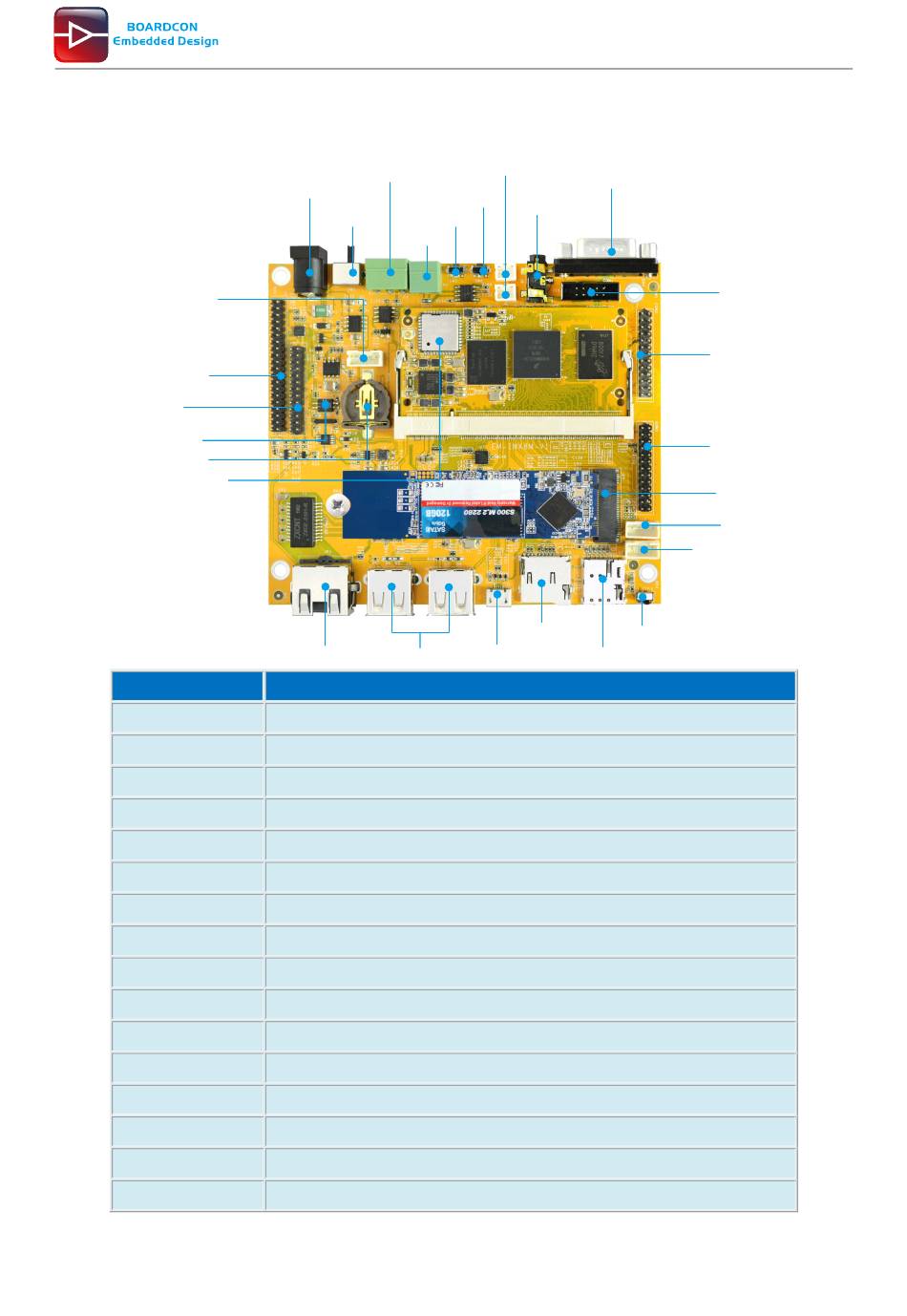

1.7 Development Kit (EM-IMX8M-MINI)

Power in
UART
RS232
Audio card
GPIO
Boot mode
RTC
WiFi&Bluetooth
Feature Specifications
CPU i.MX 8MQuad, 4x ARM Cortex-A53 @ 1.8 GHz +ARM Cortex-M4 @ 400 MHz
GPU OpenGL ES1.1,2.0, OpenVG1.1
Memory 2GB LPDDR4
Storage 8GB eMMC flash
Power Management ROHM BD71847
Power Input DC 5V/3A
USB 1x USB 2.0 OTG, 2x USB 2.0 Host
UART 1x RS232(COM1), 3x UARTs (J12, J13, J14)
Ethernet Gigabit Ethernet port, RJ45 connector. Realtek RTL8211E
Audio WM8960 audio codec. 3.5mm audio jack, 2x 2pin header for Speaker
Expand Audio 8bit RX and 8bit TX SAI interface, 40-pin header (J5)
SD Micro SD socket, SD3.01
Display MIPI-DSI, 4 data lanes, up to 1920 x 1080 @60Hz, 26-pin header (CON2)
RTC Real time clock, powered by external battery
JTAG JTAG debug interface, 10-pin header
CAN 2-Pin connector (P4)
RS485
Power
DC 5V/3A
ON/OFF
Power
key
Reset
CAN
USB Host
Ethernet
14
Customize the embedded system based on
Speaker
UART
Headphone
Micro SD
Nano SIM
USB OTG
Your Idea
JTAG
MIPI LCD
MIPI Camera
Optional
4G/SSD
Optional
Debug
Cortex-M4
Debug
Cortex-A7
IR
