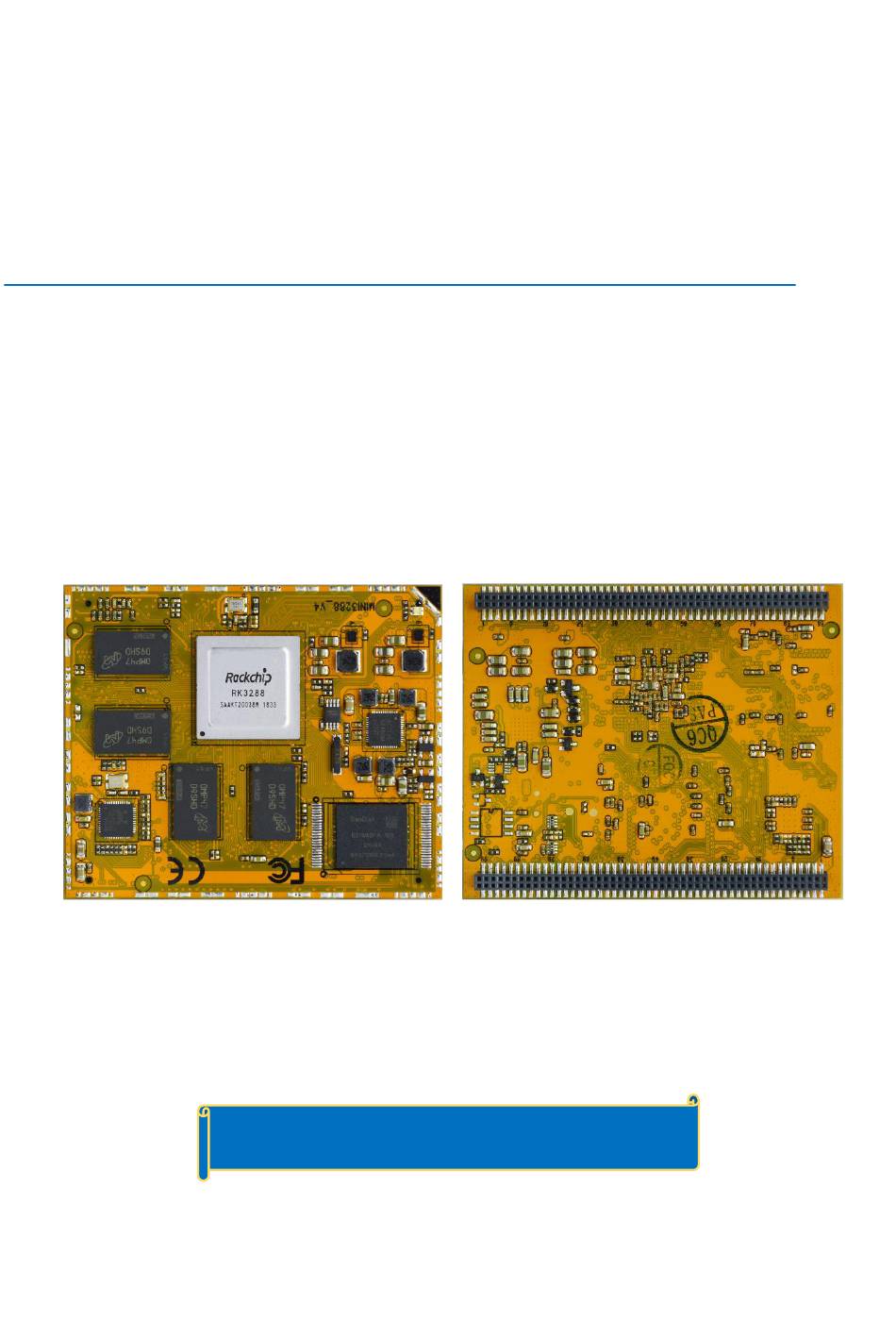

- Page 1 MINI3288 Reference User Manual Boardcon Embedded Design www.armdesigner.com...
-
Page 2: About This Manual
Your Idea Customize the embedded system based on 1. Introduction 1.1. About this Manual This manual is intended to provide the user with an overview of the board and benefits, complete features specifications, and set up procedures. It contains important safety information as well. 1.2. -
Page 3: Table Of Contents
1.5 Block Diagram ................................ 6 1.6 CPU Module Introduction ............................6 1.6.1 Electric property ............................6 1.6.2 Pin Definition ..............................7 How to use the MINI3288 module ............................. 12 2.1 Connectors ................................12 2.2 RTC Battery Circuit .............................. 13 2.3 SATA Circuit ................................. 13 2.4 Power Circuit ................................ -
Page 4: Mini3288 Introduction
1 MINI3288 Introduction 1.1 Summary MINI3288 is System on Module (SOM) based on the RK3288. The module has all pins function of RK3288, low cost and high-performance. Compatible with MINI3288. RK3288 Integrate quad-core Cortex-A17 with separately Neon and FPU coprocessor, also shared 1MB L2 Cache. More than 32bits address will support up to 8GB access space. -
Page 5: Mini3288 Features
–Dual channel TS stream interface, descramble and demux support –Smart Card interface –4-CH UART, 2-CH SPI (option), 6-CH I2C(up to 4Mbps), 2-CH PWM（option） –PS/2 master interface –HSIC interface –3-CH ADC input 1.3 MINI3288 Features Feature Specifications RK3288 Quad-core ARM Cortex-A17 MPCore processor Memory Default 512MB DDR3L... -
Page 6: Pcb Dimension
Your Idea Customize the embedded system based on 1.4 PCB Dimension... -
Page 7: Block Diagram
Your Idea Customize the embedded system based on 1.5 Block Diagram Camera(Reserve) Nand or tSD 2*128M*16bit 2*128M*16bit eMMC RGMII RJ-45 FLASH0 DDR3 32bit DDR3 32bit SDMMC0 eMMC 0 Channel 1 Channel V3.0 RTL8211E-VB-CG 10/100/1000M GMAC SDIO0 WIFI V3.0 LVDS/RGB Module LCDC0 UART0 Default... -
Page 8: Pin Definition
Your Idea Customize the embedded system based on Irtc RTC Input Current ◆ CPU Temperature Environment Test Conditions Unit Temperature Standby ℃ Play the video ℃ Full power ℃ 1.6.2 Pin Definition Signal name IO Type Pin (J1) Fuction 1 Fuction 2 TX_C- HDMI TMDS Clock-... - Page 9 Your Idea Customize the embedded system based on Signal name IO Type Pin (J1) Fuction 1 Fuction 2 LCD_D9_LD4N LCD Data9 or LVDS Differential Data4- LCD_D10_LCK0P LCD Data10 or LVDS Differential Clock0+ LCD_D11_LCK0N LCD Data11 or LVDS Differential Clock0- LCD_D12_LD5P LCD Data12 or LVDS Differential Data5+ LCD_D13_LD5N LCD Data13 or LVDS Differential Data5-...
- Page 10 Your Idea Customize the embedded system based on Signal name IO Type Pin (J1) Fuction 1 Fuction 2 CIF_D9 HOST_D5 or TS_D7 GPIO2_A7_d CIF_D8 HOST_D4 or TS_D6 GPIO2_A6_d CIF_PDN0 GPIO2_B7_d CIF_D10 GPIO2_B6_d CIF_HREF HOST_D7 or TS_VALID GPIO2_B1_d CIF_VSYNC HOST_D6 or TS_SYNC GPIO2_B0_d CIF_CLKOUT HOST_WKREQ or TS_FAIL...
- Page 11 Your Idea Customize the embedded system based on Signal name IO Type Pin (J2) Fuction 1 Fuction 2 nRESET System Reset MDI0+ 100M/1G Ethernet MDI0+ MDI1+ 100M/1G Ethernet MDI1+ MDI0- 100M/1G Ethernet MDI0- MDI1- 100M/1G Ethernet MDI1- IR_INT PWM CH0 GPIO7_A0_d MDI2+ 100M/1G Ethernet MDI2+...
- Page 12 Your Idea Customize the embedded system based on Signal name IO Type Pin (J2) Fuction 1 Fuction 2 OTG_DET HOST1_DP USB host port 1 positive data HOST2_DM USB host port 2 negative data SPI0_CSn0 UART4_RTSn or TS0_D5 GPIO5_B5_u HOST2_DP USB host port 2 positive data SPI0_CLK UART4_CTSn or TS0_D4 GPIO5_B4_u...
-
Page 13: How To Use The Mini3288 Module
GPS_MAG or HSADC_D0_T1 GPIO7_A7_u UART2_TX IR_TX or PWM3 or EDPHDMI_CEC GPIO7_C7_u UART3_RTSn GPIO7_B2_u UART3_TX GPS_SIG or HSADC_D1_T1 GPIO7_B0_d PWM1 GPIO7_A1_d UART3_CTSn GPS_RFCLK or GPS_CLK_T1 GPIO7_B1_u PWR_KEY GPIO7_C5_D GPIO7_C5_d How to use the MINI3288 module 2.1 Connectors ◆ PCB dimension of the connectors... -
Page 14: Rtc Battery Circuit
Your Idea Customize the embedded system based on ◆ The picture of the connectors 2.2 RTC Battery Circuit 2.3 SATA Circuit SATA_3V3 LED1 HDDA 100ohms diferential impedance R188 1K R0603 SATA_3V3 R189 LED190/SMD R0603 R190 GPIO0 R191 SATA_TXP C168 103 HOST2_DP R0603 R0603... -
Page 15: Power Circuit
Your Idea Customize the embedded system based on 2.4 Power Circuit DC-5V DC-JACKJS-DC014KA F4 3A/125v VDD5V FUSE/SMD AP2305AN R234 R239 CE11 10uF/10V ZD5.6V 220uF/10V C0805 DIODEA R235 1K 2N3904 SOT23 R232 2N3904 SOT23 R113 R0603 2.5 SD Interface Circuit VCCIO_SD 0.1uF SDMMC_D2 DAT2... -
Page 16: Ethernet Interface Circuit
Your Idea Customize the embedded system based on 2.6 Ethernet Interface Circuit 0.1uF HR911130C C0603 MDI0+ MDI0+ MDI0+ Y LEDK MDI0- SPEED 510R LED1_AD1 MDI0- MDI0- Y LEDA R0603 MDI1+ MDI1+ MDI1+ MDI1- MDI1- MDI1- MDI2+ MDI2+ MDI2+ MDI2- MDI2- MDI2- MDI3+ LINK... - Page 17 Your Idea Customize the embedded system based on VCC_IO MIC1P 2.2K 22uF 100pF MIC1 DV15 DV16 WM_64BC MIC1N MIC/F6/DIP 2.2K SFI0603-240E2R5PP SFI0603-240E2R5PP MICPHONE 100pF 100pF AVDD R100 2.2K V6 20160505 LIN2 LINEIN/BLK R141 GPIO7_B1_u RIN2 PHONEJACK R132 LINE IN 2.2K HP_LO 220pF 220pF...
-
Page 18: Display Circuit
Your Idea Customize the embedded system based on 2.8 Display Circuit LVDS VCC5V VCC5V CON3 VCC_IO VCC_IO I2C4_SCL I2C4_SDA TOUCH_RST TOUCH_INT LVDS_EN LVDS_PWM LCK1P LCK1N LD8P LD8N LD7P LD7N LD6P LD6N LD5P LD5N LCK0P LCK0N LD3P LD3N LD2P LD2N LD1P LD1N LD0P LD0N... - Page 19 Your Idea Customize the embedded system based on 22PF VCC1V8 0.1uF 12MHz VD18 VCC_IO 22PF XOUT TESTJ OVCJ USB_DM2 PWRJ USB_DP2 C108 LED2 USB_DM1 10uF/10V LED1 USB_DP1 R142 R146 USB_DM4 100K VD33_O USB_DP4 VDD5 USB_DM3 BUSJ USB_DP3 VBUSM R104 100K VCC1V8 VCC_IO VD18...
-
Page 20: Wifi/Bt Circuit
Your Idea Customize the embedded system based on 2.10 WiFi/BT Circuit UART0_RX UART0_RX UART0_TX UART0_TX UART0_CTS UART0_CTS UART0_RTS UART0_RTS WIFI/BT SDIO0_D0 SDIO0_D0 SDIO0_D1 SDIO0_D1 VCC_IO SDIO0_D2 C117 SDIO0_D2 SDIO0_D3 SDIO0_D3 VCC_IO SDIO0_CMD SDIO0_CMD SDIO0_CLK SDIO0_CLK C111 32.768KHz 0.1uF R208 BT_WAKE 12pF R144 R162... -
Page 21: Gps Circuit
Your Idea Customize the embedded system based on 2.11 GPS Circuit Keep 50 OHM IPEX GSC/SMD 47nH RESERVED GPS_UART3_RX TX_OUT SCL2 GPS_UART3_TX RX_IN SDA2 TUMEPUL V_ANT/NC RFVCC EXTINT VCC_RF VCC_RTC V_BCKP ANTON GPSVDDIO VCC_IO GPS_RFIN 0.1uF VDD_GPS RF_IN GPSRST VRESET ST-91-U7 33NF 33NF... -
Page 22: Circuit
Your Idea Customize the embedded system based on 2.12 4G Circuit MINI PCI-E CON CON2 3GVCC MIC+ 3.3VauxA MIC- GND1 EAR+ 1.5VA SIM_VCC EAR- UIM_PWR SIM_DATA GND2 UIM_DATA SIM_CLK REFCLK- UIM_CLK SIM_RST REFCLK+ UIM_RESET GND3 UIM_Vpp 121030 3GVCC R124 GND4 NC10 W_DISABLE_N GND5... -
Page 23: Hdmi Circuit
Your Idea Customize the embedded system based on 2.13 HDMI Circuit HDMI HDMI/TY PE-A HDMI/SMD/CON/A SEDFN05V4 TX_2+ TX_2+ OUT1 TX_2- TX_2- TX_2+ OUT2 GND1 GND2 TX_1+ TX_1+ TX_2- OUT3 TX_1- TX_1- HDMI_VCC TX_1+ OUT4 VCC_IO TX_1- TX_0+ SEDFN05V4 TX_0+ TX_0+ TX_0- OUT1 TX_0-...
