Inverter / PV

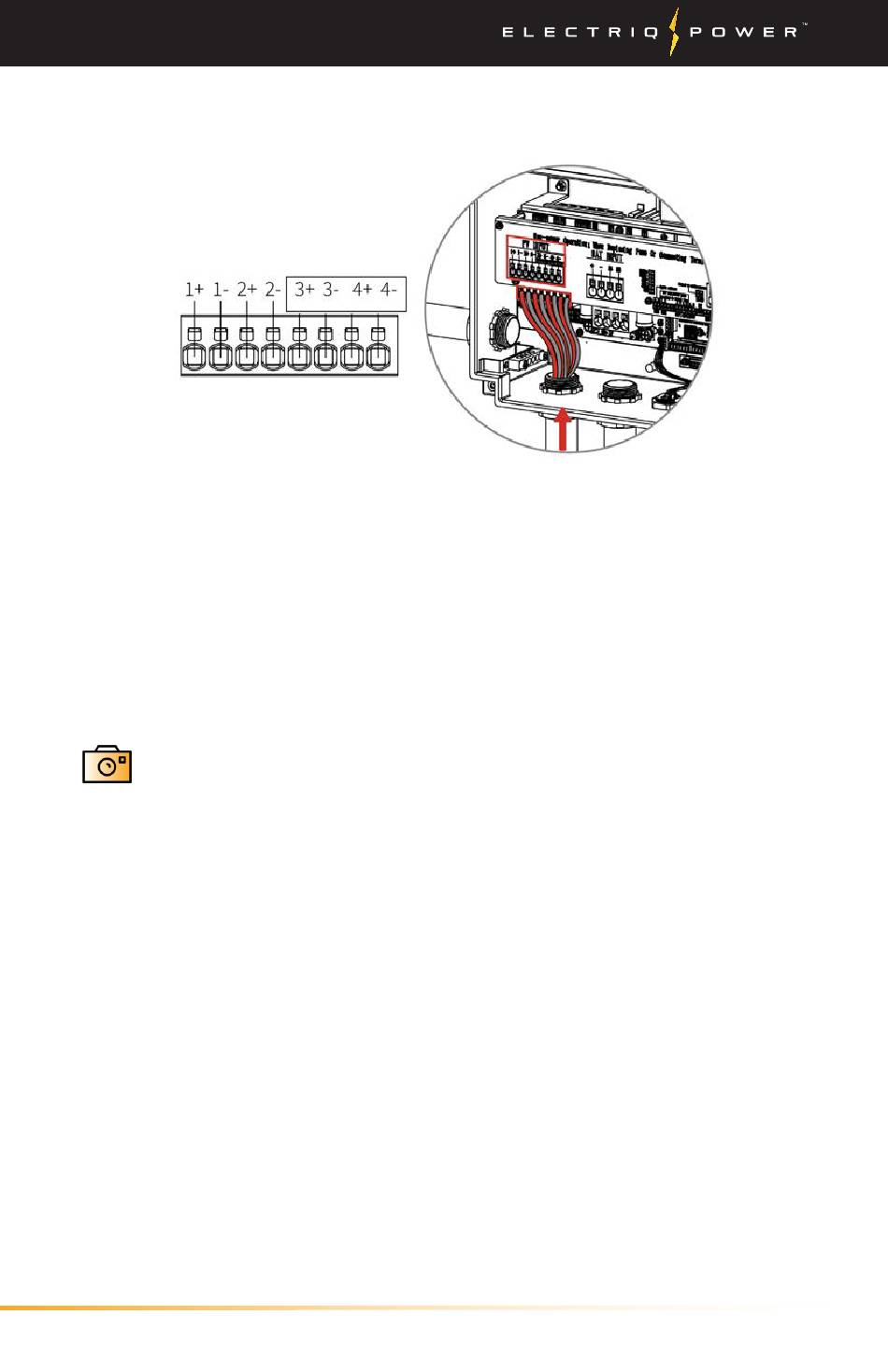

Route the PV cables through the PV port or left port shown as the
picture. Connect PV cables to PV terminals.
• For 7/7.6/8.6/9.6kW, the installer can connect up to 8 PV cables to PV
terminals (4 MPPT trackers).
• For inverter 5kW/6kW, the installer can only connect 4 PV cables to PV
terminals (2 MPPT trackers).
Note: For inverter 5kW /6kW, do not connect PV cables to Port 3+ /3- /4+
/4-.
Once the system PV has been wired, begin wiring the
Automatic Transfer Switch and take a photo within the
PowerTools app and press 'Next' to move on to the next step.
