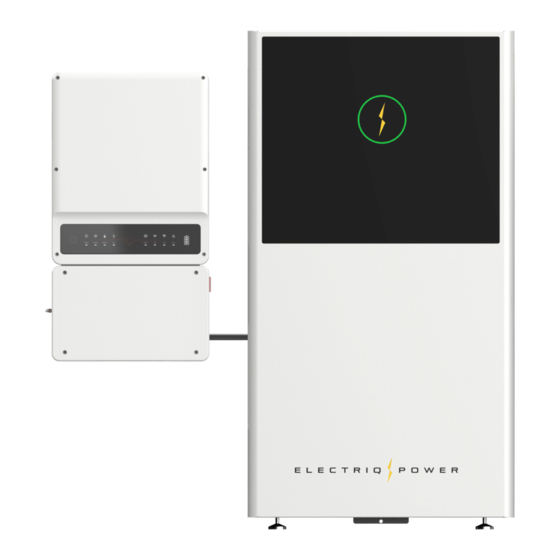

Electriq Power PowerPod 2 Installation Manual

Electriq Power PowerPod 2 Installation Manual

Hide thumbs Also See for PowerPod 2:

Advertisement

Quick Links

The Smart Home Battery Solution
Installation Manual
for the
PowerPod 2
Installation Manual
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PowerPod 2 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Electriq Power PowerPod 2

  • Page 1 The Smart Home Battery Solution Installation Manual for the PowerPod 2 Installation Manual...
  • Page 2 PP2 - AC - BAT<Capacity> - INV<Output Power> - CELL<Carrier> PP2 - DC - BAT<Capacity> - INV<Output Power> - CELL<Carrier> Available PowerPod 2 capacity 10,15, 20 kWh with continuous power output of 5, 6, 7.6, 8.6, 9.6 kW and cell carrier Verizon, ATT, Rogers, No Carrier (WiFi Only) options.
  • Page 3: Table Of Contents

    3.5. Homeowner Walkthrough 4. User Guide 5. Appendix 5.1. What's in the Box 5.2. System Part Numbers 5.3. PowerPod 2 Wiring Diagram with ATS 5.4. Inverter Overload 5.5. Technical Specifications AC-Coupled 5.6. Technical Specifications DC-Coupled 5.7. Grid Parameter Settings 5.8. Decommissioning 5.9.
  • Page 4: Introduction

    7600 to 9600 W, three batteries sizes; 10, 15 and 20 kWh and four communication options: Verizon, ATT, Rogers and WiFi. The PowerTools app is required to commission the PowerPod 2. It is recommended that the installer have the latest version of the app installed on their phone before starting the installation process.
  • Page 5: Whole Home Backup Configuration

    Intro / Whole Home Backup Configuration 1.1. WHOLE HOME BACKUP CONFIGURATION Grid Power meter DC-Coupled Option AC-Coupled Option Meter CT Communication CT� DC-Coupled Option CT� Solar array RESET SYSTEM BACK-UP BATTERY GRID ENERGY Wi-Fi FAULT Automatic transfer switch On-grid output breaker AC-Coupled Option Solar array Back-up output breaker...
  • Page 6: Partial-Home Backup Configuration

    Intro / Partial-Home Backup Configuration 1.2. PARTIAL-HOME BACKUP CONFIGURATION Option only available for DC-coupled systems (inverter model A-ES). Grid Power meter A-ES Meter CT Communication DC-Coupled Only Solar array RESET SYSTEM BACK-UP BATTERY GRID ENERGY Wi-Fi FAULT Main breaker On-grid output breaker Main Panel Non-backed-up loads Back-up output breaker...
  • Page 7 Unacceptable Installations Avoid the following installations which will damage the system or the Inverter. Following installations should be avoided. Or any damage caused will not be covered by the Electriq Power warranty policy. Generator Back-up Single battery bank cannot be connected to multiple On-Grid or backup side cannot be connected inverters.
  • Page 8: Safety Warnings

    UNIT AND THIS MANUAL BEFORE USING THE INVERTER. STORE MANUAL IN A LOCATION FOR EASE OF FUTURE ACCESS. WARNING: Users should not attempt to service the PowerPod 2. Only an authorized PowerPod technician should attempt to service the PowerPod 2.
  • Page 9 Safety Warnings WARNING. Authorized service personnel should reduce the risk of electrical shock by shutting down the equipment to install or service. 1. Initiate Solar PV Rapid Shutdown, 2. Turn OFF the Main circuit breakers supplying Grid connection, 3. Turn OFF the AC Main Backup breakers supplying Load connections, 4.
  • Page 10 Safety Warnings CAUTION. Under high temperature environment, the cover of this inverter could be hot enough to cause burns if accidentally touched. Ensure that this inverter is away from normal traffic areas. WARNING. During the installation process, drilling, punching, and screwing the bolts can cause metal burrs, which must be cleaned up to prevent them from falling into the electronics.
  • Page 11 Do not install outdoors in climates where the temperature drops below 0°C (32°F) for extended periods. Do not install in direct sunlight. Do not install or use the PowerPod 2 if it has been damaged in any way. Charge/Discharge Rate...
  • Page 12 Must not be in a closed room smaller than 12' x 12' x 8'. Do not directly solder the PowerPod 2. This may result in damages, heat generation, smoke, fire, or explosion.
  • Page 13 Safety Warnings In the event that Inverter, one or more batteries or PowerPod 2 is defective and needs to be removed, replaced, temporarily uninstalled, disposed of, decommissioned or if Electriq Power Customer Support authorizes a replacement (RMA), perform the following steps: 1.
  • Page 14 4. NEC TABLE 310.15(B)(17) for Allowable Ampacities of Insulated Conductors in Free Air (chassis wiring). Rapid Shutdown Electriq Power Systems are compatible with NEP devices to comply with NEC 2017, and Tigo rapid shutdown devices to comply with NEC 2020 regulations. Tigo TS4-A-F and TS4-A-2F are examples of compatible devices.
  • Page 15 CAUTION: Do NOT apply anti-oxidant substance on the terminals before terminals are connected tightly. WARNING: Check positive (+) and the negative (-) terminals. If the PowerPod 2 is connected with reversed polarity, unexpected reactions may occur such as damages, heat generation, smoke, fire, or explosion.
  • Page 16 Safety Warnings INVERTER WARNINGS. The Inverter is intended to operate with an internet connection. Failure to maintain an internet connection may have an impact on the warranty. See electriqpower.com/warranty for full terms and services. Properly mount the Inverter or place it on a flat, plain surface that can bear heavy weights.
  • Page 17 Ensure nothing is in contact with the system or in the venting area on top of the Inverter or Battery enclosures. • Ventilate the room. • Contact Electriq Power Customer Support at: support@electriqpower.com In cases of fire or smoke: • Fire involving Lithium-ion battery can be extremely dangerous.
  • Page 18 Disclaimer DISCLAIMER The AC & DC-coupled systems are transported, used and operated under environmental and electrical conditions. Any of the following conditions may void the manufacturer's aftermarket service or warranty: • Inverter is damaged during transfer. • Inverter is out of warranty or any extended warranty if applicable. •...
  • Page 19: Installation And Commissioning

    3. Log in to the PowerTools app with certified installer credentials. 4. Click 'Add New System' within PowerTools app. 5. Remove PowerPod 2 system from box, check that you have everything (Appendix 5.1, "WHAT'S IN THE BOX") and scan the barcode on the side of the system.
  • Page 20: Tips For Success

    The wiring kits shipped with each system are set to a specific length. Placement of the enclosures are critical when determining the install site of all the hardware components of the PowerPod 2 system. Refer to the 'Clearances & Knockout Locations' section for more information.
  • Page 21 Prerequisites / Tips for Success 3.1.2. TIPS FOR SUCCESS (CONTINUED) CT placement, orientation and wiring is very critical to successfully commission the system. If CT are not correct the system WILL NOT COMMISION. CT are are tested during commissioning "System Verification," "Meter" check. Taking a few precautionary steps as outlined below will assist the installer with most of the common CT issues.
  • Page 22: Commissioning Initial Steps

    2. Once logged in, click 'Add New System' and 'Scan' the PowerPod 2's enclosure's barcode located on the side of enclosure. 3. Fill out the customer details then click 'Next'.
  • Page 23: Mounting System

    For a detailed list of materials supplied with the PowerPod 2, reference Appendix 5.1 'What's in the Box'. Below is a list of recommended tools and equipment you will need to bring with you to install and troubleshoot the PowerPod 2: PARTS NAME Size...
  • Page 24 Mounting System CLEARANCES & KNOCKOUT LOCATIONS Placement of the PowerPod 2 system and its components are critical. Wires are pre-measured for the configurations shown in this installation manual or when it is reversed. Utilize the minimum distances between all components as stated in this manual. Wall mounted batteries must rest firmly on the floor to support the weight of the batteries.
  • Page 25 Mounting System Please note that all measurements below are for conduit fittings. Observe clearances in section, “CLEARANCES & KNOCKOUT LOCATIONS” for adequate cooling and maintenance. No conduit must be placed within 2" of the wall's surface of the inverter’s or auto-transformer’s top and bottom to allow for adequate cooling of the equipment's rear cooling fins.
  • Page 26: Selecting Mounting Location

    Mounting System / Selecting Mounting Location 3.2.1. SELECTING MOUNTING LOCATION Refer to the 'Clearances and Knockout Locations' section when mounting and installing the inverter. The following considerations must be taken into account before selecting where to install: • Inverter should be installed vertically or lie on a slope by a max of 15°.
  • Page 27 Mounting System / Selecting Mounting Location CAUTION. Inverter should installed away from combustible, explosive strong electro-magnetic materials. The inverter is suitable for mounting on concrete or other non-combustible surface only. L’onduleur doit être installé loin des matériaux électro- magnats combustibles, explosifs et forts. L’onduleur est adapté...
  • Page 28: Battery Enclosure(S)

    If the app is already installed, log in to your account using your certified installer credentials. 2. Once logged in, click 'Add New System' and 'Scan' the PowerPod 2 enclosure's barcode located on the side of enclosure. 3. Fill out the customer details then click 'Next'.
  • Page 29: Inverter Installation

    Mounting System / Inverter Installation 3.2.3. INVERTER INSTALLATION 1. Take out the template which is to locate the hole position of the wall mounted bracket. Fix the template on the wall which is suitable for installation of inverter. Drill 7 holes on the wall according to the size on the template (8mm in diameter, and 80mm in...
  • Page 30 Mounting System / Inverter CAUTION: Do not use force when mounting to avoid damaging the heatsink sides and inverter. The connection unit is not for lifting and placement. Avoid holding and lifting by the connection unit, balance and lifting should be done on the inverter. Ne forcez pas lors du montage pour éviter d'endommager les côtés du dissipateur thermique et l'onduleur.
  • Page 31: Auto-Transformer

    Mounting System / Auto-Transformer 3.2.4. AUTO-TRANSFORMER CAUTION: An auto-transformer is required for off-grid operation; otherwise, there is no neutral. The auto-transformer cannot be installed near flammable, explosive or strong electro-magnetic equipment. L’auto-transformateur ne peut pas être installé près de l’équipement électromagnétique inflammable, explosif ou solide.
  • Page 32 Mounting System / Auto-Transformer 1. Use the wall-mounted bracket as a template and drill holes in the wall, 10mm in diameter and 80mm deep. Fix the wall-mounted bracket on the wall using the plastic anchors in the accessories bag. Plastic Anchors 2.
  • Page 33: Automatic Transfer Switch

    Mounting System / ATS 3.2.5. AUTOMATIC TRANSFER SWITCH (ATS) An ATS is required for whole home configurations. Follow product specific instructions when mounting the ATS. Take a picture within the PowerTools app and press 'Next' to proceed to the next step. Installation Manual...
  • Page 34: Installing System

    3.3. INSTALLING SYSTEM 3.3.1. GENERAL REQUIREMENTS CAUTION: Before starting installation or commissioning the PowerPod 2, read the statements as below carefully. • During wiring connection, the installer should always wear proper PPE. • Installation and commissioning must be performed by a licensed electrician in accordance with local, state, and National Electrical Code ANSI/NFPA 70 requirements.
  • Page 35 Installing System / General Requirements CAUTION: Before connecting battery cable, make sure that all the switches connected to the inverter are closed and that there is no power left in the inverter. • Be careful about any electric shock or chemical hazard. Personal injury may be caused by short circuit of battery.
  • Page 36 Installing System / General Requirements • L’utilisation de fils inappropriés peut causer un mauvais contact et un obstacle élevé, ce qui est dangereux pour le système. • Assurez-vous que les câbles de batterie sont connectés correctement. Les polarités de la batterie doivent être connectées en conséquence.
  • Page 37: Conduit

    Installing System / Conduit 3.3.2. CONDUIT Install conduit and wire gutters between all mounted enclosures. Take a picture of the conduit installation within the PowerTools app and press 'Next' to proceed to the next step. 3.3.2.1. CONDUIT AND PLUGS Inverter and auto-transformer are for conduit fittings of a diameter of 1''.
  • Page 38: Battery Installation

    Installing System / Battery Installation 3.3.3. BATTERY INSTALLATION 1. Before installing the batteries, check the battery manufacture and cable revision you received and follow the installation instructions below specific to that battery type. Do NOT mix battery manufactures or communication cable revisions.
  • Page 39 Installing System / Battery Installation 2. Before installing the batteries, ensure the enclosure is securely fastened and that all clearances have been adhered to as stated in Section 3.2, 'Knockouts and Clearances'. 3. There will be four cables coming from the left and right of the PowerHub 2, which will be wired later on into the BMS, inverter, communications cable and front display cover.
  • Page 40 Installing System / Battery 4. Place the batteries in the enclosure ensuring that the orientation of the batteries are correct depending on which side the inverter will be installed on. Use the stickers in the back of the enclosure as a guide when installing the batteries and BMS.
  • Page 41 Installing System / Battery 5. Place the first battery in the enclosure and ensure that the stickers align with the BMS when orientated in the correct position (see next page). Also, use the sticker on the back of the enclosure as a guide.
  • Page 42 Installing System / Battery 6. The diagram below shows the proper orientation the batteries will need to be mounted within the enclosure and wired when the inverter is in the left position. 7. Ensure the BMS (top box) is also orientated in the correct position. Use the sticker on the back of the enclosure as a guide.
  • Page 43 Installing System / Battery 8. Repeat for the amount of batteries needed for the installation. Installation Manual...
  • Page 44 (Right) D7, D8, PA5 ID: 001.005.0149 (Above) PowerPod 2 Battery Communications Cables to interconnect the (1) 10 kWh batteries and BMS. (2) 15kWh add-on and (3) 20 kWh add-on. Note, make sure PA1 connects to SA1 and PA2 connects to SA2 etc.
  • Page 45 ID: UNIV CABLE 001.005.1087 (Above) PowerPod 2 Battery Communications Cables to interconnect the (1) 10 kWh batteries and BMS. (2) 15kWh add-on and (2) 20 kWh add-on. Note, make sure PA1 connects to SA1(SA2) and PA2 connects to SA1(SA2), etc.
  • Page 46 Batt) 2. COM_IN, COM_OUT ID: Extention Module_COM Cable (Above) PowerPod 2 Battery Communications Cables to interconnect the (1) 10 kWh batteries and BMS. Note 1, make sure P1 connects to BMS and P2 to P5 connects to Batteries. (2) 15kWh add-on and (2) 20 kWh add-on.
  • Page 47 Installing System / Battery 1. Begin by connecting the COMM IN cable into the COMM IN on the BMS. 2. With the same communications cable, connect to the communications port on the battery beneath the BMS (second from top position). 3.
  • Page 48 Installing System / Battery When the inverter is COMM IN on the RIGHT side, the batteries and BMS are flipped. IN - The COMM IN is on the bottom and the IN + positive connection is on the top. Battery Module Communication &...
  • Page 49 Installing System / Battery 4. Begin to wire the batteries together from positive to negative in series to each other. 5. Once the batteries are all wired together, take the final positive connection on last battery and connect that back to the positive (red) BMS terminal.
  • Page 50 Installing System / Battery in the right and left side inverter installation, the orientation of the batteries will result in the breaker 'OFF' position not being the same from installation to installation. Note, breaker indicator RED is ON and GREEN is OFF . 7.
  • Page 51 Installing System / Battery 8. The finished wiring installation should resemble the following diagrams: (Below - page 47) 10 kWh, (Top - page 48) 15 kWh, (Bottom - page 48) 20 kWh. PowerPod 10 kWh Installation Manual...
  • Page 52 Installing System / Battery PowerPod 15 kWh Communications Cables (Black - located in the middle of the batteries). Battery Power Cables (Red, Black - located on the top and bottom edge of the batteries). ZN with Orig (Rev. 1) 15 kWh Communication cable (plugs labeled SA1 to PA1;...
  • Page 53: Auto-Transformer Connections

    Installing System / Auto-Transformer 3.3.4. AUTO-TRANSFORMER CONNECTIONS 1. Use an Allen Wrench to remove the 4 screws of the auto-transformer and remove the cover. 2. Use a cap removal tool to remove the waterproof cover. The maximum AC current is 40A. Use 90°C wire rated, and gauge size per code, for 40 A copper.
  • Page 54 Installing System / Auto-Transformer Route all the auto-transformer cables, L1, L2, N, PE and TX-NTC cables between inverter and auto-transformer. Connect as shown by the two diagrams below. 4. Once the Auto- Transformer has been wired, take a photo within the PowerTools app and press 'Next' to move on to the next.
  • Page 55: Inverter Connections

    Installing System / Inverter 3.3.5. INVERTER CONNECTIONS For overload values of the inverter, see Appendix 5.4 'Inverter Overload'. Wi-Fi Reset/Reload (not used) LED Indicators DC switch AC bypass switch Battery terminal Auto-transformer terminal On-Grid terminal Back-up terminal Ground bar Meter CT terminal Ground bar Installation Manual...
  • Page 56: Connect Battery To Inverter

    Inverter / Connect Battery to Inverter 3.3.5.1. CONNECT BATTERY TO INVERTER 1. Connect long positive (red) and negative (black) ferrule ends of the battery cable to the inverter + and - BAT INPUT as shown below. Use pre-made battery-to-inverter cables. The battery cables through battery port Connect battery cables to battery terminals.
  • Page 57: Cts

    Inverter / CTs 3.3.5.2. CTs CT Connection Two CTs in product box are required for the system installation to detect grid current direction and magnitude for proper system orientation. Follow the steps below to properly configure the two CTs: 1. Locate the two CTs in the accessory box. 2.
  • Page 58 Inverter / CTs • The CTs must be placed around the correct wire. They are labeled CT1 to connect to L1 and CT2 to connect to L2. • The CTs must face the correct direction. The "House(K)" side of the CT must face the main panel and the "Grid(L)"...
  • Page 59 Inverter / CTs Note, after all the wiring connections have been made, observe wiring is depicted as shown in the photo. Installation Manual...
  • Page 60: Photovoltaic (Pv) (Dc-Coupled Only)

    Inverter / PV 3.3.5.3. PHOTOVOLTAIC (PV) (DC-COUPLED ONLY) CAUTION: Before PV wiring connection, read this section carefully. • The total short-circuit current of PV string must not exceed inverter's maximum DC short-circuit current. • Positive and negative poles of PV strings should not be grounded.
  • Page 61 Inverter / PV Route the PV cables through the PV port or left port shown as the picture. Connect PV cables to PV terminals. • For 7/7.6/8.6/9.6kW, the installer can connect up to 8 PV cables to PV terminals (4 MPPT trackers). •...
  • Page 62 Inverter / PV CAUTION: The polarity of PV strings cannot be connected reversely, otherwise the inverter could be damaged. Do not connect multiple PV inputs in parallel. If required, add a fuse outside or a breaker which observes safety specification. The output terminal of PV module may be producing dangerous voltage.
  • Page 63: Grid Connections

    Inverter / Grid 3.3.5.4. GRID CONNECTIONS On-Grid Connection An external AC breaker is needed for on-grid connection to isolated from grid when necessary. Specifications of AC breaker used for different inverter model are advised. Read the following table and local requirement before selecting a suitable AC breaker.
  • Page 64 Inverter / Grid Model Number Grid "Wire Size" Rated for (A) PP2-AC or DC-5000-10/15/20 PP2-AC or DC-6000-10/15/20 PP2-AC or DC-7000-10/15/20 PP2-AC or DC-7600-10/15/20 PP2-AC or DC-8600-10/15/20 PP2-AC or DC-9600-10/15/20 CAUTION: Make sure that all hardware is de-energized before connecting the cables. 1.
  • Page 65: Whole Home

    3.3.5.5.1. AUTOMATIC TRANSFER SWITCH Refer to the connection instructions and wiring diagrams provided with the automatic transfer switch, and see Appendix 5.3, PowerPod 2 Wiring Diagram with ATS. Once the Automatic Transfer Switch has been wired, take a photo within the PowerTools app and press 'Next' to move on to the next step.
  • Page 66 Inverter / Whole Home AC-COUPLED ONLY For how to best operate your solar system in off-grid applications, consult with your solar system vendor. Backup Frequency Shift When the battery SOC is high and the charging power is limited, the AC-coupled PowerPod's will increase the output frequency, causing the PV inverter to reduce the output power, until the battery enters a low- power discharge state.
  • Page 67: Partial-Home (Dc-Only)

    In case of systems not connected to the batteries, DO NOT use the backup function. The PowerPod 2 warranty will not cover, and Electriq Power will not be liable for, any consequences arising from the use of the backup function on these systems.
  • Page 68 Inverter / Partial-Home Backup Load Configuration Installation Manual...
  • Page 69 Inverter / Partial-Home Partial-Home Backup Wiring Connection Process CAUTION: To reduce the risk of fire, do not connect to an AC load center (circuit breaker panel) having multi wire branch circuits connected. Pour réduire le risque d’incendie, ne vous connectez pas à...
  • Page 70 Inverter / Partial-Home 1. Route the backup cables through the backup port. Connect backup cables to backup terminals. [Connector Accepts 6 AWG Max] 2. Once the system has been wired, begin wiring the Automatic Transfer Switch and take a photo within the PowerTools app and press 'Next' to move on to the next step.
  • Page 71: Powerhub 2 Connections

    Inverter / PowerHub 3.3.5.7. POWERHUB 2 CONNECTIONS There are different PowerHub 2 wiring instructions depending on whether the battery is from ZN or Topband or whether the PowerHub 2 connection cable is Rev. 1 or Rev 2. Pay attention below and follow the instructions for your configuration.
  • Page 72 Inverter / PowerHub 2. Next, plug in the RJ45 connection from the PowerHub 2 into the “OUT COMM” port for ZN and “OUT COM1” port for Topband. In both cases the port is located on the opposite side of the BMS (image below).
  • Page 73 Inverter / PowerHub 3. Plug in the green 4-pin communication connector to the inverter as depicted in the diagram below. Once the system has been wired, take a photo within the PowerTools app and press 'Next' to move on to the next step. Installation Manual...
  • Page 74: Commissioning

    The PowerTools App, login and password are REQUIRED to commission the PowerPod 2. Be sure to install the app and add the new system as described in Section 3.1.3, Commissioning Initial Steps. Then, carefully follow the recommended commissioning sequence on the following page.
  • Page 75: Turn On System

    Installing System / Turn on System 3.4.1. TURN ON SYSTEM To power the PowerPod 2 system, do the following: 1. Begin by switching all of the batteries to the 'On' position. Note, the 'On" position is when the indicators are RED.
  • Page 76: Attach

    WARNING! Ensure 4 pin connector is connected correctly the first time. Otherwise it will short the display board and disrupt the entire CANbus communications of the PowerPod 2. If shorted, leave the front unit disconnected to allow coms to work properly.
  • Page 77: Finalize Commissioning

    2. If the system is been successfully commissioned, the PowerTools app will show six green checkmarks alongside the six tests ran on the system. See image below. The PowerPod 2 display will also show a green circle with an illuminated yellow bolt. If there...
  • Page 78 5. Reinstall all front covers and ensure the set screws are fastened to keep the integrity of the NEMA 3R rating. For additional help, contact Electriq Power Support at 1-833-GO- BATTERIES (462-2883) or support@electriqpower.com. Installation Manual...
  • Page 79 Installing System / Commissioning PowerPod 2 Display Indicators State PowerPod 2 Solutions Display Power On A full white circle indicates that the display just turned on and has received no communication from PowerHub 2 Commissioning A full blue circle indicates...
  • Page 80 Installing System / Commissioning PowerPod 2 Display Indicators Continued Inverter Indicators Installation Manual...
  • Page 81: Homeowner Walkthrough

    Congratulations on commissioning the PowerPod 2 system! Please take this time to let its new owner know that their system has now been commissioned and what makes the PowerPod 2 an incredible addition to their property. Demonstrate the following items to help the owner understand what puts the 'power' into the PowerPod 2: •...
  • Page 82: User Guide

    4.2. DASHBOARD The Electriq Power App puts your power in your hands. The App is available on both iOS and Android devices, as well as on the web. As a user, you can easily see analytics and insights on your energy...
  • Page 83 User Guide / Power Flow 4.2.1. POWER FLOW This view shows live readings from your solar panels, PowerPod battery, home consumption, and the grid, so you instantly know where your energy is coming from and where it’s going. Installation Manual...
  • Page 84 User Guide / Power Flow / Timeline This view also shows today’s energy. 4.2.2. TIMELINE The Timeline screen shows a daily graph of your energy generation and consumption to help you better understand your home’s electrical activity. The calendar widget allows you to view data from a past date. Installation Manual...
  • Page 85 User Guide / Timeline Clicking the checkboxes hide or reveal specific data. Hovering over the timeline’s line graphs reveals a tooltip with specific readings for that precise time of day. Choosing the Energy tab shows the kilowatts per hour bar chart for a breakdown of the day’s energy activity.
  • Page 86 Day, Week, Month and Year give daily, weekly, monthly, and yearly views of your history using PowerPod 2. These views are helpful for understanding your home’s general energy behaviors over longer periods of time.
  • Page 87 If it’s above the x-axis, it’s exporting. 4.2.3. SYSTEM Depending on the selected mode of operation, the PowerPod 2 will optimize your energy for Backup, Self-Supply, or Time-of-Use. Backup Mode is for resiliency and keeps your battery charged at 100%, so you’re always prepared should a power outage occur.
  • Page 88 User Guide / System Self-Supply Mode is for sustainability and minimizes or eliminates your need for grid power at all. The slider below allows you to adjust the battery reserve level. Moving the slider to 20%, means 80% of your battery will be available for self-supply, and 20% will always be reserved for backup power.
  • Page 89: Appendix

    Appendix / What's in the Box 5. APPENDIX 5.1. WHAT'S IN THE BOX Before installing the battery enclosures, make sure nothing inside the package is damaged. 3 - DC Energy Storage Systems EP-PP-GW-DC-CATL-10kWh, White, Verizon, US 100-1001 EP-PP-GW-DC-CATL-15kWh, White, Verizon, US 100-1002 EP-PP-GW-DC-CATL-20kWh, White, Verizon, US 100-1003 3 - AC Energy Storage Systems EP-PP-GW-AC-CATL-10kWh, White, Verizon, US 100-1004...
  • Page 90 Appendix / What's in the Box Description PN or Image 1. Inverter Box 200-1001 / 200-1008 Inverter Upper Wall-Mounting Bracket Lower Wall-Mounting Bracket 2 - CTs with connecting wire connected to a 4 pin connector Mounting Bracket Template Accessory Kit (inverter box) 7 - Flat Head Screws, 2 3/4”...
  • Page 91 Appendix / What's in the Box Description PN or Image Tool, knockout plug removal Description PN or Image 2. Auto-Transformer Box 200-1007 Auto-Transformer (Neutral Forming Transformer, NTF). Torque 4mm x 18mm, torque min. 1.6 max. 1.9 Nm (min. 1.2 max. 1.4 ft lb).
  • Page 92 Appendix / What's in the Box Description PN or Image 3. 10 kWh Enclosure Box For PNs see Appendix 5.2 "System Part Numbers" for AC and DC System Harness, Communication (PH/ For PNs see Rev. 01 and 02 items Display/Inverter/BMS) below 3 Pieces Note, On Rev.
  • Page 93 Appendix / What's in the Box Description PN or Image Accessory Kit (10 kWh Enclosure) Included with Enclosure Assembly. For PNs see Appendix 5.2 "System Part Numbers" Orig Harness, BMS (10 kWh) for 400-1001 ZN BMS and Batteries Only ZN Orig (Rev. 1) Connector Ref.
  • Page 94 Appendix / What's in the Box Description PN or Image Cable, BATT-BMS, Power, Black, Black to Black, 75" (1905mm) Cable, INV-BMS, Power, black, Black to 22 mm Ferrule 72" (1829mm) Cable, INV-BMS, Power, red, Orange to 22 mm Ferrule 72" (1829mm) Installation Manual Cable, BATT-BMS, Power, Red...
  • Page 95 Appendix / What's in the Box Description PN or Image 4 - 91478A595, Hex Head Screw for Wood, Zinc-Plated Steel, 5/16" Size, 3" Long 4 - 98023A030, Zinc Yellow- Chromate Plated Grade 8 Steel Washer for 5/16" Screw Size, 0.344""ID, 0.688" OD" 24 - Nut, Class 8, M6 x 1.00mm, Medium-Strength Zinc-Plated Steel Flange.
  • Page 96 Appendix / What's in the Box Description PN or Image 4. 5/15 kWh Enclosure For PNs see Appendix 5.2 "System Part Numbers" Accessory Kit (15 kWh Enclosure) Cable, BATT, Power, Red, Black to Orange, 12" (300mm) Cable, BATT, Power, Red, Black to Orange, 55"...
  • Page 97 Appendix / What's in the Box Description PN or Image Cable, PE Grounding (Enclosure to inverter) 48" (1220mm) (10AWG) Cable, PE Grounding (Enclosure to front panel) 24" (610mm) (10AWG) Description PN or Image 4 - 91478A595, Hex Head Screw for Wood, Zinc-Plated Steel, 5/16" Size, 3"...
  • Page 98 Appendix / What's in the Box Description PN or Image 5. 5/20 kWh Enclosure For PNs see Appendix 5.2 "System Part Numbers" Accessory Kit (15 kWh Enclosure) Cable, BATT, Power, Red, Black to Orange, 12" (300mm) Cable, BATT, Power, Red, Black to Orange, 55"...
  • Page 99 Appendix / What's in the Box Description PN or Image Cable, PE Grounding (Enclosure to inverter) 48" (1220mm) (10AWG) Cable, PE Grounding (Enclosure to front panel) 24" (610mm) (10AWG) Description PN or Image 4 - 91478A595, Hex Head Screw for Wood, Zinc-Plated Steel, 5/16" Size, 3"...
  • Page 100 Appendix / What's in the Box Description PN or Image 6. BMS Box 6.1 ZN BMS Box 200-1004 Control Box Model LCB200050A Control Box Rated Voltage 100/153/204.8VDC Rated Current Operating Voltage Range 44.8V~230.4V Working Temperature -20°C~55°C Storage Temperature -20°C~55°C Protection Level IP20 Insulation 100MΩ...
  • Page 101 Appendix / What's in the Box Description PN or Image 6.2 Topband BMS Box 200-1033 Control Box Model TB205100F-Control Box_UL Control Box Number Rated Voltage 103V/154/205VDC Rated Current Operating Voltage Range 86.4~230.4V Working Temperature -20°C~55°C Storage Temperature -10°C~35°C Protection Level IP20 Insulation 100MΩ...
  • Page 102 Appendix / What's in the Box Description PN or Image 7. Battery Box 7.1 ZN Battery Box 200-1003 4 - 2.5kW CATL Battery Cell CATL_LFP100Ah Module Model LBM025100A Electricity Box Model LBB025100A Electricity Box Nominal Capacity 100 Ah Nominal Voltage 25.6V Rated Energy 2.56kwh...
  • Page 103 Appendix / What's in the Box Description PN or Image 7.2 TOPBAND Battery Box 200-1032 4 - TOPBAND Battery Cell Model TB-032173195-Fe-100Ah Module Model TB25100F-T105A_Module_UL Battery Box Number Nominal Capacity 100 Ah Nominal Voltage 25.6V Rated Energy 2.56kwh Operating Voltage Range 21.6~28.8V Available SOC Range 10%~100%...
  • Page 104: System Part Numbers

    Appendix / System Part Numbers 5.2. SYSTEM PART NUMBERS Sales Kit SKU Display Name Component Component Description 100-1001 EP-PP-ZN-GW-DC-10kWh, WV1, White, VZ 200-1001 Inverter, DC, GW, EP 200-1007 Transformer, NFT, EP 350-1000 Enclosure Assembly, 10kWh, WV1, White, VZ, EP 200-1003 Battery, 2.5kWh, ZN, EP 200-1004 BMS, ZN, EP...
  • Page 105 Appendix / System Part Numbers Sales Kit SKU Display Name Component Component Description 100-1004 EP-PP-ZN-GW-AC-10kWh, WV1, White, VZ 200-1008 Inverter, AC, GW, EP 200-1007 Transformer, NFT, EP 350-1000 Enclosure Assembly, 10kWh, WV1, White, VZ, EP 200-1003 Battery, 2.5kWh, ZN, EP 200-1004 BMS, ZN, EP 210-1001...
  • Page 106 Appendix / System Part Numbers Sales Kit SKU Display Name Component Component Description 100-1013 EP-PP-ZN-GW-DC-10kWh, White, ATT 200-1001 Inverter, DC, GW, EP 200-1007 Transformer, NFT, EP 350-1003 Enclosure Assembly, 10kWh, UVC, White, ATT, EP 200-1003 Battery, 2.5kWh, ZN, EP 200-1004 BMS, ZN, EP 210-1001 Instruction Manual, English,...
  • Page 107 Appendix / System Part Numbers Sales Kit SKU Display Name Component Component Description 100-1016 EP-PP-ZN-GW-AC-10kWh, White, ATT 200-1008 Inverter, AC, GW, EP 200-1007 Transformer, NFT, EP 350-1003 Enclosure Assembly, 10kWh, UVC, White, ATT, EP 200-1003 Battery, 2.5kWh, ZN, EP 200-1004 BMS, ZN, EP 210-1001 Instruction Manual, English,...
  • Page 108 Appendix / System Part Numbers Sales Kit SKU Display Name Component Component Description 100-1025 EP-PP-ZN-GW-DC-10kWh, White, Rogers 200-1001 Inverter, DC, GW, EP 200-1007 Transformer, NFT, EP 350-1004 Enclosure Assembly, 10kWh, UVC, White, RGR, EP 200-1003 Battery, 2.5kWh, ZN, EP 200-1004 BMS, ZN, EP 210-1001 Instruction Manual, English,...
  • Page 109 Appendix / System Part Numbers Sales Kit SKU Display Name Component Component Description 100-1028 EP-PP-ZN-GW-AC-10kWh, White, Rogers 200-1008 Inverter, AC, GW, EP 200-1007 Transformer, NFT, EP 350-1004 Enclosure Assembly, 10kWh, UVC, White, RGR, EP 200-1003 Battery, 2.5kWh, ZN, EP 200-1004 BMS, ZN, EP 210-1001 Instruction Manual, English,...
  • Page 110 Appendix / System Part Numbers Sales Kit SKU Display Name Component Component Description 100-1037 EP-PP-ZN-GW-DC-10kWh, White, WiFi 200-1001 Inverter, DC, GW, EP 200-1007 Transformer, NFT, EP 350-1005 Enclosure Assembly, 10kWh, UVC, White, WiFi, EP 200-1003 Battery, 2.5kWh, ZN, EP 200-1004 BMS, ZN, EP 210-1001 Instruction Manual, English,...
  • Page 111 Appendix / System Part Numbers Sales Kit SKU Display Name Component Component Description 100-1040 EP-PP-ZN-GW-AC-10kWh, White, WiFi 200-1008 Inverter, AC, GW, EP 200-1007 Transformer, NFT, EP 350-1005 Enclosure Assembly, 10kWh, UVC, White, WiFi, EP 200-1003 Battery, 2.5kWh, ZN, EP 200-1004 BMS, ZN, EP 210-1001 Instruction Manual, English,...
  • Page 112 Appendix / System Part Numbers Sales Kit SKU Display Name Component Component Description 100-1049 EP-PP-ZN-GW-DC-10kWh, White, VZLTE 200-1001 Inverter, DC, GW, EP 200-1007 Transformer, NFT, EP 350-1006 Enclosure Assembly, 10kWh, UVC, White, LTE, EP 200-1003 Battery, 2.5kWh, ZN, EP 200-1004 BMS, ZN, EP 210-1001 Instruction Manual, English,...
  • Page 113 Appendix / System Part Numbers Sales Kit SKU Display Name Component Component Description 100-1052 EP-PP-ZN-GW-AC-10kWh, White, VZLTE 200-1008 Inverter, AC, GW, EP 200-1007 Transformer, NFT, EP 350-1006 Enclosure Assembly, 10kWh, UVC, White, LTE, EP 200-1003 Battery, 2.5kWh, ZN, EP 200-1004 BMS, ZN, EP 210-1001 Instruction Manual, English,...
  • Page 114 Appendix / System Part Numbers Sales Kit SKU Display Name Component Component Description 100-1055 EP-PP-TB-GW-DC-10kWh, White, VZ 200-1001 Inverter, DC, GW, EP 200-1007 Transformer, NFT, EP 350-1007 Enclosure Assembly, 10kWh, TB, White, VZ, EP 200-1032 Battery, 2.5kWh, TB, EP 200-1033 BMS, TB, EP 210-1001 Instruction Manual, English,...
  • Page 115 Appendix / System Part Numbers Sales Kit SKU Display Name Component Component Description 100-1058 EP-PP-TB-GW-AC-10kWh, White, VZ 200-1008 Inverter, AC, GW, EP 200-1007 Transformer, NFT, EP 350-1007 Enclosure Assembly, 10kWh, TB, White, VZ, EP 200-1032 Battery, 2.5kWh, TB, EP 200-1033 BMS, TB, EP 210-1001 Instruction Manual, English,...
  • Page 116 Appendix / System Part Numbers Sales Kit SKU Display Name Component Component Description 100-1067 EP-PP-TB-GW-DC-10kWh, White, ATT 200-1001 Inverter, DC, GW, EP 200-1007 Transformer, NFT, EP 350-1008 Enclosure Assembly, 10kWh, TB, White, ATT, EP 200-1032 Battery, 2.5kWh, TB, EP 200-1033 BMS, TB, EP 210-1001 Instruction Manual, English,...
  • Page 117 Appendix / System Part Numbers Sales Kit SKU Display Name Component Component Description 100-1070 EP-PP-TB-GW-AC-10kWh, White, ATT 200-1008 Inverter, AC, GW, EP 200-1007 Transformer, NFT, EP 350-1008 Enclosure Assembly, 10kWh, TB, White, ATT, EP 200-1032 Battery, 2.5kWh, TB, EP 200-1033 BMS, TB, EP 210-1001 Instruction Manual, English,...
  • Page 118 Appendix / System Part Numbers Sales Kit SKU Display Name Component Component Description 100-1079 EP-PP-TB-GW-DC-10kWh, White, Rogers 200-1001 Inverter, DC, GW, EP 200-1007 Transformer, NFT, EP 350-1009 Enclosure Assembly, 10kWh, TB, White, RGR, EP 200-1032 Battery, 2.5kWh, TB, EP 200-1033 BMS, TB, EP 210-1001 Instruction Manual, English,...
  • Page 119 Appendix / System Part Numbers Sales Kit SKU Display Name Component Component Description 100-1082 EP-PP-TB-GW-AC-10kWh, White, Rogers 200-1008 Inverter, AC, GW, EP 200-1007 Transformer, NFT, EP 350-1009 Enclosure Assembly, 10kWh, TB, White, RGR, EP 200-1032 Battery, 2.5kWh, TB, EP 200-1033 BMS, TB, EP 210-1001 Instruction Manual, English,...
  • Page 120 Appendix / System Part Numbers Sales Kit SKU Display Name Component Component Description 100-1091 EP-PP-TB-GW-DC-10kWh, White, WiFi 200-1001 Inverter, DC, GW, EP 200-1007 Transformer, NFT, EP 350-100A Enclosure Assembly, 10kWh, TB, White, Wifi, EP 200-1032 Battery, 2.5kWh, TB, EP 200-1033 BMS, TB, EP 210-1001 Instruction Manual, English,...
  • Page 121 Appendix / System Part Numbers Sales Kit SKU Display Name Component Component Description 100-1094 EP-PP-TB-GW-AC-10kWh, White, WiFi 200-1008 Inverter, AC, GW, EP 200-1007 Transformer, NFT, EP 350-100A Enclosure Assembly, 10kWh, TB, White, Wifi, EP 200-1032 Battery, 2.5kWh, TB, EP 200-1033 BMS, TB, EP 210-1001 Instruction Manual, English,...
  • Page 122 Appendix / System Part Numbers Sales Kit SKU Display Name Component Component Description 100-1103 EP-PP-TB-GW-DC-10kWh, White, VZLTE 200-1001 Inverter, DC, GW, EP 200-1007 Transformer, NFT, EP 350-100B Enclosure Assembly, 10kWh, TB, White, LTE, EP 200-1032 Battery, 2.5kWh, TB, EP 200-1033 BMS, TB, EP 210-1001 Instruction Manual, English,...
  • Page 123 Appendix / System Part Numbers Sales Kit SKU Display Name Component Component Description 100-1106 EP-PP-TB-GW-AC-10kWh, White, VZLTE 200-1008 Inverter, AC, GW, EP 200-1007 Transformer, NFT, EP 350-100B Enclosure Assembly, 10kWh, TB, White, LTE, EP 200-1032 Battery, 2.5kWh, TB, EP 200-1033 BMS, TB, EP 210-1001 Instruction Manual, English,...
  • Page 124 Appendix / System Part Numbers Sales Kit SKU Display Name Component Component Description 100-1121 EP-PP-ZN-GW-DC-10kWh, UVC, White, VZ 200-1001 Inverter, DC, GW, EP 200-1007 Transformer, NFT, EP 350-1002 Enclosure Assembly, 10kWh, UVC, White, VZ, EP 200-1003 Battery, 2.5kWh, ZN, EP 200-1004 BMS, ZN, EP 210-1001...
  • Page 125 Appendix / System Part Numbers Sales Kit SKU Display Name Component Component Description 100-1124 EP-PP-ZN-GW-AC-10kWh, UVC, White, VZ 200-1008 Inverter, AC, GW, EP 200-1007 Transformer, NFT, EP 350-1002 Enclosure Assembly, 10kWh, UVC, White, VZ, EP 200-1003 Battery, 2.5kWh, ZN, EP 200-1004 BMS, ZN, EP 210-1001...
  • Page 126: Powerpod 2 Wiring Diagram With Ats

    Appendix / Wiring Diagram 5.3. POWERPOD 2 WIRING DIAGRAM WITH ATS Whole Home Backup with Standalone Meter, Kohler ATS and no Heavy Loads Installation Manual...
  • Page 127: Inverter Overload

    Appendix / Overload 5.4. INVERTER OVERLOAD Overload PowerPod 2 series hybrid inverters are able to supply overload output at its backup. For details refer to the technical specifications section. Note, the inverter has self-protection derating at high ambient temperatures Overload Operation Inverter will restart itself if overload protection happens.
  • Page 128: Technical Specifications Ac-Coupled

    Appendix / Technical Specifications (AC) 5.5. TECHNICAL SPECIFICATIONS (AC-COUPLED) PP2- PP2- PP2- PP2- PP2- PP2- Product Model AC-10/15/20-9600 AC-10/15/20-8600 AC-10/15/20-7600 AC-10/15/20-7000 AC-10/15/20-6000 AC-10/15/20-5000 Configuration 4/6/8 Batteries in Series AC INPUT 1 / GRIDTIE Per UL 1741SA Utility Compatibility Per UL 1741SA AC OUTPUT / GRID Rated AC Power Output (To Grid, From Battery)
  • Page 129 Appendix / Technical Specifications (AC) PP2- PP2- PP2- PP2- PP2- PP2- Product Model AC-10/15/20-9600 AC-10/15/20-8600 AC-10/15/20-7600 AC-10/15/20-7000 AC-10/15/20-6000 AC-10/15/20-5000 DC INPUT / BATTERY Rated Charge / Discharge 50 A / 50 A Maximum Charge / 50 A / 50 A Discharge DC Voltage Range 80-495...
  • Page 130 Appendix / Technical Specifications (AC) PP2- PP2- PP2- PP2- PP2- PP2- Product Model AC-10/15/20-9600 AC-10/15/20-8600 AC-10/15/20-7600 AC-10/15/20-7000 AC-10/15/20-6000 AC-10/15/20-5000 Dimensions (W / H / D) 16.3in x 31.1in x 6.9in (415mm x 791mmx 175mm) (inverter) Dimensions (W / H / D) 13.6in x 10.9in x 6.9in (345mm x 280mmx 175mm) (auto-transformer) Weight (inverter)
  • Page 131 Appendix / Technical Specifications (AC) PP2- PP2- PP2- PP2- PP2- PP2- Product Model AC-10/15/20-9600 AC-10/15/20-8600 AC-10/15/20-7600 AC-10/15/20-7000 AC-10/15/20-6000 AC-10/15/20-5000 Dimensions (W / H / D) 10 kWh assembled battery 27.5” x 50” x 9” / 700mm x 1270mm x 230mm enclosure Dimensions (W / H / D) 5 kWh assembled battery...
  • Page 132: Technical Specifications Dc-Coupled

    Appendix / Technical Specifications (DC) 5.6. TECHNICAL SPECIFICATIONS (DC-COUPLED) PP2-DC- PP2-DC- PP2-DC- PP2-DC- PP2-DC- PP2-DC- Product Model 10/15/20-9600 10/15/20-8600 10/15/20-7600 10/15/20-7000 10/15/20-6000 10/15/20-5000 Configuration 4/6/8 Batteries in Series Utility Compatibility Per UL 1741SA AC OUTPUT / GRID Rated AC Power Output (To Grid, From Solar) 9600/9600/9600 VA 8600/8600/8600 VA...
  • Page 133 Appendix / Technical Specifications (DC) PP2-DC- PP2-DC- PP2-DC- PP2-DC- PP2-DC- PP2-DC- Product Model 10/15/20-9600 10/15/20-8600 10/15/20-7600 10/15/20-7000 10/15/20-6000 10/15/20-5000 Ground-Fault Isolation Integrated Detection Included Detection AC Circuit Breaker (inverter) AC Circuit Breaker (inverter bypass, grid connect) THD (voltage) < 3 % Power Factor >...
  • Page 134 Appendix / Technical Specifications (DC) PP2-DC- PP2-DC- PP2-DC- PP2-DC- PP2-DC- PP2-DC- Product Model 10/15/20-9600 10/15/20-8600 10/15/20-7600 10/15/20-7000 10/15/20-6000 10/15/20-5000 Grid Support/Demand Response Home current monitoring (L1 & L2 CTs) Over Current Protection Short Protection Over Voltage Protection Battery Reverse Polarity Protection ADDITIONAL AND OPTIONAL FEATURES...
  • Page 135 Appendix / Technical Specifications (DC) PP2-DC- PP2-DC- PP2-DC- PP2-DC- PP2-DC- PP2-DC- Product Model 10/15/20-9600 10/15/20-8600 10/15/20-7600 10/15/20-7000 10/15/20-6000 10/15/20-5000 Voltage, Nominal 102.4 VDC (89.6 – 115.2 VDC)/ 153.6 VDC (134.4 – 172.8 VDC/ 204.8 VDC (179.2 – 230.4 VDC) Continuous Charge Current 50 ADC Continuous Discharge 50 ADC...
  • Page 136: Grid Parameter Settings

    Appendix / Grid Parameter Settings 5.7. GRID PARAMETER SETTINGS For parameter, which used in grid support and protection function, adjustable requirement of CA Rule 21, HECO 14H and IEEE1547, the relevant explanations and setting methods can obtain by reading, <Parameter Adjustable Method of Grid Support Utility Interactive Inverter>, the document can be obtained by contacting the after-sales.
  • Page 137: Decommissioning

    Appendix / Decommissioning 5.8. DECOMMISSIONING 1. Decommission the system by following the instructions on service shut down warning located in section 2. “SAFETY WARNINGS.” 2. Contact Electriq Power Customer Support at support@electriqpower.com Installation Manual...
  • Page 138: Marks Of Conformity

    © 2022 Electriq Power, Inc. All rights reserved. All information in this document is subject to copyright and other intellectual property rights of Electriq Power, Inc. This material may not be modified, reproduced or copied, in whole or in part, without the prior written permission of Electriq Power, Inc.
  • Page 139: Warranty

    MAY APPLY TO YOU. Limited Warranty: Ten Year Manufacturer's Defect Coverage Electriq warrants that the PowerPod 2 will be free from manufacturing defects, and be able to operate according to manufacturer’s specifications in its intended capacity as an integrated Energy Storage System (“ESS”), including the ability to manage, store and output...
  • Page 140 ESS to a status at least equal to its state prior to the cause of the Warranty claim being made (but not “as new”), or 2) replace your PowerPod 2 with an equivalent or improved product (new or refurbished) if PowerPod 2 parts or replacements is not available at the time of the claim.
  • Page 141 Registration. Your PowerPod 2 should have been registered with Electriq at the time it was commissioned. Failure to register the PowerPod 2, even if through no fault of your own, voids this Warranty. Access to Electriq’s “dashboard” or other software used to monitor and operate the PowerPod 2 indicates successful registration.
  • Page 142 LIMITED WARRANTY WILL APPLY TO THE EXTENT PERMITTED BY APPLICABLE LAW. FOR A FULL DESCRIPTION OF YOUR LEGAL RIGHTS YOU SHOULD REFER TO THE LAWS APPLICABLE IN YOUR JURISDICTION. THE POWERPOD 2 IS NOT INTENDED TO BE USED AS A LIFE-SAVING Installation Manual...
  • Page 143 Who Can Make a Claim Limited Warranty claims can be made by or on behalf of the end user who initially had the PowerPod 2 installed. Claims may also be made by subsequent owners who can show title to the PowerPod 2.
  • Page 144 If you prefer, you may instead take your individual dispute to small claims court. You may opt out within 30 days after accepting the terms of this Limited Warranty by sending a letter to Electriq Power Inc. via email Installation Manual...
  • Page 145 PowerPod 2 Limited Warranty warranty@electriqpower.com. Right To Modify: Electriq reserves the right to modify this Warranty, from time to time and on a case by case basis, without any liability or obligation to other warranty holders. Installation Manual...
  • Page 146 ©2022 Electriq Power, Inc. All rights reserved. All specifications are subject to change without prior notice. Electriq Power and the Electriq Power logo are trademarks of Electriq Power, Inc. All other trademarks are the property of the respective owners.

Table of Contents

Save PDF
