Section 2: General Information
Generator Component Locations
A
A.
Lock with cover
B.
Main line circuit breaker
(generator disconnect)
C.
Airbox with air cleaner
D.
Control panel
Owner's Manual for PWRgenerator Air-Cooled Generators
B
P
N
M

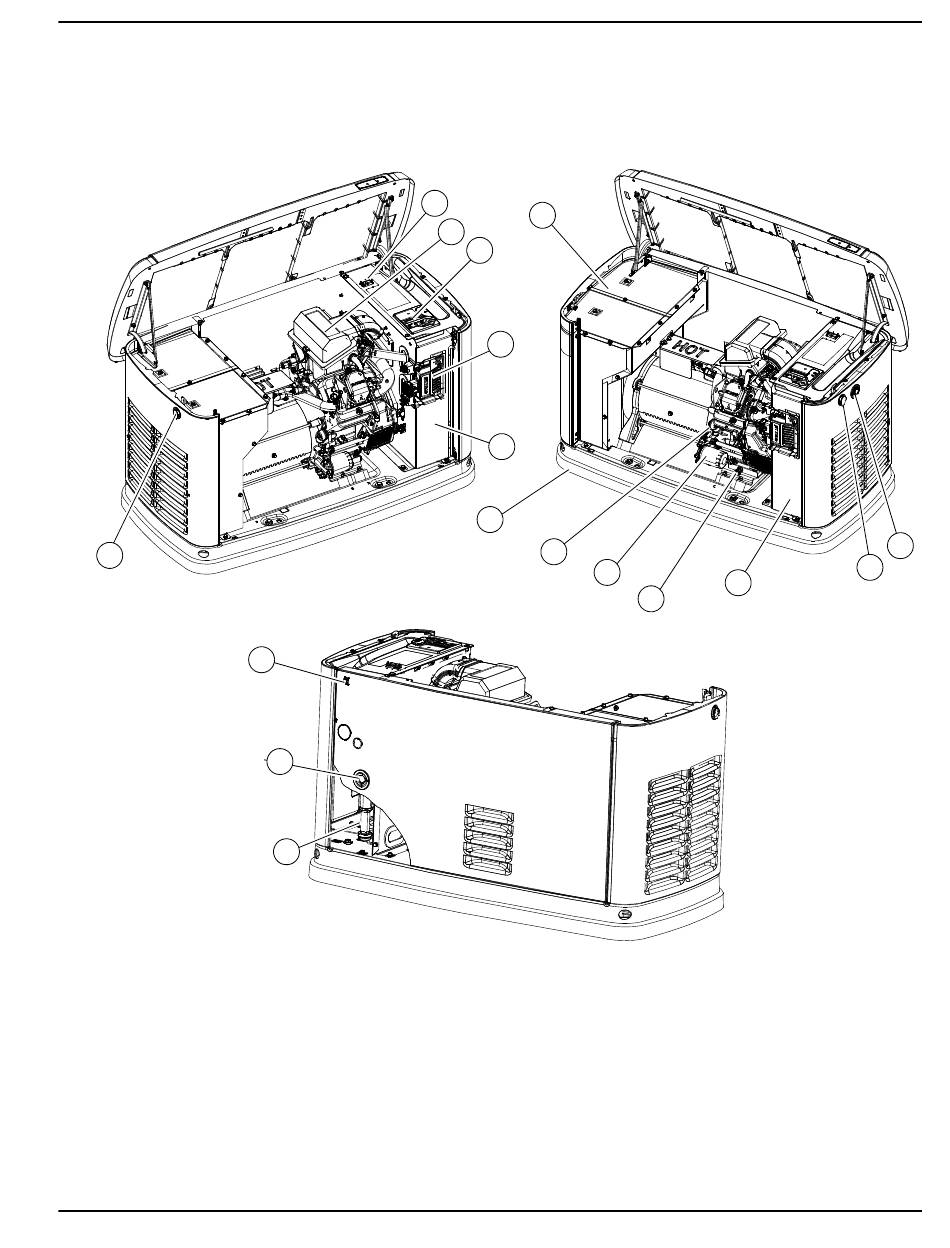

Figure 2-1. 9 kW—Components and Control Locations
E.
Battery compartment
(battery not supplied)
F.
Exhaust enclosure
G.
Status LED indicators
H.
Oil drain hose
F
C
D
Q
O
L
J
K
J.
Oil fill cap/dipstick
K.
Oil filter
L.
Composite base
M.
Sediment trap
General Information
E
H
N.
Fuel inlet
O.
Data decal location
P.
Auxiliary shutdown switch
Q.
ECM
