Installation Guide
Document Part Number: DUG01084
Document Revision: A0.6
Published: March 2022
© Copyright by Airspan Networks Ltd., 2022. All rights reserved worldwide.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AIRSTAR 1900 and is the answer not in the manual?

Questions and answers

Summary of Contents for Airspan AIRSTAR 1900

  • Page 1 2 T 2 R I N D O O R A D I O N I T Installation Guide Document Part Number: DUG01084 Document Revision: A0.6 Published: March 2022 © Copyright by Airspan Networks Ltd., 2022. All rights reserved worldwide.
  • Page 2 Airspan Networks Ltd. reserves the right, without prior notice or liability, to make changes in equipment design or specifications. Information supplied by Airspan Networks Ltd. is believed in good faith to be accurate and reliable, while every care has been taken in preparing these documents. However, Airspan Networks Ltd. does not make any representations and gives no warranties of whatever nature in respect of these documents, including without limitation, the accuracy or completeness of any information, facts and/or opinions contained therein.
  • Page 3: Table Of Contents

    Related Reading ........................5 Introduction ........................6 AirStar 1900/1200 5G Sub-6Hz..................6 Getting Started ......................7 AirStar 1900/1200 5G Sub-6 Job Sheet ............... 7 Verifying Prerequisites ....................8 Verifying Site Requirements ..................8 Verify Installation Requirements ................. 8 AirStar 1900/1200 5G Sub-6 Installation ..............12 Ceiling Mount ......................
  • Page 4 Table 2. Minimum Hardware Requirements ..................... 8 Table 3. Parts & Kits ........................... 8 Table 4: AirStar Variants........................... 10 Table 5: AirStar 1900/1200 5G Sub-6 Physical Dimensions ..............10 © Copyright Airspan Networks Ltd., 2022 P/N: DUG01084 Rev. A0.6, Mar 2022...
  • Page 5 AirStar 1900/1200 5G Sub-6 GHz Full gNB/RDU 2T2R Indoor Radio Unit – Installation Guide Table 6: AirStar 1900/1200 5G Sub-6 Operational Tolerances ............... 11 Table 7: Status LED Display ........................26 Table 8: BH LED Display ..........................26 Table 9: GPS LED Display .......................... 27 Table 10: Job Sheet ..........................
  • Page 6: Document Information

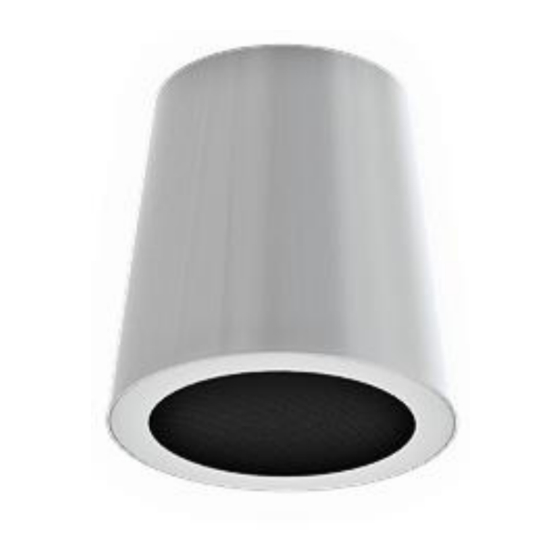

    This document details the procedure for installing the Airspan’s AirStar 1900/1200 5G Sub-6 GHz, RU aimed as part of the 5G NR standard and its place in the Airspan product suite. This document is intended for qualified personnel with a working knowledge of 5G.
  • Page 7: Warnings And Cautions

    2T2R Indoor Radio Unit – Installation Guide Warnings and Cautions Human Exposure to Radio Frequencies The AirStar 1900/1200 5G Sub-6 gHz should be operated from a minimum safe distance of 20 cm (7.87 in.) during normal operation. Radio Interference The AirStar 1900/1200 5G Sub-6 generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.
  • Page 8: Warning Of Hazardous Voltages

    It is the user’s responsibility to install this device in accordance with the local electrical codes. 8. Installation of the AirStar 1900/1200 5G Sub-6 must be contracted to a professional installer. 9. When installed in the final configuration, the product must comply with the applicable Safety Standards and regulatory requirements of the country in which it is installed.
  • Page 9: Service Information

    Also, record the MAC address, located on the product sticker. The unit can be powered by either PoE++ or AC power (using an AC/DC converter). AirStar 1900/1200 is easy to install on ceiling, suspended ceiling or wall © Copyright Airspan Networks Ltd., 2022 P/N: DUG01084 Rev.
  • Page 10: About This Document

     Connect power Intended Audience This guide is intended for persons who are responsible for installing the AirStar 1900/1200 5G Sub-6. These persons should have a working knowledge of the equipment. Document Conventions This document uses the following typographic conventions.
  • Page 11: Introduction

    2T2R Indoor Radio Unit – Installation Guide 1 Introduction This section provides a descriptive overview of the installation of Airspan’s AirStar 1900/1200 and its place in the Airspan product suite. This document is intended for readers with 5G working knowledge.
  • Page 12: Getting Started

    2T2R Indoor Radio Unit – Installation Guide 2 Getting Started 2.1 AirStar 1900/1200 5G Sub-6 Job Sheet Plan the installation of the AirStar 1900/1200 5G Sub-6 by using the Job Sheet, which you can find as a removable job aid in Appendix A for this guide.
  • Page 13: Verifying Prerequisites

    Set up requirements for the installation is detailed in the Job Sheet, see Appendix_A. 3.1 Verifying Site Requirements To set up the AirStar 1900/1200 5G Sub-6Hz, an IP connection to a Network Management System (NMS) is required. 3.2 Verify Installation Requirements 3.2.1 Verify the Tools...
  • Page 14  Standard ceiling mounting kit is included. Available separately - there is a Suspended ceiling mounting kit or a Wall mounting kit, please contact your Airspan supplier.  The AirStar 1900/1200 requires operation using an Airspan FCC-specific version of ACP acting as a CBRS Domain Proxy.
  • Page 15: Figure 2: Airstar 1900/1200 5G Sub-6 Dimensions

    AirStar 1900/1200 5G, 3.55-3.7GHz (n48), AR19-N48-DP4C1S-CN PoE/DC Connectorized 3.2.4 Power Supply and Current AirStar 1900/1200 5G Sub-6 supports a direct connection to DC power source or Standard 802.3bt Type4 class 8 90w adaptor. Operational Range: 40.5-57vDC Safety approved (certified) according to IEC/EN/TUV 60950-1 The use of other power sources may impair safety and will invoke warranty.
  • Page 16: Table 6: Airstar 1900/1200 5G Sub-6 Operational Tolerances

    70-106 kPa as well as: Operational altitude From -60m to 1800m @ 40C From 1800m to 4000m @ 30C AirStar 1900/1200 conforms to the TS 38.104 - Local Area Radio Performance Base Station type 1-O (OTA FR1) IEC62368-1:2018 (Edition No. 3)
  • Page 17: Airstar 1900/1200 5G Sub-6 Installation

    4.1.1 Conventional Ceiling Assembly The following are instructions for assembly to a conventional ceiling. 1. Select the required location where the AirStar 1900/1200 unit is to be installed, on the ceiling opposite a window. 2. Position the Ceiling adaptor bracket on the ceiling. Be sure to position the Ceiling adaptor so the unit will be opposite a window.
  • Page 18: Figure 4: Slide Hanger Onto Pole

    11. At this time, route the cables through the opening in pole and out the bottom, connection will be made later. 12. The Ceiling adaptor bracket is installed and ready for AirStar 1900/1200 unit mounting. 13. Lift the plastic lower cover, up out of the way in order to hang the unit.
  • Page 19: Figure 7: Hook Unit On Hanger

    Tighten to a torque of no more than 17.5lb*in (1.98 Nm) max. Figure 8: Insert the Screws 16. Rotate the AirStar 1900/1200 so that the GPS plate faces the window. 17. Tighten the setscrew to lock the unit in the current position (facing the window). Tighten to a torque of no more than 22 lb*in (2.48 Nm) max.
  • Page 20: Figure 11: Conventional Ceiling Mounted

    AirStar 1900/1200 5G Sub-6 GHz Full gNB/RDU 2T2R Indoor Radio Unit – Installation Guide Figure 11: Conventional Ceiling Mounted 4.1.2 Suspended Ceiling Assembly The following are instructions for assembly to a Suspended (acoustical) ceiling. 1. Determine the position where the AirStar unit is to be installed.
  • Page 21: Figure 13: Fit Sleeve Cap On The Bottom Sleeve

    11. After drilling holes and inserting approved ceiling anchors (plugs), fasten the Ceiling bracket to the ceiling with screws and washers (not included). Screws and washers (x4) and any necessary hardware are not supplied by Airspan and are  the responsibility of the installer. Use appropriate ceiling hardware according to field conditions.
  • Page 22: Figure 15: Suspended Ceiling Assembly

    Figure 16: Insert the 2 Screws 18. At this time route the cables into and on down through the pole, for later connection. 19. Lift and hook the AirStar 1900/1200 on the hanger. Figure 17: Hook Unit on Hanger 20. Insert the two (2) 1/4 -20 screws, washers and tighten through the holes in the hanger holes and tighten.
  • Page 23: Figure 18: Insert The Screws

    2T2R Indoor Radio Unit – Installation Guide Figure 18: Insert the Screws 21. Rotate the AirStar 1900/1200 so that the GPS plate faces the window. 22. Tighten the setscrew to lock the unit in the current position (facing the window). Tighten to a torque of no more than 22 lb*in (2.48 Nm) max.
  • Page 24: Wall Mount

    4.2 Wall Mount The following describes the Wall mounting procedure: Select the optimal location where the AirStar 1900/1200 unit is to be installed, on the wall above a window. Take the Wall mount bracket and position it against the wall where the unit is to be mounted.
  • Page 25: Figure 23: Fix Wall Mount On Wall

    AirStar 1900/1200 5G Sub-6 GHz Full gNB/RDU 2T2R Indoor Radio Unit – Installation Guide Figure 23: Fix Wall Mount on Wall Slide the Wall mount bracket cover over the Wall mount. Figure 24: Slide Wall Mount Cover on Wall Mount Push slightly to engage the protruding pins onto the restraints of the Wall mount cover.
  • Page 26: Figure 26: Insert The Screws

    Tighten to a torque of no more than 17.5lb*in (1.98 Nm) max. Figure 28: Insert both Screws 17. Rotate the AirStar 1900/1200 so that the GPS plate faces the window. 18. Tighten the setscrew to lock the unit in the current position (facing the window). Tighten to a torque of no more than 22 lb*in (2.48 Nm) max.
  • Page 27: Figure 30: Check The Gps Connection

    AirStar 1900/1200 5G Sub-6 GHz Full gNB/RDU 2T2R Indoor Radio Unit – Installation Guide 20. Check that the GPS is connected properly. Figure 30: Check the GPS Connection 21. Once all connections are completed, slide down the plastic cover over the top of the unit and snap it on to fasten it.
  • Page 28: Extension Kit

    AirStar 1900/1200 5G Sub-6 GHz Full gNB/RDU 2T2R Indoor Radio Unit – Installation Guide 4.3 Extension Kit In the event there are high ceilings and the optimal positon of the AirSpeed unit would be effected, there is an extension length available.
  • Page 29: Figure 33: Extension Assembly

    AirStar 1900/1200 5G Sub-6 GHz Full gNB/RDU 2T2R Indoor Radio Unit – Installation Guide Figure 33: Extension Assembly Lift the assembled extension pole and mounting pole (with the Hanger and cover), and insert into either the Wall bracket or the Ceiling adaptor.
  • Page 30: Figure 35: Hook Unit On Hanger

    Tighten to a torque of no more than 17.5lb*in (1.98 Nm) max. Figure 36: Insert both Screws 15. Rotate the AirStar 1900/1200 so that the GPS plate faces the window. 16. Tighten the setscrew to lock the unit in the current position (facing the window). Tighten to a torque of no more than 22 lb*in (2.48 Nm) max.
  • Page 31: Led Display

    AirStar 1900/1200 5G Sub-6 GHz Full gNB/RDU 2T2R Indoor Radio Unit – Installation Guide 4.4 LED Display Two (2) LEDs appear on the upper part of the unit, providing unit status indication: System/Access, Backhaul. When powering up refer to the following table for indication of the current status:...
  • Page 32: Gps Led Display

    AirStar 1900/1200 5G Sub-6 GHz Full gNB/RDU 2T2R Indoor Radio Unit – Installation Guide 4.5 GPS LED Display A LED appears on the upper part of the unit, providing unit the GPS status indication: When powering up refer to the following table for status indication:...
  • Page 33: Connect And Manage Cables

    5.1 Physical Interfaces 5.1.1 Fiber SFP 1GbE (B.H) Cable 1 x SFP socket - SFP module and connector (when applicable), not supplied by Airspan. 5.1.2 Ethernet Cable Copper 1GbE (B.H.) Cable 1x RJ45 Socket - Typical RJ45 connection (when applicable).
  • Page 34: Job Sheet

    2T2R Indoor Radio Unit – Installation Guide Job Sheet This job sheet enables the users to keep track of their installation. It covers all the prerequisites required for accomplishing the AirStar 1900/1200 5G installation. Table 10: Job Sheet Site Requirements ...
  • Page 35: Acronyms, Abbreviations, And Definitions

    AirStar 1900/1200 5G Sub-6 GHz Full gNB/RDU 2T2R Indoor Radio Unit – Installation Guide Table 11: Acronyms, Abbreviations, and Definitions Term Description AC /DC Alternating/Direct Current Radio Unit Control Unit 5G Core Network 5G NR 5G New Radio Power over Ethernet...
  • Page 36: Customer Service Help Desk

    Customer Service Help Desk Airspan’s Customer Care Help Desk offers prompt and efficient customer support services. To take advantage of Airspan’s Customer Care Help Desk support, you must be a  registered user and must have a valid support contract. To register, click...
