- Page 1 PCI-E Riser Cable 4.0 x 16 & Bracket User Manual...

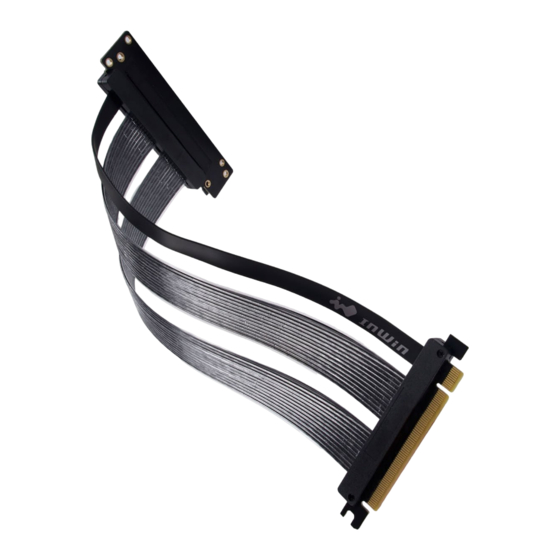

- Page 2 Vertically Mount Your GPU InWin’s PCI-E Riser Cable allows users to connect graphics cards vertically to the motherboard and nicely showcases them. This 4.0 riser cable is 250mm in length and is fully compatible with Intel and AMD motherboards.
- Page 3 Flat and Bendable Design The InWin PCI-E riser cable has flat design. It is flexible, highly routable and can be positioned in any suitable direction * Please ensure no shorts have occurred due to poor PCI card placement. * To prevent from damaging the cable, please do not fold the PCI-E cable...

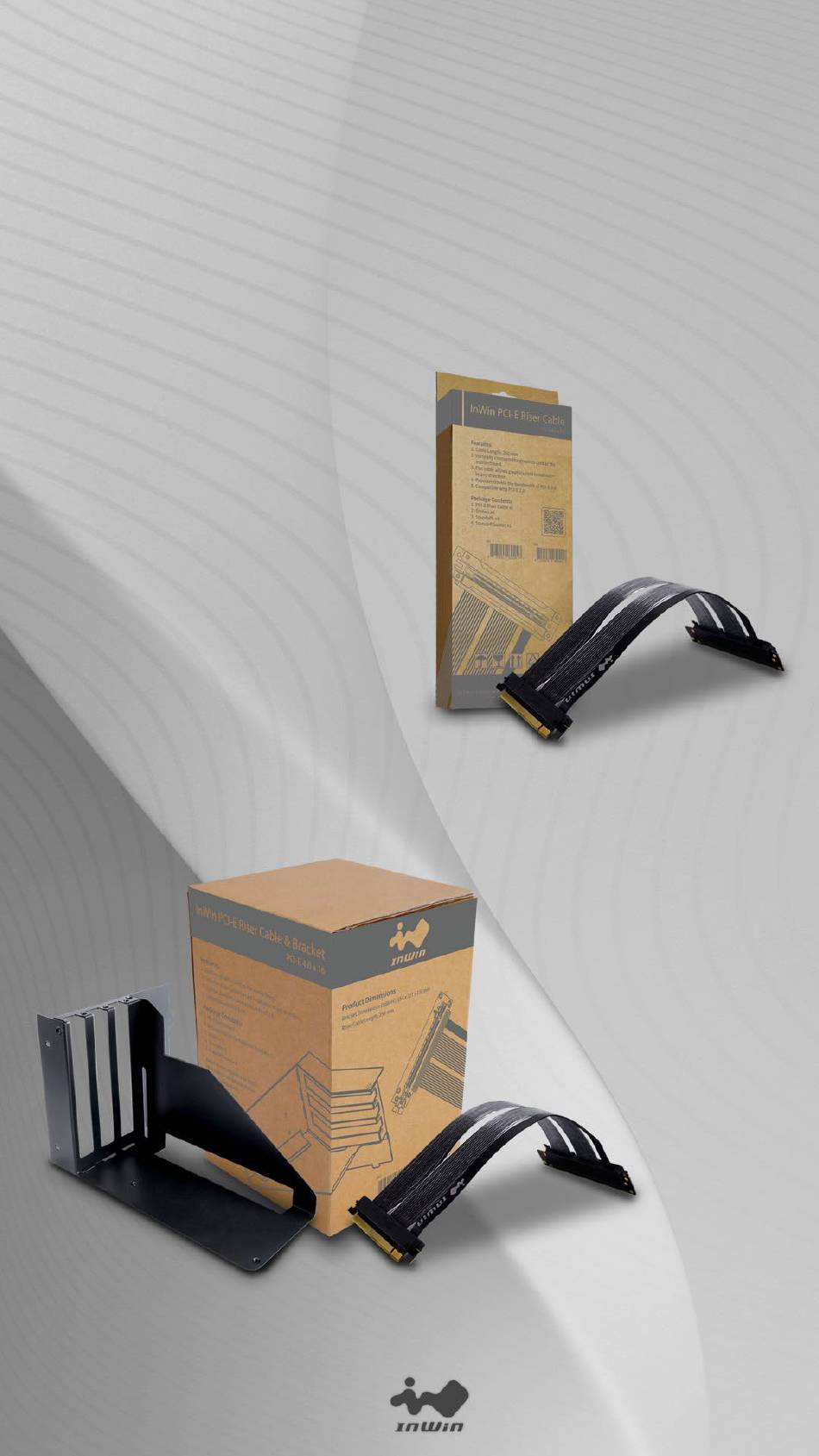

- Page 4 Graphics Cards Support The InWin PCI-E Riser Cable & Bracket set comes with a high quality bracket that supports the graphics card to the motherboard. It is also compatible with most standard ATX chassis. Note: Chassis must have at least 6 PCIe slots and be installed as seen above.
-
Page 5: Installation
Installation... -
Page 6: Specifications
Materials PCB, FR4, Polyethylene(PE),SECC, Copper Alloy Temperature -20 ~ 80 °C Range (°C) 1. PCI-E Riser Cable x 1 1. PCI-E Riser Cable x 1 2. Screws x 4 2. Vertical VGA Bracket x 1 Package 3. Standoffs x 3 3. - Page 7 Copyright © 2021 In Win Development Inc. All Rights Reserved.
