- Page 1 All-In-One Nebula Liquid CPU Cooler User Manual...
- Page 2 Product Video Information NR Series Product Video...

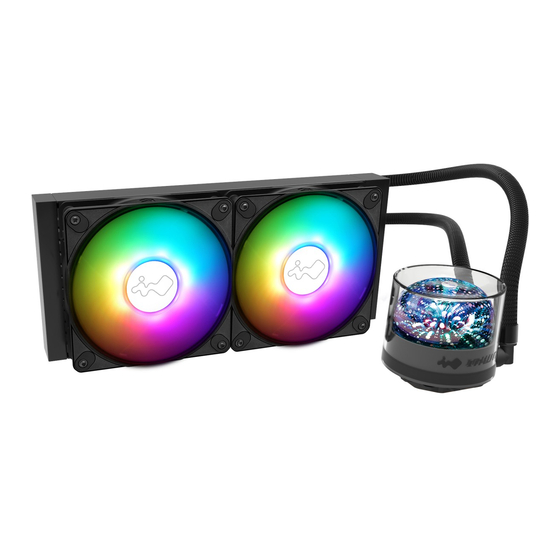

- Page 3 Product Story Interstellar Cooling High Performance AIO Liquid CPU Cooler NR Series will provide your build with stellar visual aesthetics. The water block is filled with crystal shimmering stars and the radiator is equipped with high static pressure fans Luna AL120. Gaze into the realms of Nebula!
-
Page 4: Specifications
0.85 kg / 1.87 lb 1.05 kg / 2.31 lb Gross Weight 2.0 kg / 4.41 lb 2.45 kg / 5.4 lb Warranty 3 Years * InWin's products comply with RoHS regulation. * Specifications may vary based on different regions. - Page 5 NR24 Package Contents a. QR Code Card x 1 k. 240 Radiator x 1 b. Intel Mounting Bracket x 2 ARGB Water Block Cable x 1 c. AMD Mounting Bracket x 2 m. ARGB Fan Cable x 1 d. Luna AL120 Fans x 2 n.
- Page 6 NR36 Package Contents a. QR Code Card x 1 k. 360 Radiator x 1 b. Intel Mounting Bracket x 2 ARGB Water Block Cable x 1 c. AMD Mounting Bracket x 2 m. ARGB Fan Cable x 1 d. Luna AL120 Fans x 3 n.
- Page 7 Installation Guide * Please follow the related chapters to assemble. * Please use the original provided accessories to avoid damage to the product. Install AL120 Fans to Radiator Parts Required：240 mm/360 mm radiator, Luna AL120 Fans, Washers, Fan Screws Note：Please be sure to use a washer on each screw before installation. Install Fans and Radiator combo to your PC chassis.
- Page 8 Installation Guide Installation for motherboards A. For Intel Motherboards (LGA 115X/1200/1366/20XX/1700) (1) Switch the Intel backplate pins according to the CPU socket of your motherboard. Note: Intel LGA 20XX does not require back plate installation. LGA1700 LGA1366 LGA115x / 1200 (2) Attach the Intel backplate to the bottom of the motherboard.
- Page 9 Installation Guide B. For AMD Motherboards (AMD or TR4) (1) Please remove the retention module. AMD's backplate comes with AMD's motherboard. Attach it to the bottom of motherboard. (2) Install the standoff screws onto your motherboard. Ensure to use the correct standoff screws for your CPU socket.
- Page 10 Installation Guide Install the Pump Unit A. Choose your Mounting Bracket according to your CPU Parts Required: Intel or AMD Mounting Brackets, Thumbscrew Cap, Thermal Compound Intel B. Apply the Thermal Compound C. Remove the protect film evenly on the CPU surface from the cold-plate D.
-
Page 11: Connection Cables
ARGB Water Block Cable 5V ARGB Header to M/B or ARGB One-Click Controller DATA DATA 3 Pin to NR24/36 Water Block 5V ARGB Header to ARGB Fan Cable ARGB Fan Cable 5V ARGB Header to ARGB 5V ARGB Header to... - Page 12 Installation Guide PWM Fan Cable 4 Pin Wafer to AL120 Fans 600±10 +12V 4 Pin Header to M/B CPU_FAN Pump Cable * If your M/B does not have an AIO_Pump, you can connect the 3 Pin to a fan header, but it is recommended to set the output to DC 12V. 3 Pin to M/B AIO_Pump -12-...
- Page 13 Installation Guide ARGB One-Click Controller Installation If your motherboard does not support ARGB effects, please use the included ARGB One-Click Controller in order to use the 14 lighting modes. ARGB Cable ARGB One-Click PSU's SATA Cable Header Controller -13-...
- Page 14 Rainbow Two-Tone Ring LED-Red Breathing Diagonal Transition LED-Green Rotating LED Trio LED-Blue Full Circle LED-Purple Flow-Red LED-White Flow-Green Light at the endof the Tunnel Flow-Blue * InWin reserves the right to change the lighting modes. -14-...
-
Page 15: Troubleshooting
If your AIO pump or fan does not operate properly, ■ please follow the instructions below： 1. Please check your system’s power. 2. Please make sure all the connectors are connected properly. 3. For more technical support, please visit the InWin Forum website at https://forum.in-win.com/ -15-... - Page 16 Warranty ■ 1. For more detailed warranty information, please visit the InWin retail website at www.in-win.com 2. The actual product is subject to change without prior notice. IN WIN DEVELOPMENT INC. reserves the right to make any final modifications.
- Page 17 Copyright © 2021 In Win Development Inc. All Rights Reserved. -17-...
