Summary of Contents for InWin POC
- Page 1 User Manual...
- Page 2 Product Video Information POC Product Video POC Assembly Guide Application download link:...

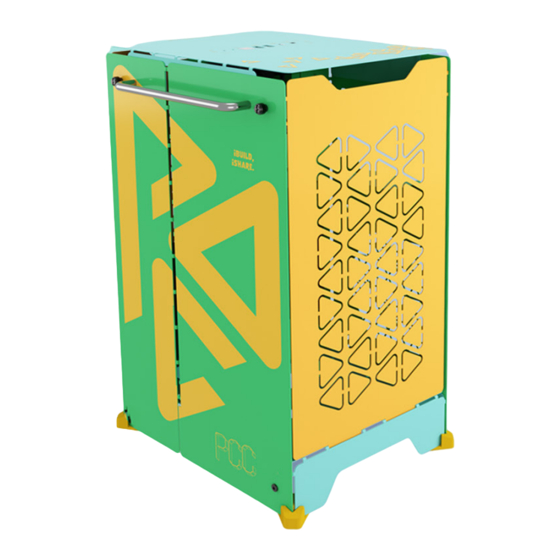

- Page 3 PC building experience. POC's Origin Birthed from InWin's iBuildiShare DIY product lineup, POC aims to provide an overall unique PC chassis experience. Hand-folding metal sheets into a lightweight yet sturdy PC structure delves into an origami-like art form. The design concept supersedes thinking outside the proverbial box and encourages builders to assemble said box instead.
-
Page 4: Specifications
Package Dimensions (L x W x H) 17.7 x 16.4 x 1.78" Net Weight 4 kg / 8.82 lbs Gross Weight 5.2 kg / 11.46 lbs * InWin's products comply with RoHS regulations. * Specifications may vary based on different regions. - Page 5 Specifications InWin LUNA AL120 Model Luna AL120 Quantity Included Single Pack Model Number IW-FN-AL120-1PK Colors Black Fan Size 120 x 120 x 25 mm Materials PC, PBT Rated Voltage DC 12V Rated Power 3.96W Rated Current 0.33A ADD RGB Rated Voltage...
-
Page 6: Package Contents
Package Contents MB Plate Front Panel Rear Panel Side Covers x 2 Top Panel Bottom Panel... - Page 7 Package Contents I/O Module Footpads x 4 PCI-E 4.0 Riser Cable Handles x 2 Accessories Luna AL120 Velcro Strips x 5 Cable Ties x 5...
- Page 8 Package Contents Accessories S1 Screws x 25 S2 Handle Screws x 4 S3 Thumb Screws x 4 S4 2.5" SSD Screws x 4 P1 M/B Stand-offs x 6 P2 GPU Stand-offs x 2 P3 GPU Stand-offs x 2 Stand-off Socket x 1 PCI-E Slot Bracket x 1 Cables Mounts x 2 Double-sided Tapes x 2...
- Page 9 Package Contents LUNA AL120 Package Contents LUNA AL120 Fan x 1 Screws x 4...
- Page 10 Case Structure Handles Power Supply Mounting Area Motherboard Mounting Area Rear Fan Mounting Area 2.5" SSD Mounting Area Shock-Proof Stands Graphic Card Mounting Area PCI-E Expansion Slots HD Audio Combo USB 3.2 Gen 1 HDD LED (CTIA – SPK/Mic) USB 3.2 Gen 2 x 2 Type-C Power Button Power LED...
- Page 11 Installation Guide Please download the Assembly Guide APP for more detailed instructions. Connection Cables Switch/LED Connector/HDD LED Connector X 1 Black(P LED +) 1 2 Black(HDD LED +) Black(P LED -) 3 4 Black(HDD LED -) Black(P SW +) 5 6 NC 8 NC Black(P SW -) 7...
- Page 12 Installation Guide HD Audio Header PORT2_L BLUE PURPLE PORT2_R YELLOW WHITE PORT1_R PORT1_L BLACK USB 3.2 Gen 1 USB 3.2 Gen 2 x 2 Type-C...
-
Page 13: Warranty
6. When storing the case, please keep this product away from high temperatures. Keep away from machines such as heaters that might cause high temperatures. 7. For more technical support, please visit the InWin Forum at https://forum.in-win.com/ Warranty * For more detailed warranty information, please visit the InWin retail website at www.in-win.com. - Page 14 Copyright © 2023 In Win Development Inc. All Rights Reserved.
