- Page 1 Crown AC120 User Manual (1-Pack) English...

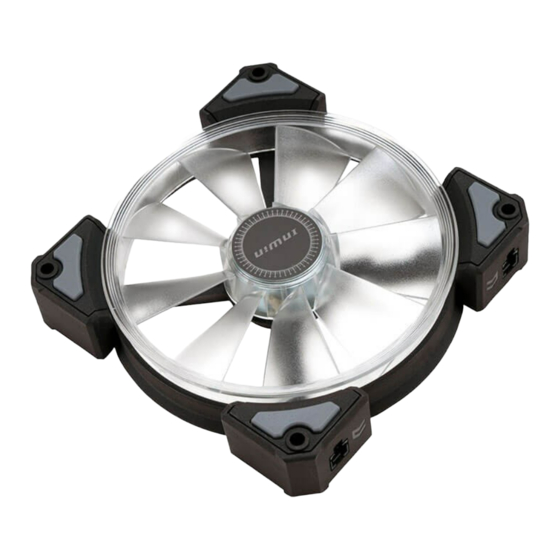

- Page 2 Product Story CROWN AC120 inherits the technical marvels of InWin’ s previous models. Saturated, addressable RGB lighting effects and our patented modular design makes this beautiful static pressure fan simple to install. CROWN AC120 possesses innovative features to maximize airflow and keep a cooled...
-
Page 3: Package Contents
Package Contents 1. CROWN AC120 Fan x 1 2. Screws x 4 3. Addressable RGB LED Y-Cable (Connect Motherboard to Fan) 800mm x 1 4. 6-6 Pin Long Connecting Wire (Connect Fan to Fan) 1000mm x 1 5. 6-6 Pin Short Connecting Wire (Connect Fan to Fan) 100mm x 1 6. - Page 4 Installation 1. Please make sure the power is off. 2. Install the fans in your PC case, and screw it in the designated areas. 3. Use Addressable RGB Y-Cable to connect the fan and the motherboard. Please use ADD 3-Pin connector to an ADD RGB header, and 4-pin fan connector to a fan header on the motherboard.
-
Page 5: Troubleshooting
5. If you are adding more CROWN fans, please start from step 4 to chain with the other fans. (*When connecting more than 5 fans, please use another Addressable RGB Y-Cable to connect the 6 or more fans.) Troubleshooting If your fan does not operate properly, please follow the instructions below: 1. - Page 6 3. Please do not put anything in the impeller. 4. Please do not modify the wire or the connector provided by InWin. 5. Please do not touch the fan blades when the fan is in operation.
- Page 7 Specifications Product Name CROWN AC120 Part Number Single Pack - AC120FAN-1PK Twin Pack - AC120FAN-2PK 120 x 120 x 25mm Fan Size Materials PBT, PC Rated Voltage DC 12V Rated Power 2.16W Rated Current 0.18A DC 5V ADD RGB Rated Voltage ADD RGB Rated Power 1.5W...
