Summary of Contents for InWin SIRIUS EXTREME

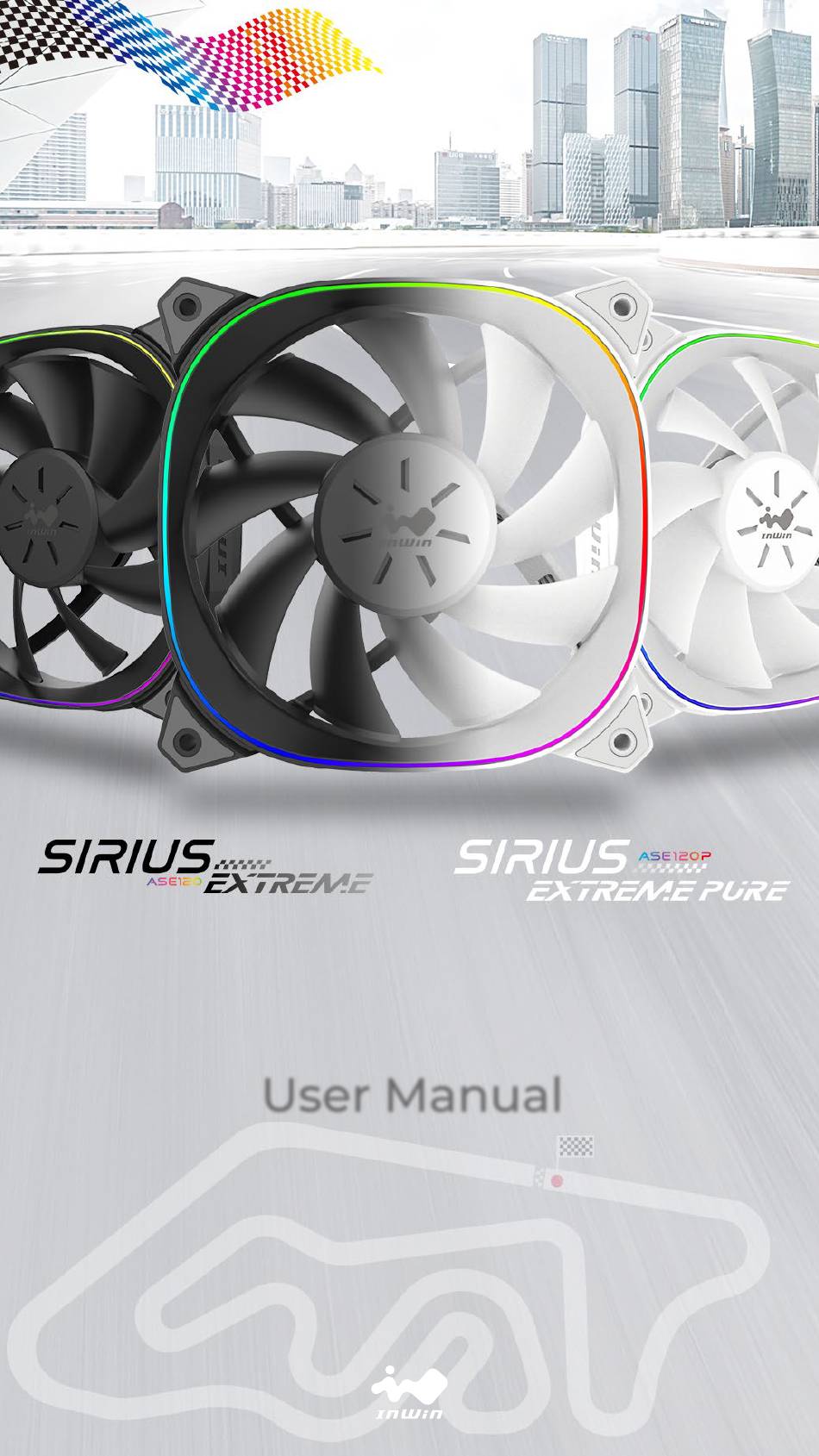

- Page 1 User Manual...
- Page 2 Product Video Information Sirius Extreme Product Video Installation Video https://youtu.be/nqfZ3LdB_gM https://youtu.be/_S_LLcqe0KI...

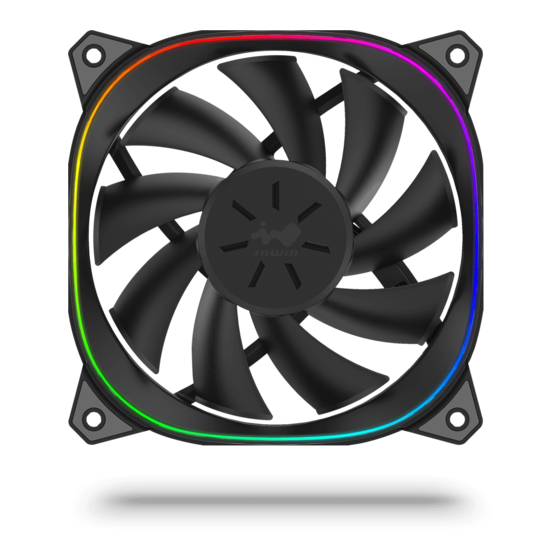

- Page 3 Product Story The Extreme Series is one of InWin’s transformative pieces in the Sirius family. Beginning from the overall design, the Extreme fans possess a specialized ”Squoval” geometric design. This provides a unique perspective on traditional case fans and features functional improvements too.
-
Page 4: Package Contents
Package Contents Package Contents a. Sirius Extreme ASE120 / Sirius Extreme Pure ASE120P x 3 b. ARGB One-Click Controller v1.1 x 1 c. Screws x 12 Package Contents a. Sirius Extreme ASE120 Fans x 1 b. Screws x 4... -
Page 5: Cable Information
Cable Information Addressable RGB Fan Cable, Addressable RGB Y-Cable Addressable RGB Fan Cable Addressable RGB Y-Cable ARGB One-Click Controller ver. 1.1 (Note: Only in Triple Pack) -
Page 6: Installation
Installation Please make sure the power is off. Install the fans in your PC case and mount them in the designated areas. *How to determine your airflow direction: The arrow << shows the intake direction of the air blowing through. Addressable RGB strip and Fans Cables Installation If your motherboard supports the addressable RGB effect, please follow the direction of sign and connect as followed:... - Page 7 Light at the end of the Rainbow Tunnel Light at the end of the LED-Red Breathing Tunnel LED-Green Rotating LED Trio LED-Blue Full Circle LED-Purple Flow-Red LED-White Flow-Green Light at the end of the Flow-Blue Tunnel *InWin reserves the right to change the lighting modes.
-
Page 8: Troubleshooting
3. Please do not put anything in the impeller. 4. Please do not modify the wires or the connectors provided by InWin. 5. Please do not touch the fan blades when the fan is in operation. -
Page 9: Specifications
Specifications 25 mm 25 mm 120 mm 120 mm Sirius Extreme ASE120 Sirius Extreme ASE120P Product Name Sirius Extreme ASE120 / Sirius Extreme Pure ASE120P Quantity Included Single Pack Triple Pack IW-FN-ASE120-1PK IW-FN-ASE120-3PK Model Number IW-FN-ASE120P-1PK IW-FN-ASE120P-3PK Colors Black,White Fan Size... - Page 10 Copyright © 2021 In Win Development Inc. All Rights Reserved.
