aspenhome IHP-316-KHA Assembly Instructions

aspenhome
ITEM NO: IHP-316-FSL/KHA
Thank you for purchasing this quality product. Be sure to check all packing material carefully for
small parts that may come loose inside the carton during shipment.
STEP 1: Put the case backside down on a soft surface.
Match the hole pattern on metal bases to the threaded
inserts on the bottom and attach to the bottom of the
case by using 16 bolts(A), lock washers(B) and flat
washers(C). Turn the case to the upright position.

FUNCTIONALITY INSTRUCTION

Remove the wood screws on the
side of drawer box to remove the
rod loops and file rods if necessary.
Keys for file lock.
Do not trash.
Locking file drawers hold
letter or legal size files
Adjust the leveler
when necessary
BEFORE USING THIS PRODUCT PLEASE READ, UNDERSTAND, AND FOLLOW THESE INSTRUCTIONS.
Save these instructions for future reference.
Page 1/1
ASSEMBLY INSTRUCTIONS
R

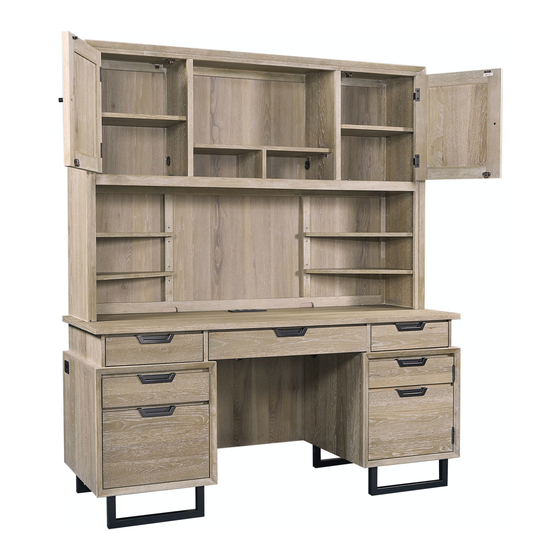

66" Credenza Desk

TOOLS REQUIRED (NOT PROVIDED)

PHILLIPS SCREWDRIVER

HARDWARE LIST:

No.
A
B
C
D Allen Wrench

COMPONENTS LIST:

No.
1
2
Leveler on metal bases
FOR INDOOR USE ONLY
MADE IN VIETNAM
Description
Bolt Ø5/16"*1"
Lock Washer Ø5/16"
Flat Washer Ø5/16" *3/4"
Description
Case
Metal Base
Case Bottom
C
B
2 AC outlet / 2 USB power pack
Flip down tray
Adjustable wood shelf
If you prefer to adjust the shelf
location, remove the screws and
move shelf brackets to the desired
location. Then secure the brackets
to shelf with screws.
Metal plate
Press here to release
Hook latch
Quantity
Sketch
16 PCS
16 PCS
16 PCS
1 PC
Quantity
Sketch
1 PC
4 PCS
A
Metal Base
D
02-15-2022
