aspenhome Combo File IHP-378-FSL Assembly Instructions

aspenhome
ITEM NO: IHP-378-FSL
Thank you for purchasing this quality product. Be sure to check all packing material carefully for
small parts that may come loose inside the carton during shipment.
STEP 1: Put the case backside down on a soft surface. Match the hole
pattern on metal bases to the threaded inserts on the bottom and attach to
the bottom of the case by using 8 bolts(A), lock washers(B) and flat
washers(C). Turn the case to the upright position.

FUNCTIONALITY INSTRUCTION

Locking file drawers hold
letter or legal size files
Heavy Duty Ball Bearing Slide
Leveler on metal bases
BEFORE USING THIS PRODUCT PLEASE READ, UNDERSTAND, AND FOLLOW THESE INSTRUCTIONS.
Save these instructions for future reference.
Page 1/2
R

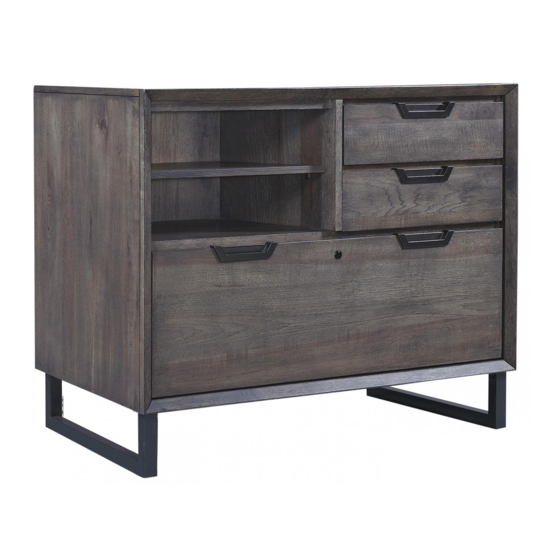

Combo File
FOR INDOOR USE ONLY
MADE IN VIETNAM
ASSEMBLY INSTRUCTIONS

TOOLS REQUIRED (NOT PROVIDED)

PHILLIPS SCREWDRIVER

HARDWARE LIST:

Description
No.
Bolt Ø5/16"*1"
A
Lock Washer Ø5/16"
B
Flat Washer Ø5/16" *3/4"
C
D Allen Wrench

COMPONENTS LIST:

Description
No.
1 Case
2 Metal Base
Adjust the leveler
when necessary
Quantity
Sketch
8 PCS
8 PCS
8 PCS
1 PC
Quantity
Sketch
1 PC
2 PCS
Metal Base
C
B
Case
Bottom
Remove the wood screws
on the back panels of
drawer box to remove the
rod loops and file rods if
necessary.
12-26-2016
A
D
