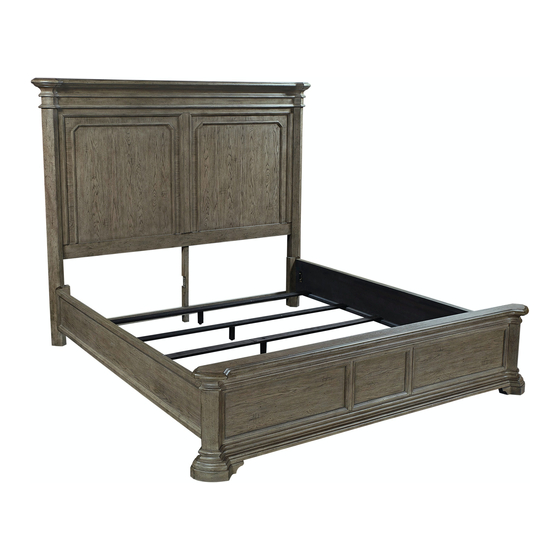

aspenhome I206-412 Assembly Instructions Manual

Queen panel hb, queen rails, queen low profile fb
Hide thumbs

Advertisement

Quick Links

Download this manual
aspenhome
ah
ITEM NO: I206-412
I206-402
I206-403
Thank you for purchasing this quality product. Be sure to check all packing material carefully for
small parts that may come loose inside the carton during shipment.
I206-412
I206-402
HARDWARE LIST: I206-412
Description
No.
Bolt Ø5/16" x 2"
A
Lock Washer Ø5/16"
B
Flat Washer Ø5/16" x 3/4"
C
D
Allen Wrench M4
Bolt Ø1/4" x 1-3/8"
E
Lock Washer Ø1/4"
F
Flat Washer Ø1/4" x 3/4"
G
HARDWARE LIST: I206-402
Description
No.
Hanger Bolt Ø5/16" x 3-1/2"
H
Flat Washer Ø5/16" x1/2"
I
Lock Washer Ø5/16"
J
Hex Nut Ø5/16"
K
L
Hex Wrench 12mm
M
Wood Screw M4 x 1-1/2"
BEFORE USING THIS PRODUCT PLEASE READ, UNDERSTAND, AND FOLLOW THESE INSTRUCTIONS.
Save these instructions for future reference.
Page 1/4
Queen Panel HB
Queen Rails
Queen Low Profile FB
UNIT SHOULD BE INSTALLED BY 2 OR MORE PERSONS.
I206-403
Quantity
Sketch
8 PCS
8 PCS
8 PCS
1 PC
8 PCS
8 PCS
8 PCS
Quantity
Sketch
8 PCS
8 PCS
8 PCS
8 PCS
1 PC
8 PCS
FOR INDOOR USE ONLY
MADE IN VIETNAM
ASSEMBLY INSTRUCTIONS
R
All Beds need to be set up in the exact final
location so that after full assembly it will not
need to be moved. Moving the bed will cause
the support legs to move out of perpendicular
(90 degree), weaken the support system, and
may allow the bed to collapse.
TOOLS REQUIRED (NOT PROVIDED)
PHILLIPS SCREWDRIVER
COMPONENTS LIST: I206-412
Description
No.
1
Headboard
Left Leg
2
3
Right Leg
4
Wood Stretcher
Center Support Leg
5
COMPONENTS LIST: I206-402
Description
No.
1
Bed rails
2
Slats
COMPONENTS LIST: I206-403
Description
No.
1
Footboard
Support Leg (for slats)
2
Quantity
Sketch
1 PC
1 PC
1 PC
1 PC
1 PC
Quantity
Sketch
2 PCS
4 PCS
Quantity
Sketch
1 PC
4 PCS
05-06-2021

Advertisement

loading
Need help?

Need help?

Do you have a question about the I206-412 and is the answer not in the manual?

Questions and answers

Related Manuals for aspenhome I206-412

Summary of Contents for aspenhome I206-412

  • Page 1 ASSEMBLY INSTRUCTIONS ITEM NO: I206-412 Queen Panel HB I206-402 Queen Rails I206-403 Queen Low Profile FB Thank you for purchasing this quality product. Be sure to check all packing material carefully for small parts that may come loose inside the carton during shipment.
  • Page 2 ASSEMBLY INSTRUCTIONS ITEM NO: I206-412 Queen Panel HB I206-402 Queen Rails I206-403 Queen Low Profile FB STEP 1: Lay the headboard face down on a soft surface. Attach the left leg and right leg to headboard by using 8 bolts(A), lock washers(B) and flat washers(C). Do not completely tighten bolts.
  • Page 3 ASSEMBLY INSTRUCTIONS ITEM NO: I206-412 Queen Panel HB I206-402 Queen Rails I206-403 Queen Low Profile FB STEP 4: The slat bearers have been attached in position (b) side approximately 2" from the top of the rails for use with a storage footboard. The slat bearers must be moved into position (a) based on this bed configuration.
  • Page 4 ASSEMBLY INSTRUCTIONS ITEM NO: I206-412 Queen Panel HB I206-402 Queen Rails I206-403 Queen Low Profile FB STEP 7: Arrange the slats on the slat bearers equally and attach to the slat bearers with wood screws (M). Wood Screws (M)
  • Page 5 ASSEMBLY INSTRUCTIONS ITEM NO: I206-412 Queen Panel HB I206-402 Queen Rails I206-403D Queen Storage FB Thank you for purchasing this quality product. Be sure to check all packing material carefully for small parts that may come loose inside the carton during shipment.
  • Page 6 ASSEMBLY INSTRUCTIONS ITEM NO: I206-412 Queen Panel HB I206-402 Queen Rails I206-403D Queen Storage FB STEP 1: Lay the headboard face down on a soft surface. Attach the left leg and right leg to headboard by using 8 bolts(A), lock washers(B) and flat washers(C). Do not completely tighten bolts.
  • Page 7 ASSEMBLY INSTRUCTIONS ITEM NO: I206-412 Queen Panel HB I206-402 Queen Rails I206-403D Queen Storage FB STEP 4: Screw the bolts(H) into HB & FB. Make sure the slat bearer is in the position (b). Align the bolts with the holes in the end of side rails and attach the side rails to HB & FB using Flat Washer (I), lock washers(J) and nuts (K).Then use a hex wrench to tighten all the nuts.
  • Page 8 ASSEMBLY INSTRUCTIONS ITEM NO: I206-412 Queen Panel HB I206-402 Queen Rails I206-403D Queen Storage FB STEP 7: Arrange slats on the slat bearers and then lay decking on top of the slats. Make sure the slats are positioned along the seams of the decking as...
  • Page 9 ASSEMBLY INSTRUCTIONS ITEM NO: I206-412 Queen Panel HB I206-402 Queen Rails I206-403D Queen Storage FB Instruction for the Drawer with Heavy Duty Ball Bearing Slide To remove the drawer, please remove the set screws on two sides of the drawers. Push the tab in toward the drawer and lift up the drawer to move out.
  • Page 10 ASSEMBLY INSTRUCTIONS ITEM NO: I206-415 King Panel HB I206-406 King Rails I206-410 Cal King Rails I206-407 King Low Profile FB Thank you for purchasing this quality product. Be sure to check all packing material carefully for small parts that may come loose inside the carton during shipment.
  • Page 11 ASSEMBLY INSTRUCTIONS ITEM NO: I206-415 King Panel HB I206-406 King Rails I206-410 Cal King Rails I206-407 King Low Profile FB STEP 1: Lay the headboard face down on a soft surface. Attach the left leg and right leg to headboard by using 8 bolts(A), lock washers(B) and flat washers(C).
  • Page 12 ASSEMBLY INSTRUCTIONS ITEM NO: I206-415 King Panel HB I206-406 King Rails I206-410 Cal King Rails I206-407 King Low Profile FB STEP 4: The slat bearers have been attached in position (b) side approximately 2" from the top of the rails for use with a storage footboard.
  • Page 13 ASSEMBLY INSTRUCTIONS ITEM NO: I206-415 King Panel HB I206-406 King Rails I206-410 Cal King Rails I206-407 King Low Profile FB STEP 7: Arrange the slats on the slat bearers equally and attach to the slat bearers with wood screws (M).
  • Page 14 ASSEMBLY INSTRUCTIONS ITEM NO: I206-415 King Panel HB I206-406 King Rails I206-410 Cal King Rails I206-407D King Storage FB Thank you for purchasing this quality product. Be sure to check all packing material carefully for small parts that may come loose inside the carton during shipment.
  • Page 15 ASSEMBLY INSTRUCTIONS ITEM NO: I206-415 King Panel HB I206-406 King Rails I206-410 Cal King Rails I206-407D King Storage FB STEP 1: Lay the headboard face down on a soft surface. Attach the left leg and right leg to headboard by using 8 bolts(A), lock washers(B) and flat washers(C). Do not completely tighten bolts.
  • Page 16 ASSEMBLY INSTRUCTIONS ITEM NO: I206-415 King Panel HB I206-406 King Rails I206-410 Cal King Rails I206-407D King Storage FB STEP 4: Screw the bolts(H) into HB & FB. Make sure the slat bearer is in the position (b). Align the bolts with the holes in the end of side rails and attach the side rails to HB & FB using Flat Washer (I), lock washers (J) and nuts (K).Then use a hex wrench to tighten all the nuts.
  • Page 17 ASSEMBLY INSTRUCTIONS ITEM NO: I206-415 King Panel HB I206-406 King Rails I206-410 Cal King Rails I206-407D King Storage FB STEP 7: Arrange slats on the slat bearers and then lay the decking on top of the slats. Make sure the top and bottom slats are situated...
  • Page 18 ASSEMBLY INSTRUCTIONS ITEM NO: I206-415 King Panel HB I206-406 King Rails I206-410 Cal King Rails I206-407D King Storage FB FUNCTIONALITY INSTRUCTION I206-415 Double Powered USB Port for Charging on both sides I206-406 Cedar-lined storage drawer Cedar-lined storage drawer with heavy duty ball bearing slide...
  • Page 19 ASSEMBLY INSTRUCTIONS ITEM NO: I206-415 King Panel HB I206-406 King Rails I206-410 Cal King Rails I206-407D King Storage FB Instruction for the Drawer with Heavy Duty Ball Bearing Slide To remove the drawer, please remove the set screws on two sides of the drawers.
