aspenhome
ah
ITEM NO: I644-6000
Thank you for purchasing this quality product. Be sure to check all packing material carefully for
small parts that may come loose inside the carton during shipment.
HARDWARE LIST:
Description
No.
Bolt Ø5/16" x 1"
A
Bolt Ø5/16" x 2"
B
Lock Washer Ø5/16"
C
Flat Washer Ø5/16" x 3/4"
D
E
Allen Wrench 4mm
FUNCTIONALITY INSTRUCTION
BEFORE USING THIS PRODUCT PLEASE READ, UNDERSTAND, AND FOLLOW THESE INSTRUCTIONS.
Save these instructions for future reference.
Page 1/3
R

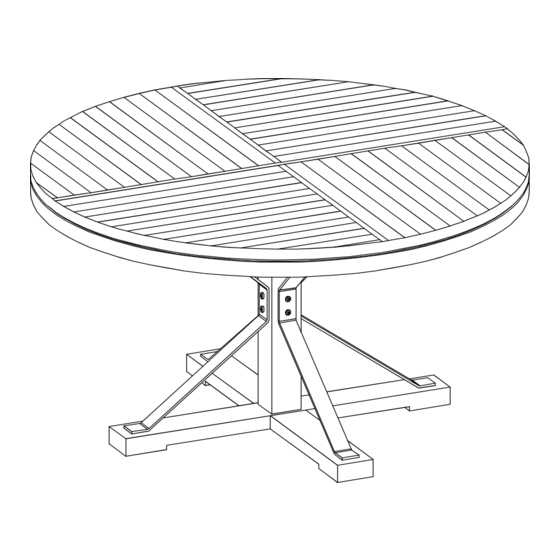

Round Dining Table
Quantity
Sketch
8 PCS
6 PCS
14 PCS
14 PCS
1 PC
FOR INDOOR USE ONLY
MADE IN VIETNAM
ASSEMBLY INSTRUCTIONS
TOOLS REQUIRED (NOT PROVIDED)
PHILLIPS SCREWDRIVER
COMPONENTS LIST:
Description
No.
Table Top
1
2
Pedestal
Top Stretcher
3
Metal Support
4
5
Bottom Stretcher
Leveler on Bases
Quantity
Sketch
1 PC
1 PC
1 PC
2 PCS
1 PC
Adjust the leveler
when necessary
04-18-2023
Advertisement
Related Manuals for aspenhome I644-6000
Summary of Contents for aspenhome I644-6000
- Page 1 ASSEMBLY INSTRUCTIONS ITEM NO: I644-6000 Round Dining Table Thank you for purchasing this quality product. Be sure to check all packing material carefully for small parts that may come loose inside the carton during shipment. TOOLS REQUIRED (NOT PROVIDED)
- Page 2 ASSEMBLY INSTRUCTIONS ITEM NO: I644-6000 Round Dining Table STEP 1: Attach the top stretcher to the pedestal by using 1 bolt (B), lock washer (C) and flat washer (D) as shown below. Do not tighten bolts until STEP 4.
- Page 3 ASSEMBLY INSTRUCTIONS ITEM NO: I644-6000 Round Dining Table STEP 4: Attach the bottom stretcher to the pedestal by using 2 bolts (A), 1 bolts (B), 3 lock washers (C) and 3 flat washers (D) as shown below. Use the allen wrench (E) to tighten all bolts.
-
Page 4: Hardware List
ASSEMBLY INSTRUCTIONS ITEM NO: I644-6640S Dining Side Chair w/ Wood Seat (2/Ctn) Thank you for purchasing this quality product. Be sure to check all packing material carefully for small parts that may come loose inside the carton during shipment. - Page 5 ASSEMBLY INSTRUCTIONS ITEM NO: I644-6640S Dining Side Chair w/ Wood Seat (2/Ctn) STEP 1: Attach the left front leg and right front leg to chair seat by using 4 bolts (B), lock washers (D) and flat washers (E), Do not completely tighten bolts.
- Page 6 ASSEMBLY INSTRUCTIONS ITEM NO: I644-6660S Counter Side Chair w/ Uph Seat (2/Ctn) Thank you for purchasing this quality product. Be sure to check all packing material carefully for small parts that may come loose inside the carton during shipment.
- Page 7 ASSEMBLY INSTRUCTIONS ITEM NO: I644-6660S Counter Side Chair w/ Uph Seat (2/Ctn) STEP 1: Attach the left front leg and right front leg to chair seat by using 4 bolts (B), lock washers (D) and flat washers (E), Do not completely tighten bolts.
