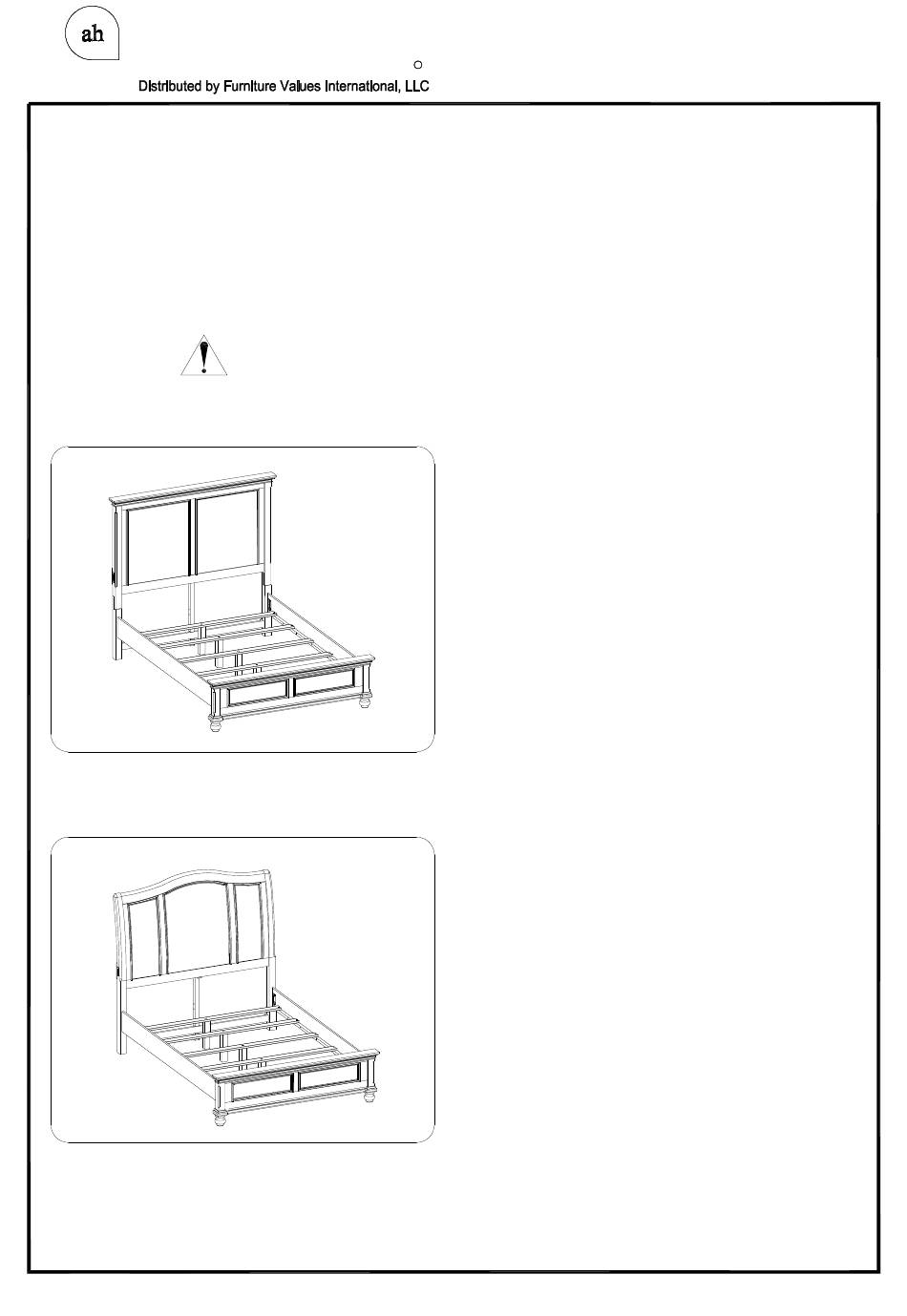

ASSEMBLY INSTRUCTIONS ITEM NO: I07-412-WBR/PEP/BLK Queen Panel HB I07-400-WBR/PEP/BLK Queen Sleigh HB I07-402-WBR/PEP/BLK Queen Rails I07-403-WBR/PEP/BLK Queen Low Profile FB Thank you for purchasing this quality product. Be sure to check all packing material carefully for small parts that may come loose inside the carton during shipment.
Page 3
ASSEMBLY INSTRUCTIONS ITEM NO: I07-412-WBR/PEP/BLK Queen Panel HB I07-400-WBR/PEP/BLK Queen Sleigh HB I07-402-WBR/PEP/BLK Queen Rails I07-403-WBR/PEP/BLK Queen Low Profile FB OPTION 1: Queen LP Panel Bed STEP 1: Put the headboard face down on a soft surface. Attach the left leg and right...
Page 4
ASSEMBLY INSTRUCTIONS ITEM NO: I07-412-WBR/PEP/BLK Queen Panel HB I07-400-WBR/PEP/BLK Queen Sleigh HB I07-402-WBR/PEP/BLK Queen Rails I07-403-WBR/PEP/BLK Queen Low Profile FB STEP 6: Screw the bolts(N) into HB & FB. Align the bolts with the holes in the end of side rails and attach the side rails to HB &...
Page 5
ASSEMBLY INSTRUCTIONS ITEM NO: I07-412-WBR/PEP/BLK Queen Panel HB I07-400-WBR/PEP/BLK Queen Sleigh HB I07-402-WBR/PEP/BLK Queen Rails I07-403-WBR/PEP/BLK Queen Low Profile FB OPTION 2: Queen Sleigh Right Leg STEP 1: Put the headboard face down on a soft surface. Insert 8 wood dowels (G) into...
Page 6
ASSEMBLY INSTRUCTIONS ITEM NO: I07-412-WBR/PEP/BLK Queen Panel HB I07-400-WBR/PEP/BLK Queen Sleigh HB I07-402-WBR/PEP/BLK Queen Rails I07-403-WBR/PEP/BLK Queen Low Profile FB FUNCTIONALITY INSTRUCTION 2 Powered USB Port for Charging on both sides 2 Powered USB Port for Charging on both sides...
Page 7
ASSEMBLY INSTRUCTIONS ITEM NO: I07-412-WBR/PEP/BLK Queen Panel HB I07-400-WBR/PEP/BLK Queen Sleigh HB I07-402-WBR/PEP/BLK Queen Rails I07-403D-WBR/PEP/BLK Queen Storage FB Thank you for purchasing this quality product. Be sure to check all packing material carefully for small parts that may come loose inside the carton during shipment.
Page 9
ASSEMBLY INSTRUCTIONS ITEM NO: I07-412-WBR/PEP/BLK Queen Panel HB I07-400-WBR/PEP/BLK Queen Sleigh HB I07-402-WBR/PEP/BLK Queen Rails I07-403D-WBR/PEP/BLK Queen Storage FB OPTION 1: Queen Storage Panel Bed STEP 1: Put the headboard face down on a soft surface. Attach the left leg and right leg to headboard by using 6 bolts(A), lock washers(D) and flat washers(E).
Page 10
ASSEMBLY INSTRUCTIONS ITEM NO: I07-412-WBR/PEP/BLK Queen Panel HB I07-400-WBR/PEP/BLK Queen Sleigh HB I07-402-WBR/PEP/BLK Queen Rails I07-403D-WBR/PEP/BLK Queen Storage FB Slat bearer in STEP 5: The side rails may be used on either side. upper position Arrange the side rails so the slat bearers are in UPPER POSITION prior to attachment in STEP 6.
Page 11
ASSEMBLY INSTRUCTIONS ITEM NO: I07-412-WBR/PEP/BLK Queen Panel HB I07-400-WBR/PEP/BLK Queen Sleigh HB Center Rail I07-402-WBR/PEP/BLK Queen Rails I07-403D-WBR/PEP/BLK Queen Storage FB STEP 8: Attach 2 support legs (for center rail) to the center rail using 4 bolts(T), lock washers(U) and flat washers(V).
Page 12
ASSEMBLY INSTRUCTIONS ITEM NO: I07-412-WBR/PEP/BLK Queen Panel HB I07-400-WBR/PEP/BLK Queen Sleigh HB I07-402-WBR/PEP/BLK Queen Rails I07-403D-WBR/PEP/BLK Queen Storage FB Wood Stretcher STEP 2: Attach the wood stretcher to the HB Backside legs by using 4 bolts(I), lock washers(J) and flat washers(K).
Page 13
ASSEMBLY INSTRUCTIONS ITEM NO: I07-415-WBR/PEP/BLK King Panel HB I07-404-WBR/PEP/BLK King Sleigh HB I07-406-WBR/PEP/BLK King Rails I07-410-WBR/PEP/BLK Cal King Rails I07-407-WBR/PEP/BLK King Low Profile FB Thank you for purchasing this quality product. Be sure to check all packing material carefully for small parts that may come loose inside the carton during shipment.
Page 14
ASSEMBLY INSTRUCTIONS ITEM NO: I07-415-WBR/PEP/BLK King Panel HB I07-404-WBR/PEP/BLK King Sleigh HB I07-406-WBR/PEP/BLK King Rails I07-410-WBR/PEP/BLK Cal King Rails I07-407-WBR/PEP/BLK King Low Profile FB TOOLS REQUIRED (NOT PROVIDED) COMPONENTS LIST: I07-415 PHILLIPS SCREWDRIVER Description Sketch Quantity 1 Headboard 1 PC...
Page 15
ASSEMBLY INSTRUCTIONS ITEM NO: I07-415-WBR/PEP/BLK King Panel HB I07-404-WBR/PEP/BLK King Sleigh HB I07-406-WBR/PEP/BLK King Rails I07-410-WBR/PEP/BLK Cal King Rails I07-407-WBR/PEP/BLK King Low Profile FB OPTION 1: King/Cal King LP Panel Bed STEP 1: Put the headboard face down on a soft surface.
Page 16
ASSEMBLY INSTRUCTIONS ITEM NO: I07-415-WBR/PEP/BLK King Panel HB I07-404-WBR/PEP/BLK King Sleigh HB I07-406-WBR/PEP/BLK King Rails I07-410-WBR/PEP/BLK Cal King Rails I07-407-WBR/PEP/BLK King Low Profile FB STEP 6: Screw the bolts(N) into HB & FB. Align the bolts with the holes in the end of side rails and attach the side rails to HB &...
Page 17
ASSEMBLY INSTRUCTIONS ITEM NO: I07-415-WBR/PEP/BLK King Panel HB I07-404-WBR/PEP/BLK King Sleigh HB I07-406-WBR/PEP/BLK King Rails I07-410-WBR/PEP/BLK Cal King Rails I07-407-WBR/PEP/BLK King Low Profile FB Right Leg OPTION 2: /Cal ng LP S King leigh Bed STEP 1: Put the headboard face down on a soft surface.
Page 18
ASSEMBLY INSTRUCTIONS ITEM NO: I07-415-WBR/PEP/BLK King Panel HB I07-404-WBR/PEP/BLK King Sleigh HB I07-406-WBR/PEP/BLK King Rails I07-410-WBR/PEP/BLK Cal King Rails I07-407-WBR/PEP/BLK King Low Profile FB 2 Powered USB Port for Charging on both sides 2 Powered USB Port for Charging on both sides...
Page 19
ASSEMBLY INSTRUCTIONS ITEM NO: I07-415-WBR/PEP/BLK King Panel HB I07-404-WBR/PEP/BLK King Sleigh HB I07-406-WBR/PEP/BLK King Rails I07-410-WBR/PEP/BLK Cal King Rails I07-407D-WBR/PEP/BLK King Storage FB Thank you for purchasing this quality product. Be sure to check all packing material carefully for small parts that may come loose inside the carton during shipment.
Page 20
ASSEMBLY INSTRUCTIONS ITEM NO: I07-415-WBR/PEP/BLK King Panel HB I07-404-WBR/PEP/BLK King Sleigh HB I07-406-WBR/PEP/BLK King Rails I07-410-WBR/PEP/BLK Cal King Rails I07-407D-WBR/PEP/BLK King Storage FB TOOLS REQUIRED (NOT PROVIDED) COMPONENTS LIST: I07-415 PHILLIPS SCREWDRIVER Description Sketch Quantity 1 Headboard 1 PC...
Page 21
ASSEMBLY INSTRUCTIONS ITEM NO: I07-415-WBR/PEP/BLK King Panel HB I07-404-WBR/PEP/BLK King Sleigh HB I07-406-WBR/PEP/BLK King Rails I07-410-WBR/PEP/BLK Cal King Rails I07-407D-WBR/PEP/BLK King Storage FB OPTION 1: King/Cal King Storage Panel Bed STEP 1: Put the headboard face down on a soft surface.
Page 22
ASSEMBLY INSTRUCTIONS ITEM NO: I07-415-WBR/PEP/BLK King Panel HB I07-404-WBR/PEP/BLK King Sleigh HB I07-406-WBR/PEP/BLK King Rails I07-410-WBR/PEP/BLK Cal King Rails I07-407D-WBR/PEP/BLK King Storage FB Slat bearer in upper position STEP 5: The side rails may be used on either side.
Page 23
ASSEMBLY INSTRUCTIONS ITEM NO: I07-415-WBR/PEP/BLK King Panel HB I07-404-WBR/PEP/BLK King Sleigh HB Center Rail I07-406-WBR/PEP/BLK King Rails I07-410-WBR/PEP/BLK Cal King Rails I07-407D-WBR/PEP/BLK King Storage FB STEP 8: Attach 2 support legs (for center rail) to the center rail using 4 bolts(U), lock washers(V) and flat Support Leg washers(W).
Page 24
ASSEMBLY INSTRUCTIONS ITEM NO: I07-415-WBR/PEP/BLK King Panel HB I07-404-WBR/PEP/BLK King Sleigh HB I07-406-WBR/PEP/BLK King Rails I07-410-WBR/PEP/BLK Cal King Rails I07-407D-WBR/PEP/BLK King Storage FB Right Leg OPTION 2: /Cal orage S King king St leigh Bed STEP 1: Put the headboard face down on a soft surface.
Page 25
ASSEMBLY INSTRUCTIONS ITEM NO: I07-415-WBR/PEP/BLK King Panel HB I07-404-WBR/PEP/BLK King Sleigh HB I07-406-WBR/PEP/BLK King Rails I07-410-WBR/PEP/BLK Cal King Rails I07-407D-WBR/PEP/BLK King Storage FB 2 Powered USB Port for Charging on both sides Cedar-lined Storage Drawers 2 Powered USB Port for...
