aspenhome
ah
ITEM NO: IHP-366-FSL/KHA
Thank you for purchasing this quality product. Be sure to check all packing material carefully for
small parts that may come loose inside the carton during shipment.
IHP-366
This article meets California Bureau of Home Furnishings flammability requirements -
Technical Bulletin 117. Exercise care with this product near open flame or burning cigarettes.
· Read all instructions before use.
· This product is intended for use as a seat for adults. Do not use the product for any other purpose.
· This product is not a toy. Keep the product away from children and pets.
· Always place the product on a flat, stable surface.
· Do not place the product near heat or open flames.
· Do not set heavy objects on the product.
· Never stand on the product or use it as a STEP ladder.
· To avoid a possible pinch hazard, never insert fingers, hands, or other body parts in between the product hinges
and joints, especially when assembling or disassembling the product.
· Ensure all parts are securely attached before use. Periodically check the parts to ensure they are securely in place.
· We will not be responsible for any injury or death resulting from the improper use or care of this chair.
BEFORE USING THIS PRODUCT PLEASE READ, UNDERSTAND, AND FOLLOW THESE INSTRUCTIONS.
Save these instructions for future reference.
Page 1/3
ASSEMBLY INSTRUCTIONS
R

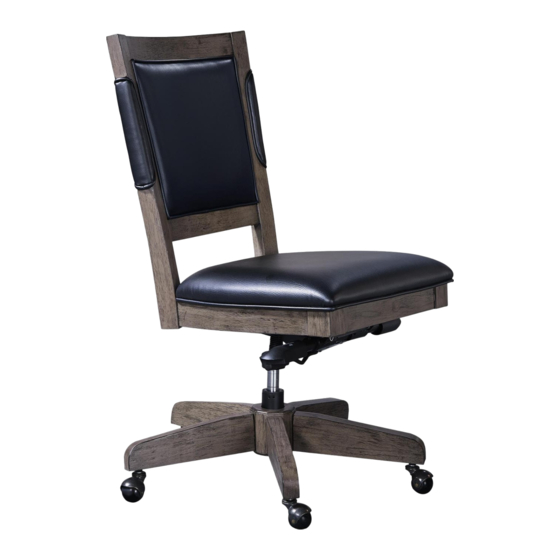

Office Chair
HARDWARE LIST:
No.
A Bolt 5/16"*4-1/2"
B Bolt 5/16"*1-3/4"
C
D Flat Washer 5/16"*3/4"
E
F
G Hex Wrench
H Bolt 3/8"*1-1/2"
I
J
K Allen Key 5mm
COMPONENTS LIST:
No.
1
2
3
4
5
IMPORTANT SAFEGUARDS
NOTICE
FOR INDOOR USE ONLY
MADE IN VIETNAM
Description
Spring Washer 5/16"
Allen Key 4mm
Hex Nut 5/16"
Spring Washer 3/8"*9/16"
Flat Washer 3/8"*7/8"
Description
Pneumatic cylinder
Seat Plate
Wooden base with Casters
Seating
Chair Back
Quantity
Sketch
4 PCS
2 PCS
6 PCS
6 PCS
1 PC
4 PCS
1 PC
4 PCS
4 PCS
4 PCS
1 PC
Quantity
Sketch
1 PC
1 PC
1 PC
1 PC
1 PC
02-15-2022
Advertisement
Related Manuals for aspenhome IHP-366-FSL/KHA
Summary of Contents for aspenhome IHP-366-FSL/KHA
- Page 1 ASSEMBLY INSTRUCTIONS ITEM NO: IHP-366-FSL/KHA Office Chair Thank you for purchasing this quality product. Be sure to check all packing material carefully for small parts that may come loose inside the carton during shipment. HARDWARE LIST: Description Quantity Sketch A Bolt 5/16"*4-1/2"...
- Page 2 ASSEMBLY INSTRUCTIONS ITEM NO: IHP-366-FSL/KHA Office Chair STEP 1: Insert the Pneumatic Cylinder (1) through the center hole on top of the Wooden base with Casters (3). STEP 2: Attach Seating (4) to Chair back (5) by using bolts (A), bolts (B), lock washer (C), flat washer (D) and hex nut (F), use Allen key (E) and hex wrench (G ) tighten all bolts.
- Page 3 ASSEMBLY INSTRUCTIONS ITEM NO: IHP-366-FSL/KHA Office Chair To Adjust Height Adjustment: To raise the seat height, remove weight from the seat and pull up on the Height Adjustment Leveler. To lower the seat height, while seated pull up slowly on the Height Adjustment Leveler until the seat is at the desired height.
