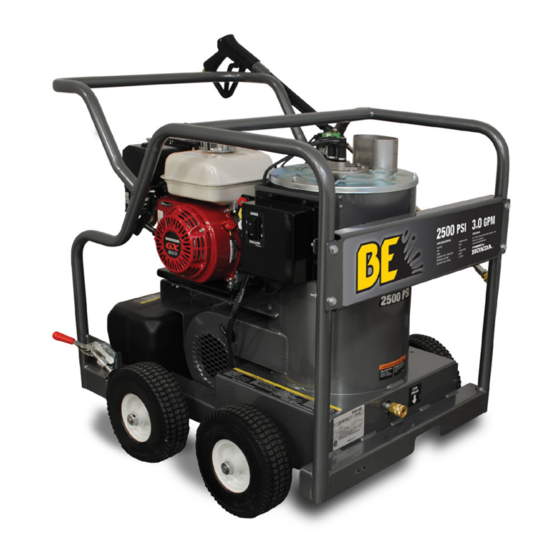

- Page 1 HOT WATER PRESSURE WASHER HW2765HAD Operation Manual BEPOWEREQUIPMENT...
-
Page 2: Table Of Contents
TABLE OF CONTENTS TABLE OF CONTENTS Safety Parts List 6 Safety Rules 30 Specifications 7 Safety Warnings 32 Flow Chart 32 EMF System Features 33 Operation Theory 12 Features 34 Frame Assembly Installation & Preparation 36 Pump Plumbing 13 Attire 38 Pump Assembly 13 Set-Up 41 Unloader Assembly 14 Engine/Burner Fuel Tank 43 ... - Page 3 Hot Water Pressure Washer manual prior to the initial use of your If you need to contact an Authorized Dealer or Customer Service line (1- Hot Water Pressure Washer. 866-850-6662) for information on servicing, always provide the product model and identification numbers. Using the Operator’s manual You will need to locate the model and serial number for the pump and The operating manual is an important part of your Hot Water Pressure record the information in the places provided below. Washer. It should be read thoroughly before initial use, and referred to often to make sure adequate safety and service concerns are being ad- dressed. Date of Purchase: Reading the owner’s manual thoroughly will help avoid any personal injury Dealer Name: or damage to your pump. By knowing how best to operate this machine Dealer Phone: you will be better positioned to show others who may also operate the unit.
-
Page 4: Safety
• Never fill the fuel tanks while the pressure washer is running or hot. Follow safety messages to avoid or reduce the risk of injury or death. Allow to cool two minutes before refueling. • Always refuel slowly to avoid the possibility of spilled fuel which may cause a risk of fire. Hazard Symbols and Meanings • Do not refuel indoors or in a poorly ventilated area. • Engine Fuel Tank: Refuel with gasoline only. Do not use diesel or fuel oil. • Burner Fuel Tank (Black): When refueling the Burner Fuel Tank, use No. 1 or No. 2 fuel oil/diesel or kerosene. Do not use gasoline. • Do not operate the unit if diesel fuel is spilled. Wipe the pressure explosion fire washer clean and move it away from the spill. Avoid creating any hot surface moving parts ignition until the diesel fuel has evaporated. • A spark arrester must be added to the muffler of this engine if it is to be used on any forest covered, brush covered or grass covered unimproved land. The arrester must be maintained in effective working order by the operator. In the state of California, the above is required electric flying objects toxic fumes injection by law. (Section 4442 of the California Public Resources Code.) shock Other states may have similar laws. Federal laws apply on Federal lands. • This pressure washer has a Safety Relief device which should never be altered, modified, removed or made inoperative. If the device fails, replace immediately with only genuine manufacturer replacement part. - Page 5 WARNING WARNING Serious injury or death may occur from inhaling engine/ burner exhaust or dangerous vapors. The engine Serious injury or death may occur from contact with exhaust from this product contains chemicals known to electricity. the State of California to cause cancer, birth defects, or other reproductive harm. • DO NOT direct spray on or into electrical installations of any kind! • Never operate this pressure washer in an enclosed area. Always make This includes electrical outlets, light bulbs, fuse boxes, transformers, certain there is adequate ventilation (fresh outside air) for breathing the unit itself, etc. and combustion. This will prevent the buildup of dangerous carbon • DO NOT allow metal components of the pressure washer to come in monoxide gases. Beware of poorly ventilated areas, or areas with contact with live electrical components. exhaust fans which can cause poor air exchange. • Follow all safety instructions provided with the materials you are spraying. Use of a respirator may be required when working with WARNING some materials. Do not use this pressure washer to dispense Serious injury may occur from touching the gasoline hazardous detergents. engine, muffler or heat exchanger. These areas can remain hot for some time after the pressure washer is shutdown. WARNING • Never allow any part of your body to contact the gasoline engine, muffler or heat exchanger. Serious injury or death could occur from high pressure spray penetrating the skin. WARNING • Keep clear of nozzle and spray! Never put your hand, fingers or body directly over the spray nozzle. Serious injury may occur from a pressure washer • Do not direct discharge stream at persons or self. malfunction or exploding accessories if incorrect • This product is to be used only by trained operators.
- Page 6 SAFETY SAFETY WARNING • NEVER trigger the gun while on a ladder or roof. • ALWAYS hold on firmly to the gun/lance assembly when starting and Serious injury may occur to the operator from moving operating the unit. Failure to do so can cause the lance to fall and parts on the pressure washer. whip dangerously. • Know how to stop the pressure washer and bleed pressures quickly. • Before making any adjustments, be certain the engine is turned off Be thoroughly familiar with controls. and the ignition cable(s) is removed from the spark plug(s). Turning • DO NOT leave pressurized unit unattended. Shut off the pressure the machinery over by hand during adjustment or cleaning might start washer and release trapped pressure before leaving. the engine and machinery with it. • DO NOT operate the unit if you see any fuel, oil or water leaks from • Do not operate the unit without all protective covers in place. the machine. DO NOT resume operation until the unit has been in- spected and repaired by a qualified service person. • NEVER run the engine with the governor disconnected or operate at WARNING excessive speeds. • Place unit in a clean, dry, flat area for servicing. Before servicing the Serious injury or death may occur from detergents con- unit: turn the unit off, relieve the water pressure from the trigger gun, tacting the skin. and allow the unit to cool down. Service in clean, dry, flat area. If ap- plicable, block wheels to prevent unit from moving. Serious injury can occur from loose debris being pro- • Do not move the unit by pulling on the hose. pelled at a high speed from the spray gun. Injury may occur if the operator loses his balance caused by the thrust of water traveling through the WARNING: This product can expose you to spray nozzle.
-
Page 7: Features
FEATURES INSTALLATION & PREPARATION Features Installation & Preparation ATTIRE Proper attire is essential to your safety. It is advised to utilize whatever means necessary to protect eyes, ears, and skin. Additional safety attire (such as respiratory mask) may be required when using detergent cleaning agents with this washer. SET-UP 1. This unit should only be placed on a level surface to ensure proper lubrication for the water pump while operating. NEVER spray water directly on the unit. 2. Do not use unit in an area: a. with insufficient ventilation. b. where there is evidence of oil or fuel leaks. c. where flammable gas vapors may be present. This unit has multiple ignition sources that could cause an explosion or fire. 3. Do not allow the unit to be exposed to rain, snow or freezing temperatures. If any part of the unit becomes frozen, excessive pressure may build up in the unit which could cause it to burst resulting in possible serious injury to the operator or bystanders. 4. Be certain to block the wheels to prevent the unit from moving while operating. 5. Pump oil level should be checked before each use. Make certain the oil is on the “Full” mark on the dipstick or in the center of the oil sight glass. If the level appears to be low, fill with SAE30W non-detergent pump oil. DANGER DO NOT PLACE UNIT IN AN AREA WHERE FLAMMABLE GAS VAPORS MAY BE PRESENT. A SPARK COULD CAUSE AN EXPLOSION OR FIRE! DO NOT STORE/OPERATE UNIT IN FREEZING ENVIRONMENTS! 1. Spray Nozzle Holder 9. High Pressure Hose... -
Page 8: Engine/Burner Fuel Tank
2. The 15° nozzle (YELLOW): This is a ch 1. Be certain the 40° 8. Review the engine manual accompanying this pressure washer for be directed at a 45° angle to the surface a 2. The nozzle as correct engine start-up and maintenance procedures. at this by retr paint, grease and dirt. Uses: Surface pre QUICK-CONNECT (Q.C.) -
Page 9: Nozzle Connection
2. The 15° nozzle (YELLOW): This is a chiseling nozzle. The spray should be directed at a 45° angle to the surface and used like a scraper to remove paint, grease and dirt. Uses: Surface preparation (removing mildew stains QUICK-CONNECT (Q.C.) -
Page 10: Pre-Start Inspection Procedures
INSTALLATION & PREPARATION OPERATION Operating Instructions PRE-START INSPECTION PROCEDURES Before starting the unit, perform the following procedures: PRIMING THE PUMP 1. Check the oil level in the pump and engine. It is essential to prime the pump and flush the unit each time the water 2. Inspect the water inlet strainer. Clean or replace if necessary. See supply has been disconnected from the unit OR whenever the unit has “Water Supply”, #2, pg 16. set for any period of time. This unit has a steel coil which, after setting, 3. Check all hose connections to ensure they are securely tightened. See will cause the water remaining in the coil from the previous usage to “Water Supply”, #3, pg. 16. turn brown or black. This contaminated water must be flushed from the 4. Inspect for system water leaks, oil leaks and fuel leaks. If a fuel leak is system before start-up. This procedure should be performed without the found, DO NOT START UNIT! See “Risk of Explosion or Fire”, pg. 7. high pressure hose, gun and nozzle assembly installed. Be sure that all damaged parts are replaced and that the mechanical problems are corrected prior to operation of the unit. If you require 1. Turn on the water supply. service, contact Customer Service. 2. Low pressure water will begin flowing from the water outlet. This al- 5. Inspect high pressure hoses for kinking, cuts and leaks. If a cut or leak lows the unit to prime and purge any air from the system. The unit is is found, DO NOT USE HOSE! Replace hose before starting unit. See primed when water flow is uninterrupted by air. “Risk of Injection” pg. 8. Be sure that all damaged parts are replaced 3. Once the system is flushed, turn off the water supply and connect the and that the mechanical problems are corrected prior to operation of high pressure discharge hose/gun to the water outlet of the unit. -
Page 11: Hot Water Operation
OPERATION OPERATION 1. Refer to the “Safety Precautions” pgs. 7-11 before starting the unit. HOT WATER OPERATION 2. Locate the Safety Decals on your unit and heed their warnings. 3. Ensure that the switch is in the “OFF” position. WARNING 4. Perform the following engine start-up procedures. THE WATER TEMPERATURE COULD BECOME VERY HOT DURING a. Point the trigger gun in a safe direction, disengage the safety lock HOT WATER OPERATION. BE CAUTIOUS WHEN ADJUSTING on the gun and squeeze the trigger. PRESSURE OR CONTROLLING THE TRIGGER GUN/ LANCE b. Brace yourself for kickback from the high pressure created by the ASSEMBLY. pump once the engine has started. c. Hold the trigger gun open while starting the engine according to the 1. Follow the steps outlined for “START-UP/COLD WATER manufacturer’s instructions in the engine manual accompanying this OPERATION”. unit. 2. Move the Burner Switch to the ON position. On initial start-up, water 5. Once the unit has started, perform the following procedures with the will begin turning hot in approximately 20 seconds and will reach gun open: maximum temperature in approximately 2-1/2 minutes, provided the a. Inspect for system water leaks, oil leaks and fuel leaks. If a fuel leak trigger remains squeezed. The burner will stop firing when the trigger is found, TURN UNIT OFF IMMEDIATELY! See “Risk of Explosion is released. or Fire”, pg. 7. Be sure that all damaged parts are replaced and that the mechanical problems are corrected prior to operation of the At this point, the unit is operating as a hot water pressure washer. Be unit. If you require service, contact Customer Service. extremely cautious when adjusting the pressure and controlling the b. Inspect high pressure hoses for kinking, cuts and leaks. If a cut or trigger gun/ lance assembly to avoid the possibility of burns. leak is found, DO NOT TOUCH HOSE AT LEAK!!! TURN UNIT OFF ... -
Page 12: Shutdown
OPERATION MAINTENANCE 1. Prepare detergent solution according to label directions. Never pump Storage & Maintenance Instructions acids, alkaline, abrasive fluids or solvents through the unit. SPECIFIC MAINTENANCE 2. Adjust the amount of detergent desired by locating the adjustment knob at the end of the clear vinyl hose. Turn the knob completely ENGINE: The engine instructions that accompany your unit detail specific counterclockwise to set at maximum siphon rate. procedures for maintenance of the engine. Following the engine 3. Fully immerse the detergent strainer into the detergent solution. manufacturer’s recommendations will extend engine work life. 4. With the trigger gun locked in the “OFF” position, securely quick- PUMP: Change the pump oil after the first 50 hours of operation. After connect the detergent spray nozzle (#65 40° BLACK) into the end of initial change, every 3 months or 250 hour intervals are recommended. the wand. If oil appears dirty or milky, changes may be required in greater 5. To apply solution; unlock the trigger gun and squeeze the trigger. In frequency. Use pump oil SAE30W non-detergent and fill only to the a few moments a detergent/water mixture will exit the nozzle. Start center of the oil sight glass. DO NOT overfill. spraying the lower portion of the surface being cleaned and move up, QUICK COUPLERS: There is an o-ring seal inside the female quick using long overlapping strokes. Applying from the bottom up helps coupler. This o-ring will deteriorate or, if the unit is allowed to pump avoid streaking. Allow to soak briefly. (Avoid working on hot surfaces without the high pressure hose or nozzle attached, the o-ring may be or in direct sunlight to minimize the chances of the detergent drying, blown out occasionally. Simply insert a replacement o-ring to correct which may result in damaging painted surfaces.) Be certain to rinse a the leak. (Additional o-rings can be purchased from your dealer.) small section at a time. 6. To rinse; lock the trigger gun in the “OFF” position, securely quick- NOZZLE: Water flow through the spray nozzle will erode the orifice, ... -
Page 13: Winterizing
MAINTENANCE MAINTENANCE 5. Repeat steps 2 and 3 until step 4 is attained. h. Holding the 3 foot hose in an upright position, completely fill the hose with water. Then plug the open end of the hose with your thumb LEAKS: Promptly eliminate any leaks found in the pumping system by or finger. Place the plugged end into the 5 gallon container of water. removing suspect parts, applying thread sealant to the threads and i. Start the unit. Trigger the gun several times until all the air is worked reinstalling. out of the system (unit is primed). j. With the trigger gun held open, siphon enough water out of the 5 NOTICE gallon container until there is just enough water left to mix with the If using Teflon tape, be certain no tape gets inside any plumbing to antifreeze. prevent the possibility of a plugged spray nozzle. k. Point the trigger gun into the empty container. (Be certain to wear safety attire for protection from splashing.) l. Trigger the gun until the antifreeze begins to exit the trigger gun. WINTERIZING Release the trigger for 3 seconds, then trigger the gun for 3 seconds. 1. For storage and transportation purposes in subfreezing ambient tem- Continue cycling the trigger gun several times until all the antifreeze peratures, it will be necessary to winterize this unit. This unit must be mixture is siphoned from the container. protected to the lowest incurred temperature for the following reasons: m. Stop the unit. a. If any part of the pumping system becomes frozen; excessive n. Detach the 3 foot hose from the unit and drain any excess antifreeze pressure may build up in the unit which could cause the unit to burst back into the 5 gallon container storage & maintenance resulting in possible serious injury to the operator or bystanders. o. Disconnect the hose and trigger gun from the unit and drain any b. The pumping system in this unit may be permanently damaged if excess antifreeze back into the 5 gallon container. frozen. FREEZE DAMAGE IS NOT COVERED BY WARRANTY. p. Drain hose, trigger gun and lance assembly and store with the unit in a safe non-freezing area. If you must store your unit in an area where the temperature may fall ... -
Page 14: Maintenance Chart
Obstructed or worn spray Remove, clean or replace. nozzle. Test water temperature* Damaged or obstructed Remove, clean or replace. Descale coil**** valve assy. on pump. Pump packings worn. Replace packings. * Must be performed by an authorized service technician. Unloader/Bypass valve not Repair or replace. ** The pump oil must be changed after the first 50 hours of operation operating correctly. and every 250 hours or 3 months, whichever comes first. Water is leaking from Water temperature is too Do not allow unit to operate in *** High pressure nozzle should be replaced whenever pressure is less Thermal Relief Valve. high. bypass mode (with the trigger than 85%. gun closed) for more than three **** Scale build-up will vary with mineral content in the water and minutes. amount of usage. Descaling can range from weekly to yearly Defective valve. Replace. maintenance. Oil appears milky or Water in oil. Change pump oil. Fill to proper ***** The engine oil must be changed after the first 8 hours of operation foamy. level. and every 50 hours or 3 months, whichever comes first. - Page 15 Ignition electrodes With unit running and trigger Pressure Detergent detergent solution. damaged or worn. gun closed, look through burner mode. Detergent strainer Inspect, clean or replace. sight glass to ensure there is obstructed. sparking across electrodes. Detergent hose cut, Inspect, clean or replace. No voltage Consult your Customer Service. obstructed or kinked. Pressure switch override. Pressure should be over 250 Detergent adjusting knob Open adjusting knob. Refer to PSI/18 Bar to allow burner to turned to closed position. “Cleaning with Detergents”. come on. Too many high pressure Use one extension maximum. High limit switch override. Unit will automatically reignite hose extensions attached to when cool. the water outlet. Improper burner air Adjust as explained on page 26. Nozzle assembly is plugged. Clean or replace. adjustment. Ball & Spring in Venturi Remove, clean or replace.
-
Page 16: Parts List
PARTS LIST PARTS LIST Parts List SPECIFICATIONS CONT. SPECIFICATIONS MODEL NUMBER HW2765HAD Electro Magnetic Firing (EMF) System: Belt Driven (Patent #5,954,494) MODEL NUMBER HW2765HAD Ignition Transistorized Magneto Operating Pressure (PSI/Bar) 2500/172 Control Voltage 12 Volt DC Water Volume (GPM/lpm) 2.4/9.1 Blower Forced Air Outlet Water Temperature (F/C) 130°F/ 54°C (+/- 20°F) rise above inlet ambient (210°F/ 99°C maximum) Heat Exchanger: Vertical, Top fi red, Dual Spiral Coil Pressure Nozzle BTU Input 185,500 Engine: Honda Effi ciency 80-83% with #2 Fuel Oil/ Diesel Model GX200 Smoke Density 0-3 per ASTM D2156... -
Page 17: Flow Chart
PARTS LIST PARTS LIST FLOW CHART GENERAL THEORY OF OPERATION FLOW CHART EMF SYSTEM WATER FLOW: Connect a pressurized water source to the INLET GAR- DEN HOSE CONNECTION (1) and turn on the water supply. The water then travels into the TRIPLEX HIGH PRESSURE PUMP (2) which has an UNLOADER (6) that bypasses the water when the trigger gun is closed. To protect the pump from heated water during this bypass stage, a HEAT DUMP VALVE (5) will open at 140°F/60°C allowing the heated water to escape. The Heat Dump Valve automatically resets when the water cools. The PRESSURE SWITCH (7) controls the fuel supply to the burner. From there, the water will flow into the HEAT EXCHANGER INLET (10) where it is heated when the burner is on. As the water exits the HEAT EXCHANGER OUTLET (11), it enters a safety system which protects the operator from danger. The safety system contains a HIGH TEMPERA- TURE LIMIT SWITCH (12) which senses the water temperature and shuts off the fuel supply to the burner if it gets too hot. If the unloader fails to bypass the water or the burner remains on when the trigger gun is closed, the SAFETY RELIEF (13) will relieve and allow water to exit FLOW CHART EMF SYSTEM safely. EMF SYSTEM The heated water then flows through the HIGH PRESSURE HOSE (14) and to the TRIGGER GUN ASSEMBLY (15) which allows the operator to control the water spray. When the trigger gun is open, the water flows ... -
Page 18: Frame Assembly
Axle 20-0524 Mi-T-M Corporation Wheel 14-0130 SCALE: DATE: 10/23/14 DRAWING SIZE: APP'D: DRAWN BY: HSP SMALL - UNIT ASSEMBLY Collar 33-0351 DRAWING/PART NO: HSP SMALL - BE UNIT ASSEMBLY Grommet 33-0001 Nozzle Holder 20-1339A01 Bolt 27-9526 Heat Exchanger/ Emf System Assembly Hose Reel Mounting Bracket 20-1395A42 Bolt 27-0072... -
Page 19: Pump Plumbing
27-0118 Mi-T-M Corporation Lockwasher 29-0008 Washer 28-0023 SCALE: DATE: 10/22/14 DRAWING SIZE: APP'D: DRAWN BY: HSP SMALL - BE ISO PLATE/PUMP PLUMBING Adapter Flange 38-0054 DRAWING/PART NO: HSP SMALL - BE ISO PLATE/PUMP PLUMBING Screw 27-8432 43-0073 Sheave 10-0076 Bolt 27-0418 Engine Emf Flange... -
Page 20: Pump Assembly
PARTS LIST PARTS LIST PUMP ASSEMBLY PUMP ASSEMBLY PUMP ASSEMBLY (3-0146) ITEM DESCRIPTION PART # Screw 27-8432 Flange 46-0715 Oil Seal 26-0192 Retaining Ring 46-0667 Needle Bearing 48-0059 Set Screw 27-8886 Crankshaft 46-0718 Plug 39-0086 O-Ring 25-0325 Bolt 27-8888 Crankshaft Cover 46-0719 O-Ring 25-0370 Oil Sight Glass 46-0670 Oil Reflector 46-0824 Spring Retainer... -
Page 21: Unloader Assembly
PARTS LIST PARTS LIST UNLOADER ASSEMBLY (8-0515) UNLOADER ASSEMBLY ITEM DESCRIPTION PART # Plug 39-0097 Lockwasher 29-0153 Bolt 27-8875 Manifold 46-0730 O-Ring 25-0372 Plug 39-0088 Support Ring (see kit 70-0182) SEE KIT V Packing (see kit 70-0181) 46-0729 Packing Retainer 46-0728 LP Seal (see kit 70-0181) 46-0727 LP Retainer 46-0726 O-Ring (see kit 70-0181) 25-0399 Oil Seal 26-0193 REPLACEMENT KITS KIT # DESCRIPTION ITEMS # OF ... -
Page 22: Pressure Switch
PARTS LIST PARTS LIST PRESSURE SWITCH (22-0243) PRESSURE SWITCH REF. # DESCRIPTION PART # O-Ring 25-0510 O-Ring 25-0386 O-Ring (see 70-0292 / 70-0366) N/A Sep. Back-up Ring 25-0408 Piston 8-0413 Valve Seat 8-0503 O-Ring (see 70-0292 / 70-0366) N/A Sep. Bolt 8-0516 O-Ring 25-0388 O-Ring 25-0370 Valve Housing O-Ring 25-0519 By-pass Housing O-Ring 25-0389 Bolt 8-0517 O-Ring 25-0406 REF. #... -
Page 23: Heat Exchanger/Emf System
Bolt 27-1201 TO FUEL TANK Fuel Hose 15-0147 SCALE: DATE: 10/21/14 DRAWING SIZE: APP'D: DRAWN BY: HSP SMALL - BE HEAT EXCHANGER/EMF SYSTEM 30-3023 DRAWING/PART NO: HSP SMALL - BE HEAT EXCHANGER/EMF SYSTEM ITEM DESCRIPTION PART # Beltguard Side 20-1295A01 Cord Bushing 32-0465 Bolt 27-1200 Fuel Hose... -
Page 24: Boiler Assembly
Electrode Bracket 20-1094A01 Fuel Nozzle Holder 23-0292 Mi-T-M Corporation Fuel Nozzle 2000 PSI 18-0310 Fuel Nozzle 1500 PSI 18-0321 SCALE: DATE: 10/14/14 DRAWING SIZE: APP'D: DRAWN BY: HSE/HSP SMALL - BE BOILER ASSY Fuel Nozzle 1000 PSI 18-0268 DRAWING/PART NO: HSE/HSP SMALL - BE BOILER ASSY Top Pan 20-1263 Acorn Nut 30-6002 Lockwasher 28-1028... -
Page 25: Gun/Wand/Hose Assembly
PARTS LIST PARTS LIST FUEL TANK FUEL TANK GUN/WAND/HOSE ASSEMBLY FUEL TANK GUN / WAND / HOSE ASSEMBLY HSE_HSP SMALL FUEL FUEL TANK ASSEMBLY ITEM DESCRIPTION FUEL CAP FUEL TANK FUEL GAUGE GROMMET ITEM DESCRIPTION FUEL GAUGE FUEL CAP ELBOW FUEL GAUGE GROMMET FUEL PICK UP FUEL GAUGE... -
Page 26: Electric Box Assembly
PARTS LIST PARTS LIST FUEL PUMP (3-0020) ELECTRIC BOX ASSEMBLY FUEL PUMP ELECTRIC BOX ASSEMBLY FUEL PUMP (3-00 REF. # DESCRIPTION Fuel Pump Complete-Right Hand Cover Screw Cover-Right Hand Strainer FUEL PUMP (3-0020) Cover Gasket REF. # DESCRIPTION PART # Plug FUEL PUMP (3-0020) Fuel Pump Complete 3-0020 Body... -
Page 27: Emf System
PARTS LIST PARTS LIST EMF SYSTEM EMF SYSTEM (850-0403) ITEM DESCRIPTION PART # 850-0403 031113 CH EMF Assembly 850-0403 EMF SYSTEM ITEM DESCRIPTION PART # Blower Fan 44-0099 EMF ASSEMBLY 850-0403 BLOWERN FAN 44-0099 Set Screw 30-3021 SET SCREW 30-3021 LOCKNUT 30-0177 Locknut 30-0177 BLOWER FLANGE ASSEMBLY 850-0402 SEALED BEARING... -
Page 28: Statement Of Warranty
PARTS LIST WARRANTY WIRING SCHEMATIC WIRING SCHEMATIC STATEMENT OF WARRANTY The manufacturer warrants all parts, (except those referred to below), of your new pressure washer to be free from defects in materials and work- manship during the following periods: For Lifetime against freezing and cracking: Pump Manifold For Seven (7) Years from the date of original purchase: High Pressure Pump WIRING DIAGRAM For Three (3) Years from the date of original purchase: WIRING DIAGRAM Heat Exchanger Coil For Two (2) Years from the date of original purchase: Frame Plumbing Guard or Shields Pulleys For One (1) Year from the date of original purchase: Adjustable Thermostat GFCI Cord Selector switch Starter Contactor Overload For Six (6) months from the date of original purchase: Ignition Transformer Burner Motor For Ninety (90) days from the date of original purchase: Unloader Valve Electrodes Fuel solenoid High Limit thermostat Fuel Pump Pressure Switch Safety Relief Valve For Thirty (30) days from the date of original purchase: Copyright 2013 High Pressure Hose Trigger Gun... -
Page 29: Warranty Exclusions
WARRANTY WARRANTY EXCLUSIONS 1. The motor is covered under separate warranty by its respective manufacturer and is subject to the terms set forth therein. 2. Normal wear parts: Pump Packings Spray Nozzles Pump Valves Detergent Valves Fuel Filters Quick Couplers/screw connects O-rings Belts 3. This warranty does not cover parts damaged due to normal wear, misapplication, misuse, operation at other than recommended speeds, pressures or temperature. Parts damaged or worn because of the use of caustic liquids or by operation in abrasive or corrosive environments or under conditions causing pump cavitation are not warranted. Failure to follow recommended operating and maintenance procedures also voids warranty. 4. The use of other than Genuine Repair Parts will void warranty. Parts returned, prepaid to our factory or to an Authorized Service Center will be inspected and replaced free of charge if found to be defective and subject to warranty. There are no warranties which extend beyond the description of the face hereof. Under no circumstances shall the manufacturer bear any responsibility for loss of use of the unit, loss of time or rental, inconvenience, commercial loss or consequential damages. - Page 31 THE POWER YOU NEED. If you need assistance with the assembly or operation of your Pressure Washer please call 1-866-850-6662...
