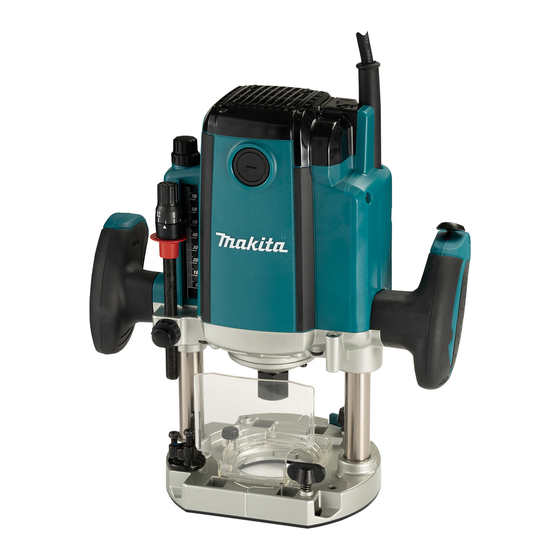

Makita RP1803F Instruction Manual
Hide thumbs
Also See for RP1803F:
- Instruction manual (99 pages) ,
- Instruction manual (97 pages) ,
- Instruction manual (77 pages)
Related Manuals for Makita RP1803F
Summary of Contents for Makita RP1803F
- Page 1 INSTRUCTION MANUAL Router RP1802 RP1802F RP1803 RP1803F RP2302FC RP2303FC DOUBLE INSULATION Read before use.
-
Page 2: Specifications
SPECIFICATIONS Model: RP1802 RP1802F RP1803 RP1803F RP2302FC RP2303FC Collet chuck capacity 12 mm or 1/2″ Plunge capacity 0 - 70 mm No load speed 23,000 min 22,000 min 9,000 - 23,000 min Overall height 312 mm 327 mm Net weight 6.2 kg... -
Page 3: Ec Declaration Of Conformity
Vibration emission (a ) : 5.1 m/s Keep children and bystanders away while Uncertainty (K) : 1.5 m/s operating a power tool. Distractions can cause Model RP1803F you to lose control. Work mode: cutting grooves in MDF Electrical safety Vibration emission (a ) : 5.1 m/s... - Page 4 Do not expose power tools to rain or wet con- Always wear protective goggles to protect your eyes ditions. Water entering a power tool will increase from injury when using power tools.The goggles the risk of electric shock. must comply with ANSI Z87.1 in the USA, EN 166 in Europe, or AS/NZS 1336 in Australia/New Zealand.
-
Page 5: Router Safety Warnings
Service WARNING: DO NOT let comfort or familiarity Have your power tool serviced by a qualified with product (gained from repeated use) replace repair person using only identical replacement strict adherence to safety rules for the subject parts. This will ensure that the safety of the power product. -
Page 6: Nylon Nut
Nylon nut Switch action CAUTION: CAUTION: Do not lower the nylon nut too low. Before plugging in the tool, always The router bit will protrude dangerously. check to see that the switch trigger actuates properly and returns to the "OFF" position when released. The upper limit of the tool body can be adjusted by CAUTION: Make sure that the shaft lock is... - Page 7 23,000 the tool start smoothly. Lighting up the lamps Constant speed control Only for model RP1802F, RP1803F, RP2302FC, Only for model RP2302FC, RP2303FC RP2303FC Possible to get fine finish, because the rotating speed is kept constant even under the loaded condition.
-
Page 8: Operation
Insert the router bit all the way into the collet cone. Turn the tool on and wait until the router bit attains full speed. Press the shaft lock to keep the shaft stationary and use the wrench to tighten the collet nut securely. Lower the tool body and move the tool forward When using router bits with smaller shank diameter, first over the workpiece surface, keeping the base flush and... - Page 9 If the distance between the side of the workpiece and Straight guide the cutting position is too wide for the straight guide, or if the side of the workpiece is not straight, the straight The straight guide is effectively used for straight cuts guide cannot be used.
- Page 10 When set to maximum opening width Fine adjusting function for positioning blade in relation to straight guide Fig.20 Templet guide Fig.17 ► 1. Thumb screw (A) 2. Thumb screw (B) 3. Scale ring Optional accessory The templet guide provides a sleeve through which the Loosen the thumb screw (A).
- Page 11 Secure the templet to the workpiece. Place the Install the trimmer guide on the guide holder using the clamp- tool on the templet and move the tool with the templet ing screw (D). Insert the guide holder into the holes in the tool guide sliding along the side of the templet.
- Page 12 Connect a vacuum cleaner to the dust nozzle. Fig.31 ► 1. Screw M6 x 135 in a screw hole Fig.28 How to use screw M6 x 135 for adjusting the depth of cut When using the tool with a router table available in the market, using this screw allows an operator to obtain a small amount of adjustment of the depth of cut from above the table.
-
Page 13: Maintenance
CAUTION: perform inspection or maintenance. These accessories or attachments are recommended for use with your Makita tool NOTICE: Never use gasoline, benzine, thinner, specified in this manual. The use of any other alcohol or the like. Discoloration, deformation or accessories or attachments might present a risk of cracks may result. - Page 14 “V”Grooving bit Router bits Straight bit Fig.38 Unit:mm Fig.36 θ Unit:mm 1/4″ 90° Drill point flush trimming bit 1/4″ 1/2″ 1/2″ 1/4″ 1/4″ Fig.39 “U”Grooving bit Unit:mm Fig.37 Unit:mm 14 ENGLISH...
- Page 15 Drill point double flush trimming bit Corner rounding bit Fig.40 Fig.42 Unit:mm Unit:mm Board-jointing bit Chamfering bit Fig.41 Fig.43 Unit:mm Unit:mm θ 30° 45° 60° 15 ENGLISH...
- Page 16 Cove beading bit Ball bearing corner rounding bit Fig.44 Fig.46 Unit:mm Unit:mm 1/4″ Ball bearing flush trimming bit Ball bearing chamfering bit Fig.45 Fig.47 Unit:mm Unit:mm θ 1/4″ 45° 1/4″ 60° 16 ENGLISH...
- Page 17 Ball bearing beading bit Ball bearing roman ogee bit Fig.48 Fig.50 Unit:mm Unit:mm Ball bearing cove beading bit Fig.49 Unit:mm 17 ENGLISH...
- Page 18 Makita Europe N.V. Jan-Baptist Vinkstraat 2, 3070 Kortenberg, Belgium Makita Corporation 3-11-8, Sumiyoshi-cho, Anjo, Aichi 446-8502 Japan 885917A222 www.makita.com 20210622...
